Dash Cam Registrar Surveillance Video Recorder MDVR Camera for Truck RV Bus 1080P HD DVR with Night Vision
- Category: >>>
- Supplier: Shenzhen Xianghan Technology Co. Ltd.
Share on (1600224282958):
Product Overview
Description

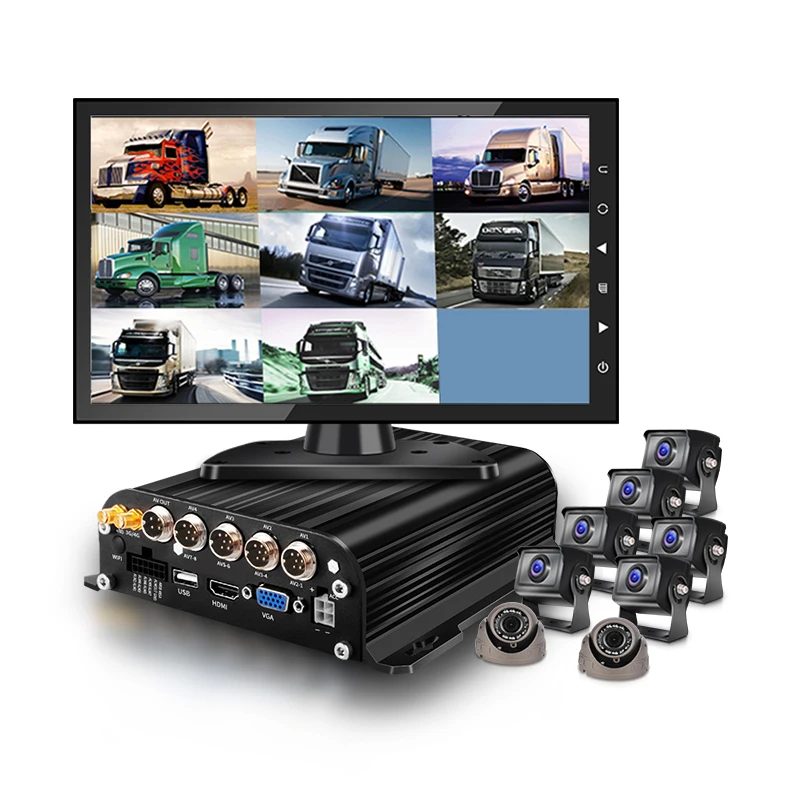

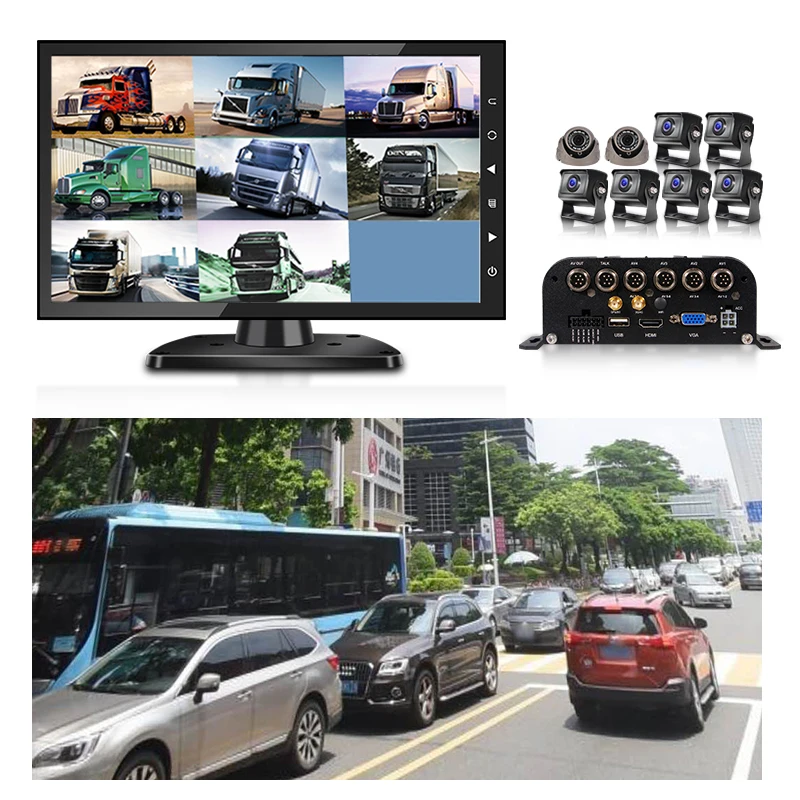

Dash Cam Registrar Surveillance Video Recorder MDVR Camera for Truck RV Bus 1080P HD DVR with Night Vision
Product Description
MDVR is a cost-effective device specially developed for video surveillance and remote monitoring of cars and trains. It uses HiSilicon high-speed processor and embedded Linux platform development, combined with the most advanced H.265 video compression/decompression technology in the IT field. Using hard disk or SD card as storage medium, MDVR can realize 4 channels of 1080P, 720P CIF, HD1 and D1 format audio and video recording, and car driving information recording function. MDVR products have the characteristics of simple appearance, super anti-vibration, flexible and convenient installation, powerful functions and high reliability.
Included:
8CH MDVR With 4G GPS*1

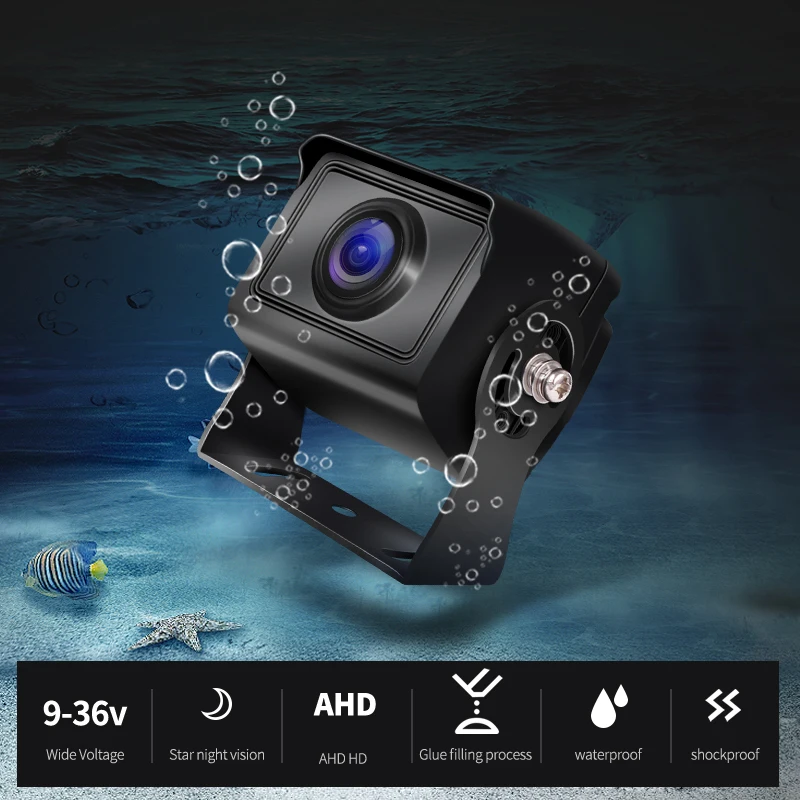

1080P Camera*8
10.1 Inch Monitor*1
5M Cable*6+15M Cable*2
1080P MDVR Specification | |
Power | Voltage Input: DC8-48V Voltage Output: DC12V (+/-0.2V, max. 2.0A) / DC5V (+/-0.2V, max. 0.5A) |
System | Main Processor: Hi3520DV300 Operating system: Embedded Linux OS Language: Chinese/English OSD: Graphical User interface OSD menu Password: Users Password/ Administrator Password |
Video | Video input: 4CH (8CH)AHD or Analog Video Inputs Video output: 1CH Video Inputs (1.0Vp-p/ 75 Ohms), 1CH VGA output Preview: 1 CH/ 4 CH Preview. Recording Ratio: PAL: 25 Frame/s; NTSC: 30 Frame/s Image Compression: H.264 or H.265 Main profile/MJPEG Video Standard: PAL/NTSC Image Resolution: 1080P/1080N/720P/960H/D1/CIF Playback quality: 1080P/1080N/720P/960H/D1/CIF |
Audio | Audio input: 4-CH( 8CH) Audio output: 1-CH Audio Bit Rate: 8KB/S Recording mode: Audio & Video sync. |
Image processing & Storage | Video Quality: 1080P/720P/960H/D1/CIF each channel; Highest Video Quality: 4CH Full 1080P Bit Rate: 1080P: 2048Kbps~6144Kbps; D1: 512Kbps~1536Kbps; 6 levels optional. Storage: 2TB Hard Disk & 128GB SD Card (maximum) |
Alarm | Alarm input: 4 alarm inputs Alarm output: 1 alarm output |
Firmware Upgrading | Upgrading mode: Manual/Automatically/Remote/Emergency Recovery Upgrading method: USB disk/Wireless network/SD card |
Interface | RJ45 Interface: No AV input: 4/8 ch Aviation interface AV output: 1ch VGA video output, 1ch Aviation AV output Ignition input: 1 ACC signal UART: 1 LVTTL Level USB 2.0 Port: Yes RS232 Interface: 1-RS232 interface |
Wireless | 3G/4G: Optional,Supports CDMA/EVDO/GPRS/WCDMA/FDD; LTE/TDD LTE Wi-Fi: Optional (Wi-Fi Client/ Wi-Fi Hotpot),(Wi-Fi Client/ Wi-Fi Hotpot),802.11b/g/n, 2.4GHz External GPS Module: (Optional) ,Support detecting antenna Plug in/Unplug/Short |
Operation Environment | Temperature: -20°~70° Humidity: 10% to 95% |
Feature :
- Support Mouse operating
- Support reversing aid setting
- Proprietary SD card bad track detection technology to ensure video continuity and extend SD lifespan
- Built-in super capacitor to avoid abnormal power loss data loss and disk damage
- Support intelligent power management identification, low power automatic shutdown, flameout low power consumption
- Various protection circuits such as undervoltage, short circuit, and reverse connection are applicable to various models
