Hospital Equipment Adjustable Rate LCD Display Portable IV Infusion Set Disposable Infusion Pump Price
- Category: Other Emergency & Clinics Apparatuses >>>
- Supplier: Beijing,KellyMed,Co.,Ltd.
Share on:
Product Overview
Description
Product Paramenters

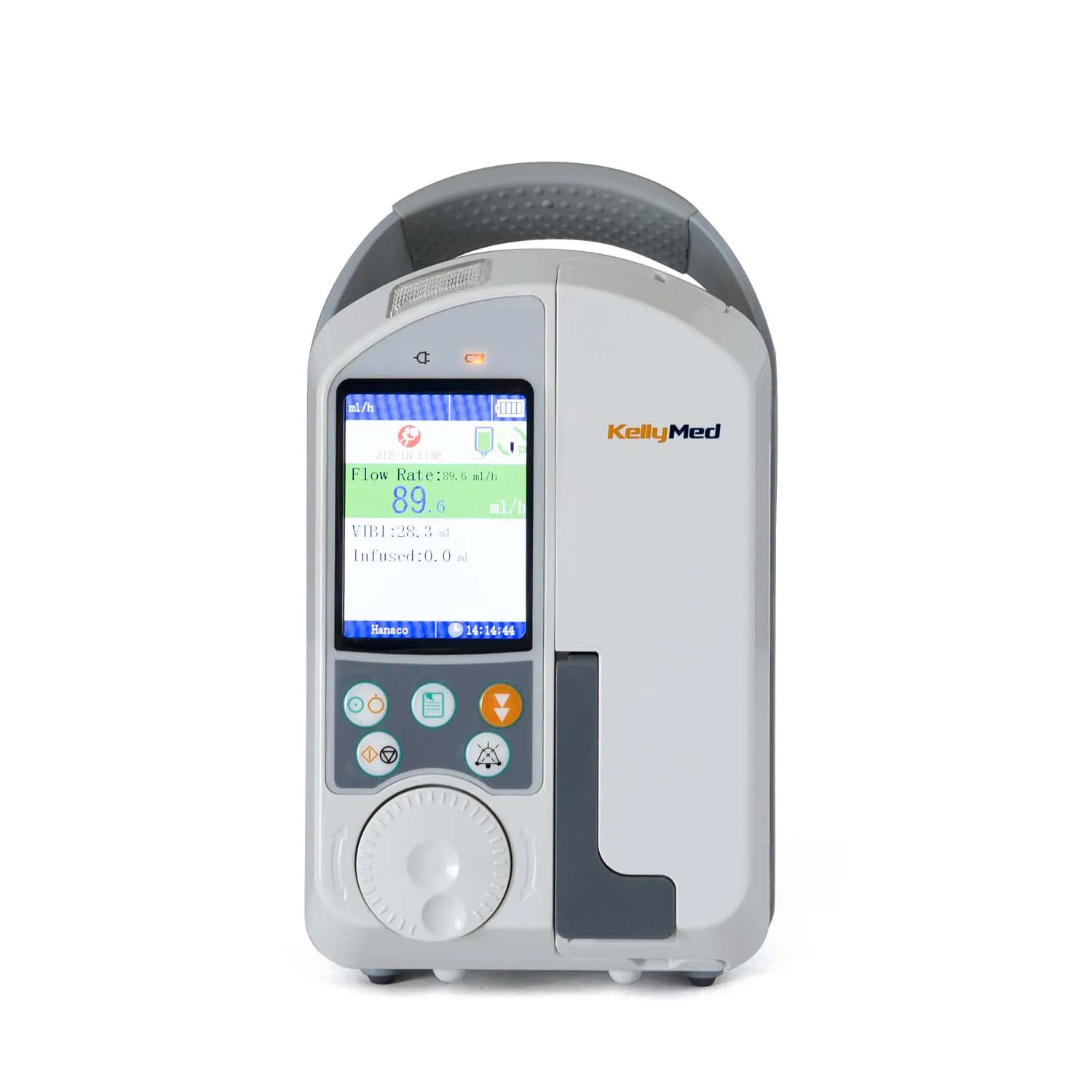

Model | ZNB-XAII |
Pumping Mechanism | Curvilinear peristaltic |
IV Set | Compatible with IV sets of any standard |
Flow Rate | 1-1500 ml/h (in 0.1 ml/h increments) |
Purge, Bolus | 100-1500 ml/h (in 0.1 ml/h increments) Purge when pump stops, bolus when pump starts |
Accuracy | ±3% |
*Inbuilt Thermostat | 30-45℃, adjustable |
VTBI | 1-20000 ml (in 0.1 ml increments) |
Infusion Mode | ml/h, drop/min, time-based, body weight, nutrition |
KVO Rate | 0.1-5 ml/h (in 0.1 ml/h increments) |
Alarms | Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, standby |
Additional Features | Real-time infused volume, automatic power switching, mute key,purge, bolus, system memory, history log, key locker, drug library,rotary knob, change flow rate without stopping the pump |
Drug Library | Available |
Occlusion Sensitivity | High, medium, low |
History Log | 50000 events |
Air-in-line Detection | Ultrasonic detector |
Wireless management | Optional |
Drop Sensor | Optional |
Vehicle Power (Ambulance) | 12±1.2 V |
Power Supply, AC | 110/230 V (optional), 50-60 Hz, 20 VA |
Battery | 9.6±1.6 V, rechargeable |
Battery Life | 5 hours at 25 ml/h |
Working Temperature | 10-30℃ |
Relative Humidity | 30-75% |
Atmospheric Pressure | 860-1060 hpa |
Size | 130*145*228 mm |
Weight | 2.5 kg |
Safety Classification | Class Ⅰ, type CF |
Products Display
Product Details
1.Built-in thermostat: 30-45℃ adjustable.
This mechanism warms IV tubing to increase infusion accuracy.
This is a unique feature compare to other Infusion Pumps.
2. Wide range of flow rate & VTBI.

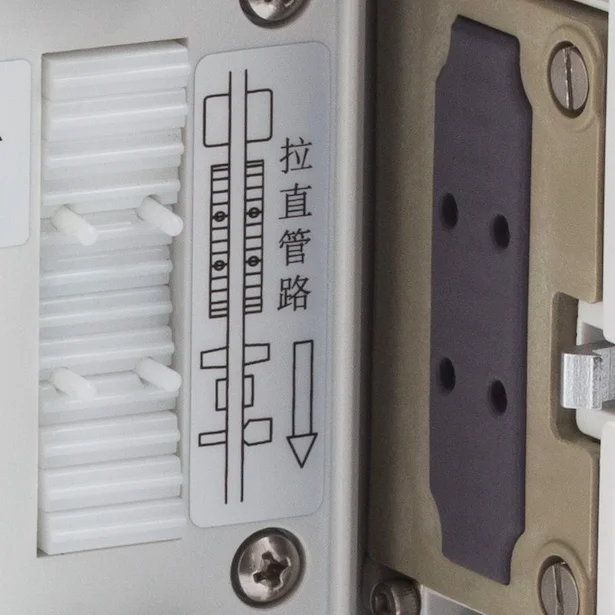

3. Anti-free-flow function to make infusion safer.
4. Vehicle power (Ambulance)
5. History log: 50000 events.

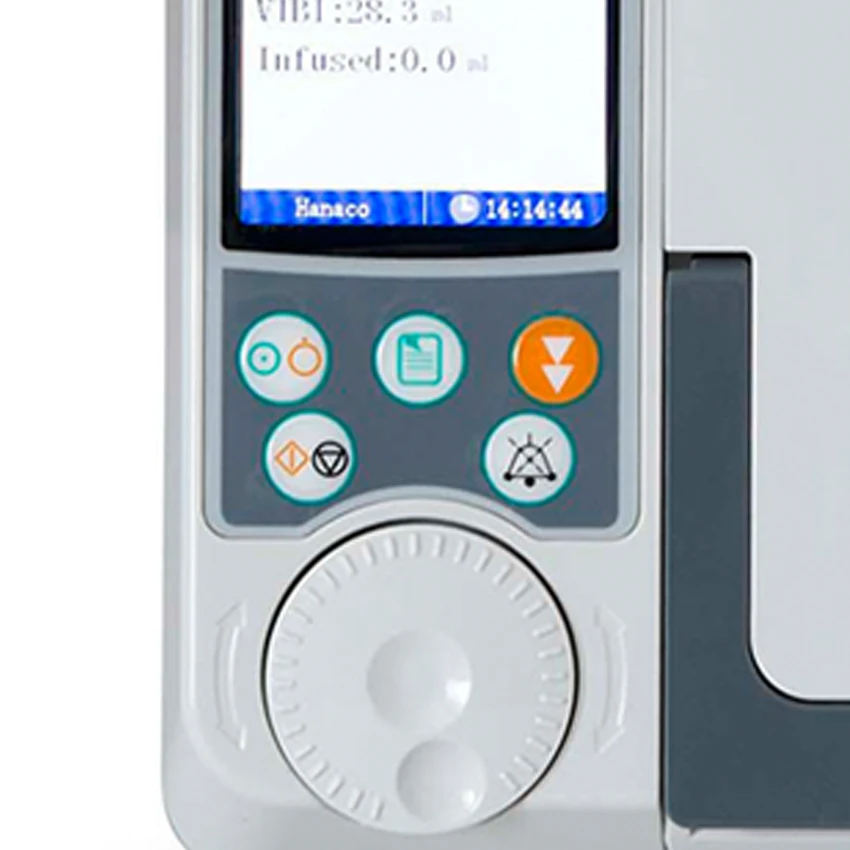

6. Change flow rate without stopping the pump.
This mechanism warms IV tubing to increase infusion accuracy.
This is a unique feature compare to other Infusion Pumps.
2. Wide range of flow rate & VTBI.
3. Anti-free-flow function to make infusion safer.
4. Vehicle power (Ambulance)
5. History log: 50000 events.
6. Change flow rate without stopping the pump.
Company Profile
Founded in 1994, Beijing KellyMed Co., Ltd. is a high technology corporation engaged in R&D, manufacturing and marketing of infusion systems, supported by Institute of Mechanics, Chinese Academy of Sciences.
Manufacturing Facility, R&D Center, QC Division, Domestic Sales Division, Int’l Sales Division and Customer Support Center were established under KellyMed.
Engineers are major in Physics, Infrared Radiation, Electronics, Ultrasound, Automation, Computer, Sensor and Mechanics.
57 patents were granted by State Intellectual Property Office of China. KellyMed is ISO13485 certified. Most of the products are CE marked.
In 1994, KellyMed developed the original Chinese-made Infusion Pump. Mr. Qian Xinzhong, the former Minister of Health wrote an inscription for our innovation.
The company today produces world-class equipments, which are sold not only in China, but also exported to more than 60 countries across Europe, Oceania, South America and Asia.
As a main player in this field, KellyMed focused on infusion technology for last 30 years.
Product Range of medical equipment:
1. Infusion Pump
2. Syringe Pump
3. Feeding Pump
4. TCI Pump
5. Docking Station
6. Intermittent Pneumatic Compression
Product Range of medical disposables:
1. Feeding Set
2. Nasogastric Tube
3. Dedicated IV Set
Manufacturing Facility, R&D Center, QC Division, Domestic Sales Division, Int’l Sales Division and Customer Support Center were established under KellyMed.
Engineers are major in Physics, Infrared Radiation, Electronics, Ultrasound, Automation, Computer, Sensor and Mechanics.
57 patents were granted by State Intellectual Property Office of China. KellyMed is ISO13485 certified. Most of the products are CE marked.
In 1994, KellyMed developed the original Chinese-made Infusion Pump. Mr. Qian Xinzhong, the former Minister of Health wrote an inscription for our innovation.
The company today produces world-class equipments, which are sold not only in China, but also exported to more than 60 countries across Europe, Oceania, South America and Asia.
As a main player in this field, KellyMed focused on infusion technology for last 30 years.
Product Range of medical equipment:
1. Infusion Pump
2. Syringe Pump
3. Feeding Pump
4. TCI Pump
5. Docking Station
6. Intermittent Pneumatic Compression
Product Range of medical disposables:
1. Feeding Set
2. Nasogastric Tube
3. Dedicated IV Set
Packing & Delivery

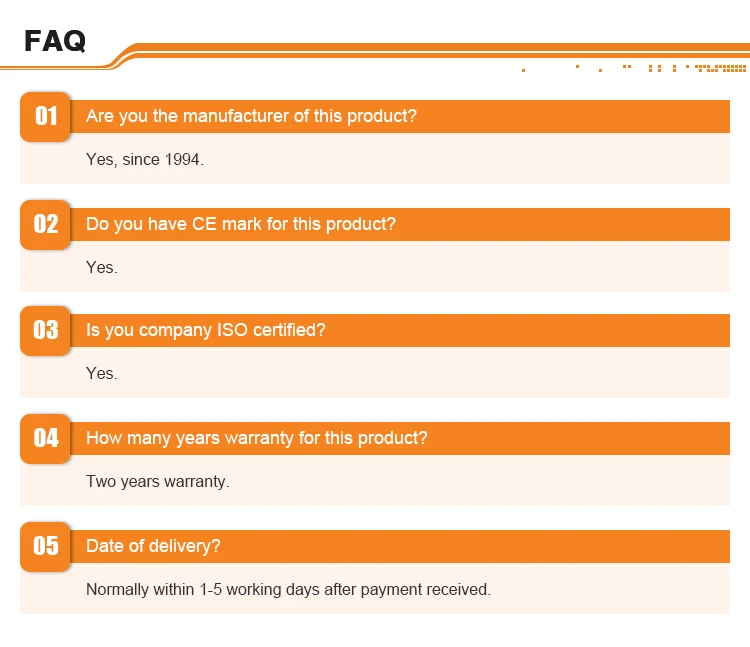

FAQ
