Product Overview
Description

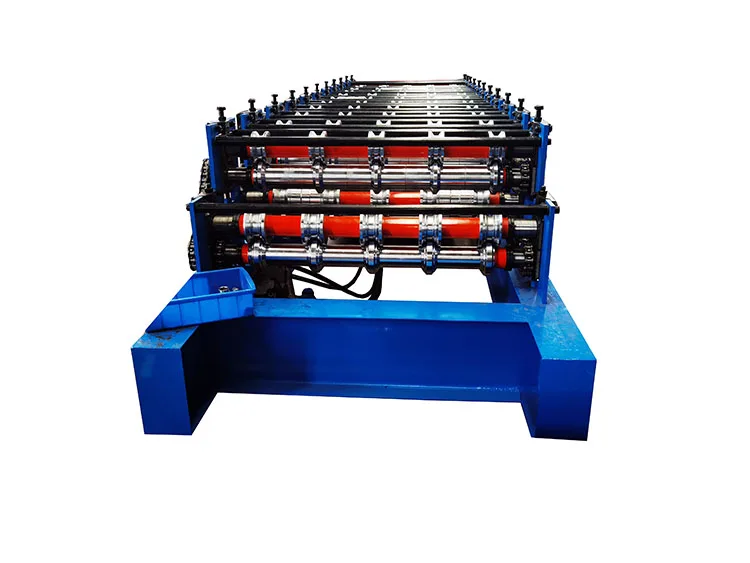

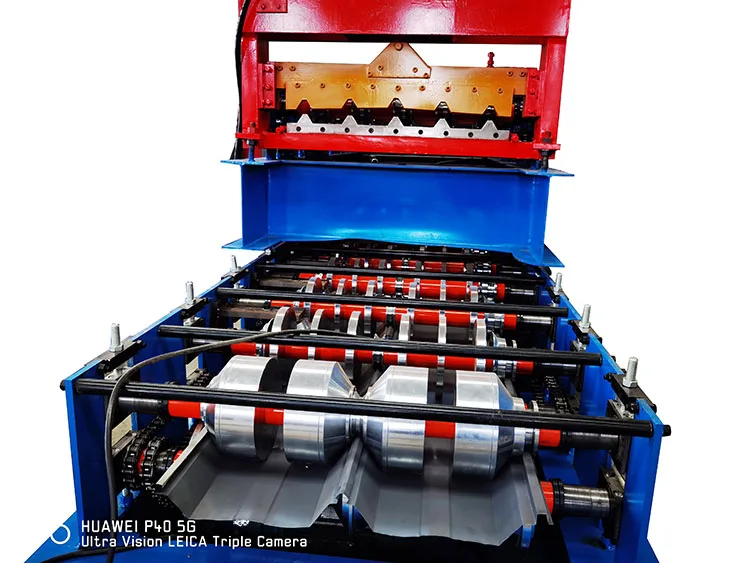

Zinc Corrugated Roofing Sheet Making machine UPVC GLAZE ROOFING TILE MACHINE, PLASTIC ROOF TILES MAKING MACHINE CHINA
Product Description
material :color steel sheet | |
Machine type | Full automatic |
Voltage | 220V 60HZ 3phrase or as customized |
Frame | 300H steel welding |
Quality of the wheel | 13 |
Diameter of the wheel | 70mm |
Color sheet thickness(mm) | 0.4-0.8mm |
Thickness of the frame | 16mm |
Machine speed | 13m/min
|
Cutting material | The shear knife is made of Cr12MoV material and quenched at high temperature (20 mm thickness) |
Material of roll shaft | 45 #steel quenching and tempering, fine turning, fine grinding machining |
Material of press roll die | 45#Steel vacuum quenching, CNC finish turning |
motor(kw) | 4KW servo motor |
Inverter | 5.5KW Delta |

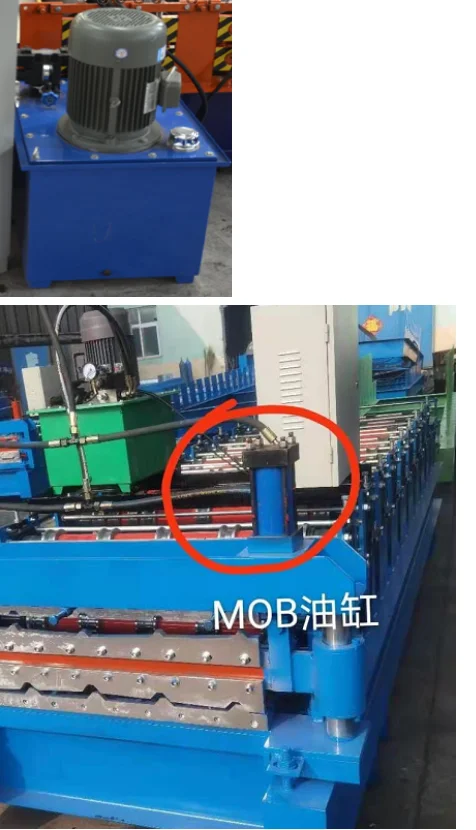

Power of equipment hydraulic system | 4KW Large pump head hydraulic pump |
Cutting type | Hydraulic guide pillar shear MOB four tank
|

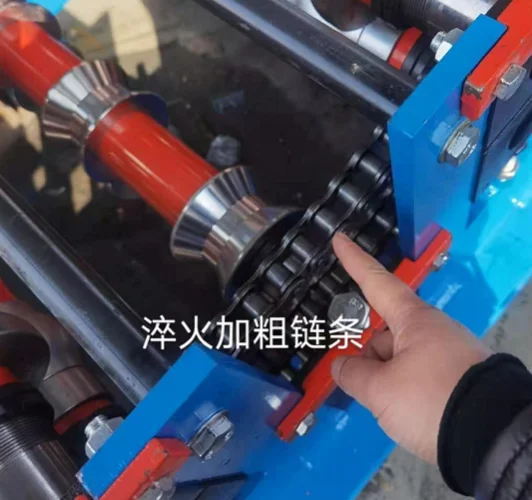

Chain | Hangzhou Zixiang brand, 1 inch chain, quenching |
PLC brand | Sanjing |
Screen brand | Xinjie |
Motor | Copper core motor |
Oil pump motor | Copper core motor |
Drive type | High strength 1 inch Chain + sprocket drive |

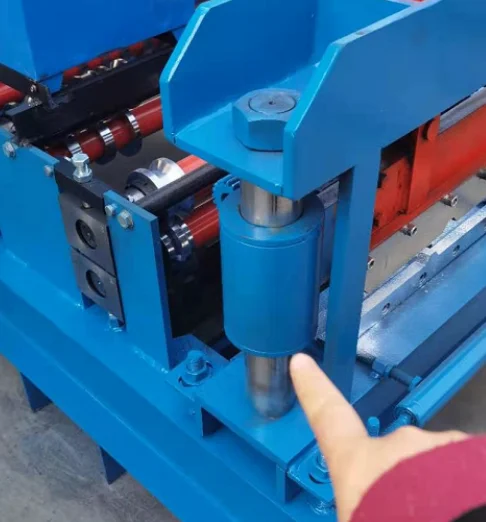

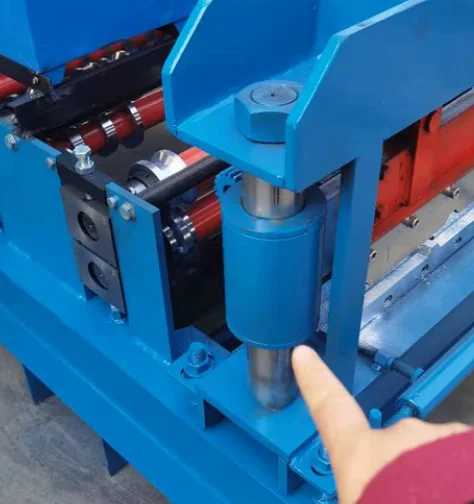

cutting | Hydraulic guide pillar is used for shearing |
hydraulic pump | |
Machining accuracy | 0.2mm |
Length accuracy | 1mm |
Machine weight | 2.5tons |
Electrical parts | zhengtai+delixi |

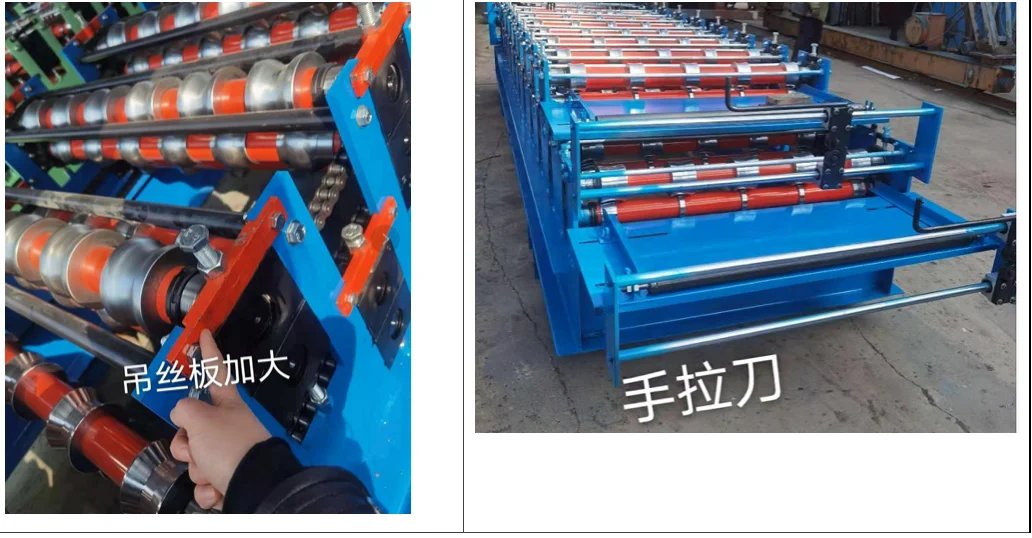

| details |  |

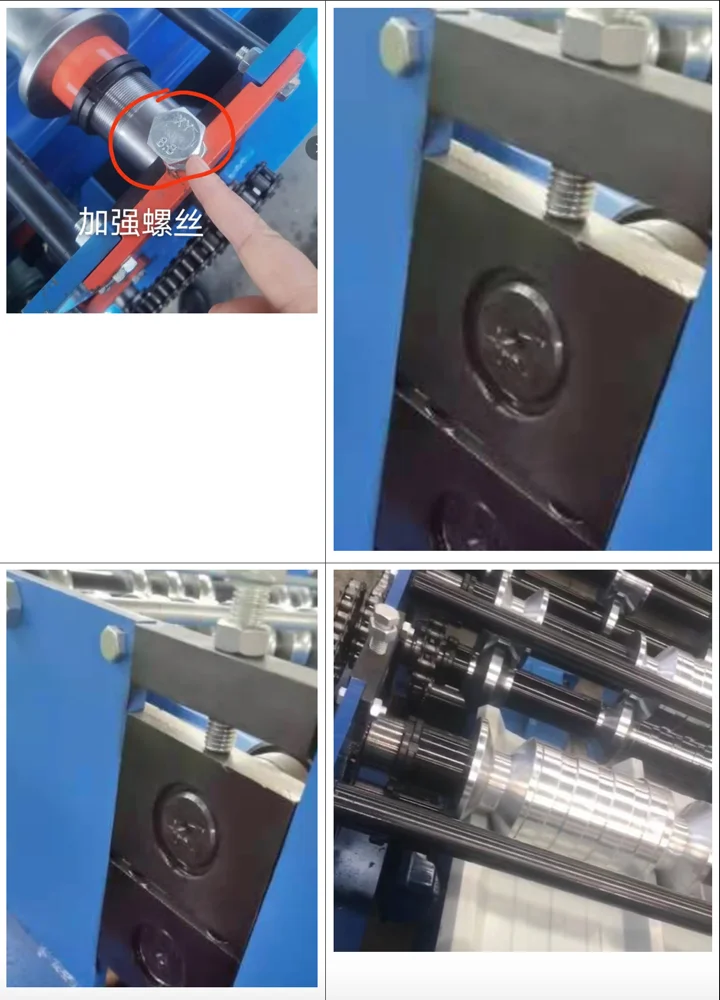

| details 2 |  |

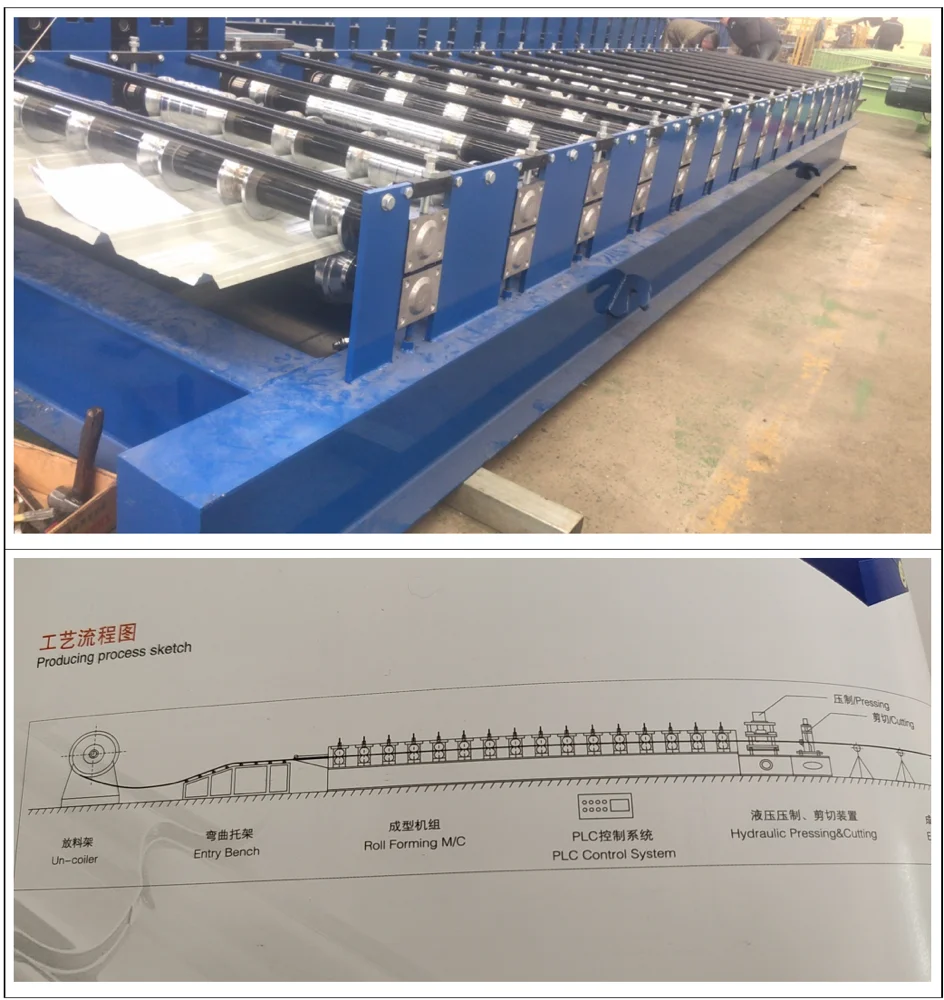

| details 3 |  |
 | |
| |
Related Products
Company Profile
Main country:
USA , Mexico , New zealand , Russia , Italy , Turkey , Philippines , Singapore,Kuwait,Thailand , Albania , Tanzania , India and Trinidad and Tobago , Australia Uzbekistan , Kazakhstan , Kuwait , Malaysia , cambodia , vietnam , Myanmar, Algeria , Kenya , South Africa , Swaziland , Mozambique , United Arab Emirates , Oman , Japan.
Packaging and logist
Q:what is the delivery time?
A:We have the machine in stock.
Q:how many workers need for the machine?
A:Only one.
Q:what is the voltage of the machine?
A:The voltage of the machine can be customized as your local.
Q:what is the width of the machine
A:2-6m width.
A:if you want to know more information to the machine, pls inform me,I will try my best to support you.
