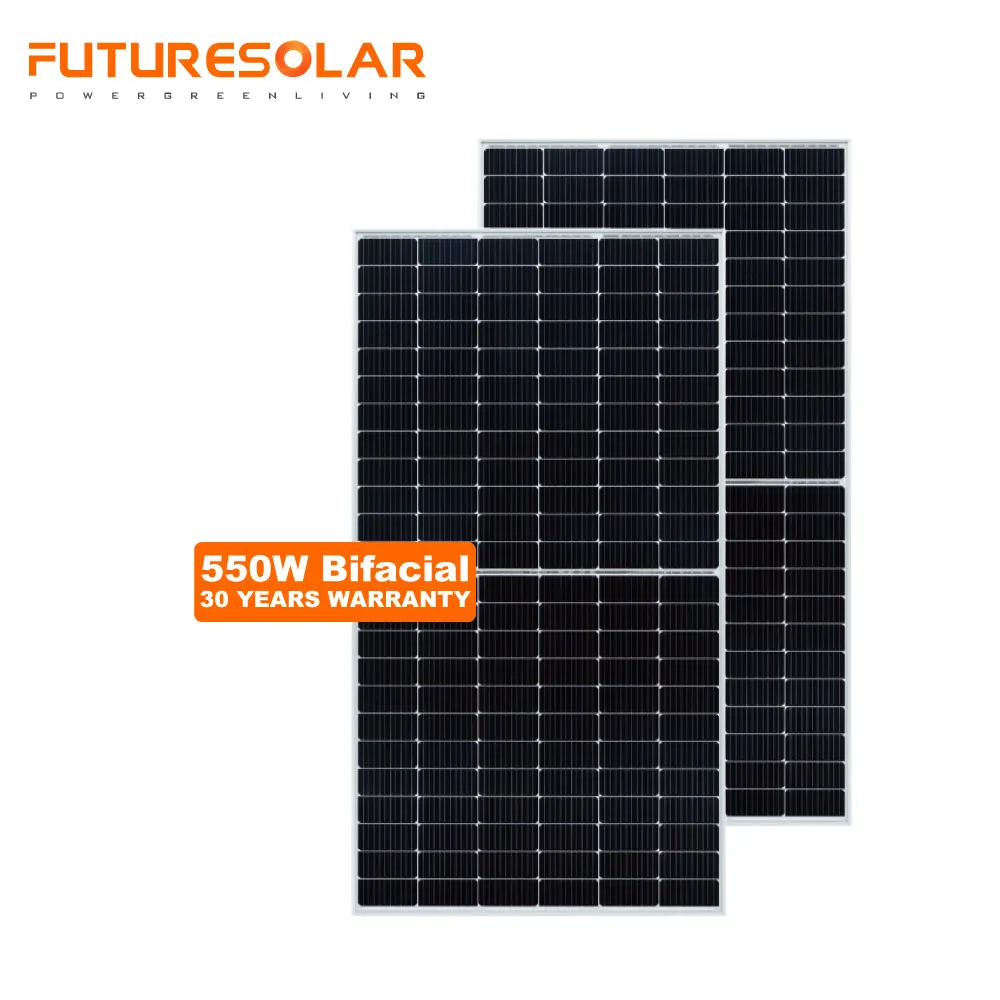

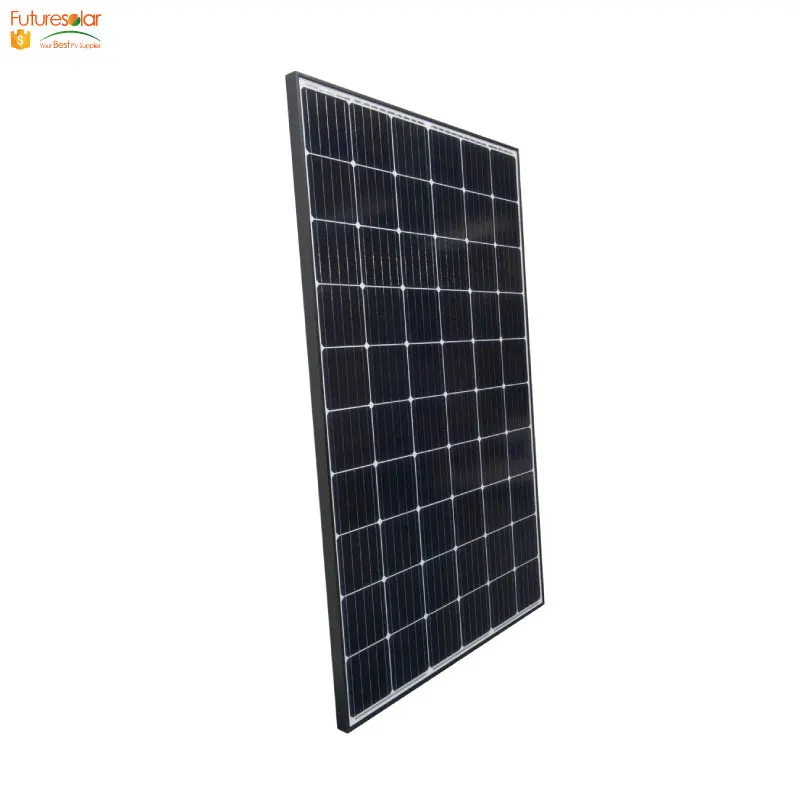

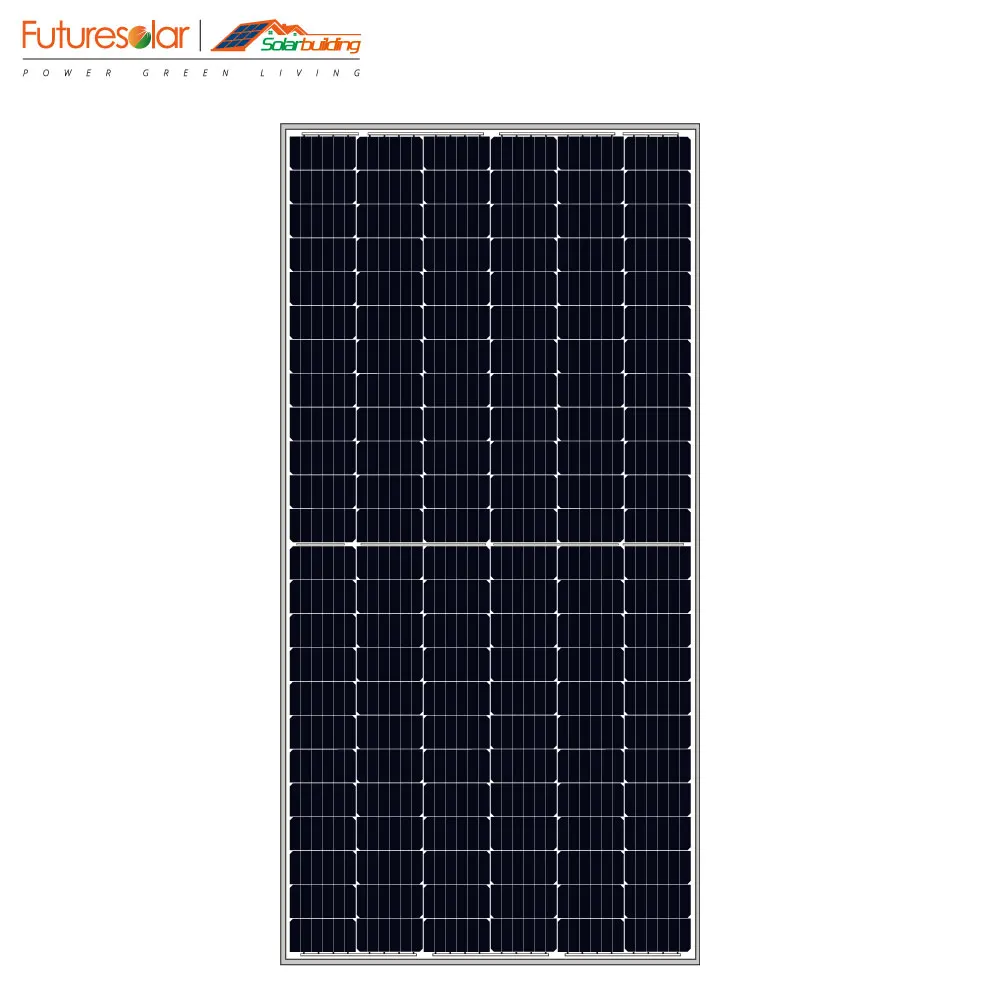

Wholesale solar cell panel 570Wp 575Wp 580Wp 585Wp 590Wp 1000w solar panel with low paneles solares costos
- Category: >>>
- Supplier: XUZHOU FUTURESOLAR CO. LTD
Share on (1600224328419):
Product Overview
Description
Product Paramenters
Model | FSM570M-72H | FSM575M-72H | FSM580M-72H | FSM585M-72H | FSM590M-72H | ||||
Nominal Power | 570W | 575W | 580W | 585W | 590W | ||||
Maximum Power Voltage(Vmp) | 44V | 44.2V | 44.4V | 44.6V | 44.8V | ||||
Short-circuit Current(Isc) | 13.69A | 13.75A | 13.81A | 13.87A | 13.94A | ||||
Open-circuit Voltage(Voc) | 52.9V | 53.1V | 53.3V | 53.5V | 53.7V | ||||
Maximum Power current(Imp) | 12.96A | 13.01A | 13.07A | 13.12A | 13.17A | ||||
Module Efficiency(%) | 20.3% | 20.5% | 20.7% | 20.9% | 21.0% | ||||
Power Tolerance | 0~+5W | ||||||||
Maximum System Voltage | 1000V / 1500V DC(IEC) | ||||||||
Operating Temperature | -40 ℃ to 85 ℃ | ||||||||
\t\t\t\t\t\t\t\t\tDetailed &Production \t\t\t\t\t\t\t
Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
Junction box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
\t\t\t\t\t\t\t\t\tProjects \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tWho Is Futuresolar \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPayment \t\t\t\t\t\t\t
Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||||
FOB | |||||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L (Not Suitable for Solar System Orders) | ||||||
CIF | |||||||
DDP | |||||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight (Not Suitable for Solar System Orders) | ||||||
West Union | Amount lower than 5000usd | ||||||
Delivery Time | 7~10days after receiving payment for one container | ||||||
