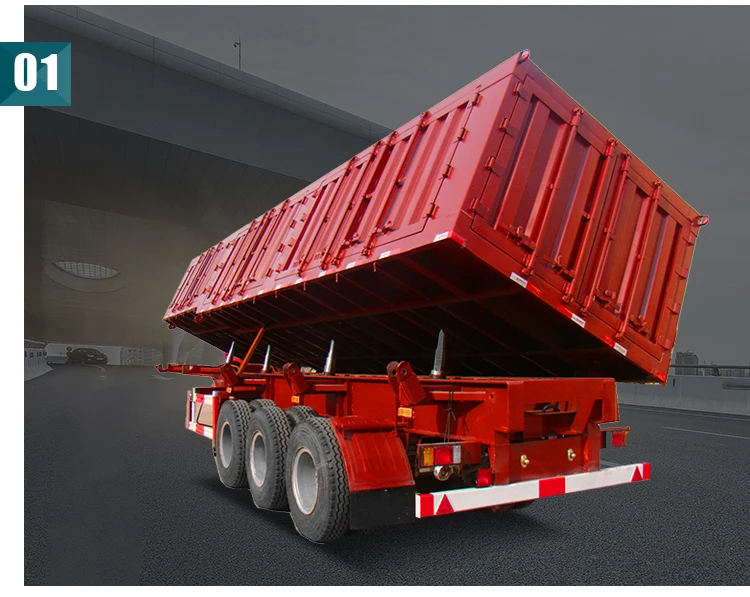

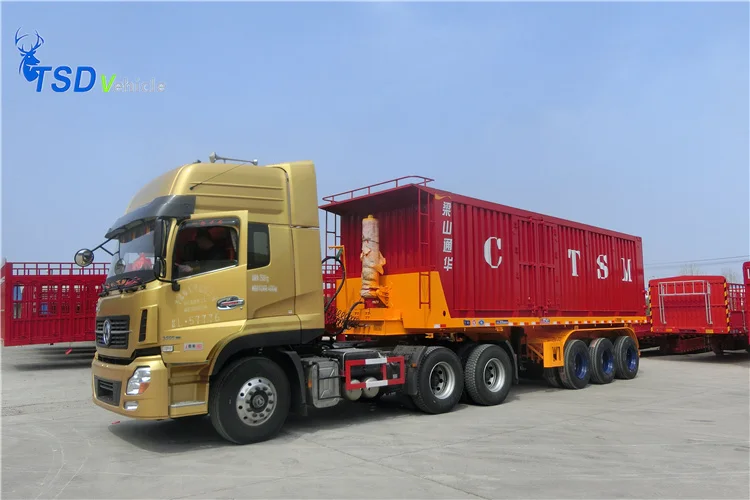

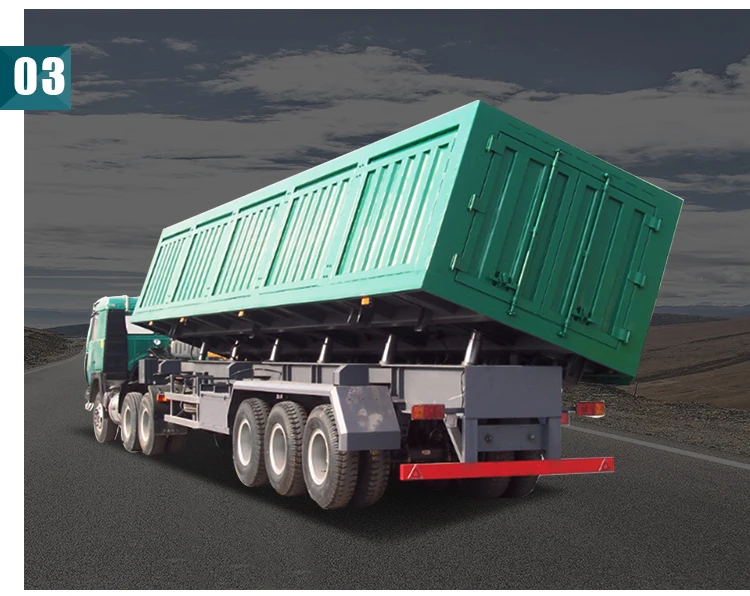

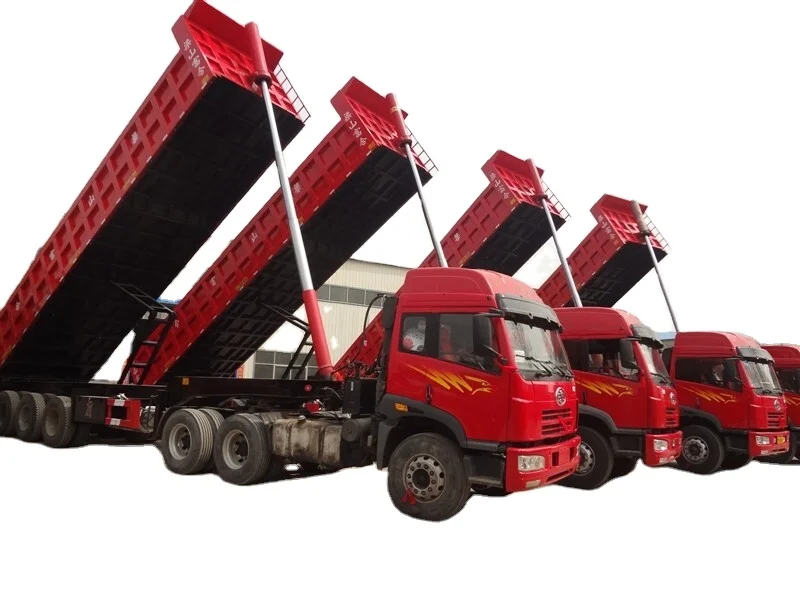

Factory price 3 axle side tipper truck dumper semi trailer dump truck
- Category: >>>
- Supplier: Shandong Tsd Special Vehicle Manufacturing Co. Ltd.
Share on (1600224349259):
Product Overview
Description
Products Description
Dump type semi trailer mainly used in the transportation of earth, ore, building materials and other bulk cargo.With the hydraulic dumping system,it can realised self dumping saving both time and effort. dump type semi trailer can discharge the cargo through the box.This special design are aim to heavy duty vehicle,it can make sure the safety.

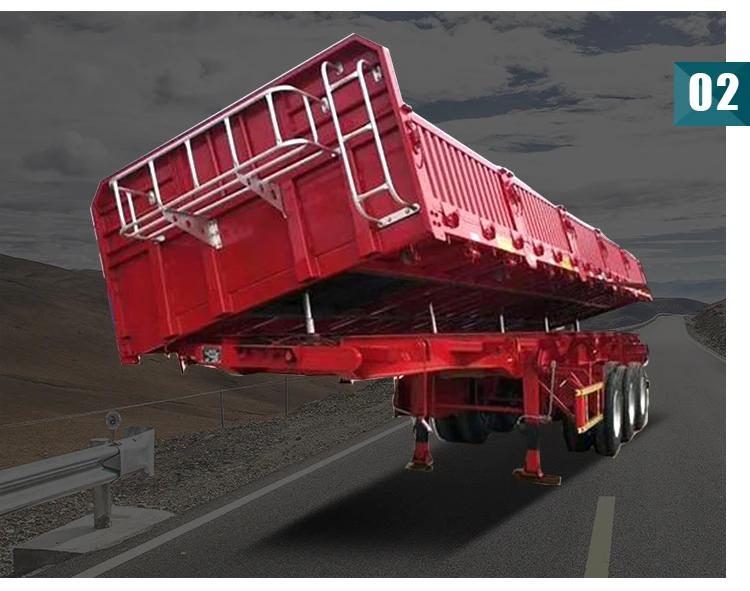

Side dump semi-trailer parameter
Type | Dump Trailer | |
Loading Capacity | 40 Tons | |
Outside Dimension (optional) | Length: 13000mm Width: 2550 mm Height: 2900mm | |
Tare Weight | 6800KG | |
Suspension | Leaf spring mechanical suspension Leaf width : 90mm Leaf thickness : 13mm Leaf layer : 10 pcs | |
Axle | 3 axles JinSheng Brand (optional) | |
Main beam | Hight: 500mm Top plate: 10mm Middle plate: 6mm Bottom plate: 10mm | |
Loading gear | YAHUA brand 28 tons (optional) | |
Brake system | Dual line Air braking system | |
Brake chamber | double Spring brake chamber | |
King pin | Bolts type 3.5''(90#) | |
Lifting jack | 110# 6+1 pcs | |
Tyre | 12.00 R22.5 *12pcs KunLun Brand (optional) | |
Side beam | 250# C Steel | |
Loading Platform | 3mm Thickness Floor hight 1100mm to the ground size：1300*2500*60mm | |
ABS | 4S/2M | |
Door | Side Door 6+6, Rear Door *1 | |

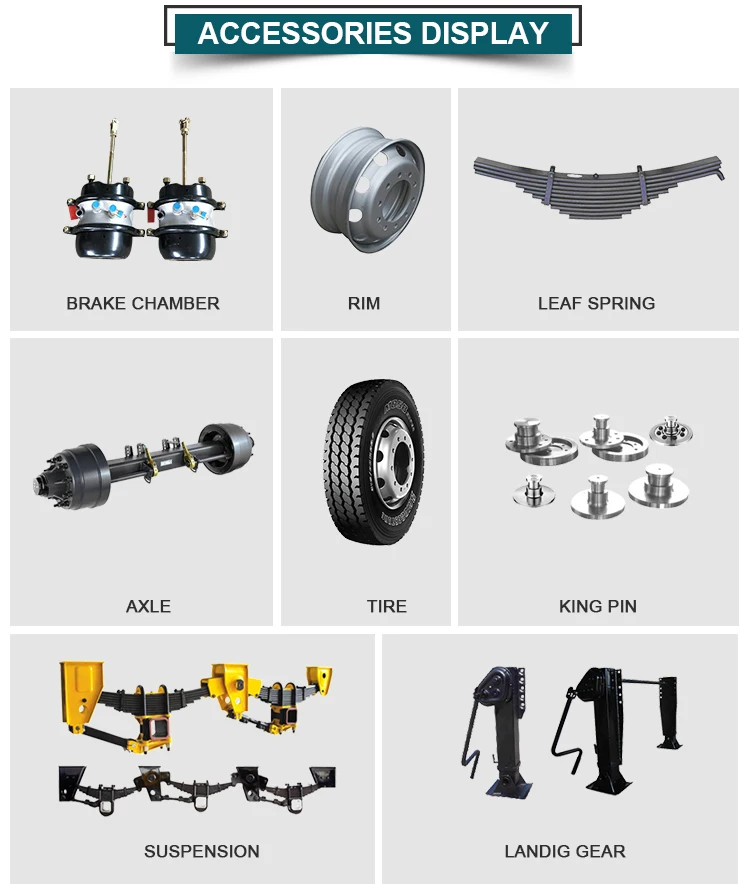

Accessories | ||
Spare tyre carrier | 1 set | |
Quick Coupling | Standard connect coupling | |
Light | LED | |
Socket/plug | 24V, 7 ways quick change type | |

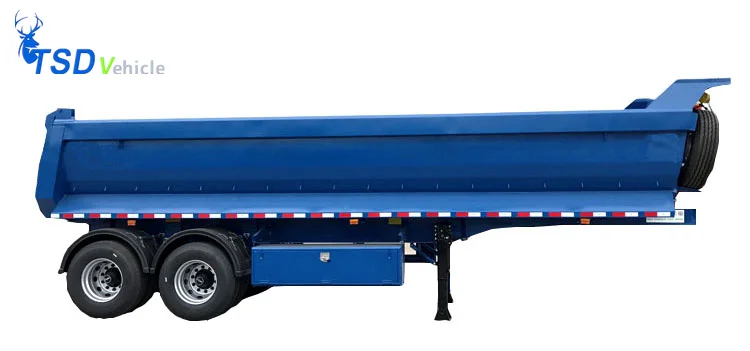

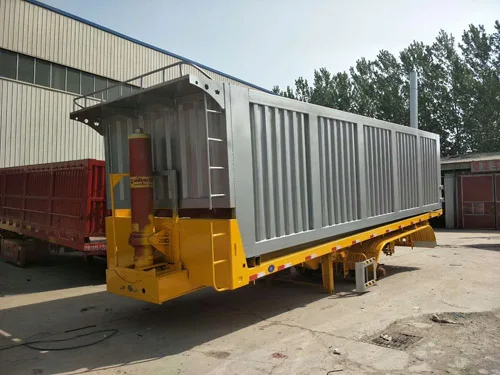

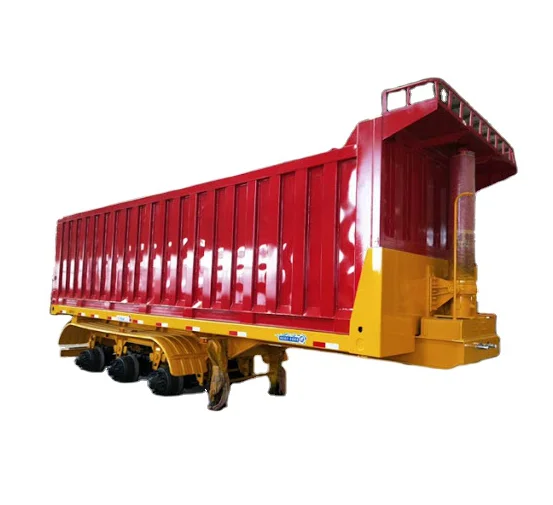

Product Name | End Dump Trailer | |
Type | End dumping type | |
Loading Capacity | 50 tons | |
Outside Dimension | Length: 9500mm Width: 2550 mm Height: 3500mm | |
Tare Weight | About 13000KG | |
Suspension | Leaf spring mechanical suspention Leaf width : 90mm Leaf thickness : 13mm Leaf layer : 10 pcs | |
Axle | 3 axles * 13 tons JinSheng Brand | |
Main beam | Hight: 500mm Top plate: 12mm Middle plate: 8mm Bottom plate: 14mm | |
Landing gear | YAHUA Brand | |
Brake system | Dual line Air braking system | |
Brake chamber | double Spring brake chamber | |
King pin | Bolts type 3.5''(90#) | |
Lifting Jack | 191# Lifting Jack （HYVA ） | |
Tyre | 12.00R22.5 12pcs KunLun Brand | |
Cargo Box | Strong Steel Bottom: 8mm Side : 6mm Size：8800*2300*2000(mm) | |
ABS | 4M/2S | |
Accessories | ||
Spare tyre carrier | 1 set | |
Quick Coupling | Standard connect coupling | |
Light | LED | |
Socket/plug | 24V, 7 ways quick change type | |
Tool box | 1 standard tool box 1.0m×0.5m×0.5m | |
Painting | Polyurethane paint & anti-rust primer & sand blasting | |
The size, color and logo can be customized. If you need more details, please contact me. We will supply the best service and price.

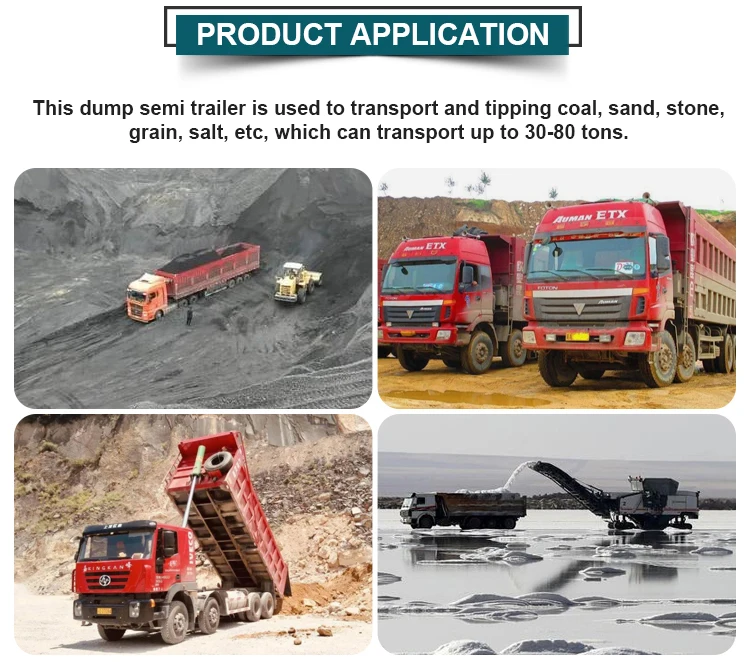

Product Application
Packaging & Shipping

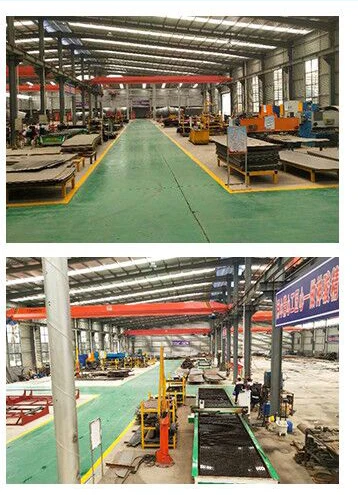

Company Profile

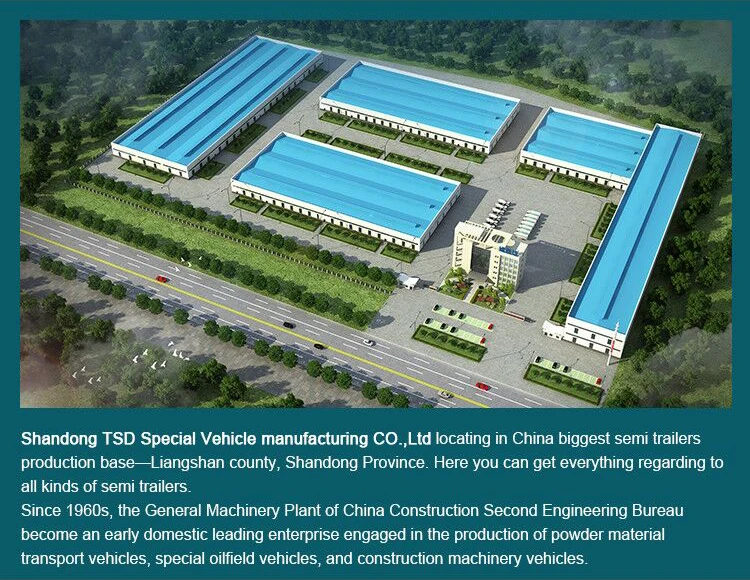

Shandong TSD Special Vehicle manufacturing CO.,Ltd locating in China biggest semi trailers production base—Liangshan county,Shandong Province. Here you can get everything regarding to all kinds of semi trailers.
Since 1960s, the General Machinery Plant of China Construction Second Engineering Bureau become an early domestic leading enterprise engaged in the production of powder material transport vehicles, special oilfield vehicles, and construction machinery vehicles.
Since 1960s, the General Machinery Plant of China Construction Second Engineering Bureau become an early domestic leading enterprise engaged in the production of powder material transport vehicles, special oilfield vehicles, and construction machinery vehicles.
As a sub branch of GMPC, TSD Special Vehicle keep focus on bulk cement tanks and other semi trailers, With two technology patent
of our own, SHENJUN cement tank trailers is sharing almost 1/3 in domestic market and enjoying very good reputation also. In 2020, the company introduced domestic advanced technology and talents, and cooperated with Zoomlion and Hubei Wuhuan to start production of sanitation vehicles, rod sweepers, rod sprinklers, garbage trucks, fire trucks, truck mounted cranes, ambulances,
etc.
The factory has a high-level professional, hard-working and dedicated modern staff team, more than 20 years of exploration and
enterprising, and accumulated rich experience in design, development and production.
We warmly welcome all friends to visit our factory any time, learn from each others and improve business, WIN-WIN TOGETHER.
