SCART to RF Video Converter support RF67.25Mhz 61.25Mhz SCART Box to old TV

Product Overview

Description

Product Features:

HDMI to RF can convert HDMI HD signal to RF output
VGA to RF can convert VGA signal to RF output.
AV to RF can convert AV to RF output
Wii to RF can convert Wii game console to RF output.
Turning PS1 / PS2 to RF can turn PS1 / PS2 game console into RF output.
SCART to RF can convert the SCART interface to RF output.
YPbPr to RF can convert YPbPr color difference signal to RF output.



2. Function introduction:
RF converter can easily convert your required interface into RF output, modulate your interface into RF high frequency output, reduce transmission loss, and increase your original distance from 1-2m to 100-1000m or even further. At the same time, it can solve the shortage of the old TV interface, and make full use of the high frequency head interface of the TV. Can be your DVD / set top box / network box / game machine and so on!! Easily converted to RF output. Using the imported RF modulation chip, the output is more stable, PLL frequency lock RF output is more stable, and the frequency output will never shift.
3. Technical specifications:
RF output frequency: 61.25mhz and 67.25mhz switching can be selected. (customers can customize other frequencies 40-900mhz)
RF output gain: 80dB
RF mode output: pal DK default output (customizable I / BG / M / N / L audio mode output) customers can customize SECAM and NTSC modes corresponding to corresponding countries.
Power supply: 5V / 500mA
Power: less than 0.5W

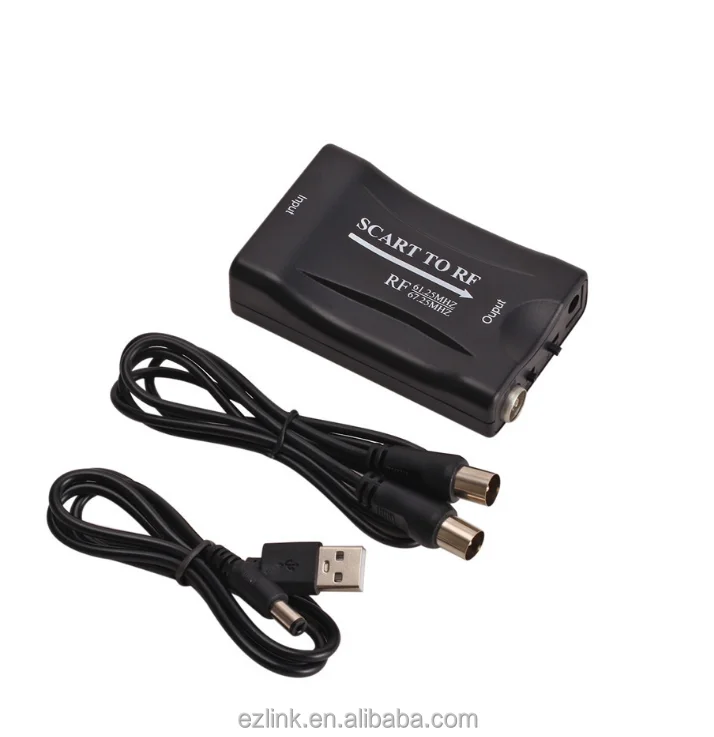

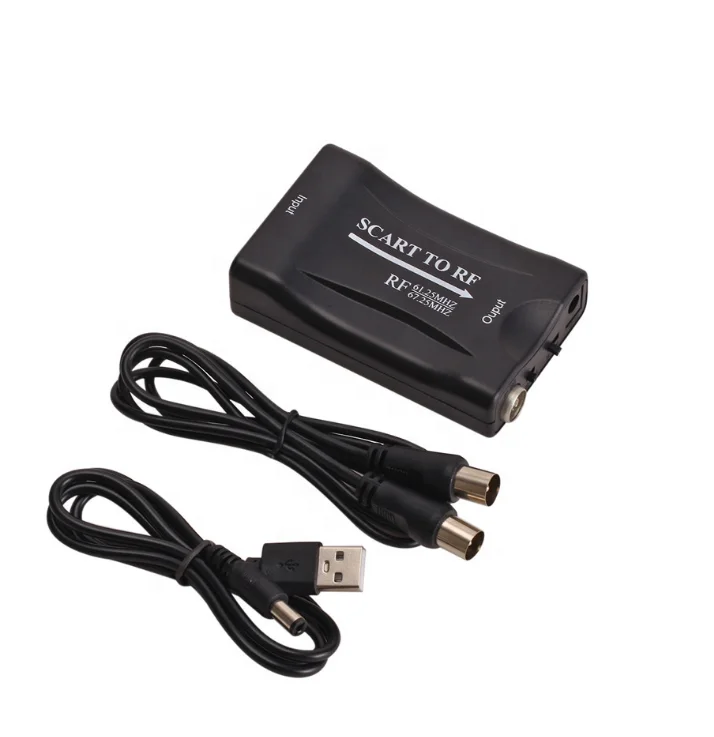

4. Package content:
1 RF line
USB cable -------- 1 (power adapter required by customers) Wii to RF internal power supply does not need to be equipped.
Host: 1 set



5. Use and connection:
Connect the RF converter to the relevant interface and connect the power line. Plug in the RF cable to connect the RF out of the machine, and connect the other side to the RF in of the cable / antenna of the TV. Turn on the TV and switch it to the analog TV state. Press the menu key to find the automatic or manual search, and search out the frequencies corresponding to 61.25mhz and 67.25mhz. The corresponding pal DK should be set for the sound system. New smart TVs generally recognize the sound system automatically. The old TV needs to set the TV to the corresponding DK system, otherwise there will be image and sound noise.
