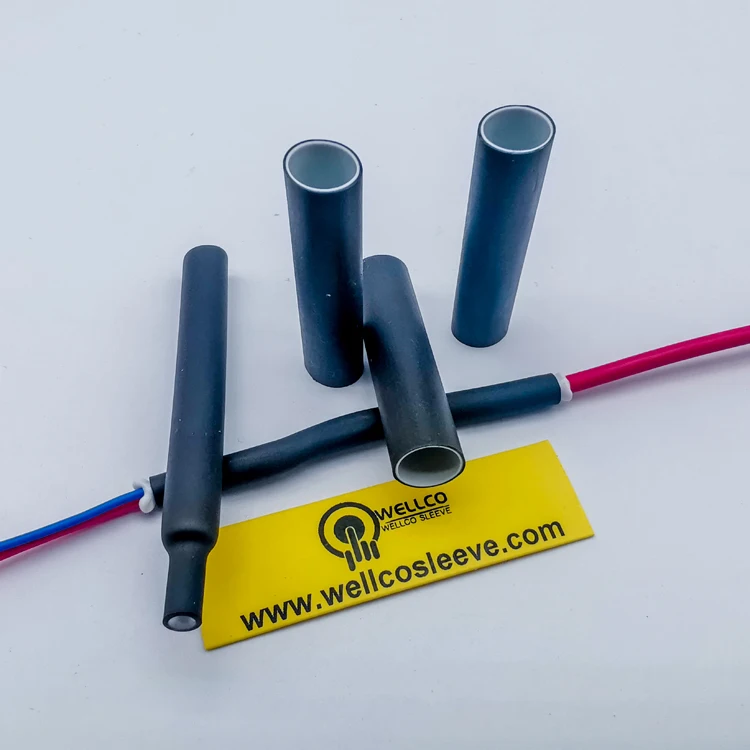

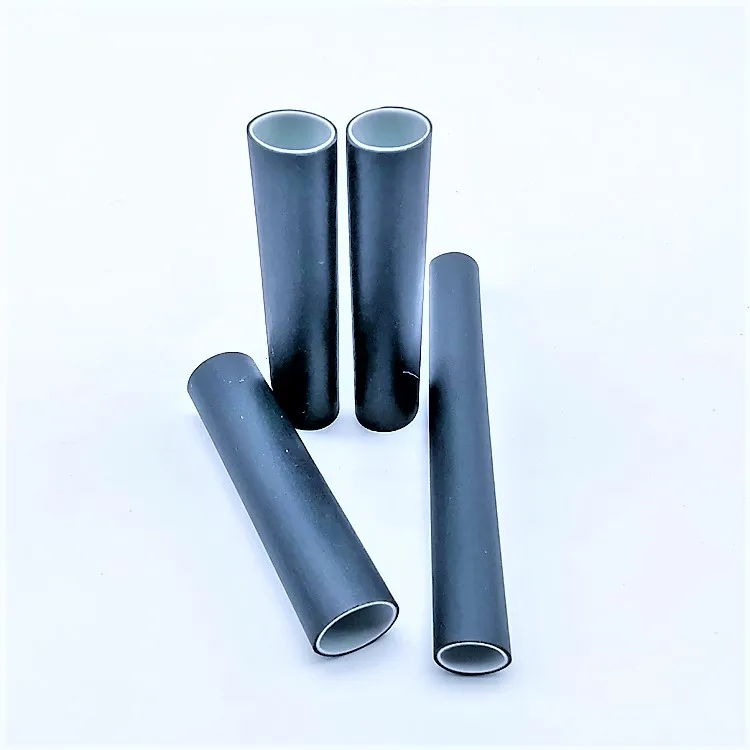

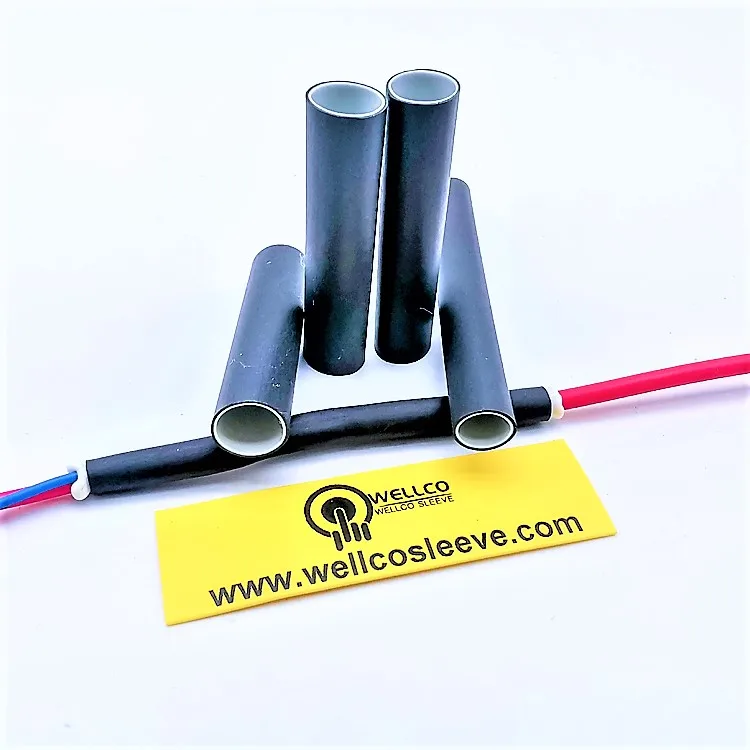

Wellco W DW(WSW) Dual wall for wire harness Splice WHITE polyolefin raychem heat shrink tube for HOT Selling Wholesale
- Category: Electronic Accessories & Supplies >>>
- Supplier: Shanghai Wellco International Limitd
Share on (1600224527772):
Product Overview
Description
Product Description
W-DW(WSW) Dual wall for wire harness Splice WHITE GLUE
Material
Outer layer: Cross-linked modified polyolefin
Inner layer:flame retarded modified hot melt adhesive
Shrink ratio: 4:1
Continuous use temperature：-40℃~125℃;
Shrinkage temperature ：100℃~150℃
Characteristics
●Semi-hard,Glue flame retarded
●Excellent mechanical, electric and chemical performance;
●Excellent sealing property;
Application:
This product, designed according to the features of automobile wire harness, It has excellent leakproofness, oil resistance and
insulativity and conforms to the environmental requirements of RoHS. Meanwhile, it also has excellent mechanical property and thus
has come into extensive use in the production of various automobile wire harnesses..
Outer layer: Cross-linked modified polyolefin
Inner layer:flame retarded modified hot melt adhesive
Shrink ratio: 4:1
Continuous use temperature：-40℃~125℃;
Shrinkage temperature ：100℃~150℃
Characteristics
●Semi-hard,Glue flame retarded
●Excellent mechanical, electric and chemical performance;
●Excellent sealing property;
Application:
This product, designed according to the features of automobile wire harness, It has excellent leakproofness, oil resistance and
insulativity and conforms to the environmental requirements of RoHS. Meanwhile, it also has excellent mechanical property and thus
has come into extensive use in the production of various automobile wire harnesses..
Item | Test Method | Indicator |
Longitudinal length change rate | UL224 | -10%~0 |
Tensile Strength | ASTM D2671 | ≥10.4MPa |
Breaking Elongation | ASTM D2671 | ≥200% |
Aging Test Of Hot Air | 158.0℃±1.0℃/168h | - |
Tensile Strength After Aging | ASTM D2671 | ≥7.3MPa |
Elongation At Break After Aging | ASTM D2671 | ≥100% |
Volume Resistivity | ASTM D876 | ≥1.0x1013Ω· cm |
Withstanding Voltage | ASTM D2671 | 2500V,60s,Without breakdown |
Water Absorption | ASTM D570 | ≤0.5% |
Thermal shock (applicable to outer layer only) | - | 225℃,4h，No breakage, no dripping |
Low-temperature resistance (applicable to outer layer only) | ASTM D2671 | No breakage |
Solvent Resistance (diesel lubricating oil) | - | 23℃，24h,Excellent |
Size | ID as Supplied（mm） | After Shrinked（mm） | ||
Minimum Inner Diameter | Maximum Inner Diameter | Total Wall Thickness | ||
5.08 | 5.08 | 1.27 | 1.40±0.30 | |
7.26 | 7.62 | 1.65 | 1.50±0.30 | |
9.02 | 9.02 | 2.29 | 1.50±0.50 | |
11.56 | 11.56 | 2.54 | 2.30±0.50 | |
17.78 | 17.78 | 4.45 | 2.50±0.50 | |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
