Automatic Tube Food Metal Detector Machine for Liquid Sauce Product
- Category: Industrial Metal Detectors >>>
- Supplier: Dongguan Coso Electronic Tech Co. Ltd.
Share on (1600224578331):
Product Overview
Description
Product Description

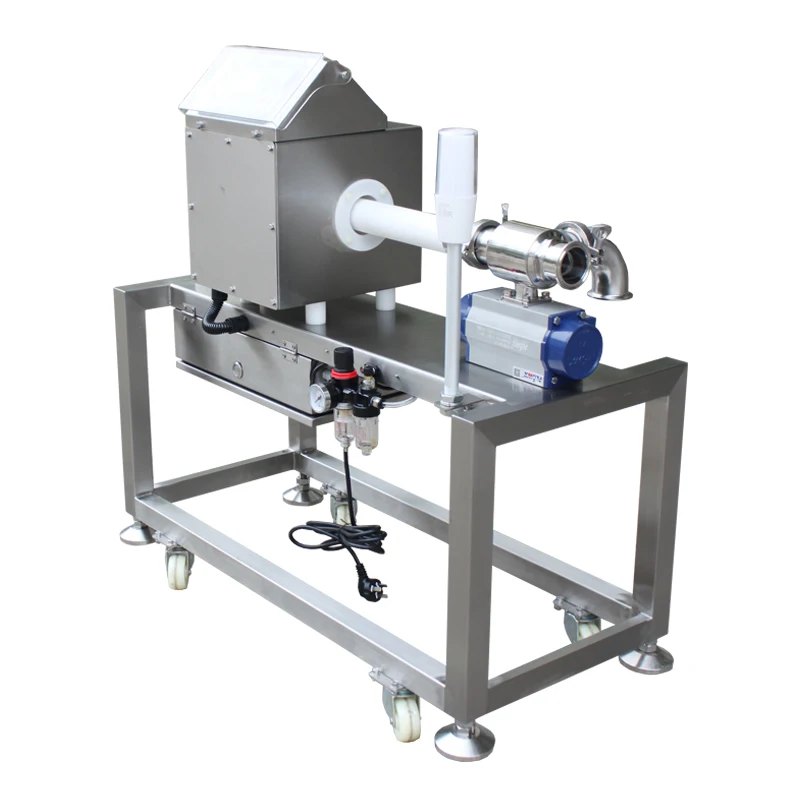

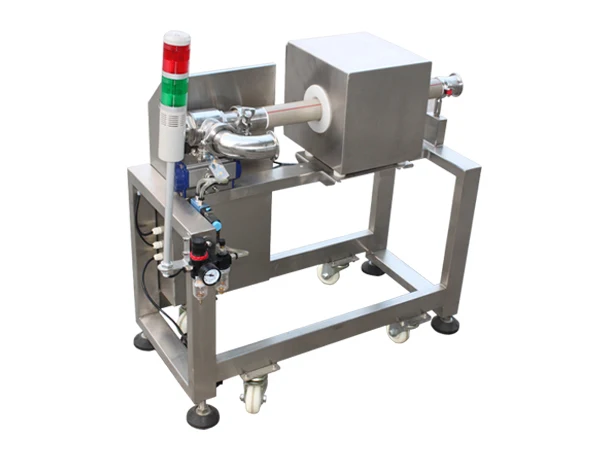

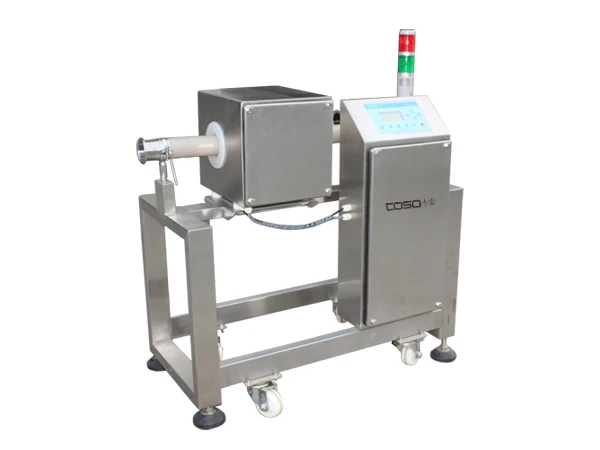

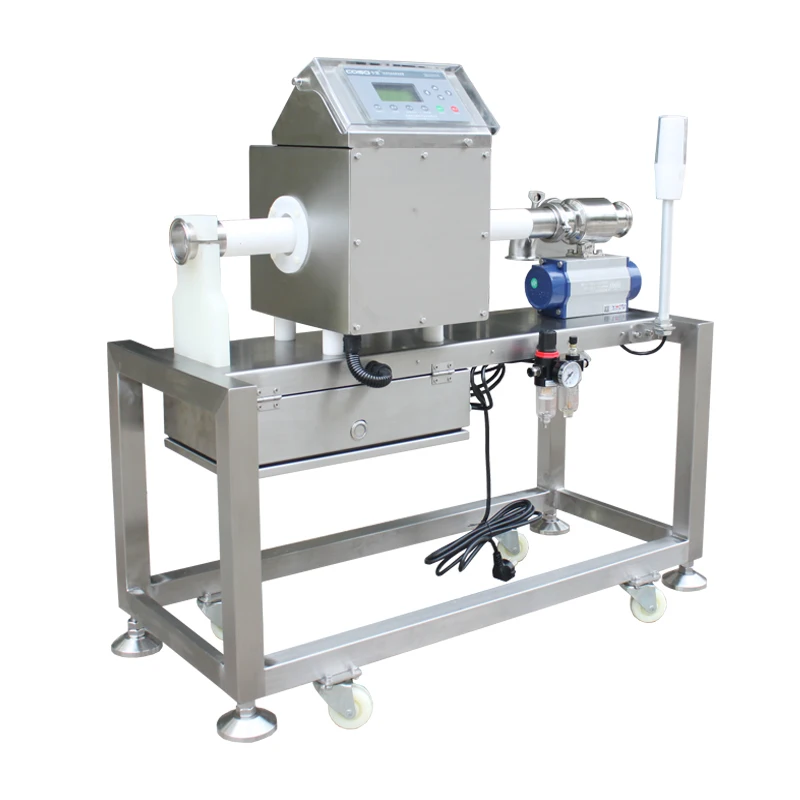

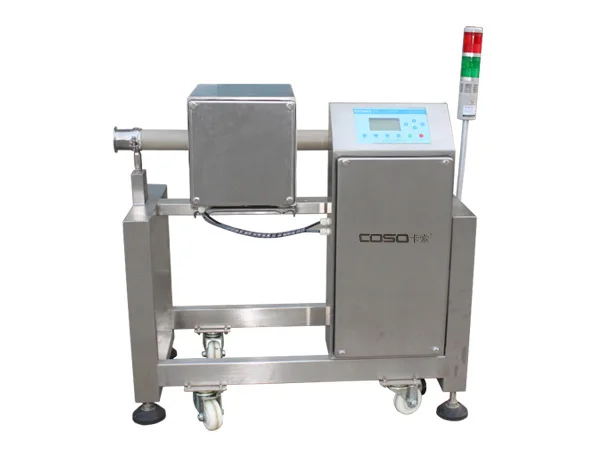

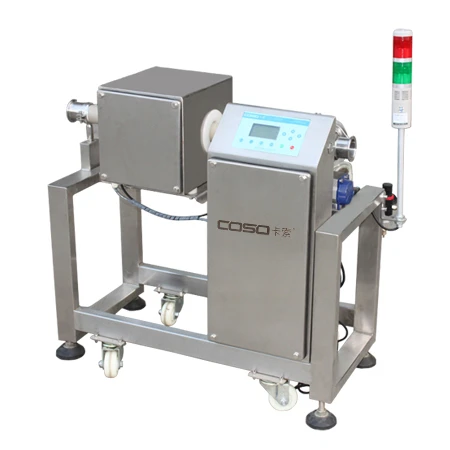

PEC2005E Liquid metal separator/detector adopts digital intelligent technology to realize the full digitalization and intellectualization of the metal detection so that the performance is excellent. This model metal separator can separate ferrous, non-ferrous and stainless steel from liquid products, such as ketchup, sauce, meat paste, etc.
Application
It applies to the food industry, chemical industry, pharmaceutical industry, liquid and paste materials, pump or fill in the application of jam, chocolate, soup or sauce and other liquid substances of metal foreign matter detection.
It applies to the food industry, chemical industry, pharmaceutical industry, liquid and paste materials, pump or fill in the application of jam, chocolate, soup or sauce and other liquid substances of metal foreign matter detection.
Name | Metal Detector |
Model | PEC2005E |
Sensitivity | 0.5-2.0mm (Fe, Non-Fe, SUS) |
Material | Stainless Steel 304 |
Warranty | One Year |
Power Supply | AC110/220V±10% 50/60Hz |

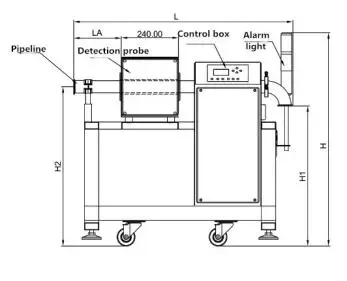

Size Information
Pipe diameter (mm) | Sensitivity (Fe) | Sensitivity (Non-Fe) | Sensitivity (SUS) |
40 | 0.5mm | 1.2mm | 1.5mm |
50 | 1.0mm | 1.5mm | 2.0mm |
70 | 1.2mm | 2.0mm | 2.5mm |
80 | 1.5mm | 2.5mm | 3.0mm |
Detailed Images
Product features：
1. The metal separation system can remove magnetic or nonmagnetic metal impurities from the pumped liquid or paste products (steel, stainless steel, aluminum, etc.)
2. After the detection of the metal, the valve will remove the contaminated material into the waste bin, arc valve removal device designed specifically for viscous materials.
3. The metal separator picking joint in stainless steel frame, is used to install the desktop or wall. If necessary, it can also be installed to the movable and adjustable bracket
4. By using a quick connector, it can be conveniently integrated into an existing pipeline system;
5. High strength stainless steel material, it’s easy to clean;
6. With self-learning function, up to 100 kinds of product storage function; Language: English.
1. The metal separation system can remove magnetic or nonmagnetic metal impurities from the pumped liquid or paste products (steel, stainless steel, aluminum, etc.)
2. After the detection of the metal, the valve will remove the contaminated material into the waste bin, arc valve removal device designed specifically for viscous materials.
3. The metal separator picking joint in stainless steel frame, is used to install the desktop or wall. If necessary, it can also be installed to the movable and adjustable bracket
4. By using a quick connector, it can be conveniently integrated into an existing pipeline system;
5. High strength stainless steel material, it’s easy to clean;
6. With self-learning function, up to 100 kinds of product storage function; Language: English.
Company Introduction
Dongguan Coso Electronic Technology Co., Ltd was established in 2005, is a leading high-tech company that has more than 18 years of experience in metal detector. The main products include metal detector, metal separator, needle detector, checkweigher, weight sorting machine, etc. COSO has its own R&D team, many experienced engineers and workers in designing and manufacturing metal detector and check weigher. COSO can provide customization service to customers to meet their special requirements on machines. COSO mahcines have CE certificates and have been sold to many foreign countries. We have a reliable reputation among customers because of professional services, quality products and competitive prices. Our machines are in low cost of usage and maintenance, have warranty time. When machines are broken, changing spare parts can easily solve problems. Our missions are to manufacture high quality machines; help customers improve quality and efficiency of their products, be a worldwide famous brand that can benefit the world. If you are interested in our machines, welcome your kind inquiry.
