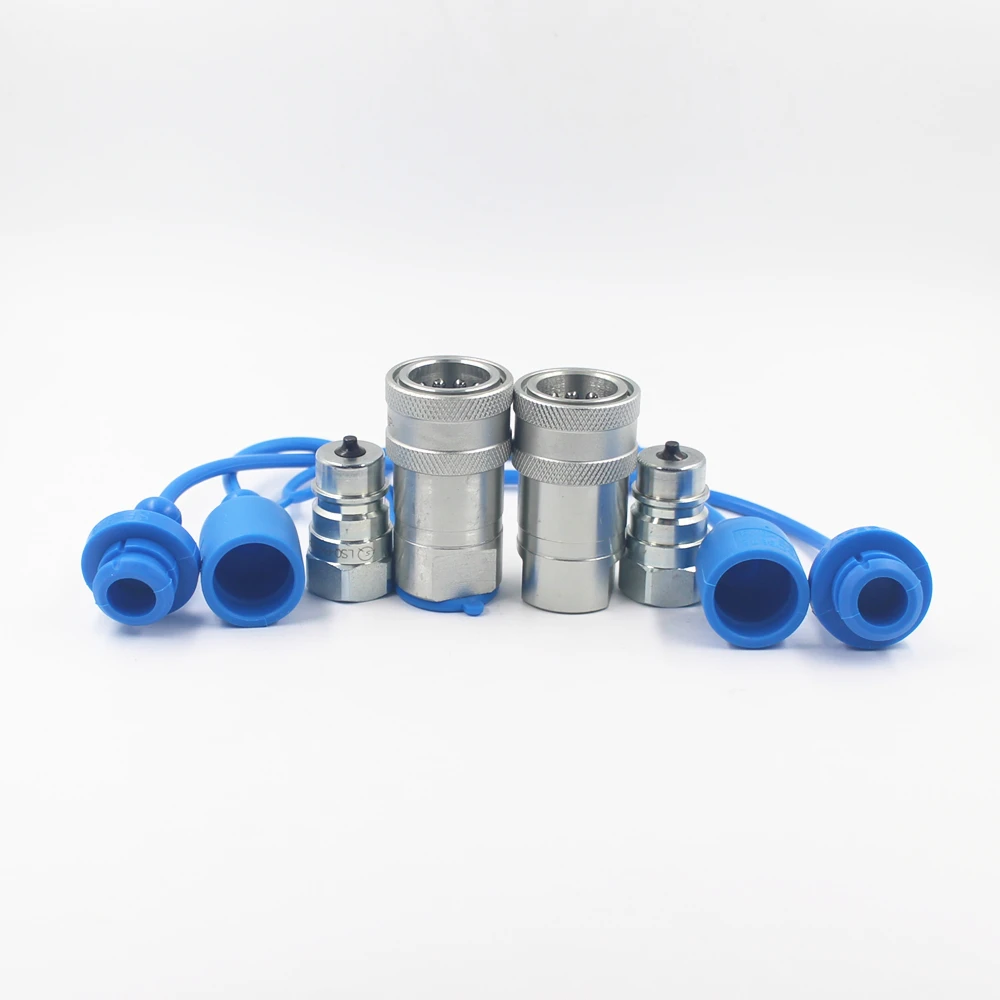

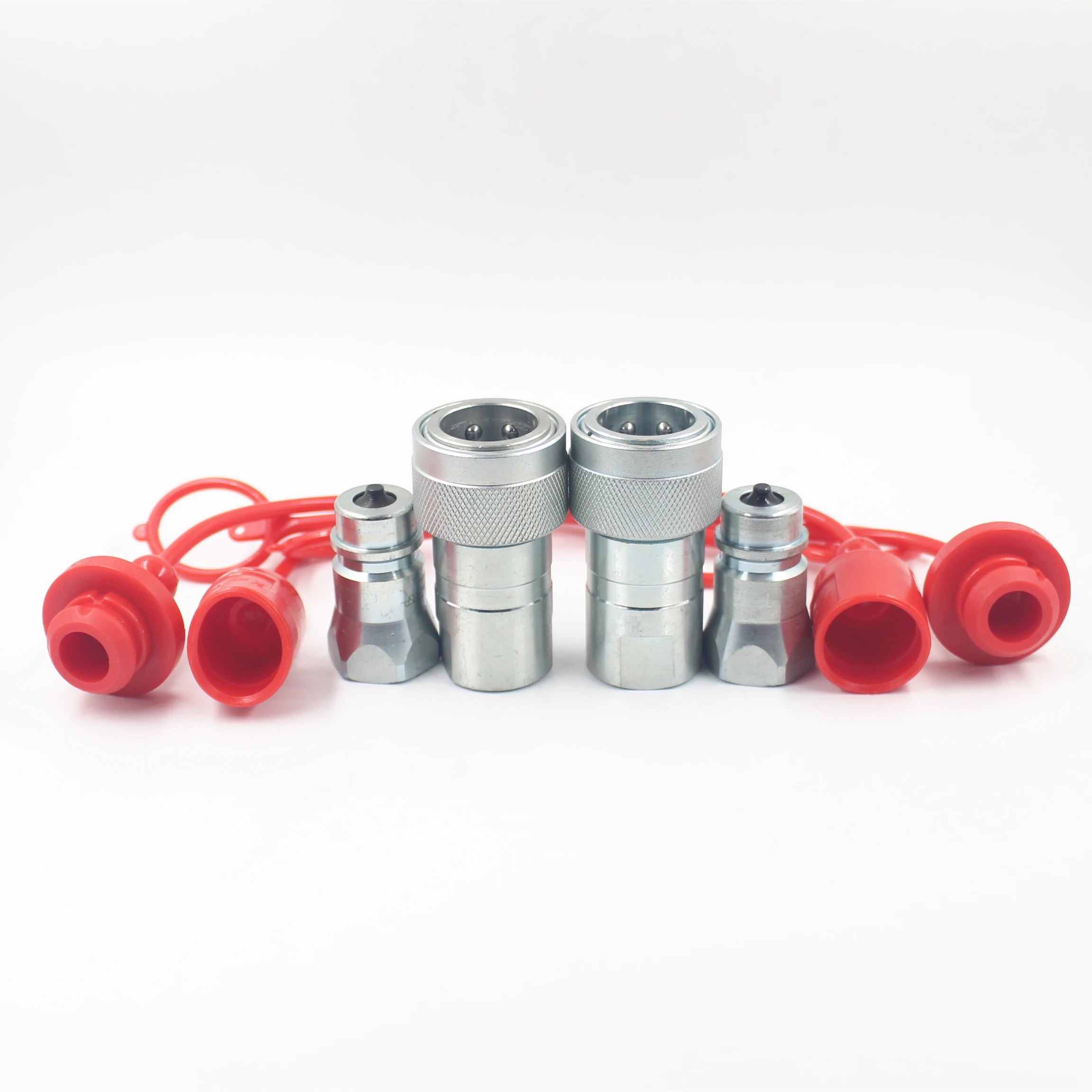

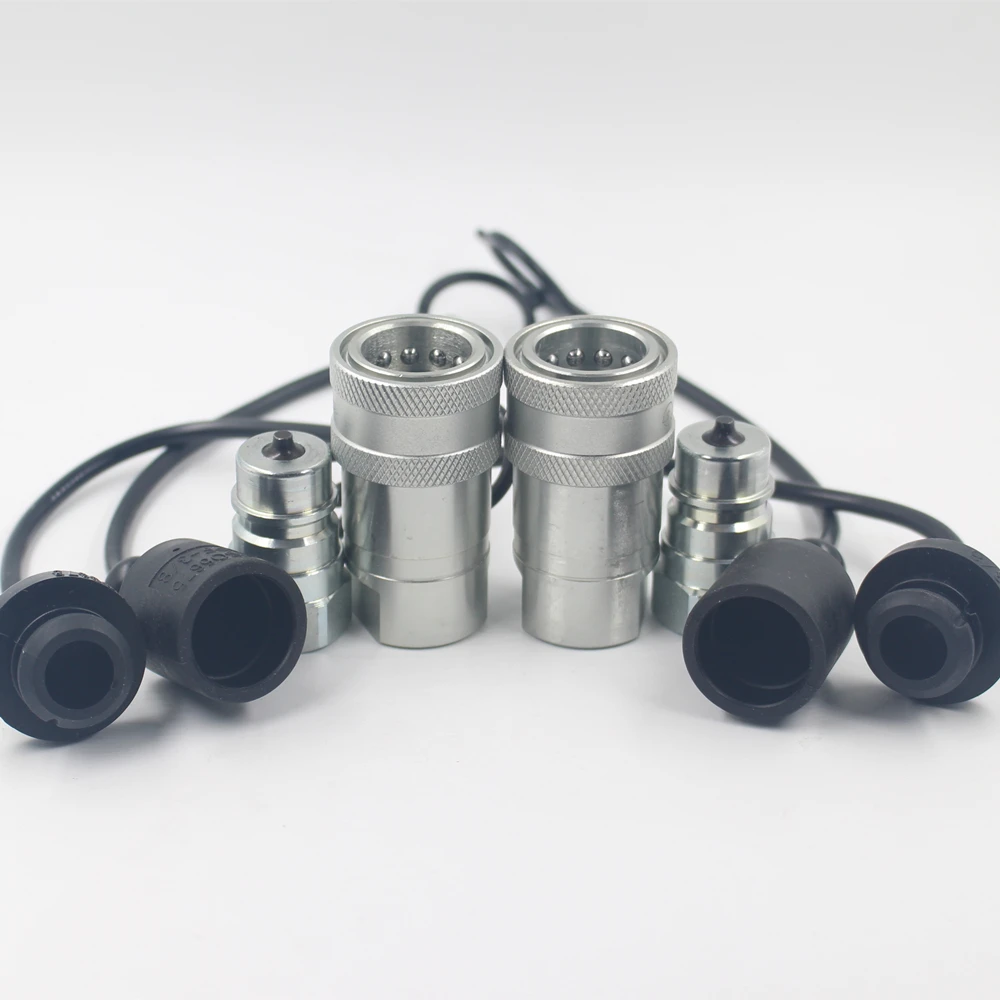

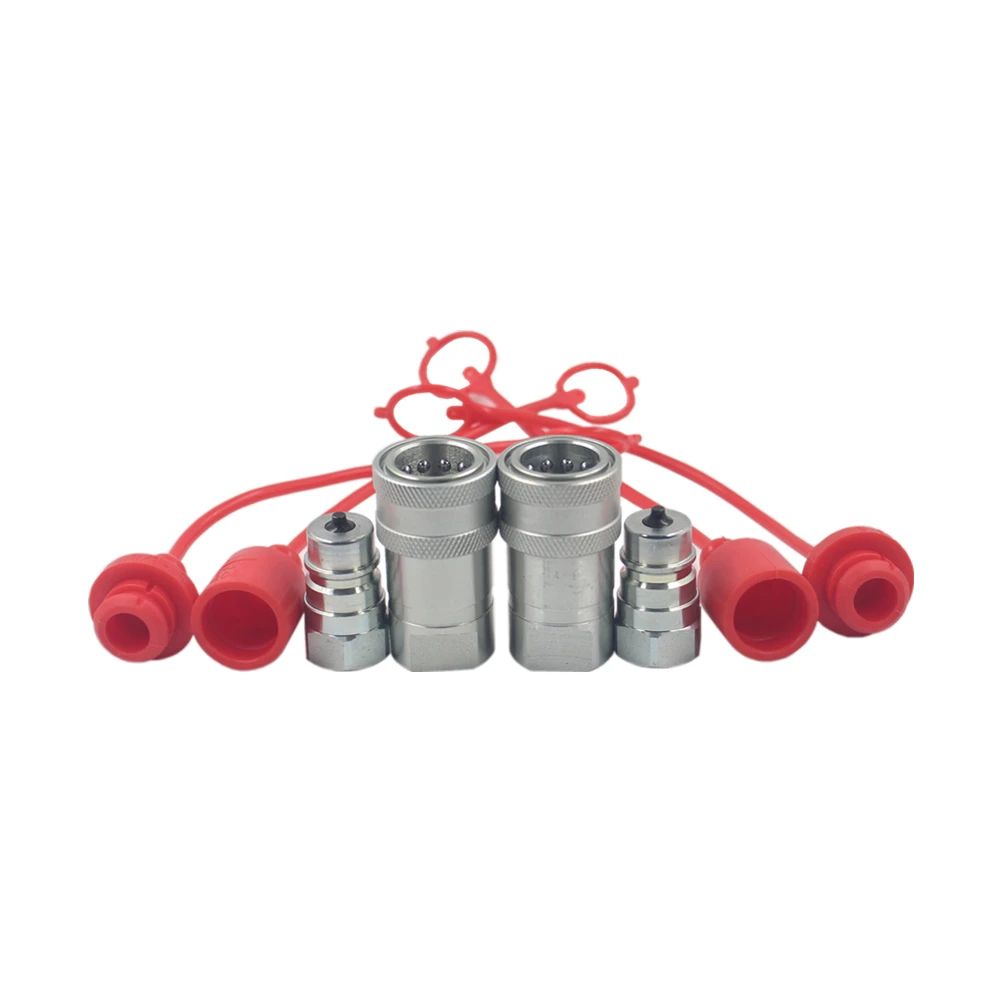

1/4' ISO 5675 Hydraulic Quick Connect Pioneer Style Couplers, 1/4' NPT Thread

Product Catalogue

1.Swaged Metric Fittings Mertic Flat Seal Fittings
1.1 Metric Multiseal Fittings
1.2 Metric 60°Cone Seal Fittings
1.3 Metric 74°Cone Seal Fittings
1.4 Metric 24°Cone O-RING Seal L..T Fittings
1.5 Metric 24°Cone O-RING Seal H.T.Fittings
1.6 Metric Standpipe Straight Fittings
1.7 JIS Metric 60°Cone Seal Fitting

2. Swaged British Fittings BSP O-RING Seal Fittings
2.1 BSP Flat Seal Fittings
2.2 BSP Multiseal Fittings
2.3 BSP 60°Cone Seal Fittings
2.4 BSPT Fittings
2.5 JIS BSP 60°Cone Seal Fittings

3. Swaged American Fittings SAE O-RING Seal Fittings
3.1 RFS Flat Seal Fittings
3.2 NPSM 60°Cone Seal Fittings
3.3 JIC 74°Cone Seal Fittings
3.4 NPT Fittings SAE Flange L.T. Fittiings
3.5 SAE Flange H.T.Fittings

4. Staplelok Fittings
4.1Banjo Double connection
4.2interlock Hose Fittings

5.Ferrule

5.1 FERRULE for SAE100R1AT/ EN 853 1SN HOSE
5.2 FERRULE for SAE100R1A EN 853 1ST HOSE
5.2 FERRULE for SAE100R2AT/DIN20022 2SN HOSE
5.3 FERRULE for SAE100R2A/EN 853 2SN HOSE
5.4 FERRULE forAE100R1AT-R2AT,EN853 1SN-2SN and EN 857 2SC

5.5 FERRULE for 4SP,4SH/10-16,R12-06-16 HOSE
5.6 FERRULE for 4SH,R12/32 HOSE

6.Metric Adapters

6.1 Metric Thread O-RING Face Seal Adapters
6.2 Metric Thread Bite Type Tube Adapters
6.3 JIS Metric Thread 60°Cone Adapters
6.4 Metric Thread 74°Cone Flared Tube Adapters

7.British Adapters

7.1 BSP Thread 60°Cone Adapters
7.2 JIS BSP Thread 60°Cone Adapters
7.3 BSPT Thread Adapters

8. American Adapters
8.1 ORFS Adapters JIC 74°Cone Flared Tube Adapters
8.2 NPT Thread Adapters

9.Hydraulic Quick Disconnect Coupling

9.1 ISO7241-A & B Quick Disconnect Coupling, Stainless Steel 316 or 304, Carbon Steel #45

9.2 ISO5675 Quick Disconnect Coupling

9.3 ISO5676 Quick Disconnect Coupling

9.4 ISO16028 Quick Disconnect Coupling

9.5 Thread Connect Quick Disconnect Coupling

9.6 Washing Machine Use Quick Disconnect Coupling Dixon and Nitto interchangeable

9.7 China Common use KZE, QZB275-77 Quick Disconnect Coupling

10.Pneumatic Quick Disconnect Coupling

10.1 CEJN series Air Quick Disconnect Coupling

10.2 Nitto Series Air Quick Disconnect Coupling

10.3 Rectus Type Air Quick Disconnect Coupling

10.4 US Millton Type Quick Disconnect Coupling

11.Hydraulic Rotary Union

11.1 Parker DG type

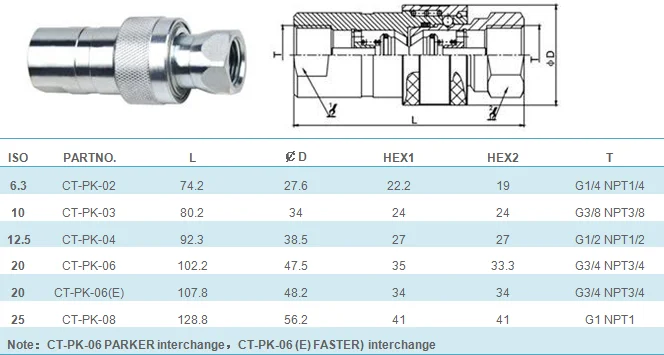

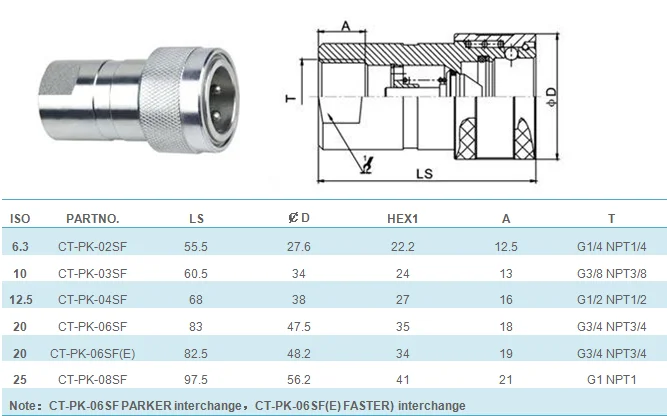

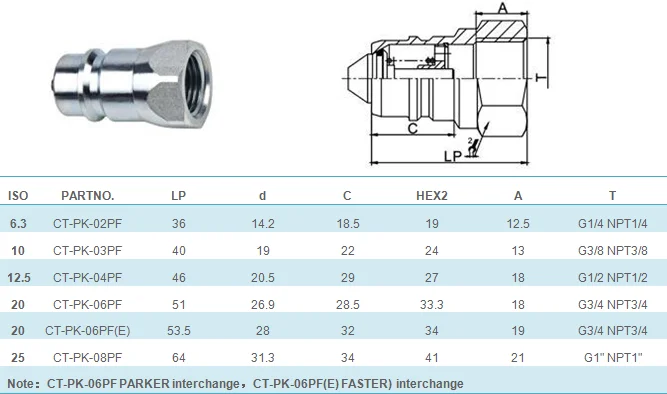

CT-PK Close Type Hydraulic Quick Coupling (Steel)
Applications: The CT-PK Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.

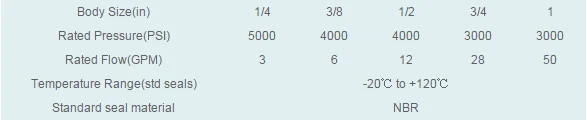

Specifications:

CT-PK Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6.CT-PK series conforms to the standard of ISO5675.
7.Compatible with PARKER 4000 Series and FASTER NV/NS Series

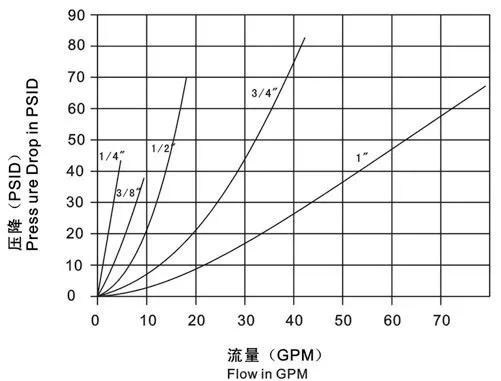

Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.
