High Efficiency Wood Waste Crusher Machine Manufacturer / Supplier Tree Branch Crusher/Tree Waste Chopper Price ISO 9001
- Category: >>>
- Supplier: Leizhou Leibao Machinery Co. Ltd.
Share on (1600224734485):
Product Overview
Description
Products Description

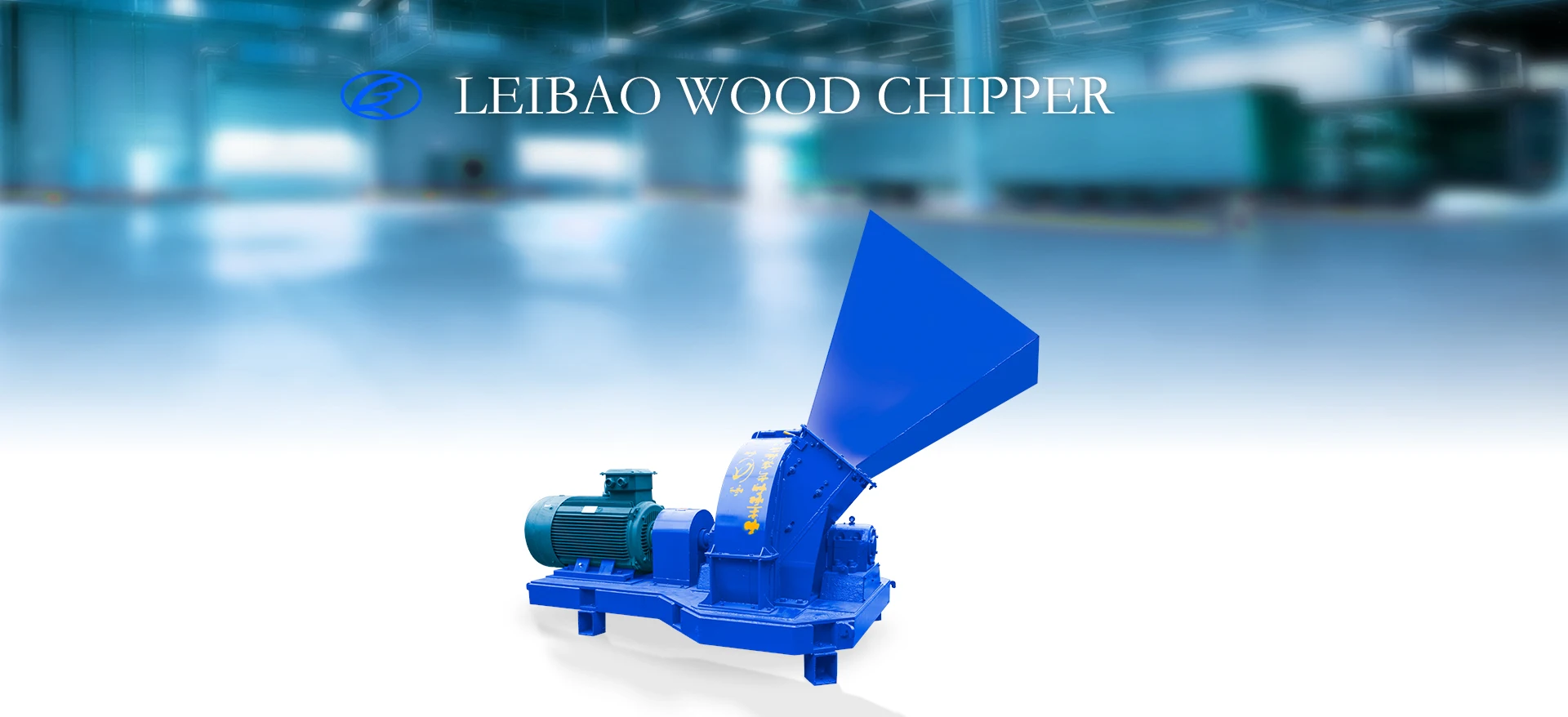

MEET THE LEIBAO WOOD CHIPPER
Uniform and high-quality chips from waste wood or whole logs are produced in Leibao Wood Chippers. Leibao’s design and research into how chip length, chipper diameter, speed, wood species, and chipper disc opening combine to make the uniform chip in chippers that produce a light-quality fiber with minimal pins, fines, or over-thick chips.
Leibao Wood Chippers Features
1. Produce more than 95% acceptable chips
2. Chipper geometry optimized through excellent design and research team
3. Blade fully adjustable through side access the chipper dis door
4. Uniform chips produced with hard-wearing knives
Robust construction for 24/7 chip production for the pulp mill
5. Synchronous motor drives stabilize a high-level of power horse
6. Better chip quality results from the stable feeding and chipping action
7. No damage to the chips on exit through the clear bottom discharge path, minimizing pins and over-thick chips
8. Replaceable wear plates on the chipper disc surface
9. Reduced maintenance man-hours—most knife changes can be handled by one man from the front of the chipper disc
10. Outstanding bearing life results from hollow shaft and fixed arbor design
2. Chipper geometry optimized through excellent design and research team
3. Blade fully adjustable through side access the chipper dis door
4. Uniform chips produced with hard-wearing knives
Robust construction for 24/7 chip production for the pulp mill
5. Synchronous motor drives stabilize a high-level of power horse
6. Better chip quality results from the stable feeding and chipping action
7. No damage to the chips on exit through the clear bottom discharge path, minimizing pins and over-thick chips
8. Replaceable wear plates on the chipper disc surface
9. Reduced maintenance man-hours—most knife changes can be handled by one man from the front of the chipper disc
10. Outstanding bearing life results from hollow shaft and fixed arbor design

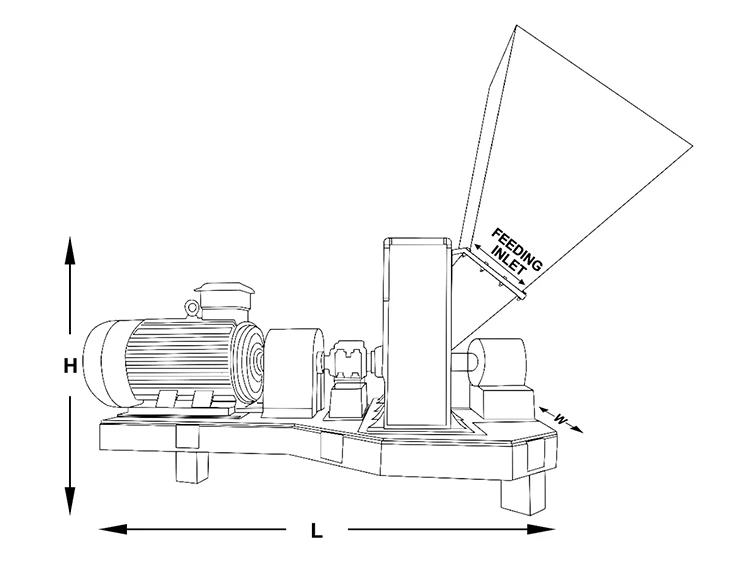

The drawing of the Leibao Wood Chipper - built to suit any customer's application.
SPECIFICATIONS: WOOD CHIPPER (IMPERIAL) | ||||||||
Product Model | LB6980 | LB61000 | LB61200 | LB61210 | ||||
Cutter Diameter (in.) | 35.58 | 39.37 | 47.24 | 47.64 | ||||
Cutter Quantity (pcs) | 6 | 6 | 6 | 6 | ||||
Feeding Inlet Diameter (in.) | 8.66 | 10.24 | 11.02 | 13.78 | ||||
Feeding Wood Length (in.) | >9.84 | >9.84 | >9.84 | >9.84 | ||||
Power (hp) | 47.78 | 47.78 | 55.12 | 66.15（option:80.85） | ||||
Revolving Speed of Main Engine (r/min) | 740 | 740 | 740 | 740 | ||||
Output (lb/h) | 55,125.00 | 55,125.00 | 66,150.00 | 77,175.00 | ||||
Two Discharge Form | Bottom /Horizontal | Bottom /Horizontal | Bottom | Bottom /Horizontal | ||||
Dimensions (L in. × W in. × H in.) | 94.49×59.06×43.31 | 94.49×59.06×43.31 | 106.30×70.87×50.97 | 106.30×70.87×50.97 | ||||
Total Weight (lb) | 6,615.00 | 6,504.75 | 8,820.00 | 8,930.25 | ||||
Cutted Head Type | Combination Block, Spiral Surface | Spiral Surface | Combination Block, Spiral Surface | Combination Block, Spiral Surface | ||||
Chip quality, installation cost and maintenance cost are the criteria for measuring all chippers. Until now, Leibao’s Wood Chipper is one best choices of new chippers.
Leibao’s Wood Chippers produce a high-yield, uniform chip quality with low capital investment and low maintenance cost.
A vertical casing chipper disc opening provides unobstructed access to the chipper disc for knife changes by one person.
Leibao’s Wood Chippers produce a high-yield, uniform chip quality with low capital investment and low maintenance cost.
A vertical casing chipper disc opening provides unobstructed access to the chipper disc for knife changes by one person.
Optimum Chip Quality.
Leibao’s Wood Chippers have a disc shaft design that the disc cover is easily moved forwards the base. This provides a very tight
gap between the knife and anvil for excellent chip production with minimal pins and fines.
The vertical disc Wood Chipper full uses of the wide infeed chute and all of woods run in whole blades to produce a high chip quality. With the knife cutting downward with the wood in a slanted gravity infeed chute, chipping occurs without appreciable movement, greatly improving chip quality.
Leibao Wood Chippers include an integral motor base that the motor directly connects the shaft drive to rotate whole blade assembly for simplified chipper installation.
gap between the knife and anvil for excellent chip production with minimal pins and fines.
Chip quality is enhanced by a clear and short path, which the waste wood or whole log is placed from a “funnel” shape of the left side gravity feeding chute to the middle of the knife to the spout for chip. The wood or whole log simply runs a conveyor in and wood chips run a conveyor out.
The vertical disc Wood Chipper full uses of the wide infeed chute and all of woods run in whole blades to produce a high chip quality. With the knife cutting downward with the wood in a slanted gravity infeed chute, chipping occurs without appreciable movement, greatly improving chip quality.
Leibao Wood Chippers include an integral motor base that the motor directly connects the shaft drive to rotate whole blade assembly for simplified chipper installation.
Optimum Design.
The feeding chute length on Leibao Wood Chippers allows installation as close to the blade as possible. This optimizes chip
quality by minimizing collision by each other in the chipper disc cutter cover. The shorter the distance of between the feeding chute and
the blades, the better the chip quality.
Also, chips have one perfect flowing exit paths, minimizing the chip damage. The downward or right-side discharge outlet feature further minimizes damage and decreases the generation of fines and pins rather than other upward discharge outlet.
quality by minimizing collision by each other in the chipper disc cutter cover. The shorter the distance of between the feeding chute and
the blades, the better the chip quality.
Also, chips have one perfect flowing exit paths, minimizing the chip damage. The downward or right-side discharge outlet feature further minimizes damage and decreases the generation of fines and pins rather than other upward discharge outlet.
Leibao’s engineers designed the feeding opening is close to the knife that engage different wood material to infeed into whole
knifes on the vertical chipper disc. This distributes wear across the entire feeding chute and cutter length, increasing other
parts lifespan.
At Leibao believe the best isn’t necessarily the most costly, and we prove it with Leibao Wood Chipper. It has a low installed
cost of other disc chipper on the market.
The waste wood or whole log simply run a conveyor in, and then wood chip runs a conveyor out. An integral motor base combines directly the ismountable shaft drive to eliminate a driven sheave requirement and makes installation and maintenance inexpensive.
knifes on the vertical chipper disc. This distributes wear across the entire feeding chute and cutter length, increasing other
parts lifespan.
At Leibao believe the best isn’t necessarily the most costly, and we prove it with Leibao Wood Chipper. It has a low installed
cost of other disc chipper on the market.
The waste wood or whole log simply run a conveyor in, and then wood chip runs a conveyor out. An integral motor base combines directly the ismountable shaft drive to eliminate a driven sheave requirement and makes installation and maintenance inexpensive.
Wood Chipper Options
Leibao Wood Chippers can be configured to conform to all of customers' special requirements. Models are available for heavier-duty applications. Two options on wood chip discharge system includes a horizontal and a downward discharge outlet. And we provide the spare part on damage resistant.
4 Types of Dis Cutter Diameters.
As we have 4 different wood chippers to accomplish waste wood, re-chipping, and small log chipping that its diameter less than 350mm (13.78’') to use the 980mm（38.58“), 1000mm (39.37''), 1200mm (47.24), and 1210mm （47.63“） chippers, while large waste wood and whole log diameter is exceeded 350mm (13.78’’), please contact Leibao to see which of these several designs best suits your specific application.
2 Types of Wood Chip Discharge Forms.
As we have two options of the wood chip discharge systems that one is the horizontal (right side) discharge system is installed close to the floor with a right-side discharge; another is a downward (bottom) discharge system need for a pit to install
the machine.
the machine.
Damage Resistant Part.
Leibao Wood Chippers is supplied with blade as a damage resistant. All size can also be supplied with disposable blade (blade is marked blue one) as an OEM option.
Wood Chipper is only one component in Leibao ‘s complete line of chip processing equipment.
OR

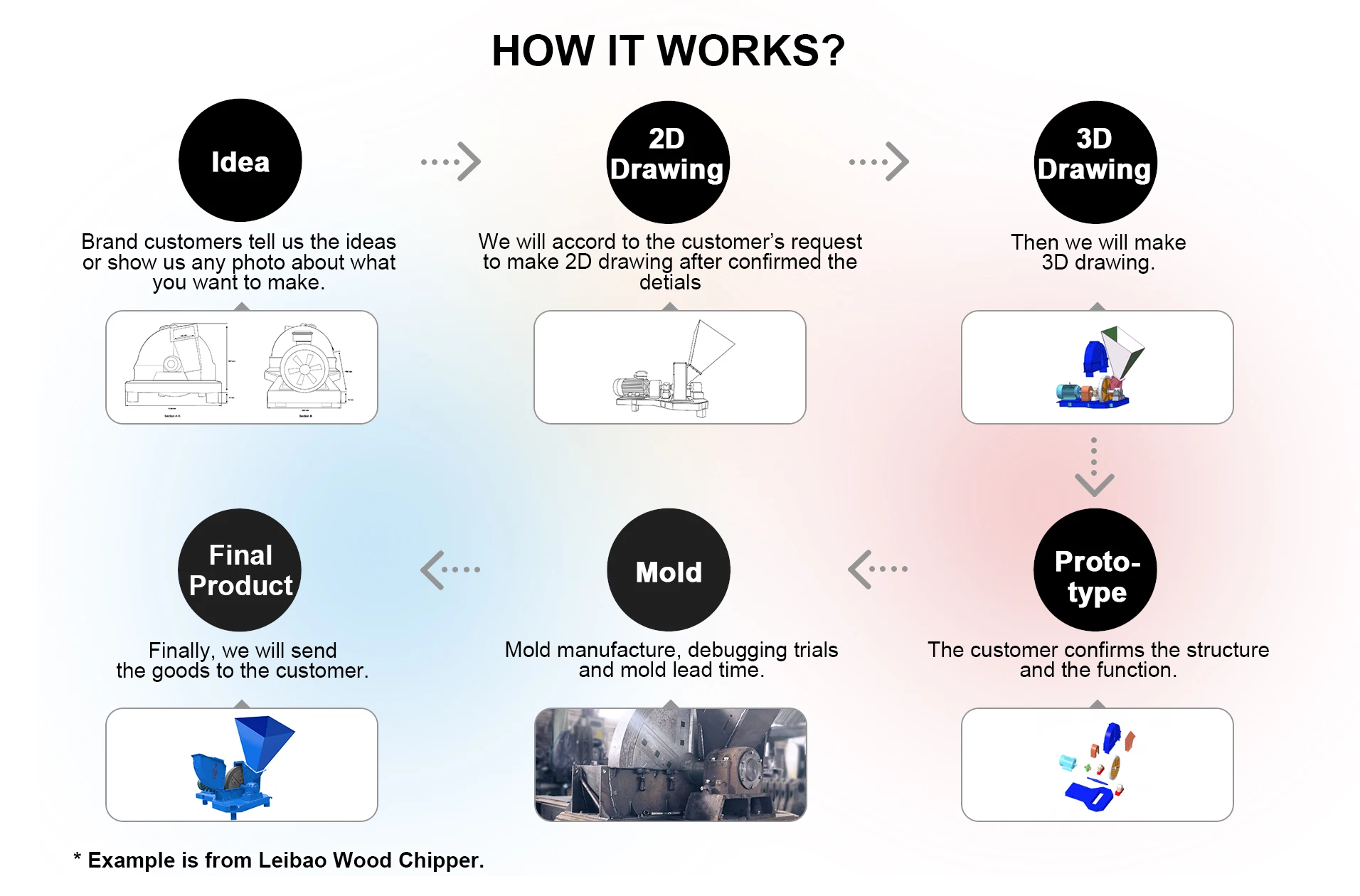

Build Your Customized Product
Main Products
Log Debarker
Wood Chipper
Wood Screener

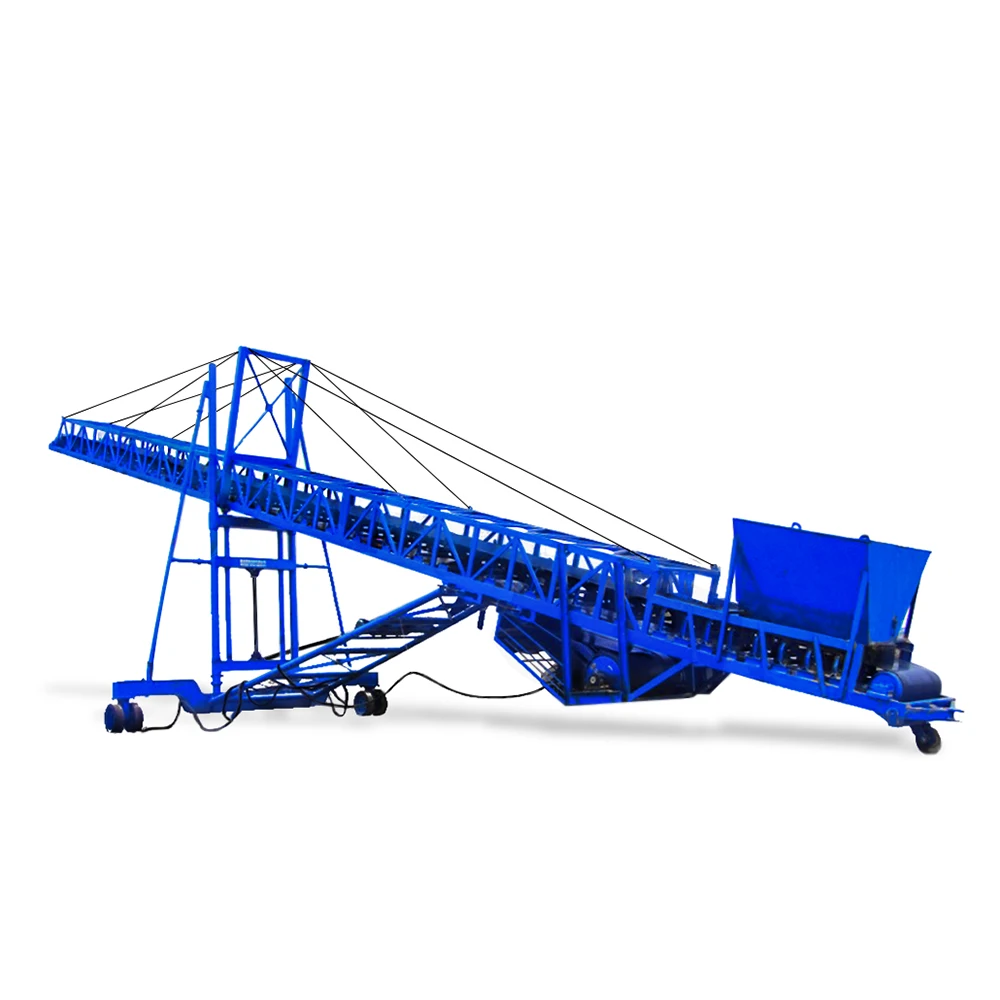

Belt Conveyor
