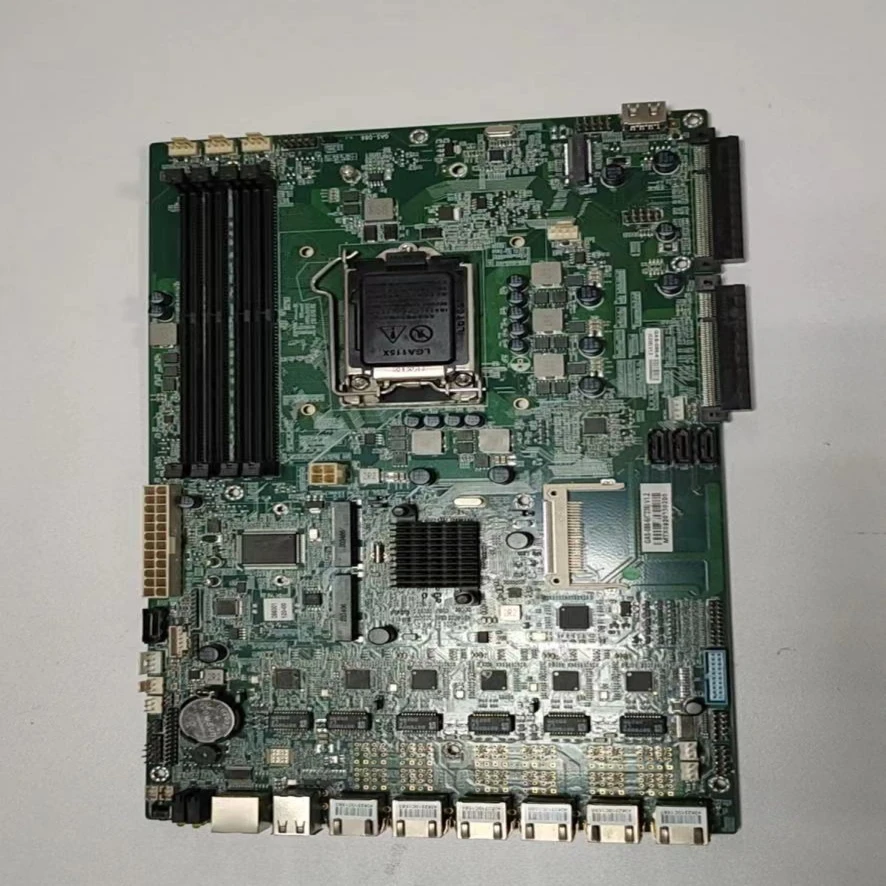

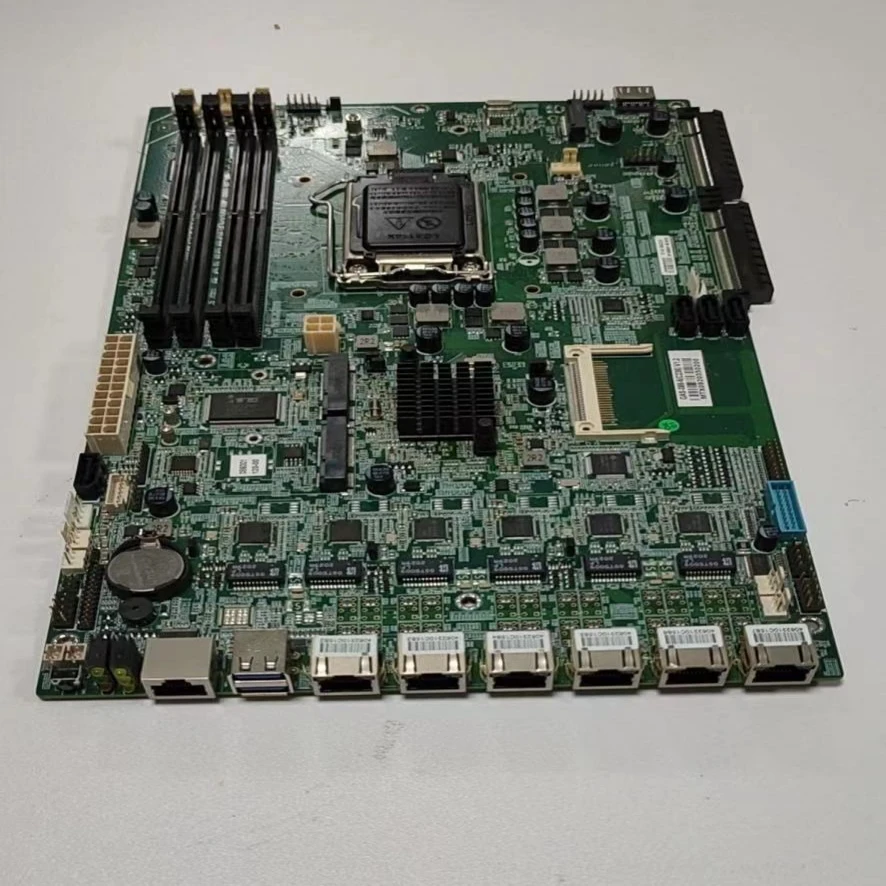

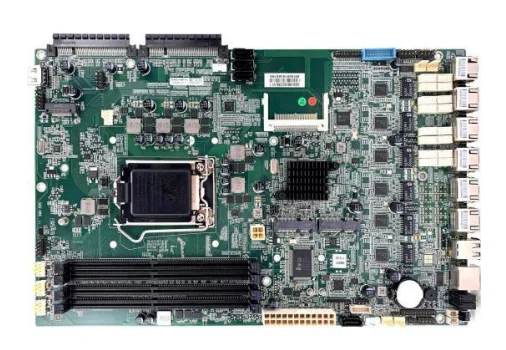

Networking Motherboard 6th/7th Gen Intel Xeon / Core i7/i5/i3/Pentium/Celeron with Intel C236 PCH
- Category: >>>
- Supplier: Shenzhen Armortec Technology Co. Ltd.
Share on (1600224819989):
Product Overview
Description
Product Description
Feature:
Intel® C236 PCH
6th/7th Xeon® / Core™ i7/i5/i3/Pentium®/Celeron® processors
4 DDR4 DIMMs for up to 64GB of memory (ECC or non-ECC)
6 x Intel® I210-AT GbE ports
1 x CFslot, 1x M-SATA slot, 3 x SATA port, 1 x M.2(NGFF)
2 x PCIE 8x slots, 1 x Mini PCIE
3 x Advanced LAN Bypass(Gen 3)
ATX Power supply
Specification:
Model No. | FW-086-C236 | |
System | Form Factor | Networking Motherboard |
Processor | Intel Xeon, Core i3/i5/i7, Pentium and Celeron | |
System Memory | 4 x DDR4 DIMMs p to 2133MHz, up to 64GB (ECC/Non-ECC) | |
Chipset | Intel C236 PCH | |
Ethernet | 6 x Intel I210-AT RJ45 GbE ports | |
BYPASS Function | 3 x segment, LAN 1/2, 3/4, 5/6 (Gen 3) | |
BIOS | UEFI | |
Watchdog Timer | 1~255 steps by software programming | |
MTBF | 90630 | |
OS Support | Windows all, Linux | |
Display | Graphics Core | Processor integrated graphics |
Resolution | ||
Output Interface | Reserved VGA Internal box header | |

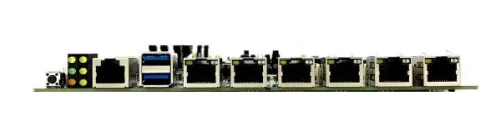

I/O | LAN Port | RJ-45 Port x 6 |
Serial Port | RJ-45 Console x 1 | |
USB | 2 x USB3.0 connector, 1 x USB2.0 pin header onboard
| |
LED | 1 x Power LED (green ) 1 x HDD LED (orange ) 1 x GPIO LED (yellow) 3 x Bypass LED(yellow) More LED back I/0 optional (6 LAN LED, 1 GPIO LED, 3 Bypass LED, 1 Power LED, 1 HDD LED ) | |
Others | Power Button x 1(alternative to reset button) | |
Environmental | Operating Temperature | 0°C to +55°C (+32°F to 131°F) |
Storage Temperature | -20℃~70℃ | |
Operating Humidity | 10%~90% non condensing | |
Certification | EMC | CE, FCC, RoHS |
Packaging & Shipping
![%}(PUSCN)95Z]P~2VP$7YGE](http://sc01.alicdn.com/kf/HTB1Js0SfCYTBKNjSZKb760J8pXaf/228417915/HTB1Js0SfCYTBKNjSZKb760J8pXaf.png)
Company Information
Established in 2011, Armortec Technology Limited has grown rapidly in the industrial motherboard industry, diversifying itself from a manufacturer for industrial motherboard to industrial PC, mini PC, firewall server and industrial motherboards. This has made Armortec the choice vendor for many of the quality-oriented manufacturers that integrate PC assemblies into their non-PC equipment where unique form factor, 24/7/365 operation, strict revision control, harsh operating environments, and 5 to 7+ years product life cycles are required.
FAQ
Q: Can you put my brand name (logo) on these products?
A:Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q: What payment method do you accept?
A:T/T,Western Union,PayPal.
Q: What is the Minimum Order Quantity(MOQ)?
A:We can sell one piece sample for your test.
Q: What is the lead time of your products?
A:1-3 days for one sample, 15 working days for a large quantity.
Q:How about the warranty?
A:We support one year about the warranty.
