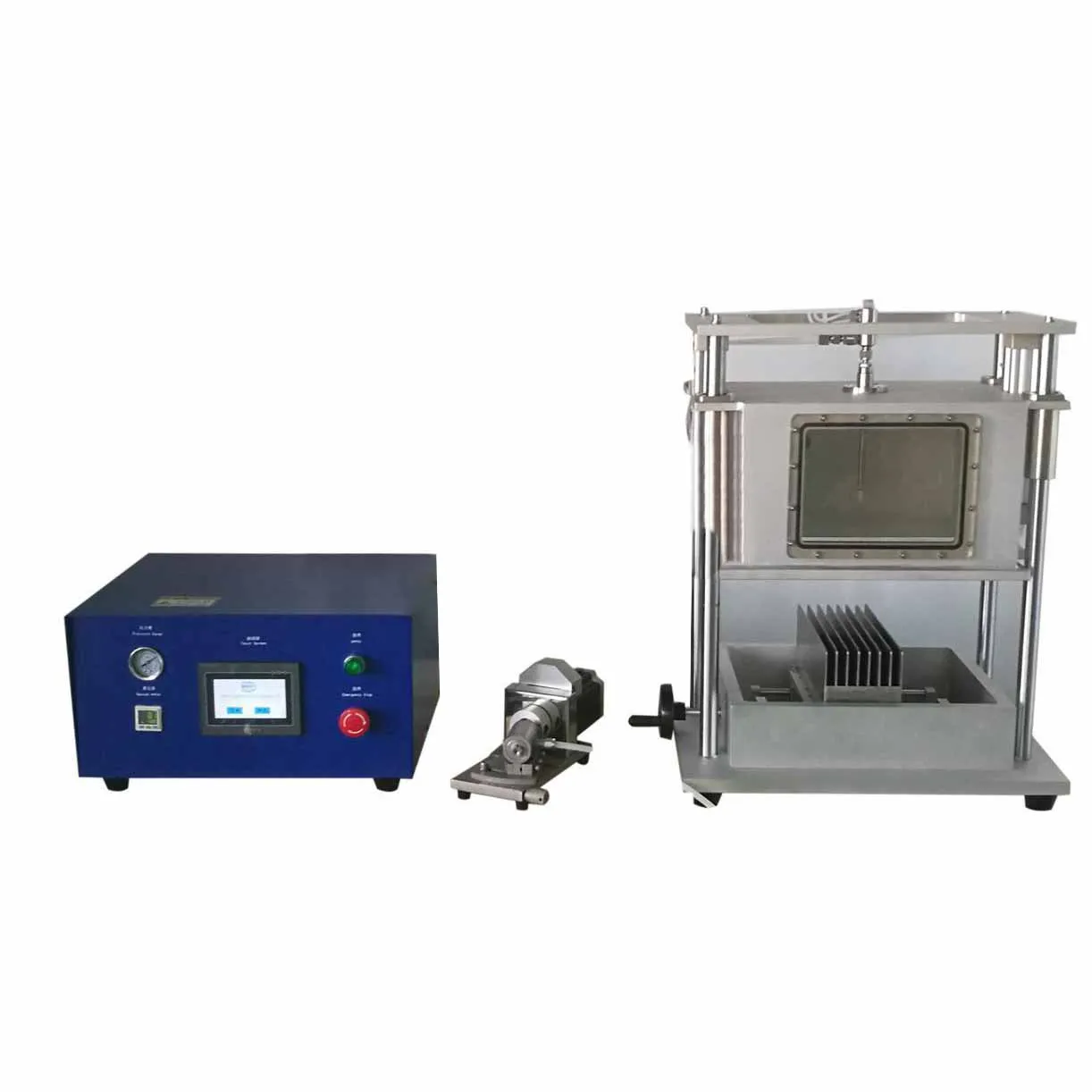

Lab CR123 Lithium Battery Cylindrical Cell Electrolyte Degassing Injector Filler Filling Machine

Product Overview

Description

Lab CR123 Lithium Battery Cylindrical Cell Electrolyte Degassing Injector Filler Filling Machine



Introduction

It is suitable for filling and standing procedures of battery capacitors. It adopts vacuum and thenfilling and then standing. The electrolyte accuracy, absorption consistency and high reliability.



Main features

One machine includes filling and standing functions;

* Has extremely high measurement accuracy and repeat consistency;

* Vacuum first and thenfilling, high efficiency, accurate precision, convenient and reliable operation;

*The injection accuracy is ±0.5%, and the injection volume is 0.2 ml~200 ml;

*The entrance and exit are connected by chemically resistant hoses;

*Can be operated in glove box or drying room;

*Exquisite and beautiful appearance, stable performance;

*PLC, touch screen operation, flexible parameters, high automation program;



Filling workflow

*Put the product into the vacuum chamber;

*Press the start switch, and press down on the transparent sealed upper cavity, so that the battery is in a sealed vacuum cavity;

* Vacuum, after reaching the vacuum degree and the set time, it will automatically inject liquid. After filling one product, the hand-operated worktable can switch to another product to inject liquid, and so on.

*Then the system will automatically stand still;

*After standing still, take out the product to complete.

Remarks: The vacuuming time and standing time can be set according to the situation.



Main components of equipment

*Cylinder and solenoid valve, vacuum components: SMC/Taiwan Airtac

*Guide slider: Taiwan Shangyin/Intime

*PLC: Display and control

*Touch screen: display control

*Analog vacuum gauge: Panasonic

*Motor: Lei Sai



Environmental requirements

*Ambient temperature: determined by the customer's factory environment;

*Power supply: 220V, 50HZ, voltage fluctuation range: +10%~-10%;

*Compressed air: After drying, filtering and stabilizing: the outlet pressure is greater than 4.0kg/cm2; if it is placed in the glove box, the compressed gas used is the same as that in the glove box;

*Vacuum source: vacuum pump 2 liters/sec, above -98KPa, or pipeline vacuum (above -98KPa);



Technical parameters

*Suitable for lithium battery products, cylindricalcellorpouch cell;

*Includes two functions:filling and standing;

For cylindrical cell	Φ60, within H100mm, according to 18650 calculation standard with 4 stations, 4 injections at a time
Capacity range	0.2ml~200ml
Battery injection volume	0.2g~200g
Injection accuracy	±0.5%
Output speed	6ml/s adjustable
Inlet and outlet pipe	liquid inlet pipe Φ6
Adjustable stroke	X axis maximum stroke 0~80mm (centering)
Key parts	Made of stainless steel 304, 316 corrosion-resistant materials
Dimensions	L400mm×W260mm×H500mm
Configuration power supply	AC220V/50Hz/0.5KW
Weight	70kg
