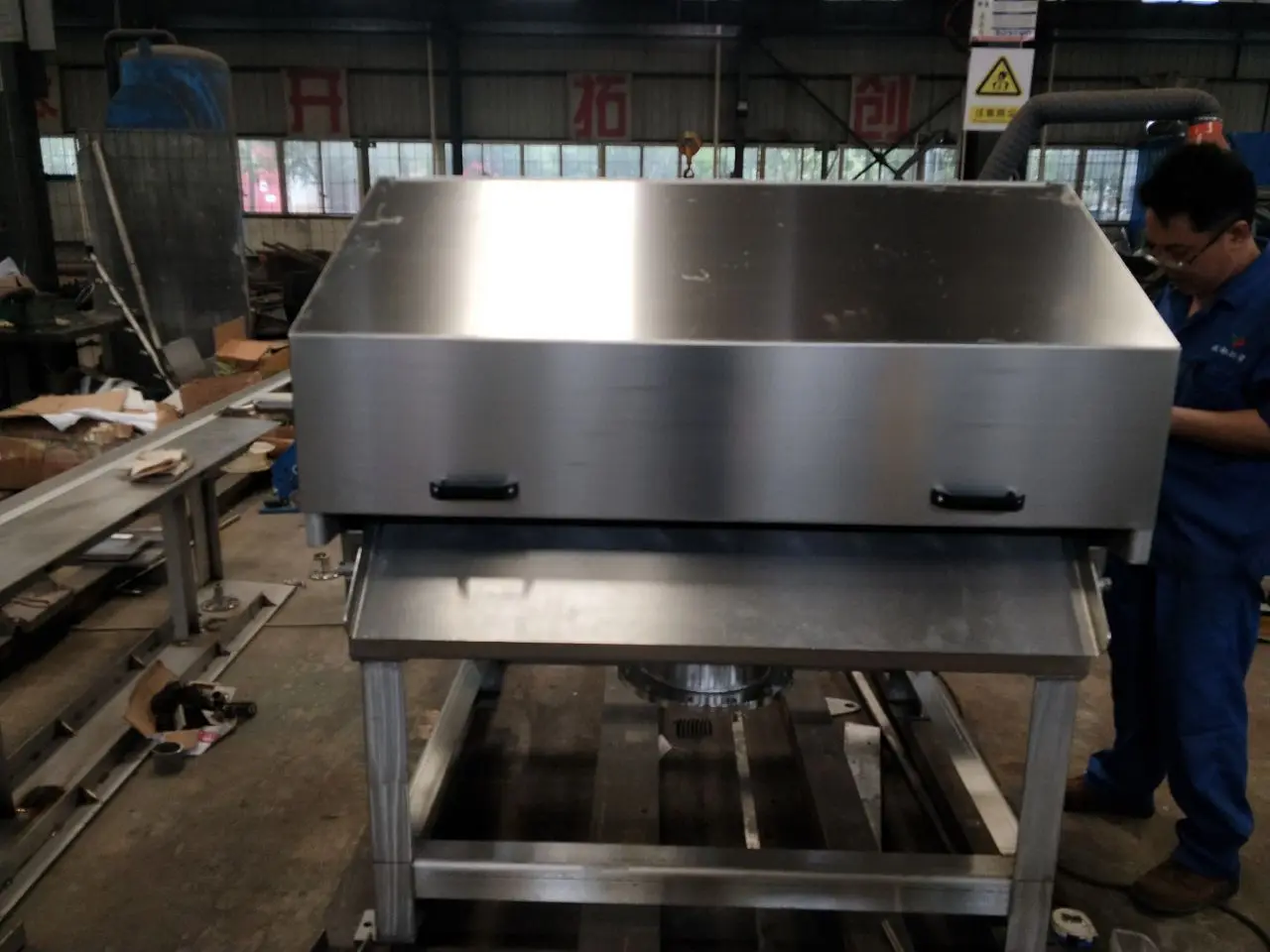

The Inward rotary drum filter is one of the preteatment solid separating devices used for small and medium wastewater treatment plants, and a device which can remove solid suspended matter continuously and effectively. In some wastewater treatment, 30% to 60% of the organic and inorganic solid suspended matters will be removed after filtering and reducing greatly the subsequent workload.
Main Features
Simple structure, high reliability
Compact structure, small covering area
Wedge wire wrapped drum for excellent hydraulic performance
Specifications
Model (TPO)
350×600
610×610
610×1220
610×1830
800×1830
Drum diameter(mm)
350
610
610
610
800
Drum length (mm)
600
610
1220
1830
1830
Motor power (kw)
0.25
0.55
0.75
0.75
1.1
Rotating speed
4-20r/min
Flowrate (m³/h)
Screen gap(mm)
0.25
8
33
65
100
175
0.5
15
60
120
180
315
0.75
20
81
162
243
436
1
25
100
200
306
535
1.5
32
130
260
397
695
2.5
42
170
340
520
912
*Above parameters only for reference, customized available for detailed requirements
Cases
With our consistent effort, our machines are supplied to more than 30 countries during the past 20 years. With high quality, competitive price and good after-service, our products won high praise from customers.

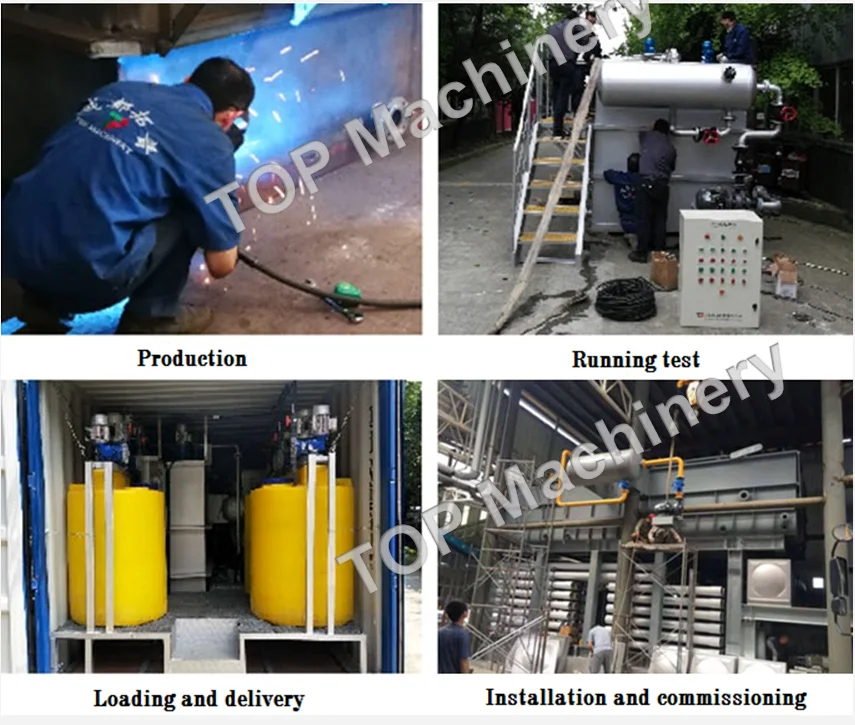

Production Facility
With R&D team, we can design and manufacture the machine according to customer requirements.
