Product Overview
Description
Products Description
Crawler-mounted digging is a commonly used heavy-duty crawler-type special mining vehicle, which has been widely used in the displacement of heavy semi-continuous and intermittent process equipment in large open-pit mines. Its appearance has changed the traditional agricultural transportation mode, bid farewell to the previous low-efficiency transportation mode, and accelerated the development of agriculture.

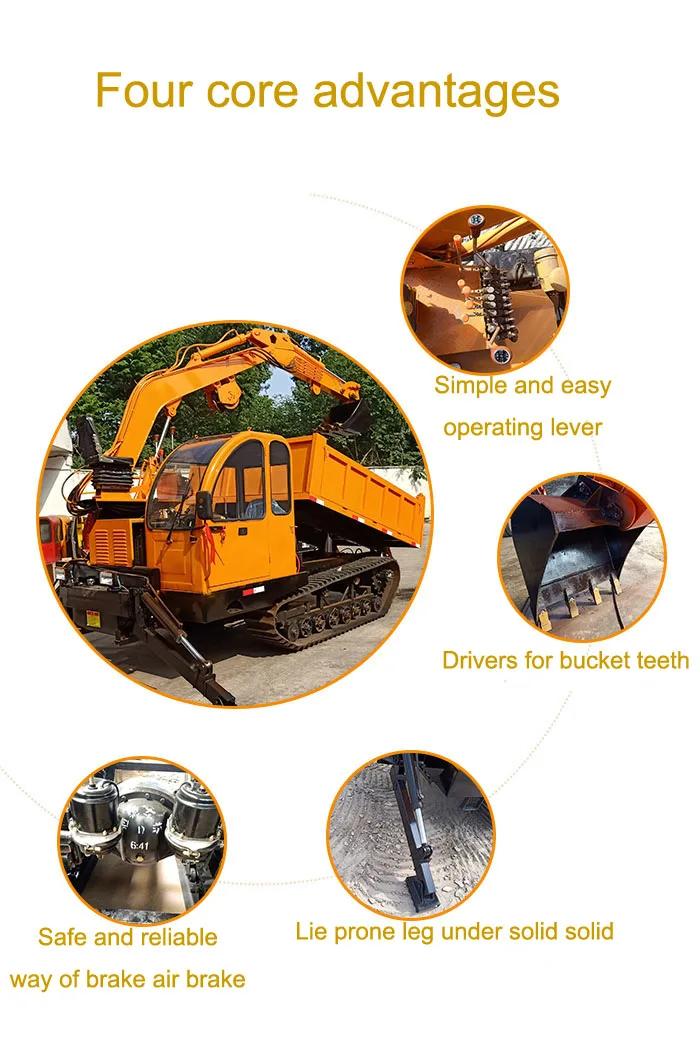

Features
1. Adopting domestic engine, gearbox, rear axle, low speed and high torque, with great climbing performance.
2. Excellent waterproof performance, the entire vehicle circuit and electrical appliances adopt high-level waterproof sealing treatment, and the crawler digs the transport vehicle, which effectively avoids the phenomenon of electricity leakage due to rain.
3. Large angle steering, smaller turning radius, suitable for complex situations with narrow roadways and multiple bends.
Product Paramenters
Dump truck mounted excavator | ||
Engine model | 4102 Supercharged generator | |
Engine power | 68KW (92HP) | |
Gearbox model | 145 Gearbox | |
Crawler model | Engineering crawler ( selectable) | |
Crawler size | 400*90*68 (customized) | |
Drive mode | Transmission shaft drive | |
Hydraulic pump model | 50 pump (selectable) | |
Caterpillar chassis dimensions | 3000*2000 | |
Overall dimensions | 5000*2000*2100mm | |
Carriage dimension | 3200*2000*500mm | |
Leg | Vertical leg/ oblique leg | |
Digging arm size | 5m big arm (selectable) | |
Unloading way | Self-propelled rear-dump | |
Rotary support | 360° Center of rotation (selectable) | |
Hydraulic oil tank | 30L (selectable) | |
Hydraulic cyliner stroke | 1200mm | |
Brake method | Air-cut brake | |
Sheer off | Pivot steering | |
Driving cab | Single fully enclosed cab | |
Bucket model | 60 bucket (selectable) | |
Can be mounted module | Wire remote control/ wireless remote control | |
Optional Components | breaking hammer, rotate the wood grabber | |
