Flexographic printers 6 color flexo printing machinery for labels and paper machine
- Category: Printing Machine >>>
- Supplier: Zhejiang,Hongsheng,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

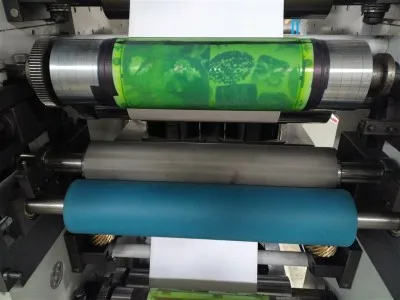

HSS-320G/450G 6 colors Flexo Printing Machine adopts ceramic cylinder to transfer the ink. l Each printing unit adopts
360-degrees plate-adjustment. l Three die-cutting stations,the first and second die-cutting station can do double sides working.The third die-cutting station can be used as sheeter. l Computerized web-guiding system is installed in the front of printing unit ,it ensures the material always in the right position. l After sheeting in the third die-cutting station,conveyor belt can output the products orderly.(option) l Unwinding and rewinding tension are auto-controlled by magnetic powder l The ink roller can depart from the machine and rotate at a low speed in order to keep the ink from drying when it stops. l The main motor adopts step-less converter. l This machine can finish processing one web from feeding, printing polishing, auto infrared drying,laminating and rewinding in one process. The machine is an ideal trademark printing machine to print slips and high grade self-adhesive trademarks.
360-degrees plate-adjustment. l Three die-cutting stations,the first and second die-cutting station can do double sides working.The third die-cutting station can be used as sheeter. l Computerized web-guiding system is installed in the front of printing unit ,it ensures the material always in the right position. l After sheeting in the third die-cutting station,conveyor belt can output the products orderly.(option) l Unwinding and rewinding tension are auto-controlled by magnetic powder l The ink roller can depart from the machine and rotate at a low speed in order to keep the ink from drying when it stops. l The main motor adopts step-less converter. l This machine can finish processing one web from feeding, printing polishing, auto infrared drying,laminating and rewinding in one process. The machine is an ideal trademark printing machine to print slips and high grade self-adhesive trademarks.
Specification
Model | HSS-320 | HSS-450 | HSS-570 | |
Max. Web Width(mm) | 320 | 450 | 570 | |
Max. Printing Width(mm) | 310 | 440 | 560 | |
Max. Unwind Diameter(mm) | Φ600 | Φ600 | Φ600 | |
Unwind tension control | Magnetic powder brake with automatic controller | Magnetic powder brake with automatic controller | Magnetic powder brake with automatic controller | |
Inner core diameter(mm) | 76mm(3") | 76mm(3") | 76mm(3") | |
Web guiding system | Automatic web guiding system with ultrasonic sensor | Automatic web guiding system with ultrasonic sensor | Automatic web guiding system with ultrasonic sensor | |
Max. Rewind Diameter(mm) | Φ600 | Φ600 | Φ600 | |
Rewind tension control | Magnetic powder clutch with automatic controller | Magnetic powder clutch with automatic controller | Magnetic powder clutch with automatic controller | |
Mechanical speed(m/min) | ≤80 | ≤80 | ≤80 | |
Precision of printing(mm) | ±0.1 | ±0.1 | ±0.1 | |
Main Motor Power(kw) | 2.2 | 2.2 | 3 | |
Weight(kg) | 2200 | 3350 | 4000 |
Recommend Products
Exhibition
Company Profile

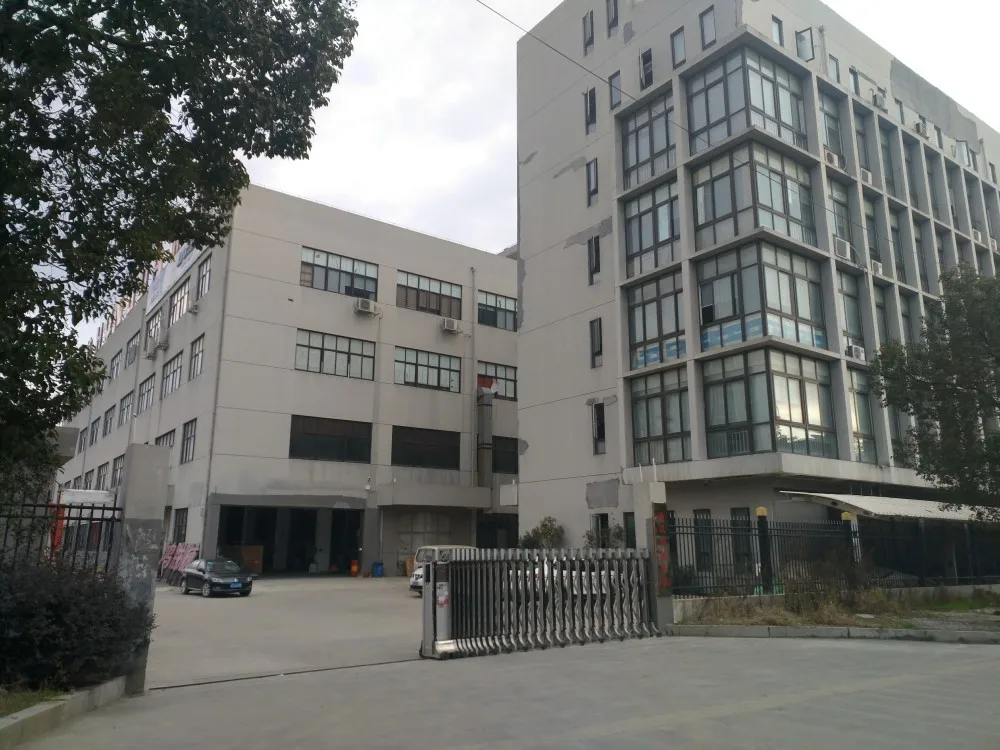

Zhejiang Hongsheng Machinery Co., Ltd. is located in Feiyun Industrial zone, with convenient transportation. Many elites in research, design, production and sales have been engaged in our company. Therefore, our products remain superior, efficient and innovative. In addition, we have a very good procurement team that can help us find better resources and suppliers and reduce our machine costs. It makes our prices more reasonable and more competitive. We produce a variety of machine, such as die cutter, slitter, rewinder, label inspector. What is worth mentioning is our honor products, sleeve flexographic printing machine and flower petal flexographic printing machine. There is a very large and experienced team of designer and engineers working on these machines. Therefore, for these two flexo printers, we’ve achieved great success that the quality of printing is very high. We have been selling our products to India, Middle East, Southeast Asia & South America. Our total export amount was about 800,000.00 US dollars in 2017. Besides, all of our products have passed the CE and ISO9001 QMS certification.As for our customers, we have an experienced team to assist all of our clients to purchase more useful and more suitable machines. They can respond to every inquiry rapidly, gently and patiently. We also have a very robust system and clause in after sales. We have a permanent responsibility for every machine we produce. We’re here confident to be your smartest choice, and wait for your needs..
Certifications
Packing & Delivery
Our engineer can be available to service machinery overseas.
1)Machines with good quality in one year, life-long maintenance
2)We have many machines can be throughed via the Internet, solve customer requirements in a timely manner.
3)We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
4)Undertake various non-standard machinery, solve the customers' requirements.
1)Machines with good quality in one year, life-long maintenance
2)We have many machines can be throughed via the Internet, solve customer requirements in a timely manner.
3)We have several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
4)Undertake various non-standard machinery, solve the customers' requirements.
FAQ
1. Your company is a manufacture or a trading company?
We are a manufacturer.
2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the
L/C,western union,paypal,private account,cash and others.
3. Where is your factory located ? How can I visit there?
Our factory located in Ruian city, the nearest airport is WENZHOU airport, the nearest train station is RUIAN city. If you need,
we can we pick you up from airport or train station.
4,What about the warranty?
All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food,
hotel and transport, pay our engineer 100 usd / day / person as salary.
In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life
service, buyer pay for the material cost of exchanging spare parts and repairing.
We are a manufacturer.
2. What is the terms of payment you accept?
We can accept the T/T payment, we need 30% of total amount as deposit,pay the 70% balance before delivery, we can also accept the
L/C,western union,paypal,private account,cash and others.
3. Where is your factory located ? How can I visit there?
Our factory located in Ruian city, the nearest airport is WENZHOU airport, the nearest train station is RUIAN city. If you need,
we can we pick you up from airport or train station.
4,What about the warranty?
All of our machines have 1 year warranty, if need we send engineer to install and test, buyer pay for the round air-tickets, food,
hotel and transport, pay our engineer 100 usd / day / person as salary.
In warranty period, if spare parts broken, we exchange for free. after the warranty period, we supply the machine’s full life
service, buyer pay for the material cost of exchanging spare parts and repairing.
