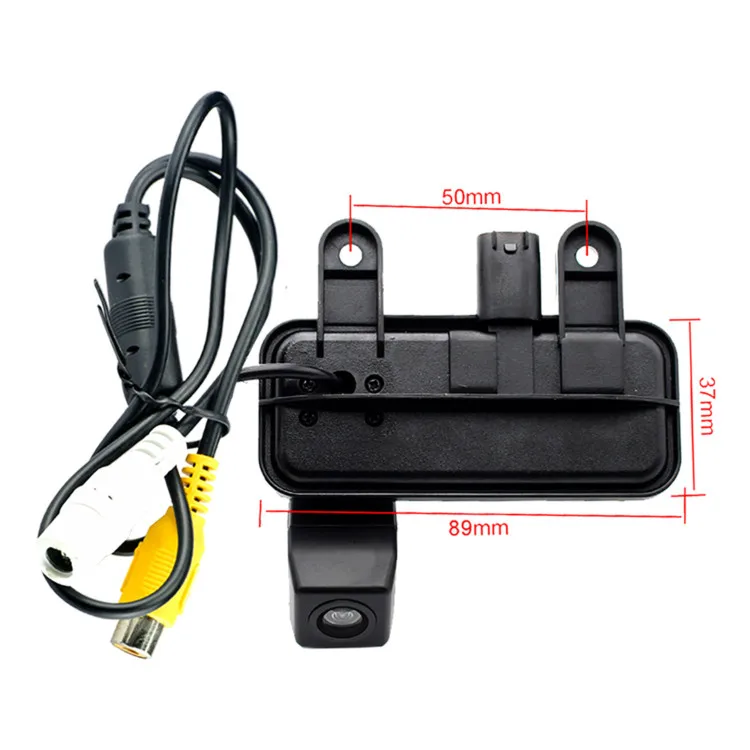

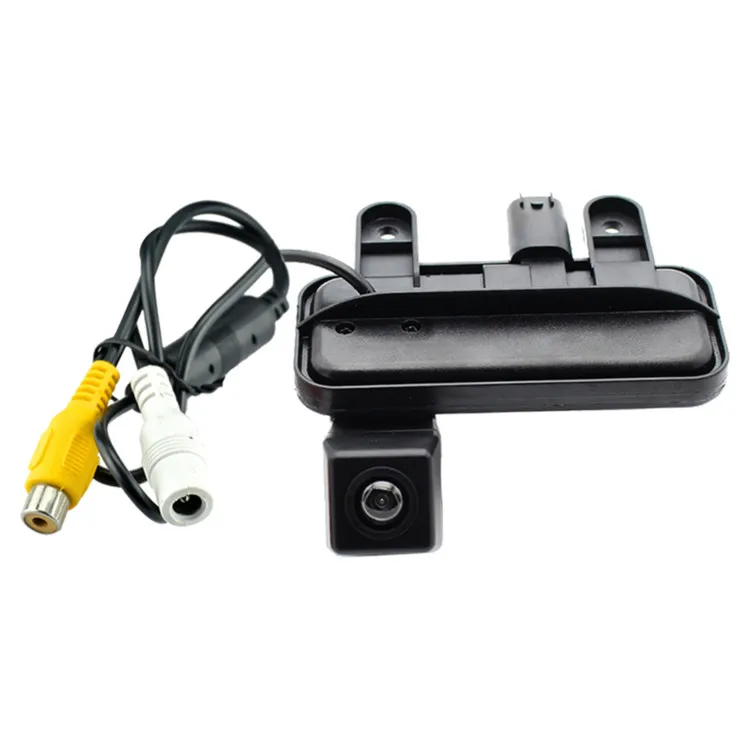

Trunk Handle vehicle specific Camera Integrated into Case Handle Rear View Camera for Mercedes Benz E Class W210 W211 W212 C207

Share on (1600224909336):


Price:$11.00 - $15.00

Quantity:


Product Overview

Description



Applicable models

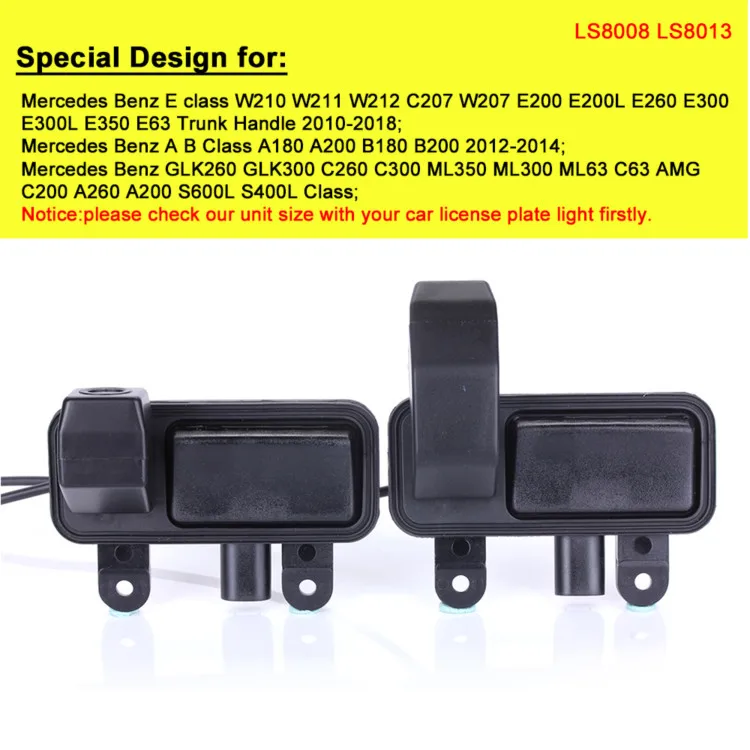

Compatible with Mercedes Benz E Class W210 W211 W212 C207 W207 E200 E200L E260 E300 E300L E350 E63 Trunk Handle 2010-2018
Compatible with Mercedes Benz A B Class A180 A200 B180 B200 2012-2014 / Mercedes Benz GLK260 GLK300 C260 C300 ML350 ML300 ML63 AMG C200 A260 A200 S600L S400L Class




Technique Specifications


1. TV System: NTSC (If you need PAL, please leave a message)
2. Resolution: 520 TV lines
3. Lens Angle: 170°
4. S/N ratio: more than 48db(AGC-OFF)
5. Video Color: Colorful
6. Video Output: 1.0Vp-p,75(Omega)
7. Image Device: 1/4 inch color
8. Sensing Area: 5.78 x 4.19mm
9. Sync. System: Internal
10.Power Supply: DC 12V
11.White Balance: Auto
12.Waterproof Class: ip 66
13.Effective Pixels: 628 x 586 Pixels
14.Electronic Shutter: 1/60-1/10000 seconds
15.Current Consumption: < =150mA
16.Current Consumption: 90mA Max.
17.Storage Temperature: -40°C to +60°C, RH95% Max.
18.Minimum Illumination: 0.01Lux/F1.2
19.Operating Temperature: -30°C to +50°C, RH95%




Specification


Type
Reverse Camera, Backup camera, Wireless Rear Camera
View Angle
170°
Function
Waterproof, Build-in GPS, Parking Line
Power
DC 12V
Voltage
DC 12V
Warranty
1 Year
Certification
ce, FCC
Place of Origin
China
Model Number
RM-LS8013-3089 8008-3089
Car Fitment
for Mercedes Benz
Product name
Car Trunk Handle Rear View Camera
Waterproof Class
IP 66
Image Device
1/4 inch color
View angle
170° Degree
Resolution
520 TV lines
Operating Temperature
-30°C to +50°C, RH95%
Pixels
628 x 586

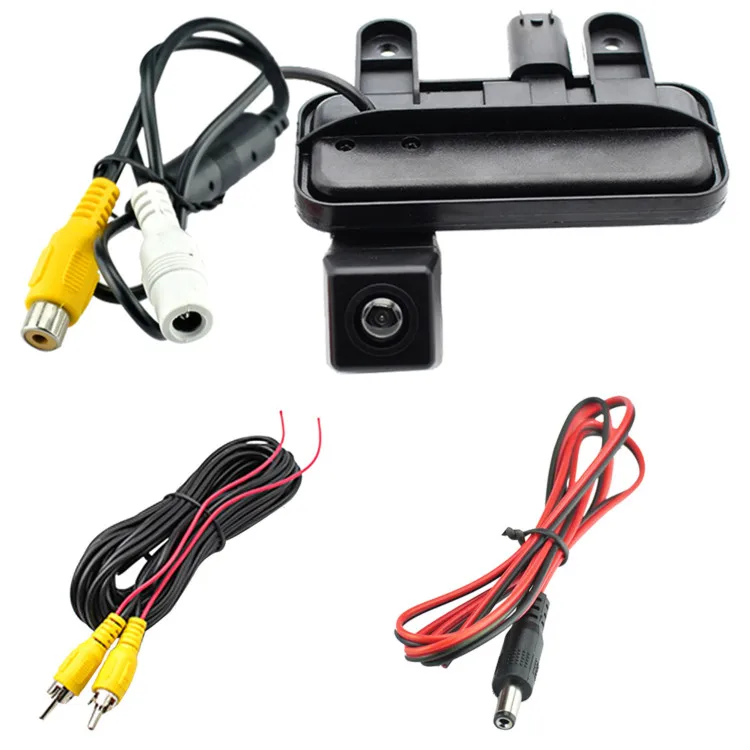

Accessories


1 * Car CCD camera
1 * 6M Video cable
1 * 1M Power cable
