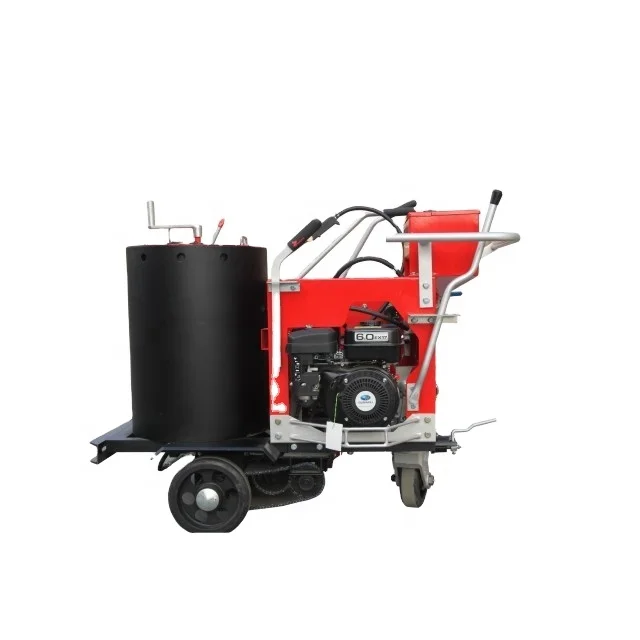

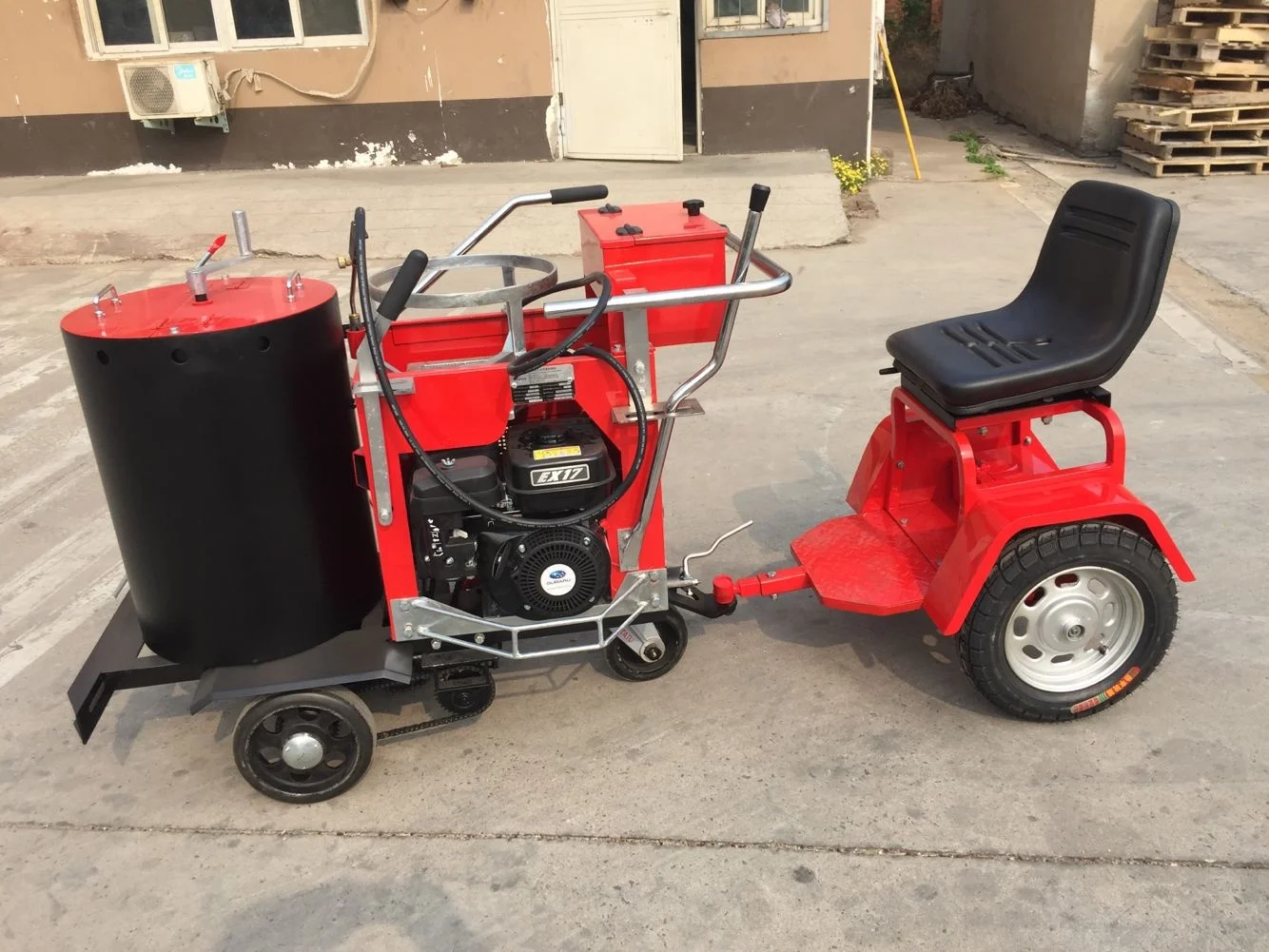

Multi function Safety reflective convex rumble strip marking lines thermoplastic convex screed marking machine
- Category: >>>
- Supplier: Tatu Highway Group Co. Ltd.
Share on (1600224937620):
Product Overview
Description
Products Description

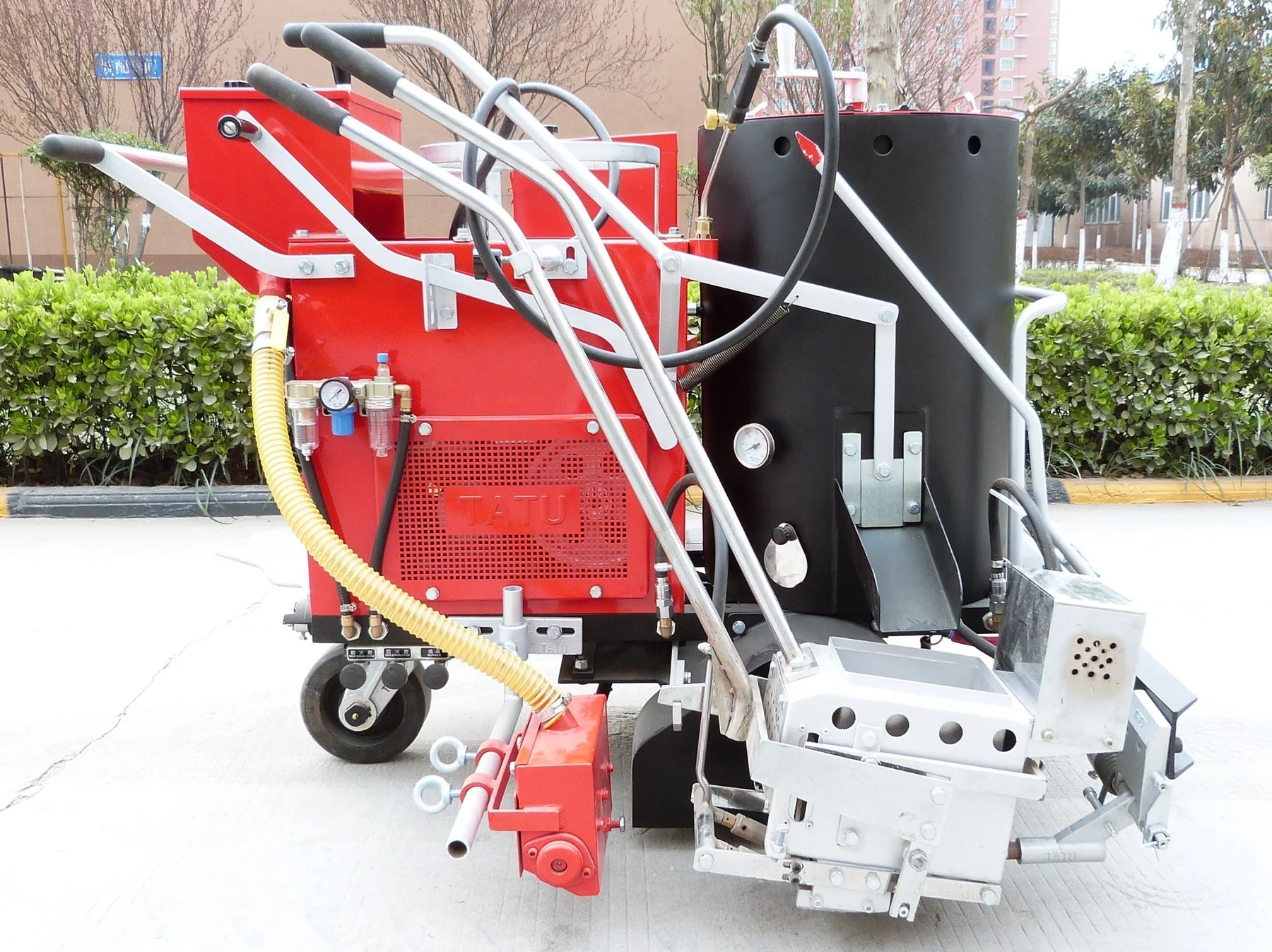

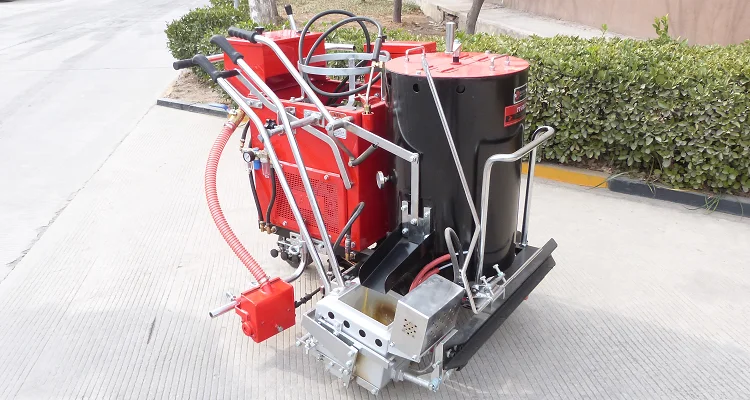

TT-FR/ZG-I series is a kind of self-propelled thermoplastic road marking machine for convex line, also can be used for flat line as well. The whole machine is equipped with hydraulic variable speed transmission system, elaborately designed melting material system, scraping system, micro-bead broadcasting system and walking driving system, which ensures durability, stable performance, more neat marking line, more uniform thickness and better reference.
Technical Parameter | ||||
Model | TT-FR/ZG-I | TT-FR/ZG-II | ||

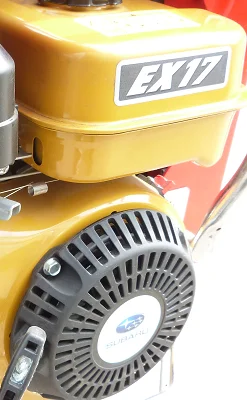

Engine | HONDA OR ROBIN 6.0 HP gasoline engine | |||
Heating mode | Liquefied petroleum gas, infrared burner | Gasoline or diesel injection burner | ||
Paint tank capacity | 65L | |||
Glass beads bin | 14L | |||
Marking equipment | Manual screeding marking shoe, standard configuration 150mm | |||
Marking width | 100mm, 200mm, 250mm, 300mm (Optional) | |||
Marking thickness | 1.8mm-3.0mm | |||
Dimension | 1350 mm × 1000 mm × 1100 mm | |||
Weight | 230Kg | |||
Optional system | Standing trailer, electric start, warning light, lighting lamp | |||
Product Advantages

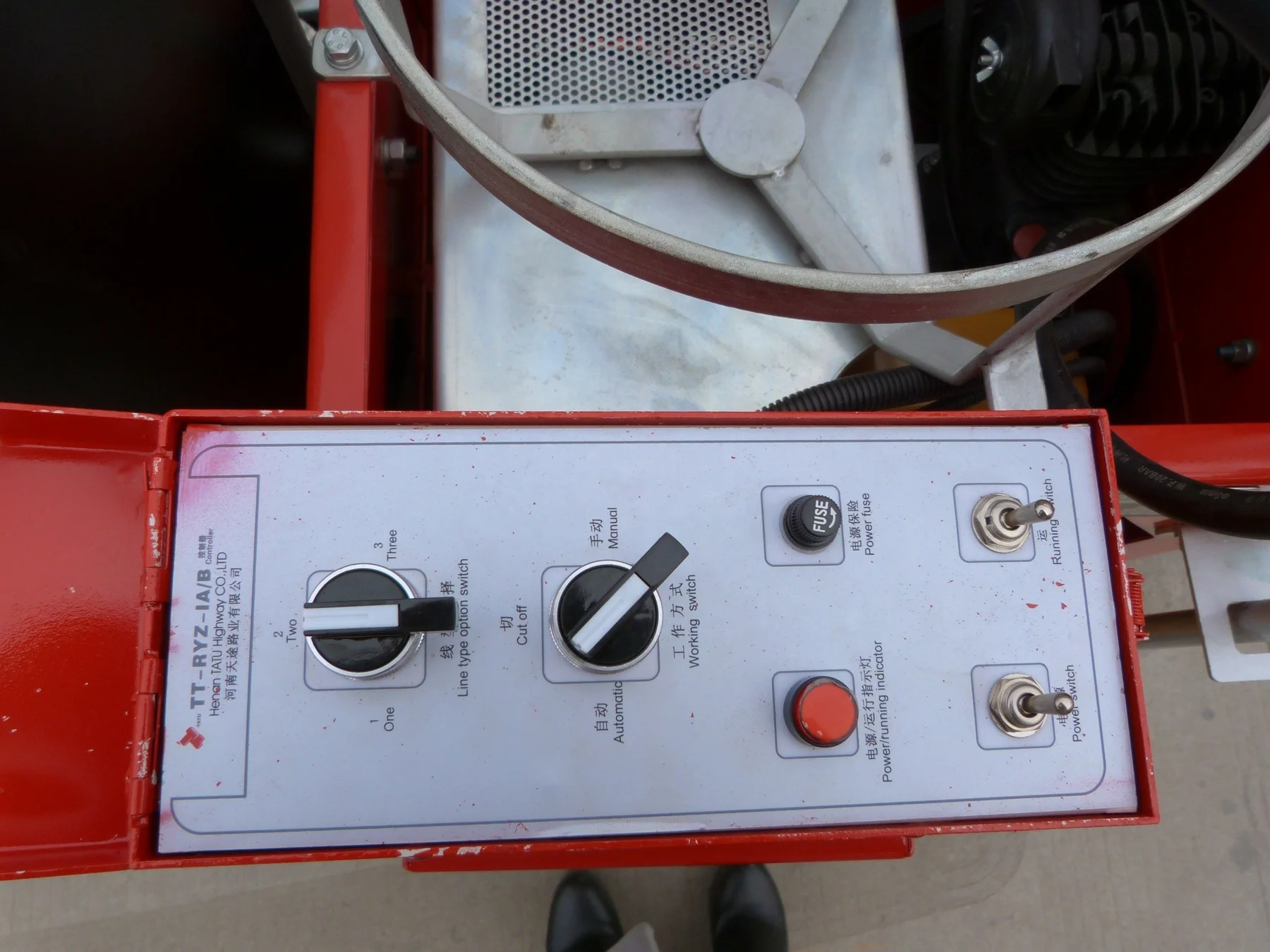

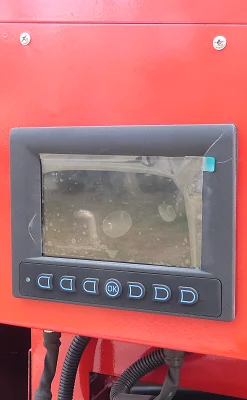

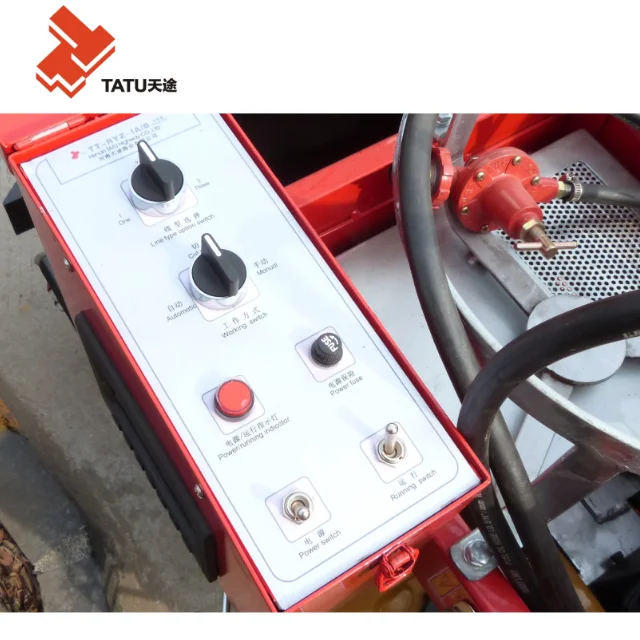

Automatically contral panel
According to select line-type, automatically control length of convex and spacing of convex. Line type can be set in advance freely throug the digtal display panel on its left side.

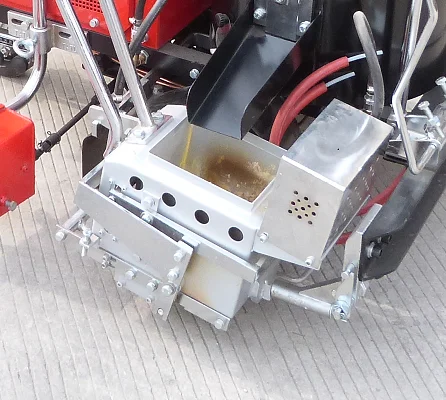

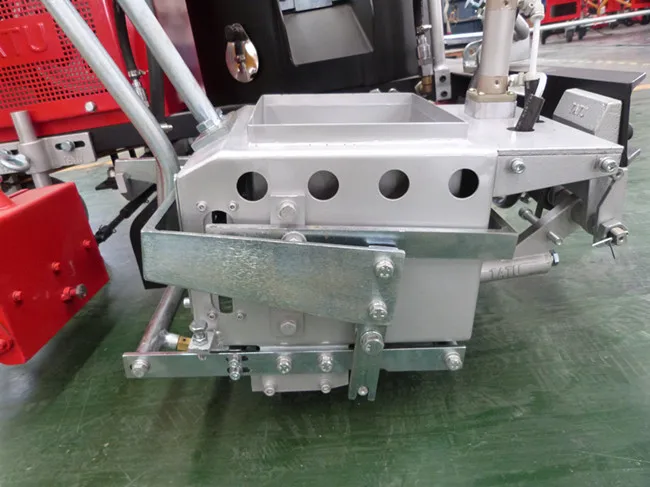

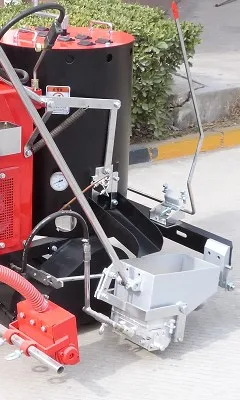

Using high temperature resistance high quality alloy-steel blade bed plate component, cemented carbide with tungsten carbide landing knife, aluminum die casting bin, with good sealing performance, and more sturdy and durable. Adopts high sensor, precise control convex length and spacking, each marking shoe is rigorously tested before delivery

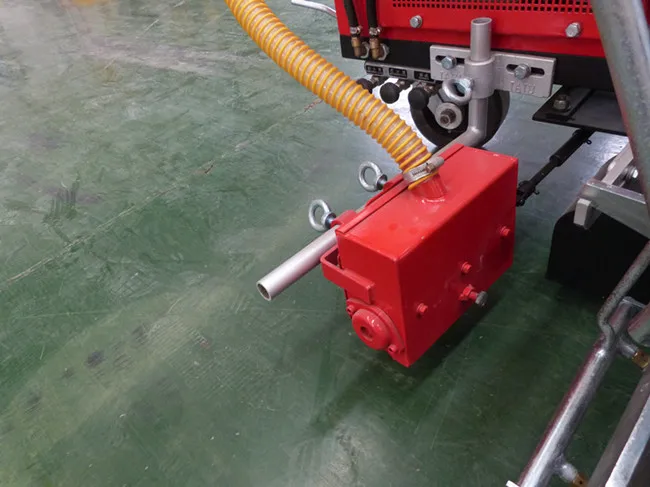

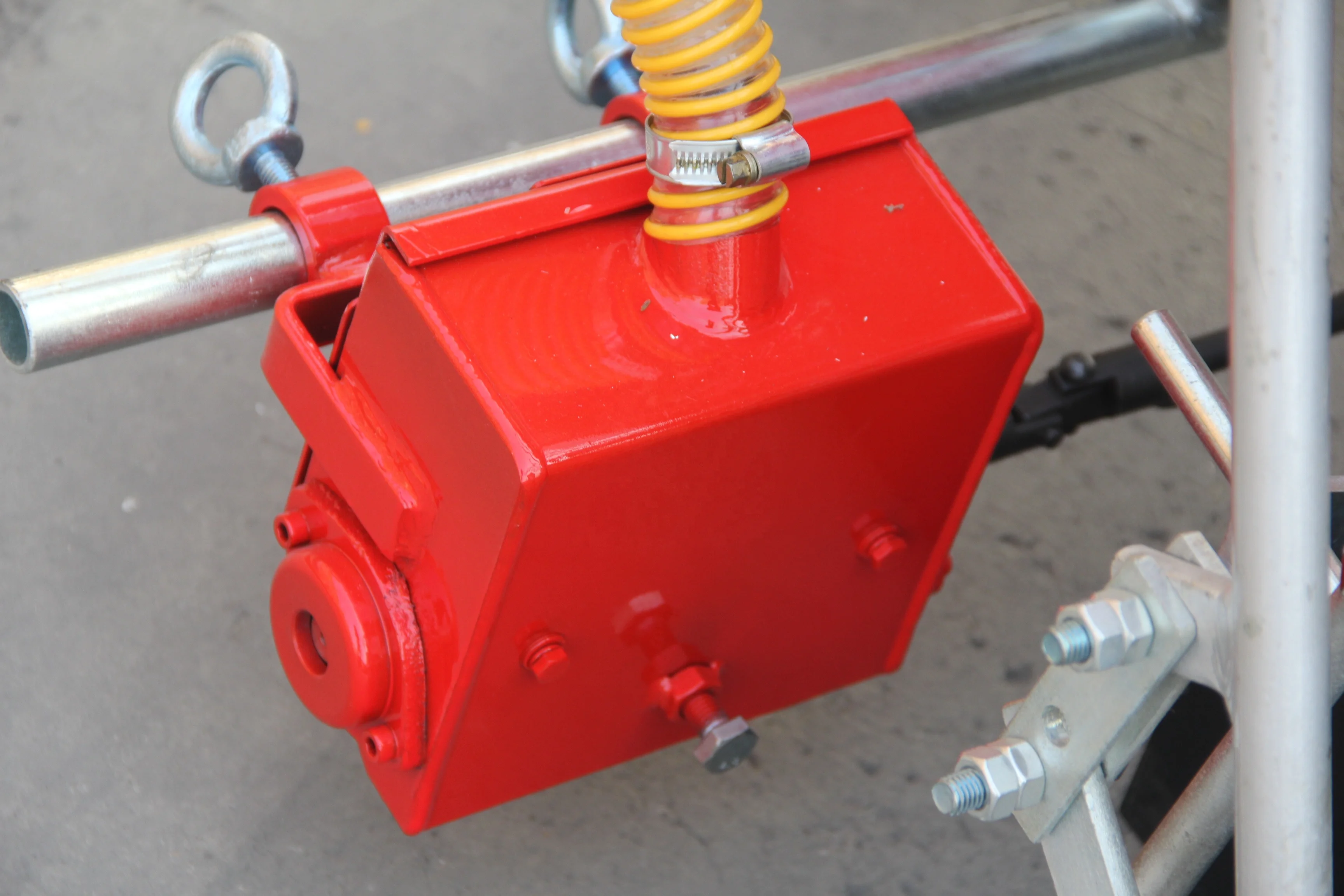

Equipped with glass beads dispenser which is synchronous with the paint screeding system, the width and flow can be adjust.
landing knife, aluminum die casting bin, with good sealing performance, and more sturdy and durable.

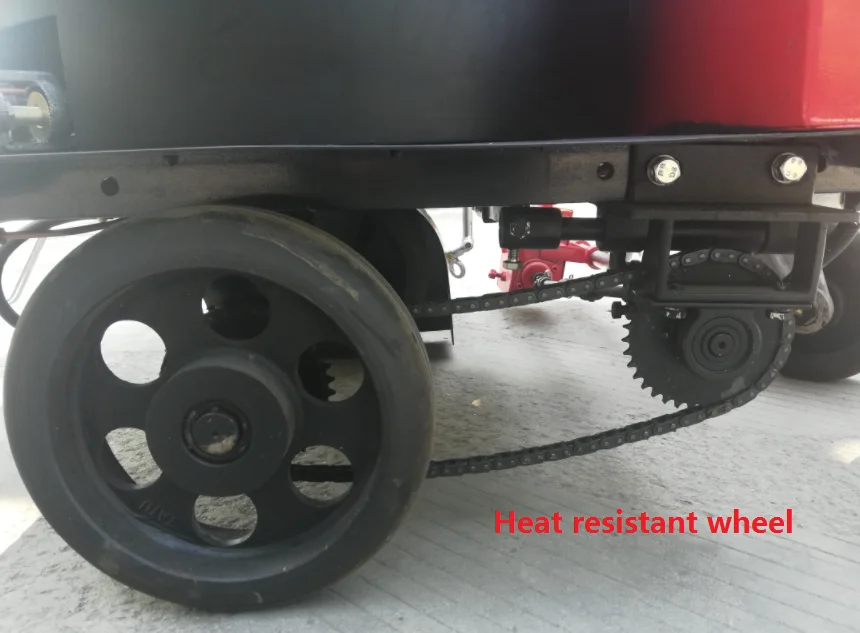

Special rubber wheel, high temperature resistance, wear resistance, reliable operation, flexible walking.
Recommend Products

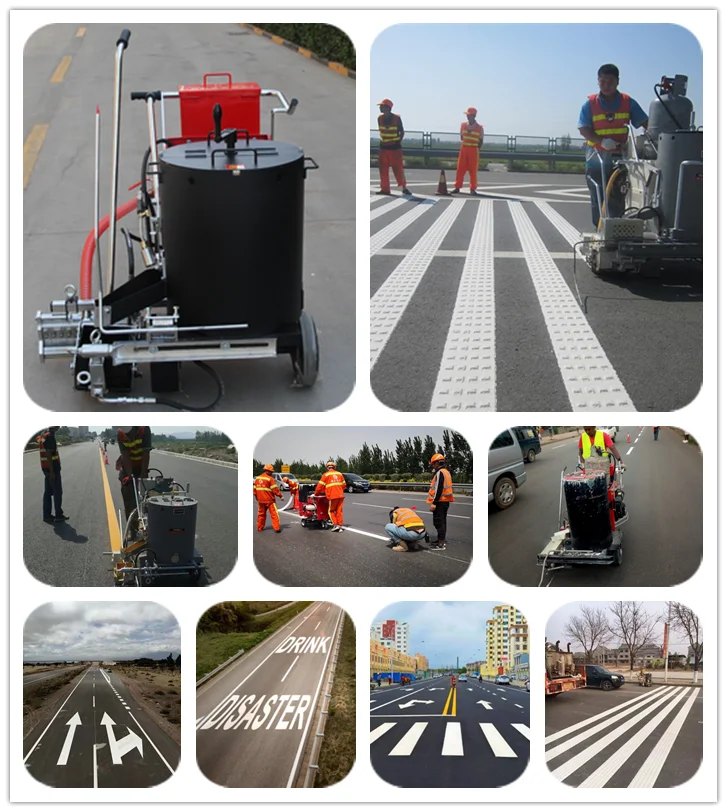

Application photos
Why Choose Us
TATU highway group was founded in 1998, it is an integrated production service enterprise focusing on special road product manufacturing and professional road service operation and global development. The group number of single product, number of exporting countries and comprehensive competitive strength ranks among the forefront of international road specialty product manufacturing industry. Many products fill the gaps in China, Asia and even the world, and the products are exported to more than
100 countries and regions.
100 countries and regions.
Certifications
Exhibition
FAQ
1.Q:Are you a factory or trading company?
A:We are factory which is dedicated in developing road traffic field more than 20 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nantong City, Cangzhou City and Zhengzhou City. All our clients are warmly welcome to visit us!
3.Q:What’s the marking area for one ton of thermoplastic paint?
A: 200-250 square meters for flat lines, about 150 square meters for convex lines, it depends on two factors: line thickness and
road surface flatness.
4.Q:How many glass beads drop on type for one ton of thermopalstic paint?
A: About 100KG for one ton thermoplastic paint.
6.Q:How many worker is necessary for one marking team?
A: 6-8 worker
A:We are factory which is dedicated in developing road traffic field more than 20 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Nantong City, Cangzhou City and Zhengzhou City. All our clients are warmly welcome to visit us!
3.Q:What’s the marking area for one ton of thermoplastic paint?
A: 200-250 square meters for flat lines, about 150 square meters for convex lines, it depends on two factors: line thickness and
road surface flatness.
4.Q:How many glass beads drop on type for one ton of thermopalstic paint?
A: About 100KG for one ton thermoplastic paint.
6.Q:How many worker is necessary for one marking team?
A: 6-8 worker
