air source swimming pool fish pool mini heat pump pool warmer

Share on (1600224939230):


Price:$250.00 - $300.00

Quantity:


Product Overview

Description



Product Description

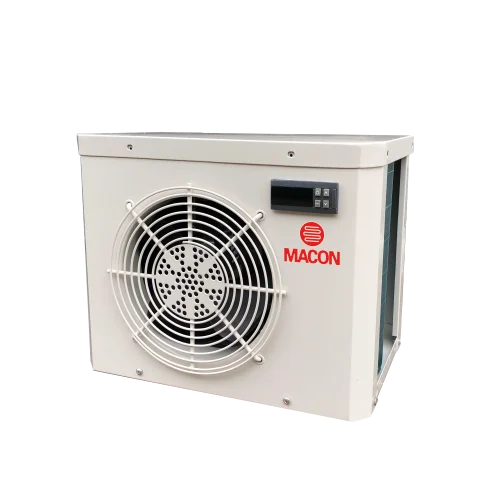

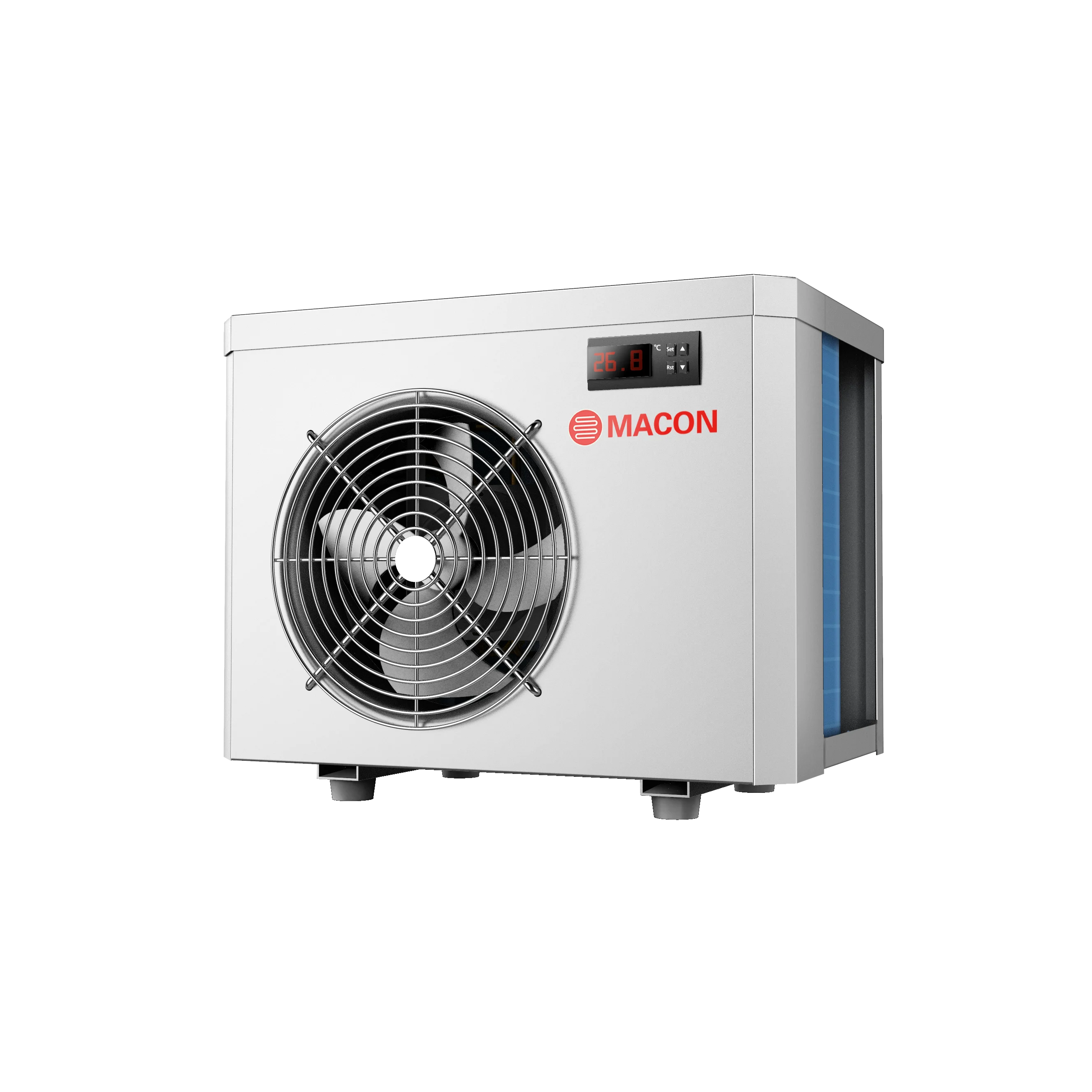

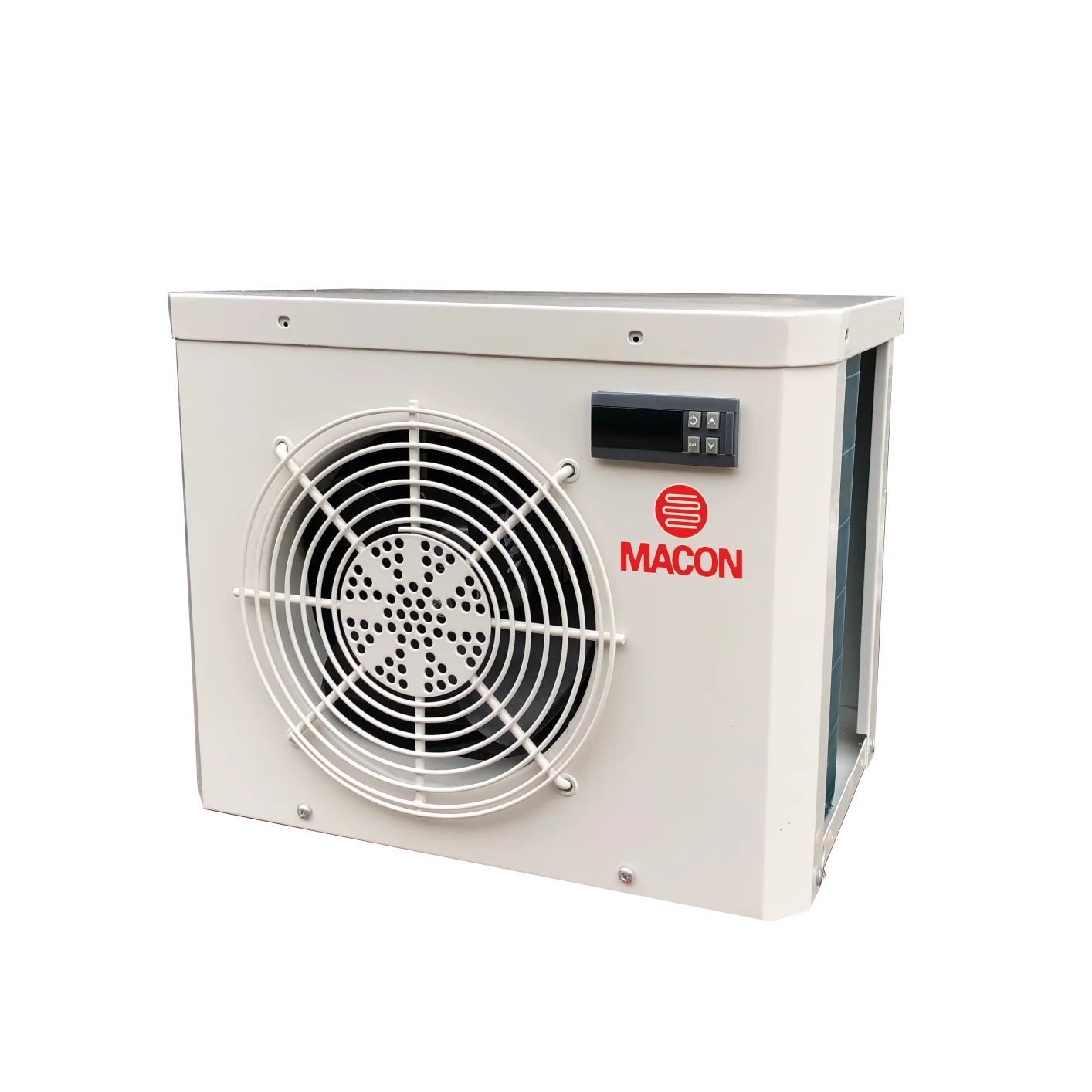

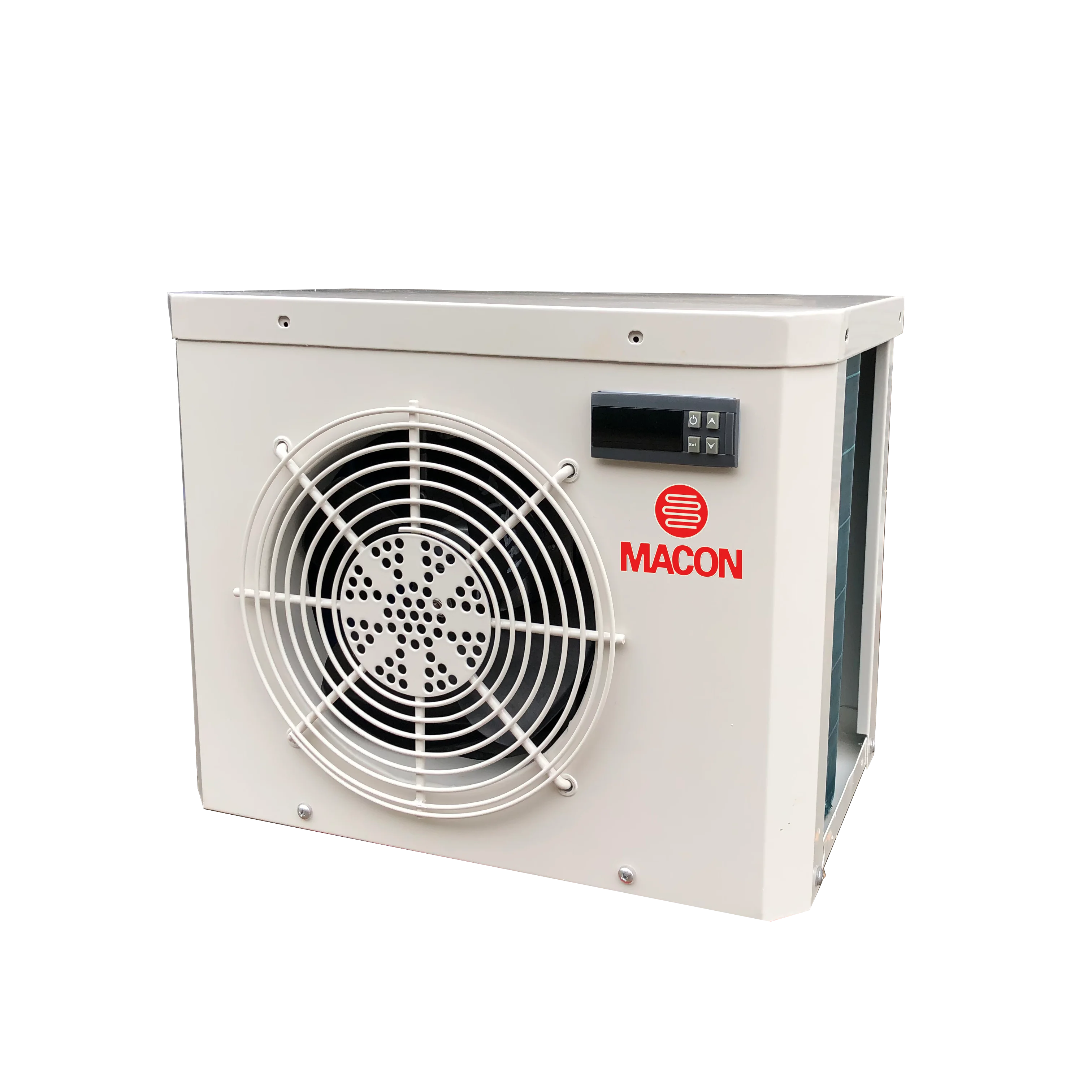

R32 mini heat pump swimming pool heater

1. Full DC inverter technology
Macon DC inverter swimming pool heat pump use full inverter technology, DC inverter compressor and inverter fan motor, the working
frequency will change according to ambient temperature and water temperature, so the unit works at best performance.
2. Low noise design
The compressor is equip with low noise muffler button, and we choose low noise fan motor. All the copper pipe and the cabinet will
design for low noise.
3. High COP
Macon DC inverter pool heat pump have high COP to 18
4. Wifi control
Macon swimming pool heat pump have wifi control, so you can control the pool heat pump anywhere.
5. Wide working temperature range
Inverter swimming pool heat pump can work at -20°C~43°C
6. Eco-friendly refrigerant
With R32 refrigerant in Europe, it is no pollution to environment.
7. Multi-protection
Macon pool heater with water flow switch protection, compressor protection, anti-freezing protection, which makes your unit works
safety.




Parameter for mini swimming pool heat pump
Model
MALRW
005ZA
008ZA
012ZA
Advised pool volume
m3
5~15
10~20
12~22
Refrigerant type
R32/R410
R32/R410
R32/R410
Power supply
230V/1Ph/50Hz
Function
Heating only
Casing type
Galvanized stell case
Colour
White/Black/Customized
Control
LED digital display
Operating ambient temp.
7~43
7~43
7~43
Heating:(Air27℃water 26℃
Humidity 80%
Capacity(kw)
2.6
4.2
5.2
Power inpput(kw)
0.53
0.85
1.05
Rated current(A)
2.53
3.61
4.76
COP
4.91
4.94
4.95
Heating:(Air15℃water 26℃
Humidity 70%
Capacity(kw)
1.8
3.2
4.0
Power inpput(kw)
0.5
0.83
1.04
Rated current(A)
2.39
3.31
4.73
COP
3.60
3.86
3.85
Max current
A
3.5
5.1
6.7
Power cable
Rubber cable with RCD main plug(Plug&play)
Plug type
EU or UK
Sound pressure @ 1m
dB(A)
45
45
46
Compressor type
Rotary
Condenser
Horizontaltype spiral titanium tube in PVC
Evaperator
Horizontaltype aluminium fins & copper tubes
Fan type
Horizontal
Fan qty.
1
Fan power input
W
30
30
30
Advised water flow
m3/h
1~2
1~2
1.5~2.5
Water connection
mm
32
32
38
unit dimenssions(W*D*H)
mm
420/260/335
440/440/460
440/440/460
Packing dimenssions(W*D*H)
kg
450/290/370
470/470/490
470/470/490
Net weight
kg
15
19
26
Gross weight
17
22
32




Product certificates






Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile








Welcome to Macon Cooling & Heating Energy-Saving Equipment Co., Ltd. Our company is one of the leading manufacturers of heat pumps in Guangdong, China, specialized in the field of air / ground source heat pumps, air cooled water chillers and hot water heat pump , all in one heat pump , floor/ radiator heating heat pumps, multi-function heat pump , dehumidifier , fan coil and so on.

Our Macon , which of good faith professional heat pump manufactory for 6 years with obtaining CE, ETL ,SAA,C-TICK,WATER-MARK,STANDARD MARK ,CCC and ISO9001:2008 certification.

Our senior engineers,20% over 20 years experiences in the heat pump area , 80 % over 8 years experience . And 60% skillful technicians are 10 years manufacturing experience of heat pump )

What's more ,we have obtained 3 patent of invention in the area of heat pump ,and use six sigma management and High-tech detection equipments .

We have earned a good reputation and our products have attained the many certifications. We have a group of senior engineers and skillful technicians to ensure high quality. Strict quality control is always being implemented by us. With excellent R&D abilities and high technique innovation, our company has established OEM/ODM business relationships with a lot of overseas enterprises, supplying suggestions and services for customers worldwide. We are devoted to researching and developing new products.

And Under our six sigma management system and the first-class production process and strict quality control system, our manufacture capacity will be 58,000 sets heat pump every years. we established OEM business relationships with lots of overseas enterprises from North America, Europe, Australia, the Middle East. So we are the manufacturer that you can trust fully in China.

In recent years, our company has been able to offer one-stop service to overseas customers in the fields of commercial air conditioning, special air conditioners, purification devices, exactitude air conditioners and auto-controlled equipment.

We always take energy saving as our developing trend and environmentally friendly as our aim. We have devoted ourselves to technology revolution to provide more reliable, stable and environmentally friendly products to customers worldwide.
