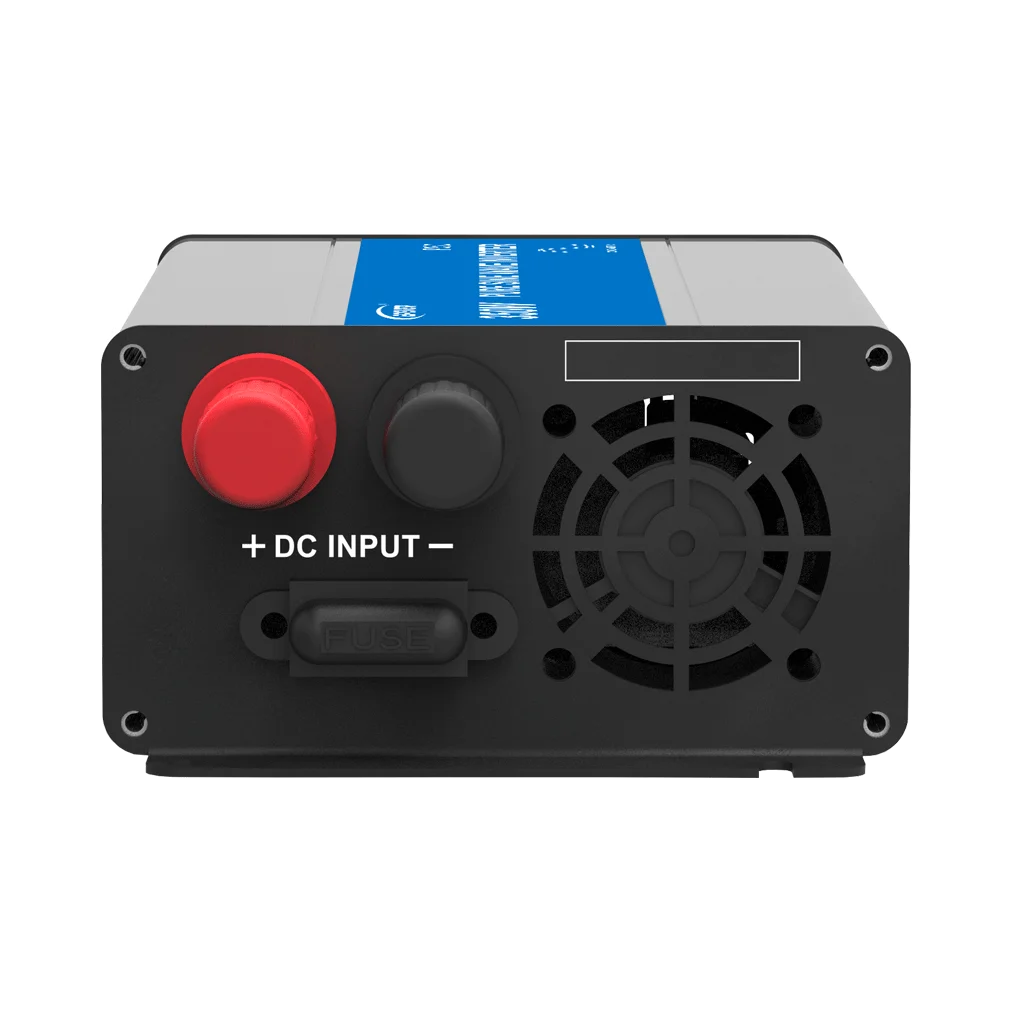

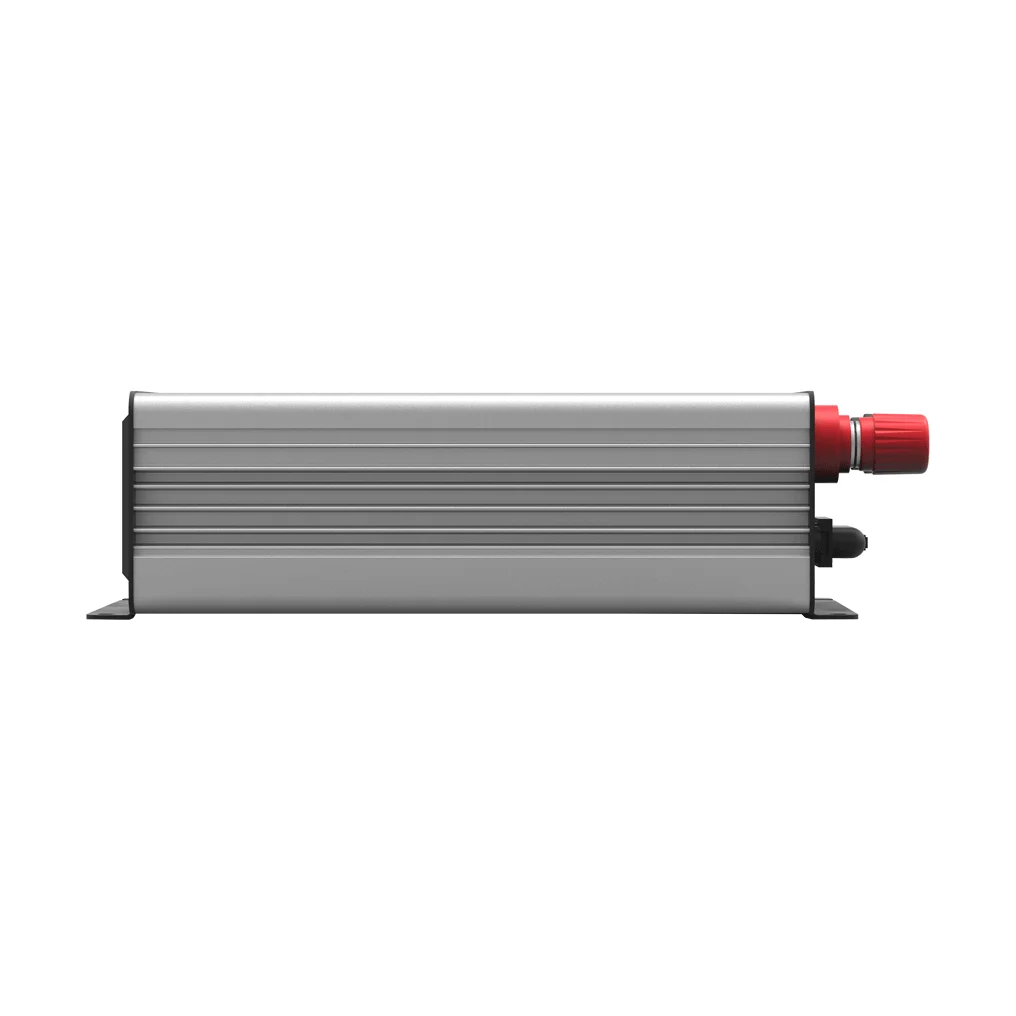

Wholesale price off grid 12V 24V 48V pure sine wave solar power inverter 350W 2000W
Wholesale price off grid 12V 24V 48V pure sine wave solar power inverter 350W-2000W
Wholesale price off grid 12V 24V 48V pure sine wave solar power inverter 350W-2000W
Wholesale price off grid 12V 24V 48V pure sine wave solar power inverter 350W-2000W
Wholesale price off grid 12V 24V 48V pure sine wave solar power inverter 350W-2000W
Wholesale price off grid 12V 24V 48V pure sine wave solar power inverter 350W-2000W

Wholesale price off grid 12V 24V 48V pure sine wave solar power inverter 350W 2000W

Share on (1600224942178):


Price:

Quantity:


Product Overview

Description



Overview

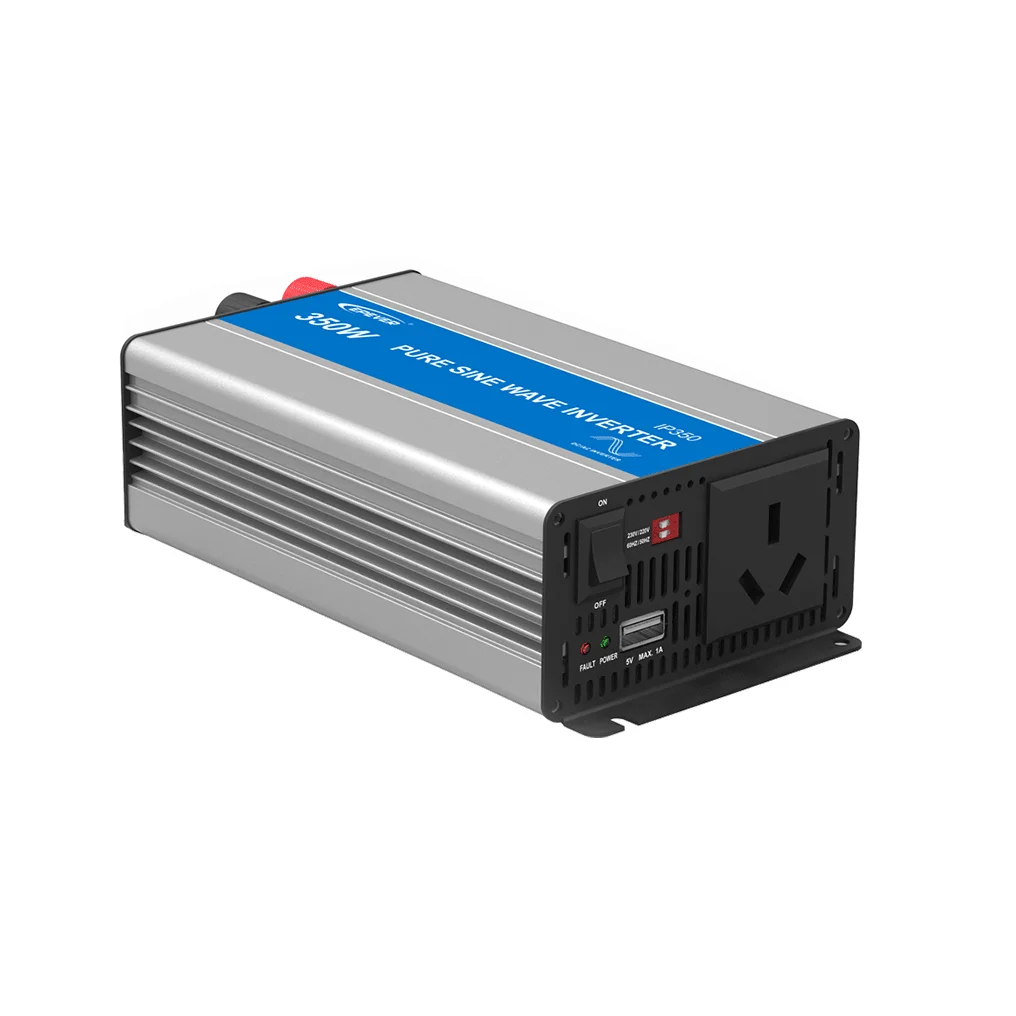

IPower series is a kind of pure sine wave inverter which can convert. 12/24/48VDC to 220/230VAC(or 110/120VAC). Industrial design, compared with the civil design, has a wider operating temperature, easy installation and operation. The wide input voltage range is ideal for solar system application. The inverter can be applied in many fields, such as household emergency lighting system, vehicle mounted system and small field power supply etc.


Product Description




Socket type


Australia/New Zealand
Universal


European
Terminal(IP1000 and above models）


Specification


Item
IP350-12
IP350-22
IP350-11
IP350-21
Rated Input Voltage
12VDC
24VDC
12VDC
24VDC
Input Voltage Range
10.8～16VDC
21.6～32VDC
10.8～16VDC
21.6～32VDC
Input surge voltage
＜32VDC
＜44VDC
＜32VDC
＜44VDC
Output Voltage
220VAC(±5%)
230VAC(-7%～+5%)
110VAC(±5%)
120VAC(-10%～+5%)
Output Frequency
50/60±0.1Hz
Output Continuous Power
280W
Output Power 15 min.
350W
Surge power
750W
Power factor
0.2-1(VA lower than output continuous power)
Output Wave
Pure sine wave
Distortion THD
THD≤3% ①
THD≤3% ①
THD≤5% ①
THD≤5% ①
Max. Efficiency
91%
92%
90%
91%
No-load current
＜0.7A
＜0.5A
＜0.7A
＜0.5A
USB Output Port②
5VDC/Max.1A
Binding post
Φ6mm
Overall dimension
214×105.5×57.7mm
Mounting dimension
185.5×76.7mm
Mounting hole size
Φ4.2mm
Net weight
1.0kg
①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load.
②Conventional products don’t have this port; the port is optional.


Item
IP500-12
IP500-22
IP500-11
IP500-21
Rated Input Voltage
12VDC
24VDC
12VDC
24VDC
Input Voltage Range
10.8～16VDC
21.6～32VDC
10.8～16VDC
21.6～32VDC
Input surge voltage
＜32VDC
＜44VDC
＜32VDC
＜44VDC
Output Voltage
220VAC(±5%)
230VAC(-7%～+5%)
110VAC(±5%)
120VAC(-10%～+5%)
Output Frequency
50/60±0.1Hz
Output Continuous Power
400W
Output Power 15 min.
500W
Surge power
1000W
Power factor
0.2-1(VA lower than output continuous power)
Output Wave
Pure sine wave
Distortion THD
THD≤3% ①
THD≤3% ①
THD≤5% ①
THD≤5% ①
Max. Efficiency
92%
92%
91%
91%
No-load current
＜0.9A
＜0.5A
＜0.9A
＜0.5A
USB Output Port②
5VDC/Max.1A
Binding post
Φ6mm
Overall dimension
232.2×132×74.5mm
Mounting dimension
205×102mm
Mounting hole size
Φ5.2mm
Net weight
1.7kg
①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load.
②Conventional products don’t have this port; the port is optional.


Item
IP1000-12
IP1000-22
IP1000-11
IP1000-21
Rated Input Voltage
12VDC
24VDC
12VDC
24VDC
Input Voltage Range
10.8～16VDC
21.6～32VDC
10.8～16VDC
21.6～32VDC
Input surge voltage
＜20VDC
＜40VDC
＜20VDC
＜44VDC
Output Voltage
220VAC(±5%)
230VAC(-7%～+5%)
110VAC(±5%)
120VAC(-10%～+5%)
Output Frequency
50/60±0.1Hz
Output Continuous Power
800W
Output Power 15 min.
1000W
Surge power
1600W
Power factor
0.2-1(VA lower than output continuous power)
Output Wave
Pure sine wave
Distortion THD
THD≤3% ①
THD≤3% ①
THD≤5% ①
THD≤5% ①
Max. Efficiency
94.5%
94.5%
92.5%
92.5%
No-load current
＜0.8A
＜0.5A
＜0.8A
＜0.5A
USB Output Port②
5VDC/Max.1A
RS485 Com. Port②
5VDC/200mA
Binding post
Φ10mm
Overall dimension(mm)
298.3×231.5×98.5
284.7×231.5×98.5
298.3×231.5×98.5
284.7×231.5×98.5
Mounting dimension
183×220mm
163×219.5mm
183×220mm
163×219.5mm
Mounting hole size
Φ5.5mm
Net weight
3.9kg
3.6kg
3.9kg
3.6kg
①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load.
②Conventional products don’t have this port; the port is optional.


Item
IP1500-12
IP1500-22
IP1500-11
IP1500-21
Rated Input Voltage
12VDC
24VDC
12VDC
24VDC
Input Voltage Range
10.8～16VDC
21.6～32VDC
10.8～16VDC
21.6～32VDC
Input surge voltage
＜20VDC
＜40VDC
＜20VDC
＜44VDC
Output Voltage
220VAC(±5%)
230VAC(-7%～+5%)
110VAC(±5%)
120VAC(-10%～+5%)
Output Frequency
50/60±0.1Hz
Output Continuous Power
1200W
Output Power 15 min.
1500W
Surge power
2400W
Power factor
0.2-1(VA lower than output continuous power)
Output Wave
Pure sine wave
Distortion THD
THD≤3% ①
THD≤3% ①
THD≤5% ①
THD≤5% ①
Max. Efficiency
93%
94%
93%
94%
No-load current
＜1.0A
＜0.6A
＜1.0A
＜0.6A
USB Output Port②
5VDC/Max.1A
RS485 Com. Port②
5VDC/200mA
Binding post
Φ10mm
Overall dimension(mm)
326.12×231.5×98.5
284.7×231.5×98.5
326.12×231.5×98.5
284.7×231.5×98.5
Mounting dimension
208×220mm
163×219.5mm
208×220mm
163×219.5mm
Mounting hole size
Φ5.5mm
Net weight
4.6kg
3.9kg
4.6kg
3.9kg
①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load.
②Conventional products don’t have this port; the port is optional.


Item
IP2000-22
IP2000-42
IP2000-21
IP2000-41
Rated Input Voltage
24VDC
48VDC
24VDC
48VDC
Input Voltage Range
21.6～32VDC
43.2～60VDC
21.6～32VDC
43.2～60VDC
Input surge voltage
＜40VDC
＜80VDC
＜40VDC
＜80VDC
Output Voltage
220VAC(±5%)
230VAC(-7%～+5%)
110VAC(±5%)
120VAC(-10%～+5%)
Output Frequency
50/60±0.1Hz
Output Continuous Power
1600W
Output Power 15 min.
2000W
Surge power
3200W
Power factor
0.2-1(VA lower than output continuous power)
Output Wave
Pure sine wave
Distortion THD
THD≤3% ①
THD≤3% ①
THD≤5% ①
THD≤5% ①
Max. Efficiency
95%
95%
94%
94%
No-load current
＜0.6A
＜0.4A
＜0.6A
＜0.4A
USB Output Port②
5VDC/Max.1A
RS485 Com. Port②
5VDC/200mA
Binding post
Φ10mm
Overall dimension(mm)
326.12×231.5×98.5mm
Mounting dimension
208×219.5mm
Mounting hole size
Φ5.5mm
Net weight
4.6kg
①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load.
②Conventional products don’t have this port; the port is optional.


Features



1. Safe design with input and output electrical isolation
2. Adoption of advanced SPWM technology, pure sine wave output
3. Optional output voltage 220/230VAC(or 110/120VAC), choosing by DIP switch

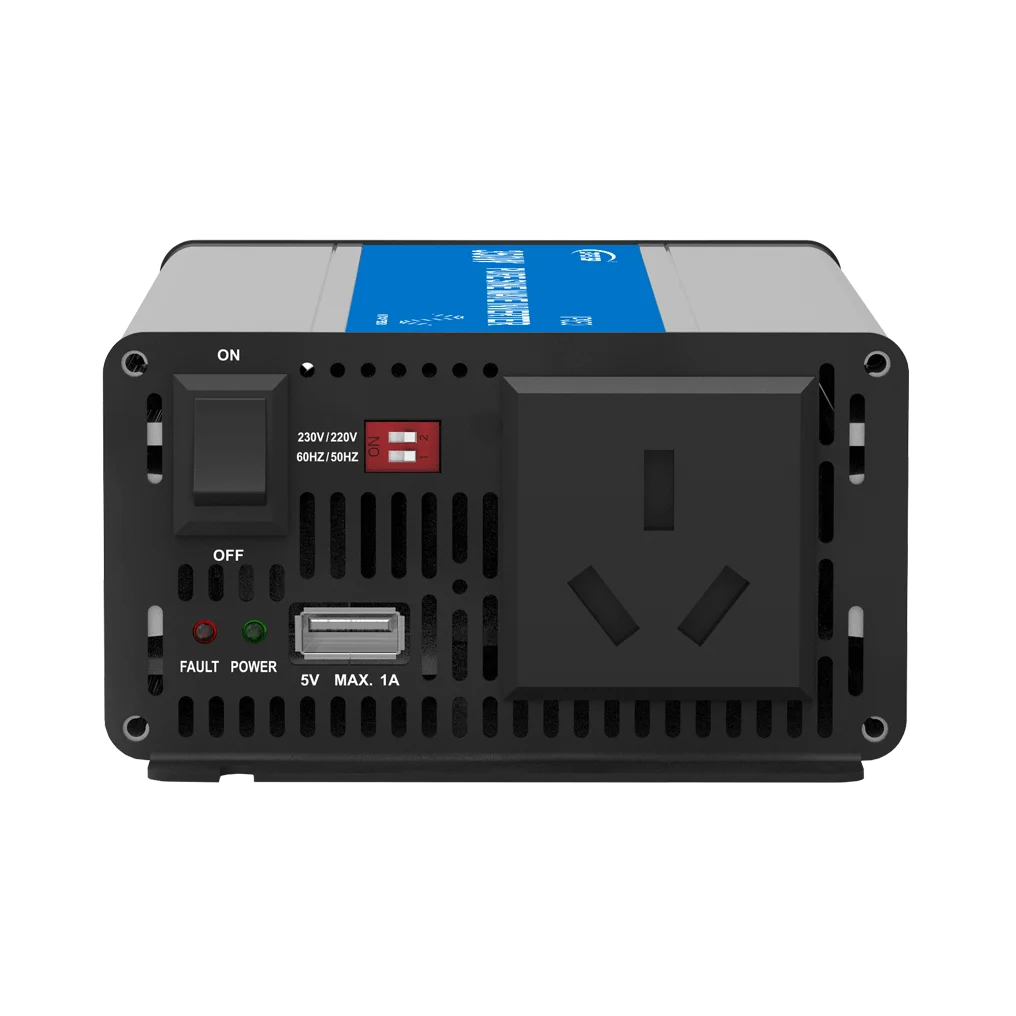

4. LED indicators for fault status and working status
5. Lower No-load consumption
6. Max. efficiency up to 95%(IP2000-22, IP2000-42)①
7. Input protection: Over voltage protection, low voltage protection
8. Output protection: Over load protection, short circuit protection
9. Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when overheating
10. Operational USB output 5VDC/1A
11. Operational RS485 communication port②

The efficiency is tested at rated input voltage,220V output with resistive load, 25 Ambient temperature,1500W and higher version 1000W and higher version support RS485 communication port optional

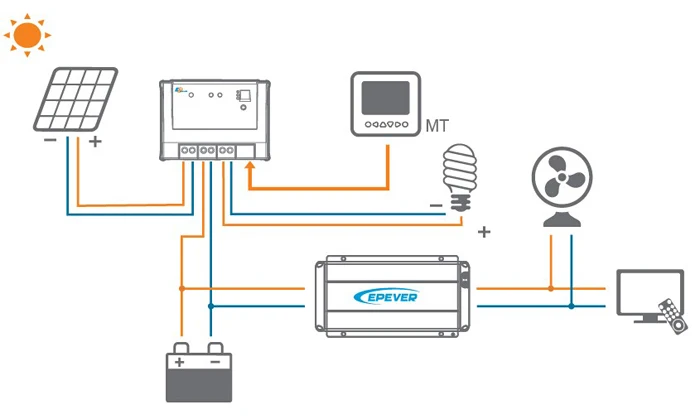

Application

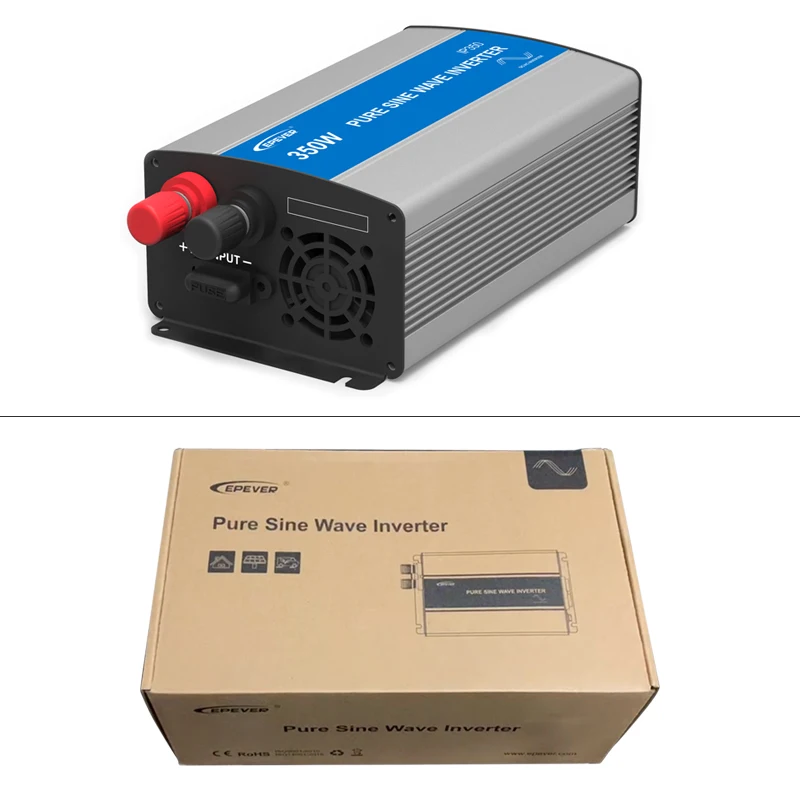

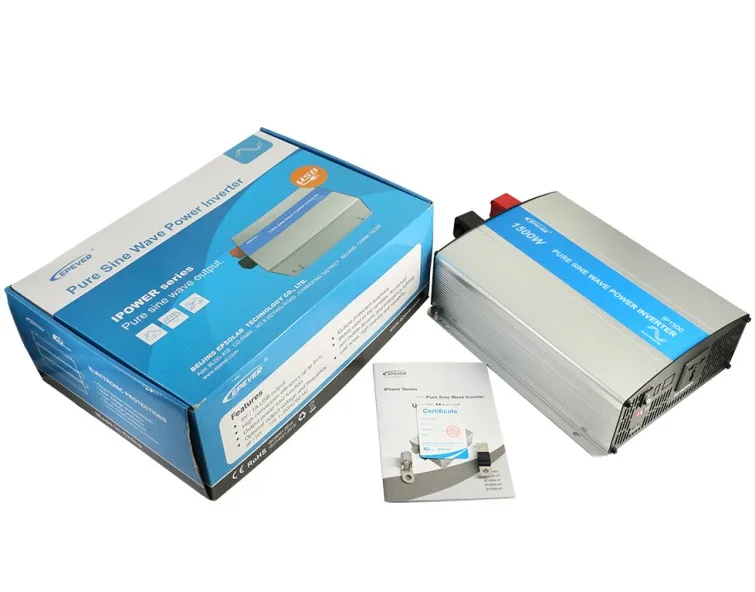

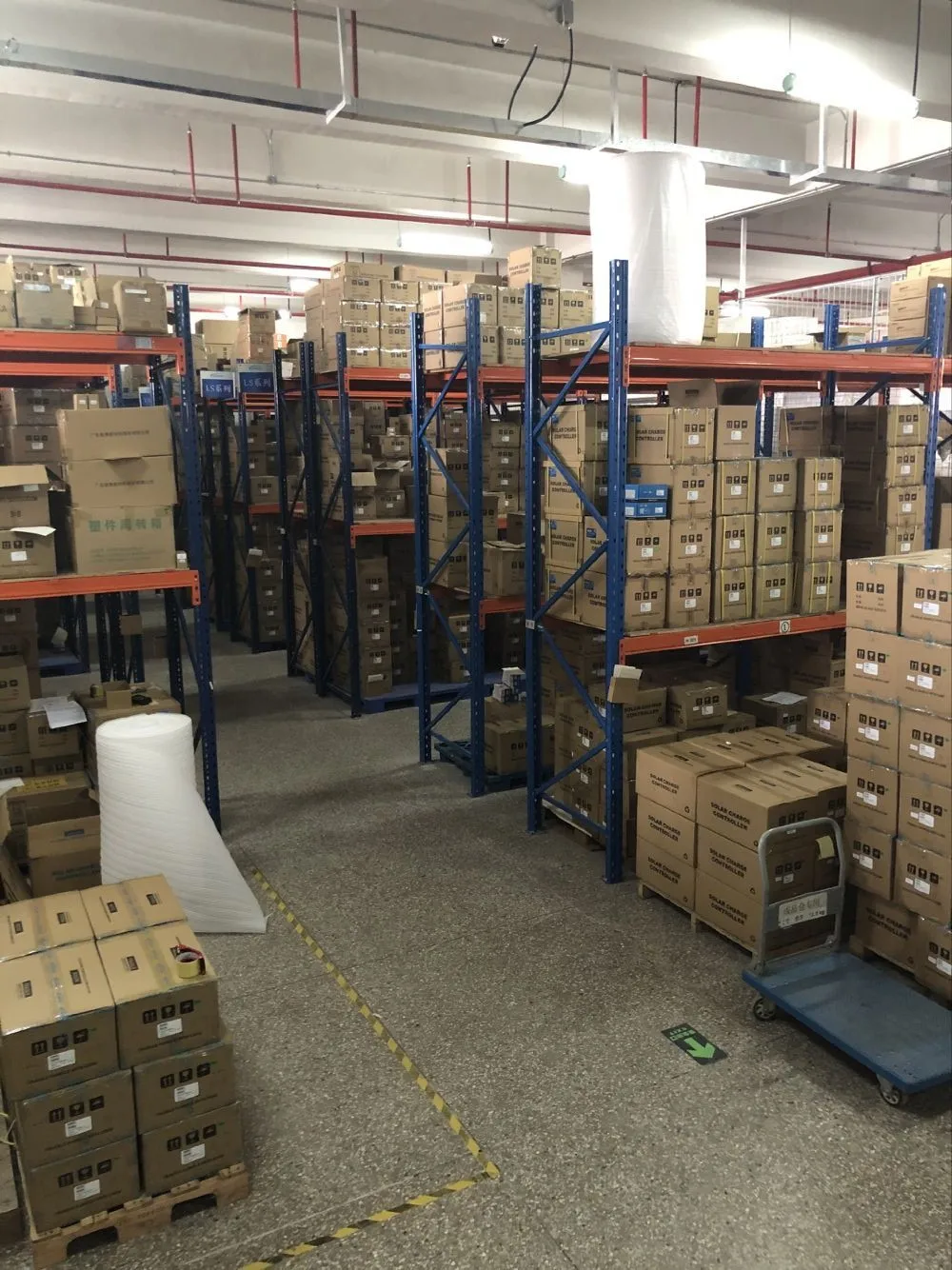

Packing & Delivery






Company Profile




Shenzhen Yifang Technology Co., Limited ,founded in 2012,is professional company specialized in energy-saving and new energy emergency power industry.such as Portable Solar Generators, Portable Solar Energy, Lithium Battery, and other related battery products.The company now has 2000 square metes of modern production base in Dongguan City,Which provides one-stop service from design, research, molding, production, assemble, testing and products solution from battery cell to finished products whole complete OEM&OEM.

All products have passed CE, FCC, RoHS,PSE certification to satisfy customer's requirements. With continuous innovation and rapid response, Yifang Technology has established the strategic alliance for the technology and market, and got into new markets.The R&D team has accumulated near 20 years experience in lithium battery and BMS(Battery Management System) tech,who wanted to prove that lithium battery is better than lead acid battery in portable Power areas. Our company regards customer demand as the guidance.We are looking forward to establishing long-term relationships with worldwide customers .
