12 receivers ice fountain fireworks ignition system cold fountain stage pyrotechnic firing system for wedding party show

Product Overview

Description

12 Receivers Ice Fountain Fireworks Ignition System Cold Fountain Stage Pyrotechnic Firing System for Wedding Party show







Item Name	12 Cues Ice Fountain Fireworks Firing System
Item Number	E12
Content	12 pcs receiver + 15-key remote
Color	Black
Frenquency	433MHZ
Material	Plastic
Packing Size	30.5*14.2*25cm
Weight	2.7kg
Occasion	Christmas,New Year,All festival





Instruction Manual





This product is a special product for cold flame fire. In order to ensure that you can use this product correctly and safely, please read and keep this instruction manual carefully.

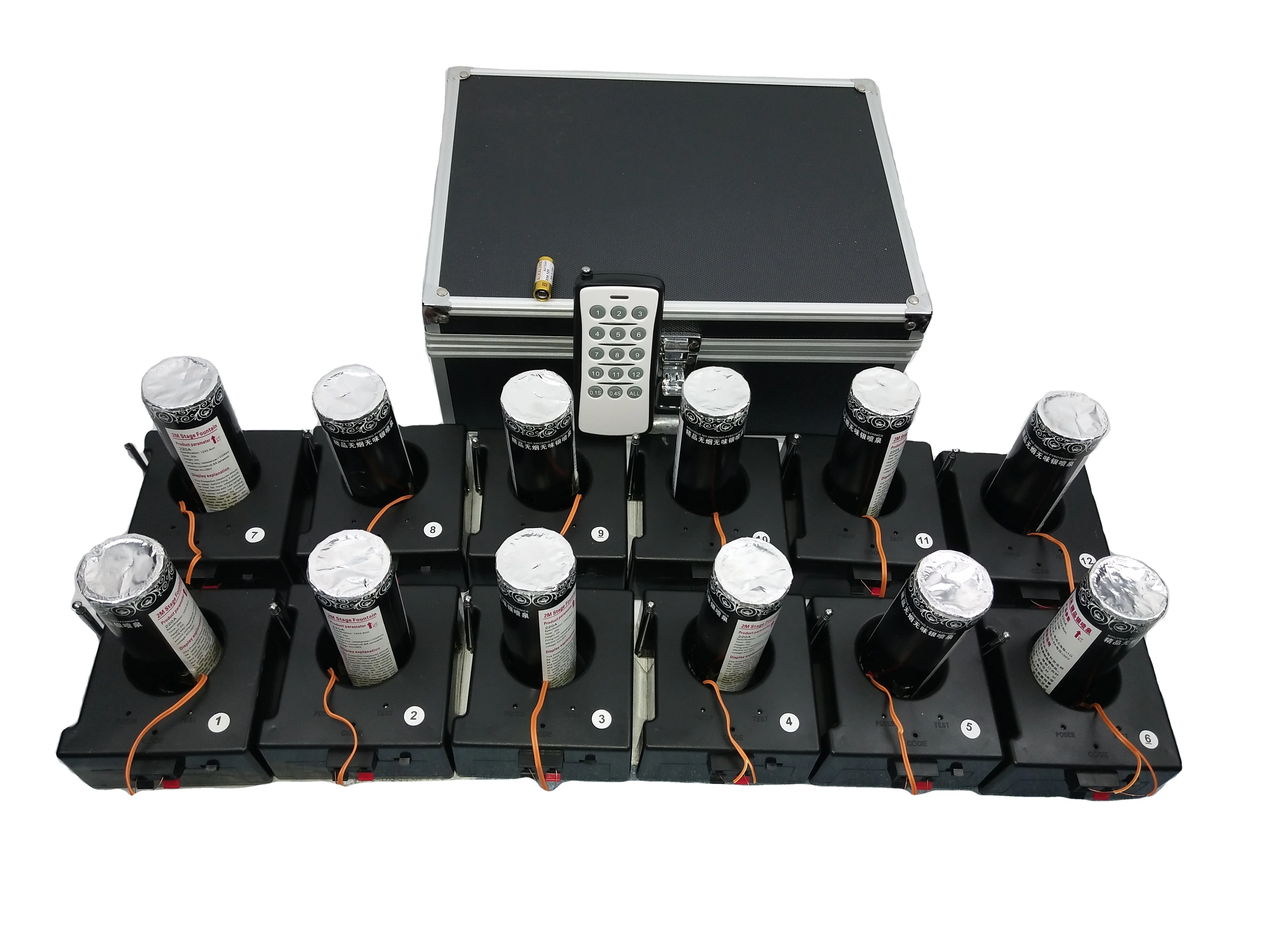

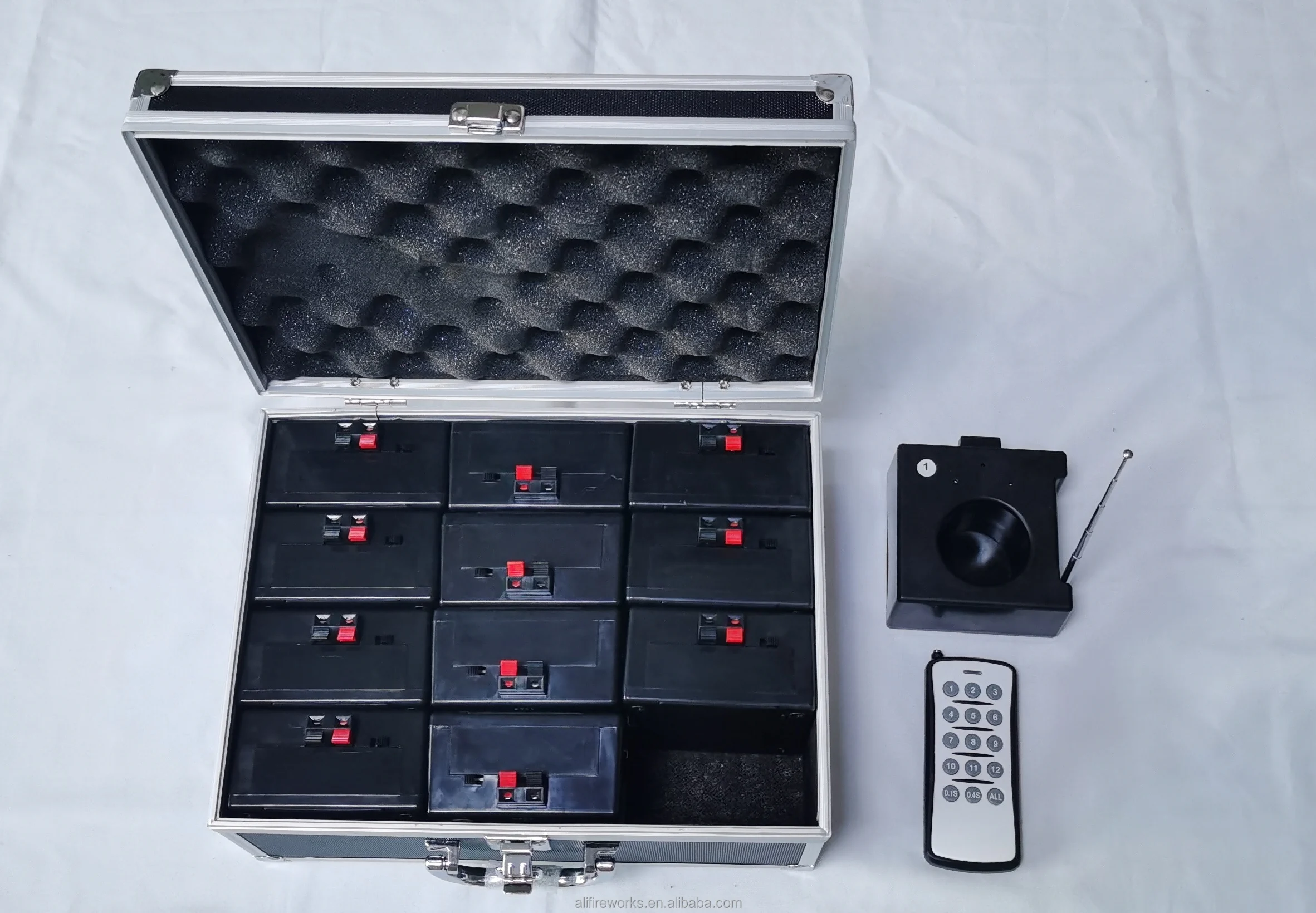

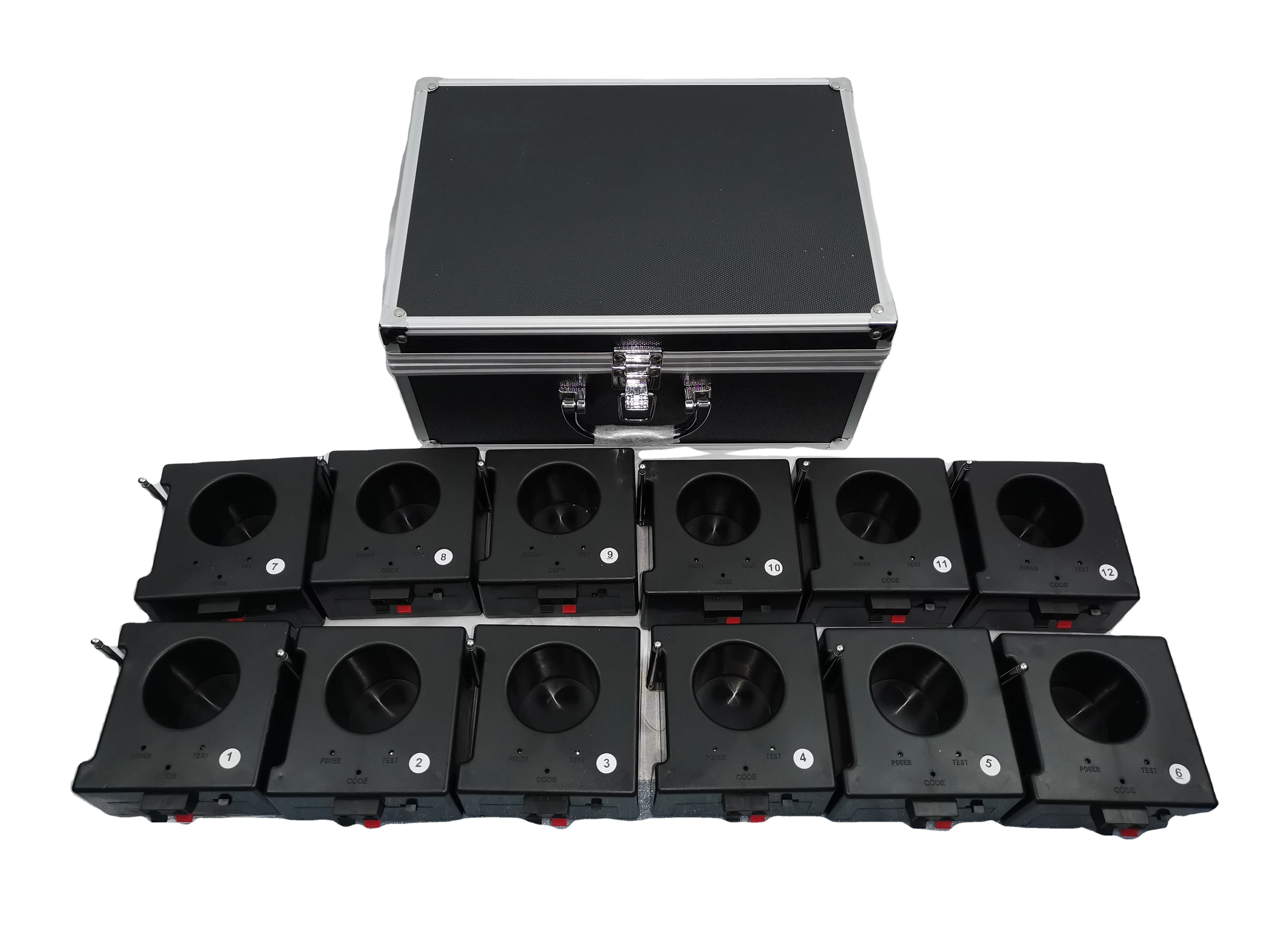

The product is powered by a small battery, and the cold pyrotechnics are installed in the middle of the receiving box. The biggest diameter for cold flame is 4.5cm. Each receiving box can simultaneously release 2-3 electronic ignition heads in series. This product is equipped with a 15-key remote control and 12 receiving boxes with a cold fireworks base. The remote control distance is about 80 meters.



Usage Introduction:

1. This product is equipped with a 15-key remote control, 12 receiving boxes are divided into 1-12 groups, and the remote control 1-12 keys respectively control the cold fireworks connected by the 1-12# receiving box, and the 0.1S key controls the 1-12# receiving box. The 0.1 second sequence fires the cold fireworks, the 0.4S key controls the 1-12# receiving box to fire the cold fireworks in 0.4 second order, and the ALL key remote control controls the cold fireworks on the 12 receiving boxes;

2. Put 9V dry battery into the battery box, and turn on the switch, the yellow (power) and     red(test) light will be bright then press the button of the remote in different remotes, the yellow indicator lights flashing, the red indicator lights more bright, it means the receiving from the remote to the receivers is normal.

3. Put the product connect with the receiver, if  the red indicator lights out, it means the connecting is normal.

4. Far away the fireworks products and use remote to fire.

5. Set the control number by the remote (do not connect the product) :

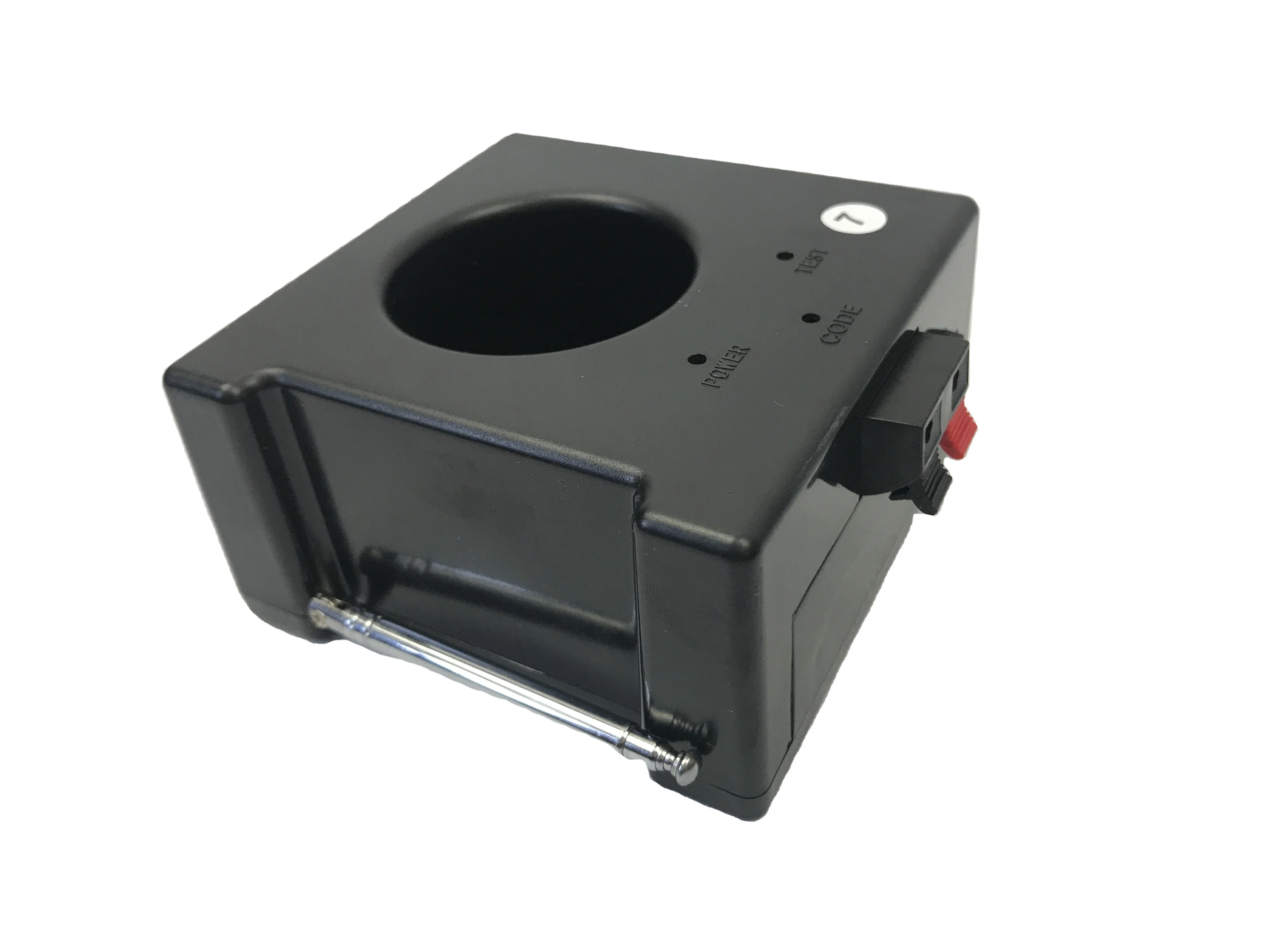

Find the little hole in the back side of the receiver box, take a small stick into the hole to press it, the red and yellow light will be flickered, press the button of the remote(for example NO.3),take out the stick first, and then relax the remote, then setting the control number succeed,now this receiver is controlled by NO.3,other key can not control this receiver.when do this,you can use one key to control more receivers.

Attention:

1. When the line is not connected, be careful not to shake the receiving box strongly;

2. When one receiving box is connected to multiple products at the same time,

          please use the serial connection, preferably no more than 3;

3. Please take the cell out when no use products, for prevent defile incept box.

4. Do not place the product in a polluted environment such as moisture, acid or alkali.

5. After linking the product, please keep the remote control to avoid misoperation.
