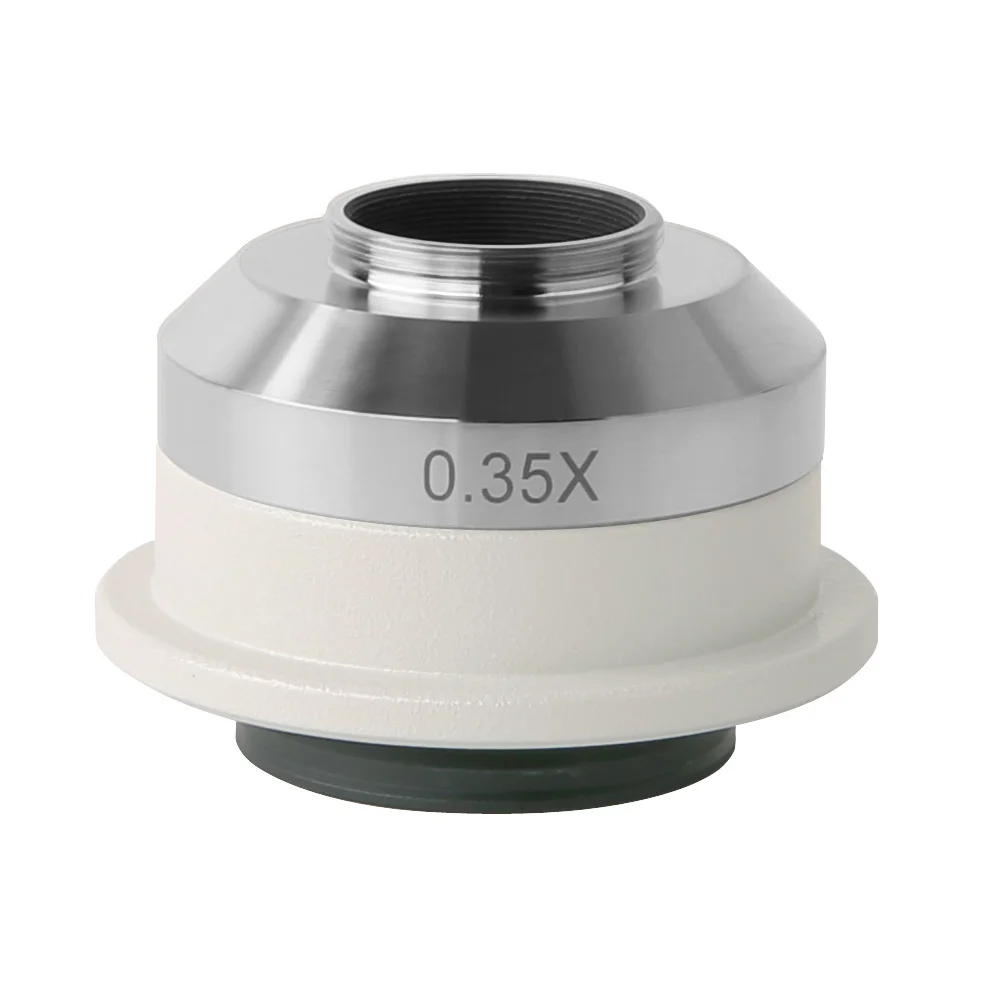

Factory Supply Nikon Microscope Tube Camera Connecting 0.35X C-mount Adapter
0.35X C-mount adapter is specially designed for NIKON E100,E200,50i,55i,80i,90i, Ni series, Ti Series, SMZ800,SMZ1000, SMZ15000 biology microscopes and industrial microscopes
Convert the NIKON trinocular microscope phototube/head/port (have standard 38 mm(1.50 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);
With different built-in reduction lens (1.2X,1X, 0.8X, 0.70X, 0.55X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
Can be installed in UIS trinocular tube such as : NIKON E100, E200, 50i, 55i, 80i, 90i, Ni series, Ti Series, SMZ800, SMZ1000, SMZ15000 biology microscopes and industrial microscopes;
Build of material: stainless steel material for the C-Mount end and spray-painted aluminum for the phototube end ;
Build of material: stainless steel material for the C-Mount end and spray-painted aluminum for the phototube end ;
Telecentric optics with low light deficiency;
Parfocal with different microscope objective lenses;
Diffraction limited MTF;
Aperture totally coupled with CFI microscope objective’s exit pupil;
Detailed Images
Specification
Magnification ratio | 0.35X | ||||||
Sensor Size | 1/3”,1/4”,1/5” | ||||||
Mount Type | C-Mount | ||||||
