SY604 DC12V/3A entrance guard power supply transformer special power supply AC110 ~ 240V input adjustable delay
- Category: Other Access Control Products >>>
- Supplier: Guangzhou Sary Electronics Co. Ltd.
Share on (1600224949270):
Product Overview
Description
Description:

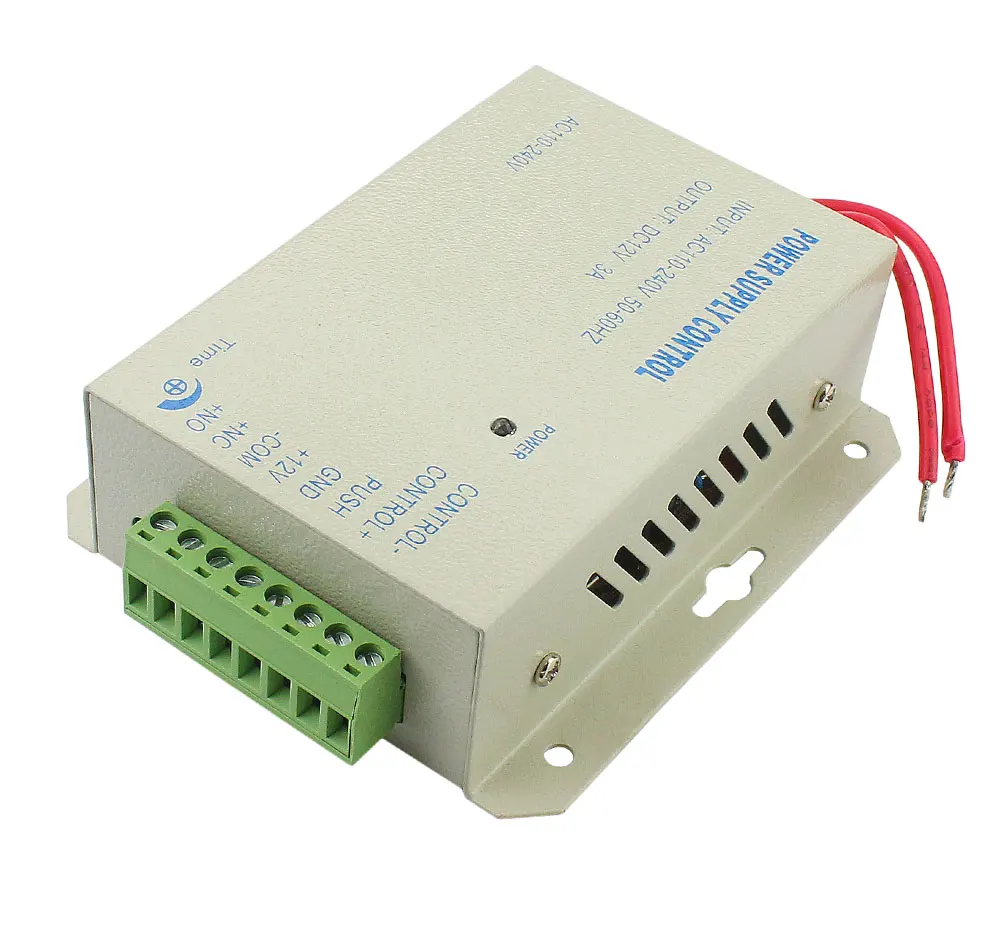

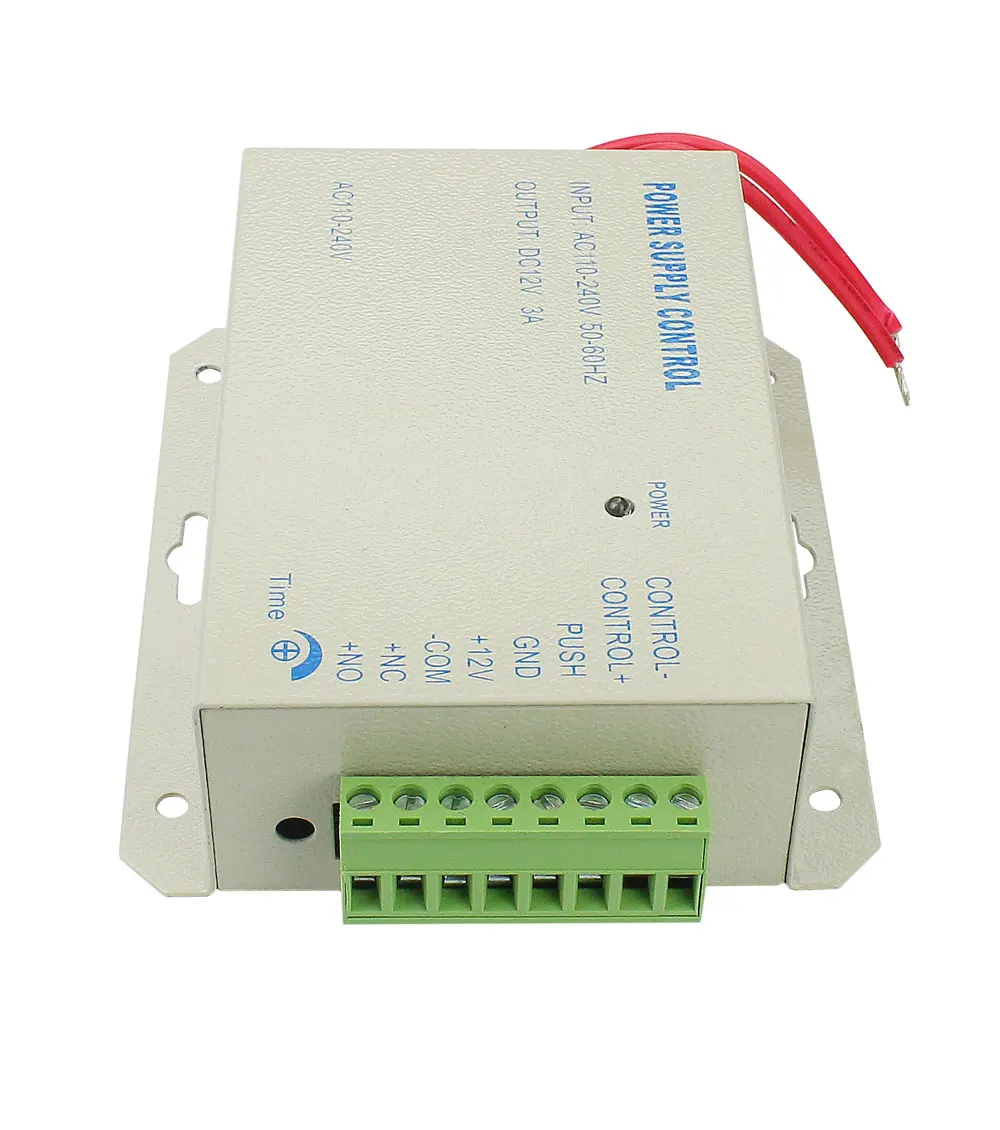

This is an access control power supply with output DC12V/3A, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-IC Reader .etc.
Key Functions:
It controls electric lock directly.
Can reduce the load of access controller, save wiring to reduc the hidden trouble
Set NC / NO outputs, can control various types of electric locks

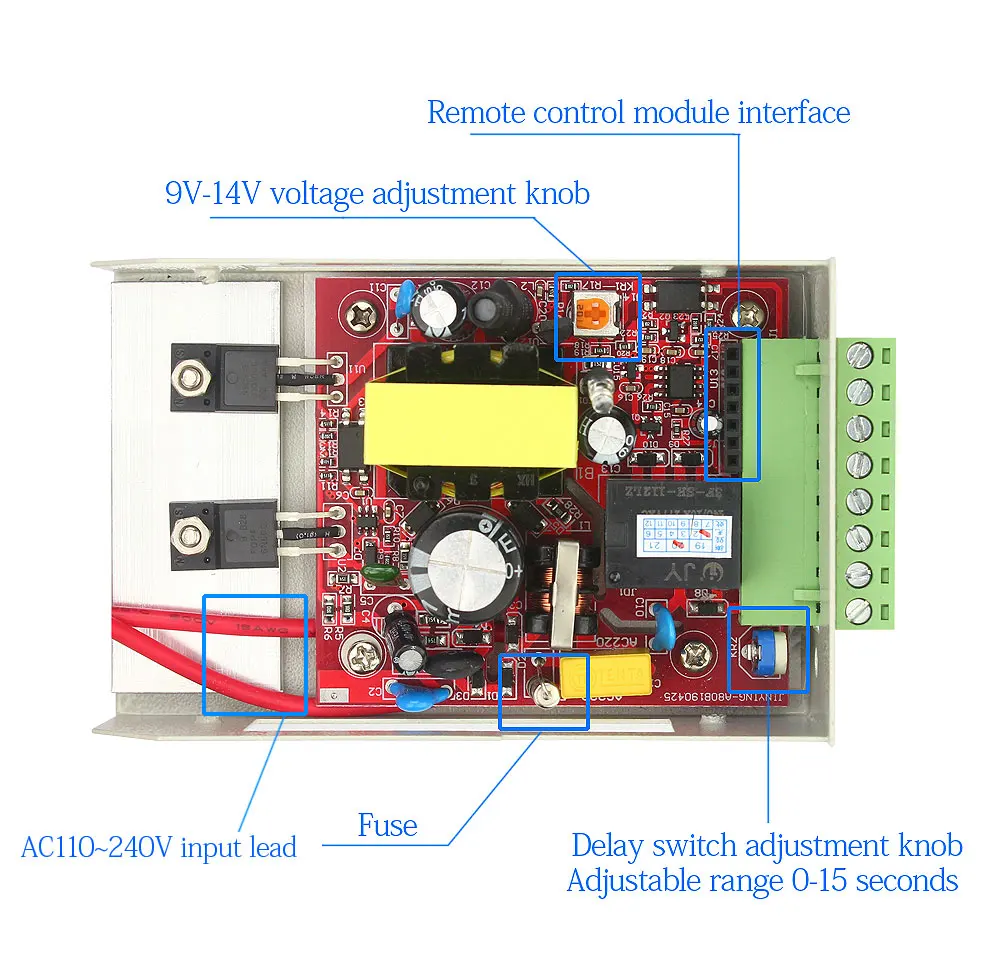

Based delay control circuit, lock time can be in 0-15 seconds
Automatic protection function, unexpected situations such as
when the power supply short-circuit occurs, the power may be
temporarily disconnected or the fuse auto insurance line off

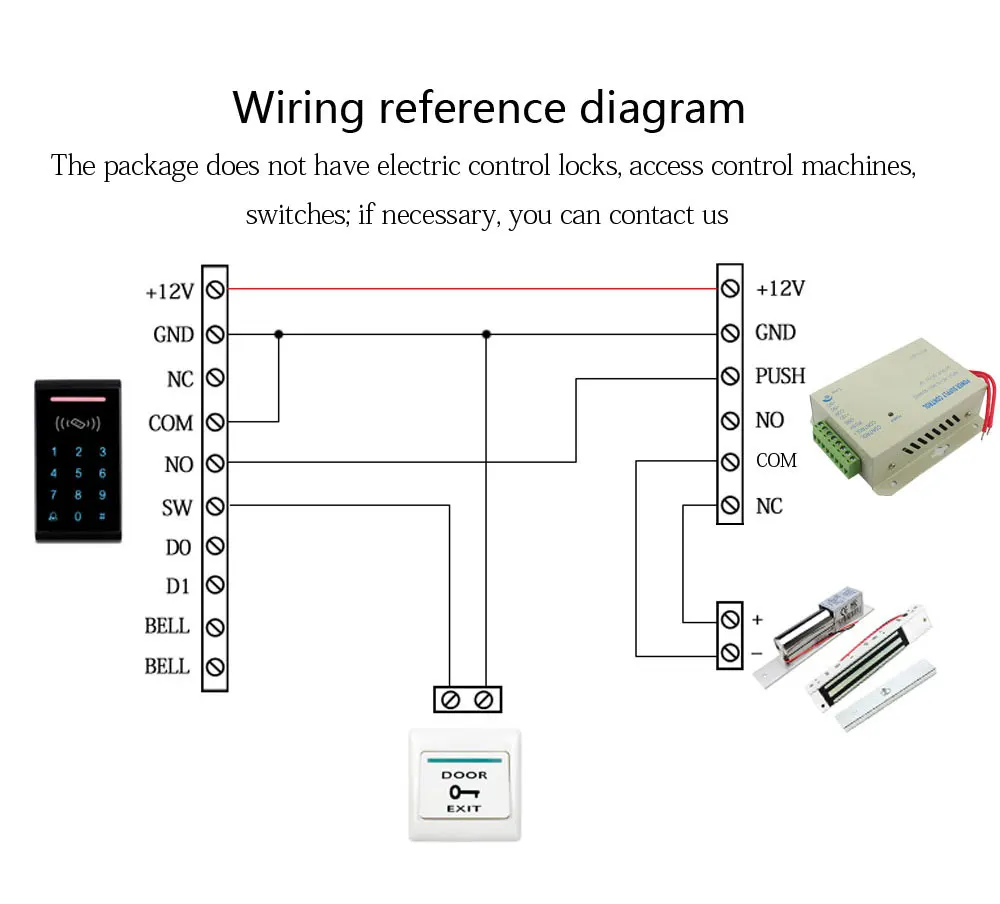

Operative device: E/M Lock, Access Controller, Exit Push Button
Key Specification:
AC input: Standard AC110V-260V
DC output: DC12V/ 3A
Include:
1 x Access Control Power Supply
