Hot sale thin htpc i7 i5 i3 4200Y Processor desktop computer box win10 8 GRam mini PC for interactive educational class
- Category: >>>
- Supplier: Shenzhen Helor Cloud Computer Co. Ltd.
Share on (1600224958240):
Product Overview
Description
Product Description

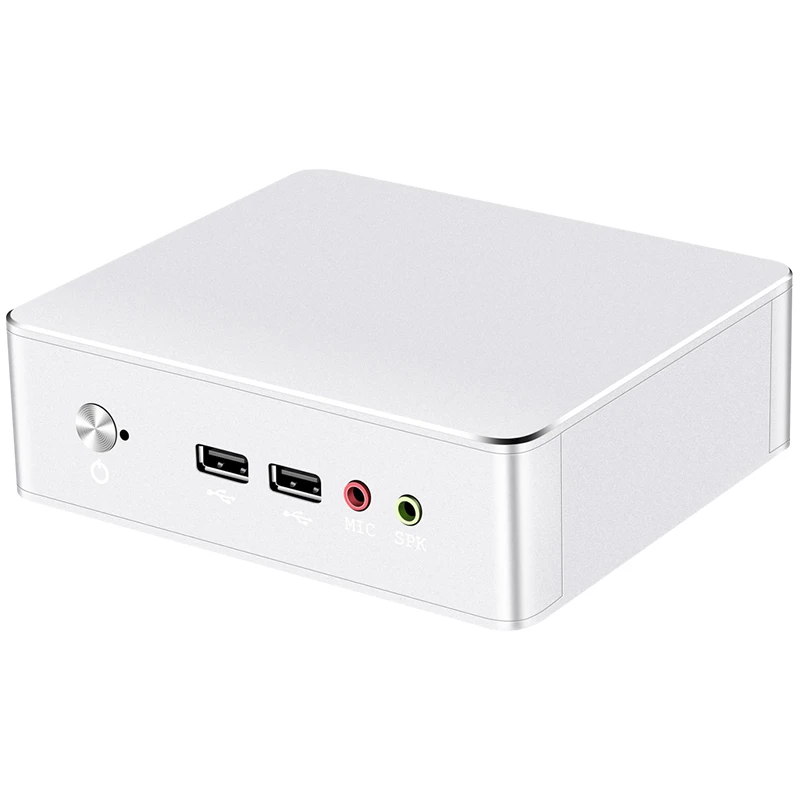

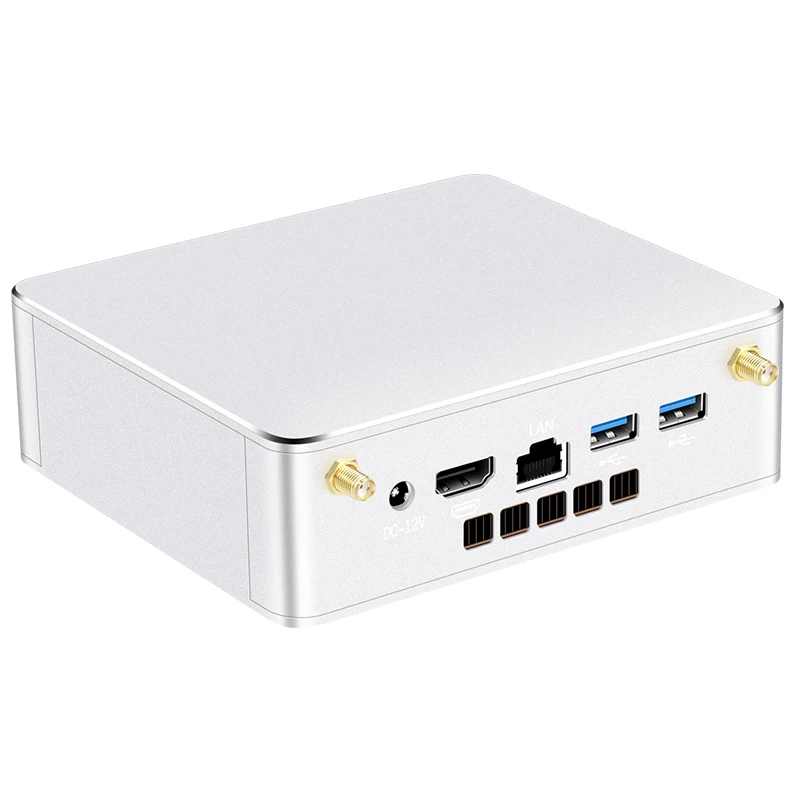

Elegant and Slim body Computer
Having an elegant and contemporary design, it can be placed horizontally or vertically to offer you the best placement options, and you’ll set it on a desk and forget it's even there.

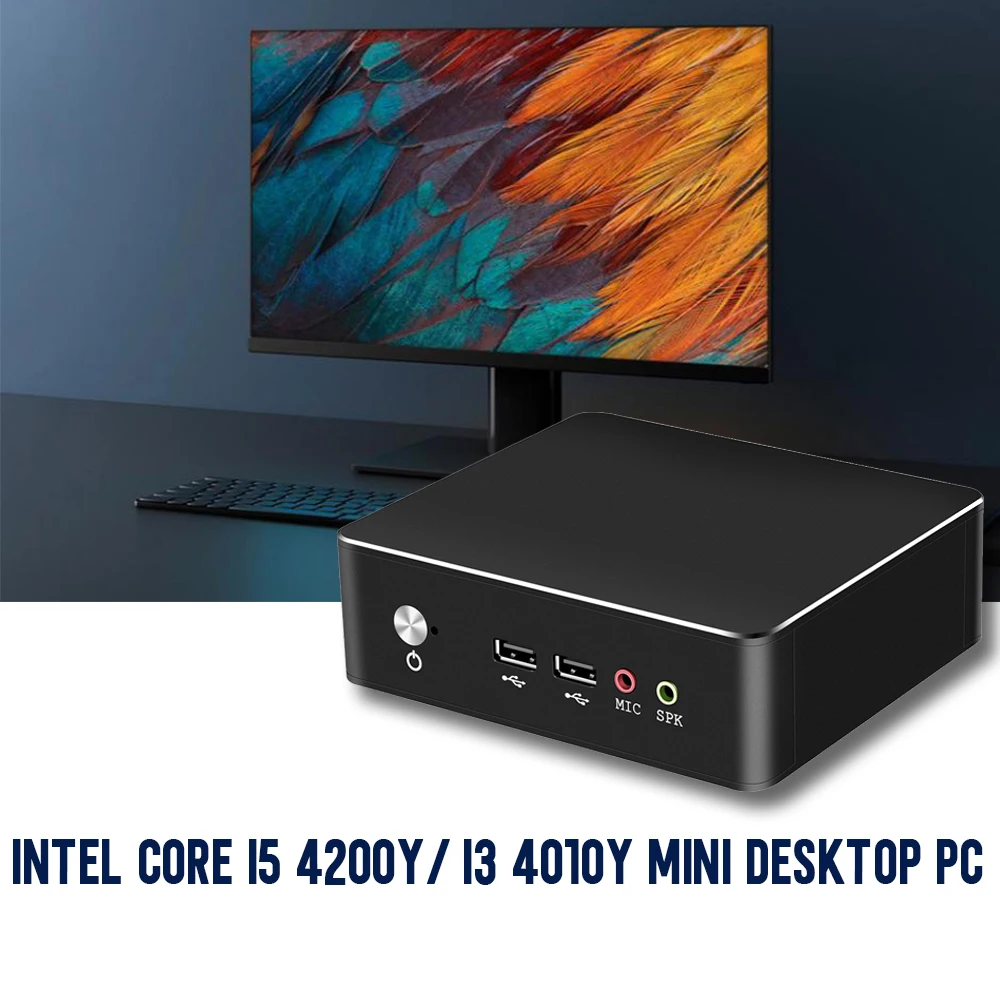

Powered by In-tel core i5 4200Y and Core i3 4010Y，Ce-leron 3205U and pentium 3855U processor and DDR3L RAM, H37 is more than capable of handling everyday comuting tasks with aplomb.
Model | H37 |
CPU | In-tel Core i5 4200U (2 core 4 threads,3M Cache,1.60 GHz up to 2.60 GHz,TDP: 15W) In-tel Core i5 4200Y (2 core 4 threads, 3M Cache, 1.4GHz up to 1.9Ghz, TDP: 11.5W) In-tel Core i3-4010Y (2 core 4 threads, 3M Cache, 1.30 GHz, TDP:11.5W) In-tel Ce-leron 3205U (2 core 2 threads, 2M Cache, 1.50 GHz, TDP: 15W) In-tel Pen-tium 3805U (2 core 2 threads, 2M Cache, 1.90 GHz, TDP: 15W) |
Memory | 1*Single Channel SODIMM, Supports DDR3L 1333/1600MHz MAX: 8G Ram 1* 204-pin SO-DIMM |
Display | HD Max Resolution 3280×2000@60Hz |
Ethernet | 1* 10/100/1000/ Mbps 8111F Supports Wake UP on LAN, S5 RTC Wake Settings, PXE Boot, Restore on AC power loss. |
WiFi | without Antennas,300M,802.11.b/g/n |
Audio | Adopting Realtek ALC662 Chip, Supports dual channels, stereo, and Line out |
I/O | 2* USB3.0 2* USB2.0 |

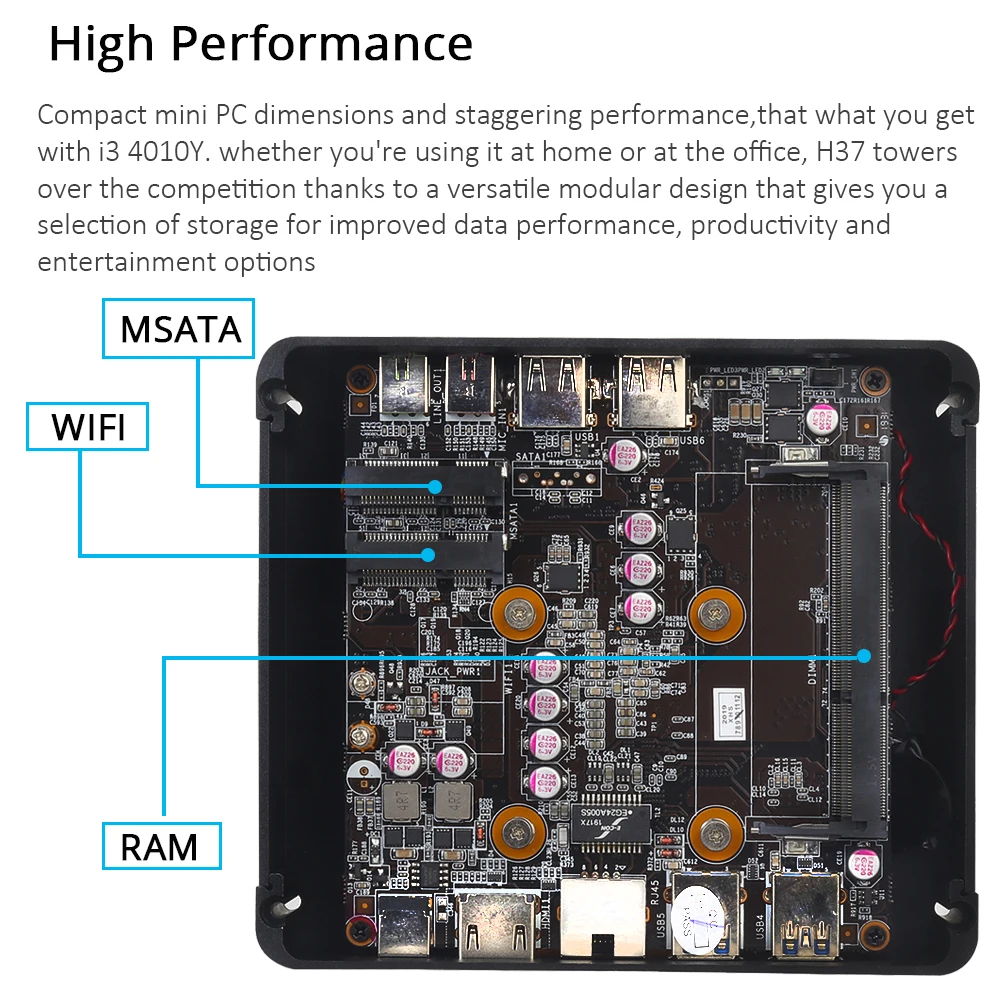

Extension | 1* Full-Height Mini PCIe For SSD ,1* Half-Height Mini PCIe for WIFI |
Other | Supports Watchdog timer (If you need this hardware, please let us know before payment) |
Storage | 1*Full size mSATA Socket |
Software | Win7/W8/ W10/ Linux/ ubuntu/ Centos etc. |
Cooling system | With Fan （Copper heat dissipation） |
Power Consumption | DC-IN5.5*2.5 DC 12V5A/ 60W (AC TO DC, 100~ 240V) 10-15W |

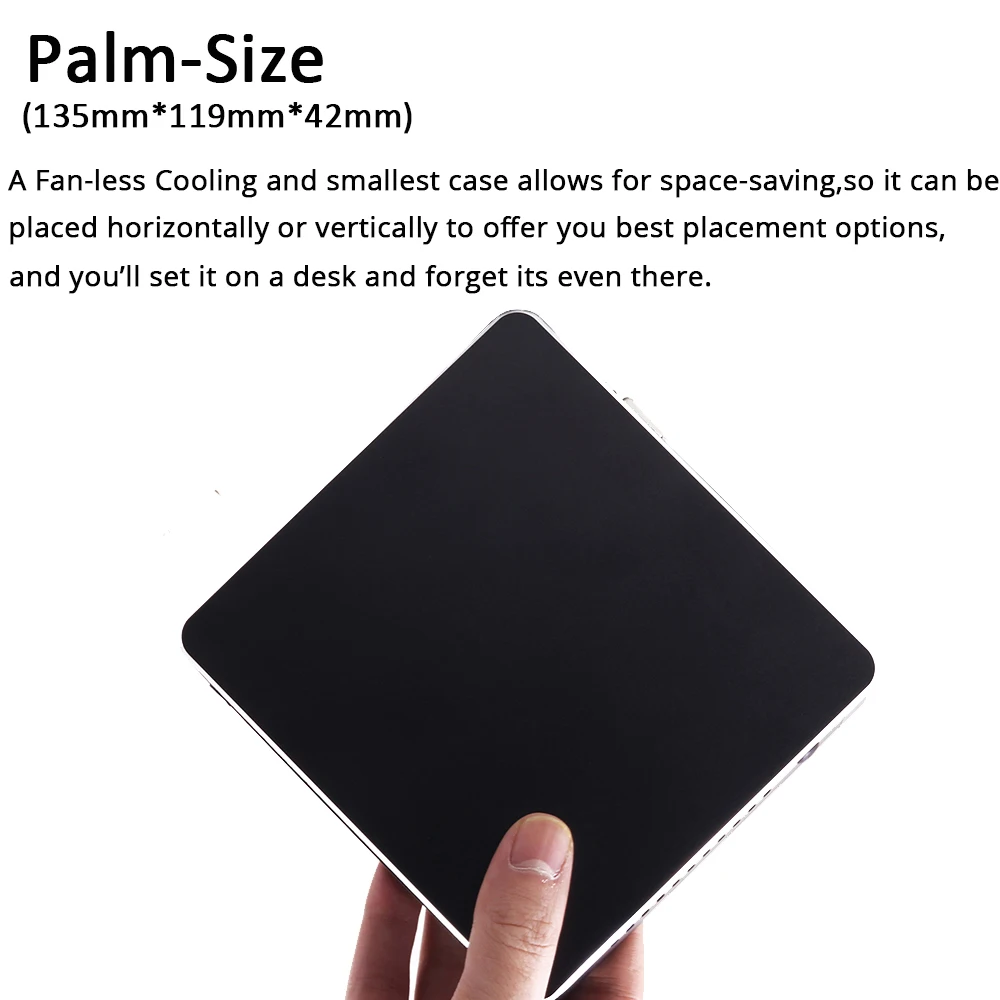

Physical Characteristics | Case material: Aluminum Alloy Installation: Wall/Desktop Dimensions: 135*119*42mm Weight: 0.5 KG |
Environment | Operating temperature: -20℃~ 65℃ storage temperature: 15- 35℃ operating humidity: 5%-95% Relative humidity, no condensation |
Product Usage

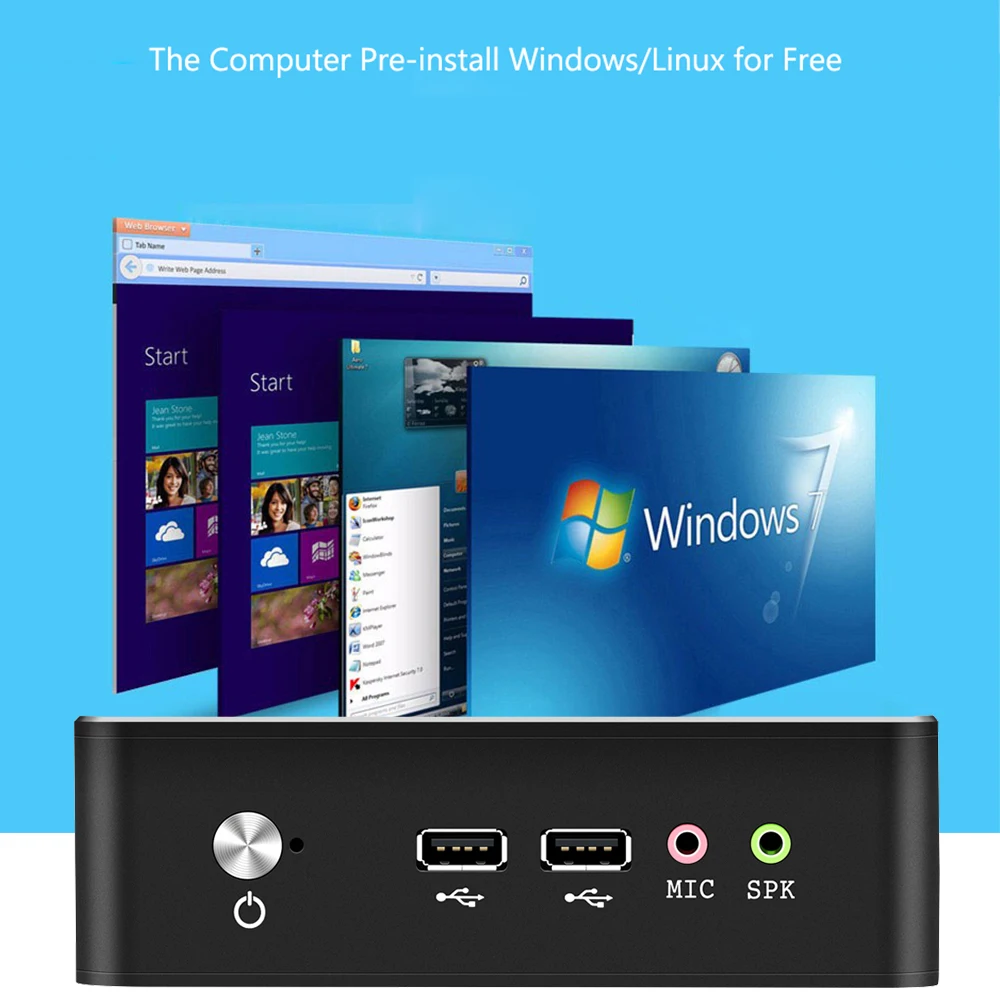

Support multiple operating systems，support Win7/8/10、LINUX etc. Support differrent Language ( Traditional Chinese/ English/
Korean/ Spanish/ French/ Italian/ Hungarian/ Japanese/ Portuguese/ Dutch/ Russian/ German/ Polish/ Arabic)
Korean/ Spanish/ French/ Italian/ Hungarian/ Japanese/ Portuguese/ Dutch/ Russian/ German/ Polish/ Arabic)
For home and office user, H37 4200Y is a mini computer which has Compact dimensions and staggering performance, that what you get with HLY H37. whether you’re using it at home or at the office, H37 towers over the competition thanks to a versatile modular design that gives you a selection of storage for improved data performance, productivity and entertainment options. H37 is the smallest mini PC that can house up two SSD storage drive. With a Desktop-grade In-tel Core processor 4th Gen, has the power range of computing tasks. A Fan cooling and smallest case allows for space-saving design, so it can be placed horizontally or vertically to offer you best placement options, and you’ll set it on a desk and forget its even there.

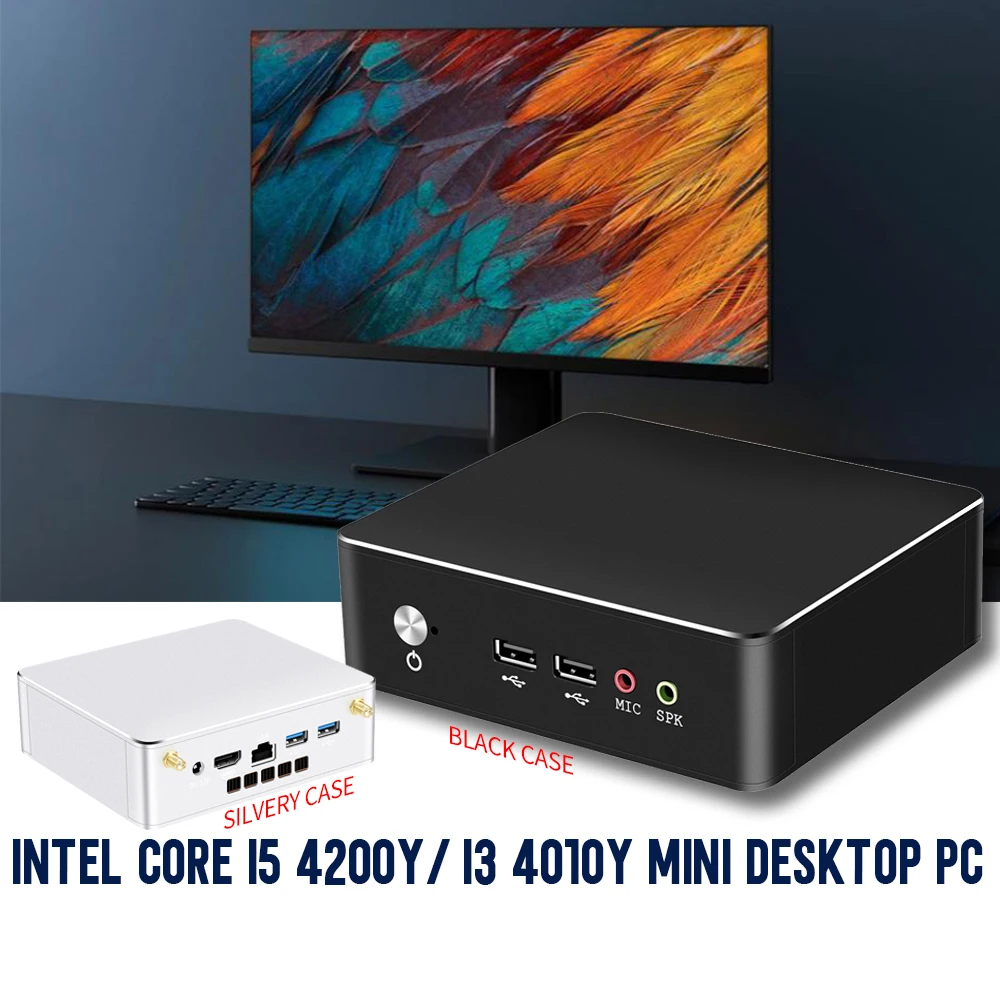

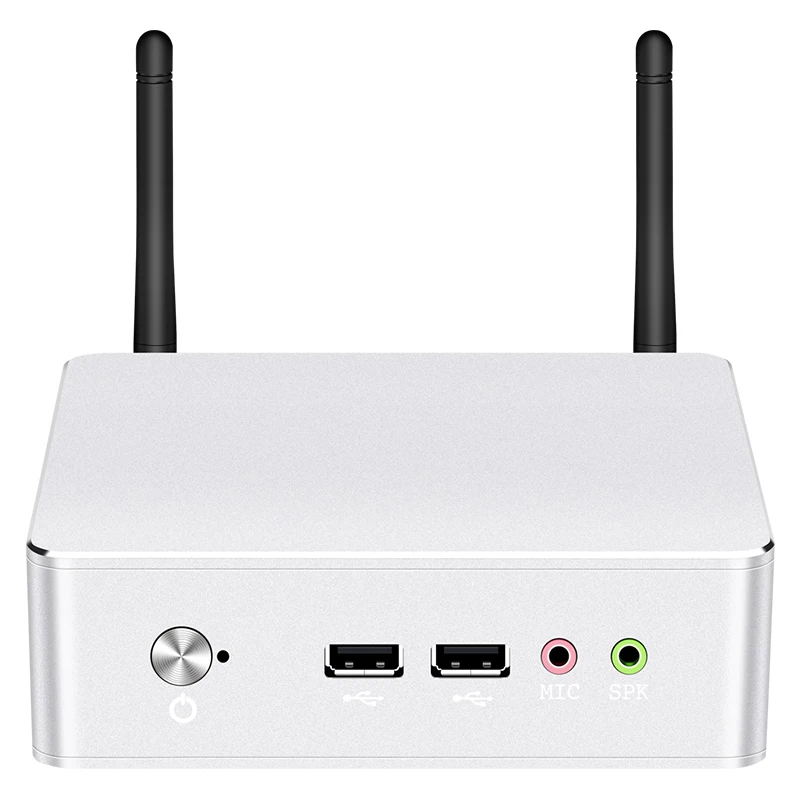

Silvery White style：
Related Products
Packing&Shipping

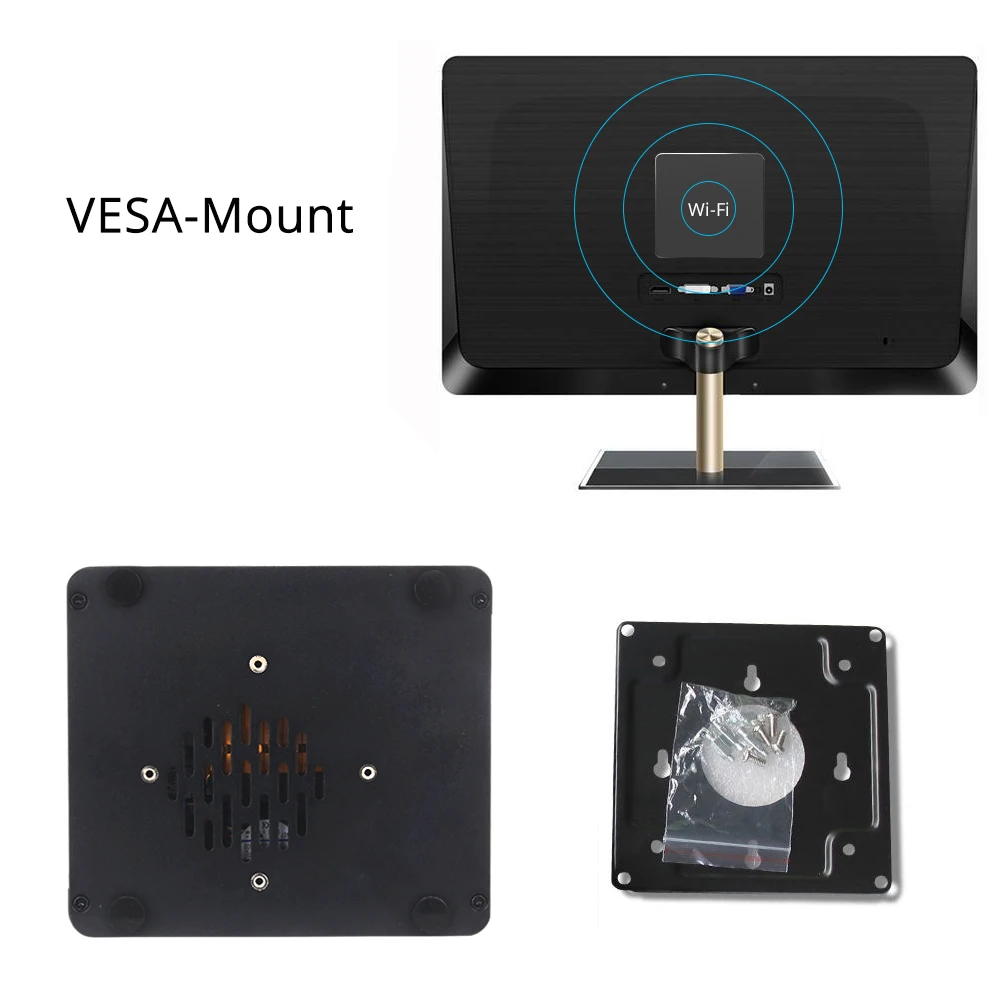

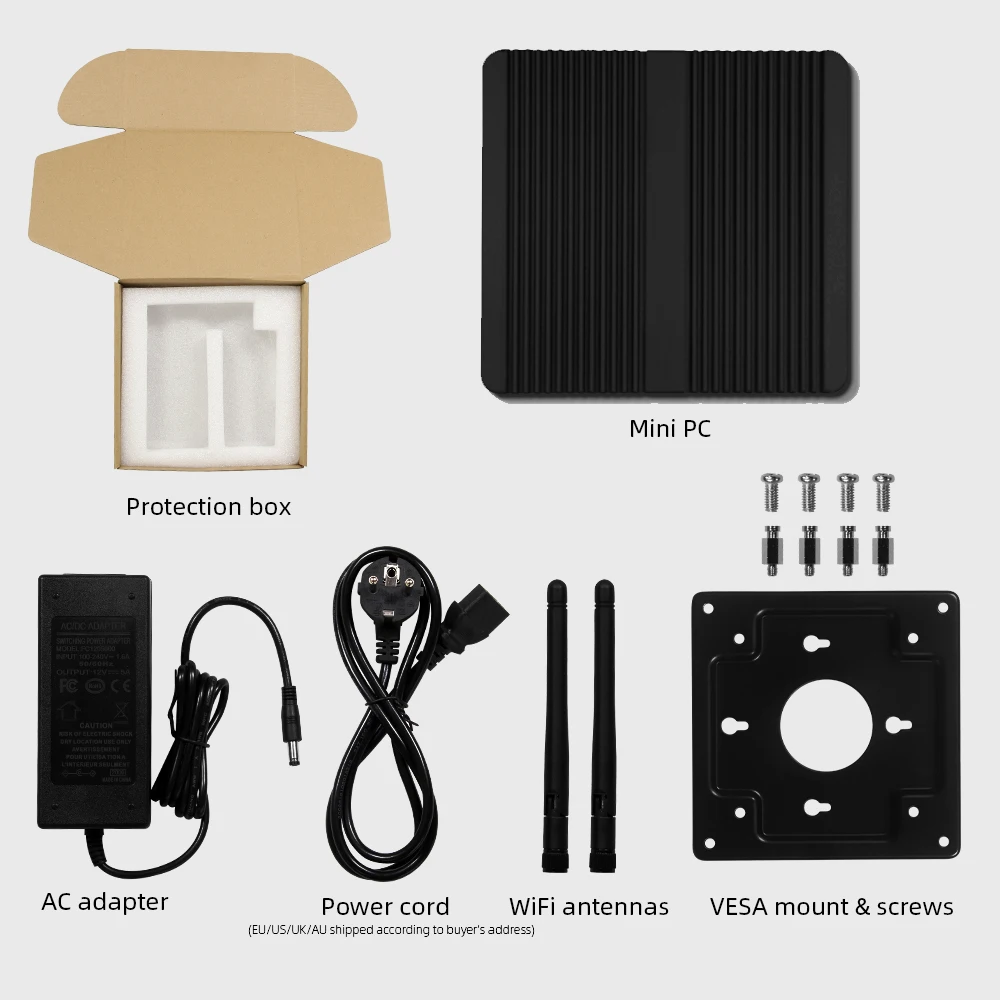

Will provide Standard Export Carton Packaging, include mini pc, User manual, Vesa Mount, power adapter, SATA cable, SATA power cable, WIFI antenna.
Payment: we are support "L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.
Shipping Methods: Shipping by DHL, Fedex, Aramex, post and Alibaba, RETS Express and negotiation. ( choose as you prefer)
DHL | FEDEX | Aramex | POST | RETS EXpress | Alibaba |
1.3-5days | 1.3-5days | 1.6-15days | 1.Very slow | 1.10-15days | 1.within 20days |
2.Safety | 2.Safety | 2.higeTaxes | 2.Low Taxes | 2.Low Taxes | 2.Safety |
3.higeTaxes | 3.higeTaxes | 3.Without Battery | 3.Suit for every countries | 3.just for Russia | 3.Good Service |
4.Suitable for South America Europ | 4.Suitable for South America Europ | 4.Suit for the Middle East | 4. Cheaper | 4.Cheaper | |
5.Good service | 5.Good service | 5.Not safety | 5.Safety | ||
6.Good service |

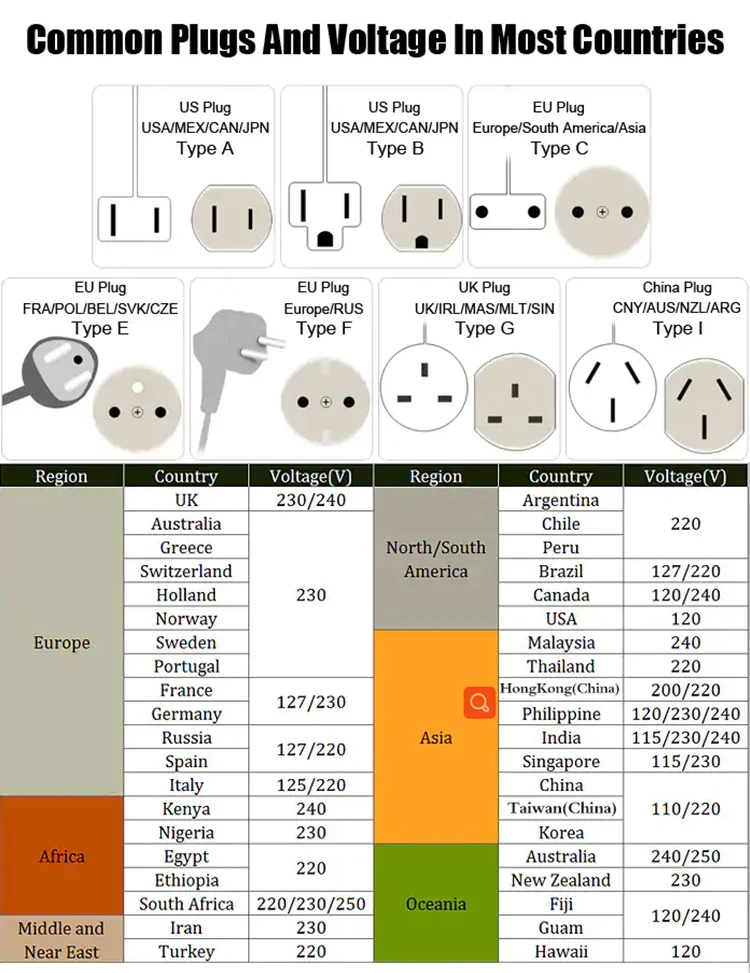

Power adapter:
We can provide US,EU,AU,UK,CN,Brazil plug power adapter, you can choose it as you need, and leave me message, other model, we can provide customized.
We can provide US,EU,AU,UK,CN,Brazil plug power adapter, you can choose it as you need, and leave me message, other model, we can provide customized.
Company Introduction

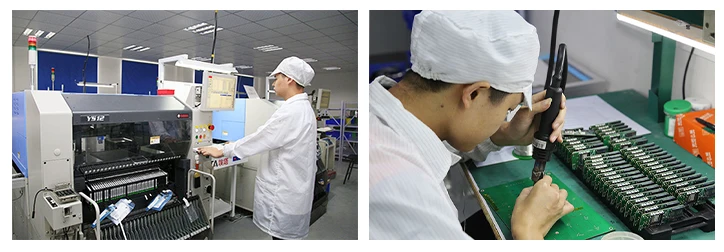

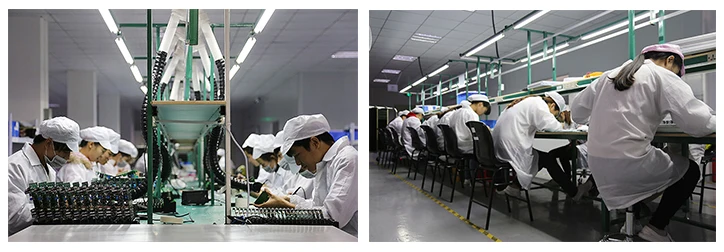

Shenzhen Helor cloud computer co,. ltd( HLY) specialized in mini computer since 2013, located in Shenzhen, Guangdong, has our own motherboard manufacturer with trading department, developed more than 50 kinds of self-developed product, applied in different fields, for AI, office work, education, entertainment, advertising, transport, military, industrial etc. Product sold in more than 60 countries and regions, annual sales exceed one million units.The technical expertise of our highly recommend knowledgeable and dedicated staff forms the backbone of our company. Form the design stage to installation to our unsurpassed warranty, HLY clients are assured of the highest level of quality and service.
The technical expertise of our highly knowledgeable and dedicated staff forms the backbone of our company. From the design stage to installation to our unsurpassed warranty, HLY clients are assured of the highest level of quality and service. HLY carries the line of over two dozen manufacturers of computer components, communications products and specialized electronics for automatio and control, thereby enabling HLY to offer the best prices, state of the art equipment, knowledge of the marketplace as well as the latest technological developments to our clients. Our engineers are unsurpassed in their ability to analyze requirements and tailor a solution meeting all specifications, which allow us to research and development various sorts and varieties computer to fit the specific technical requirements of the customer.
Our Services
1.Warranty: 1 year, the second year and the third year, we can repair it free. but we will charge for the parts that need to
change.
2.We can sell one sample for your test.
3.We can provide OEM/ODM services.
4.we 24h online, you can send message any time to us, will answer as soon as we can.
5.We ensure offer great products, services and favorable prices. And we have a long-term and reliable supply. If you have any
questions, suggestions or need any assistance, we are always here to give you quick response.
change.
2.We can sell one sample for your test.
3.We can provide OEM/ODM services.
4.we 24h online, you can send message any time to us, will answer as soon as we can.
5.We ensure offer great products, services and favorable prices. And we have a long-term and reliable supply. If you have any
questions, suggestions or need any assistance, we are always here to give you quick response.
FAQ
1.Such a small computer,how is its running speed?
A:Our mini PC use new generation architecture In tel CPU,seconds to office software,design software,net surfing,audio and video entertainment,run smoothly small and medium computer games.
2.Q: What is fanless computer?Not used yet,any features and advantages?
A:Generally there is fan inside if computer to expand the heats caused by CPU and other spare working parts;the fanless computer adopts top quality but lower power consumption spare parts to replace the fan.They cause only a little heat to make sure the computer is in good working condition.
A:Our mini PC use new generation architecture In tel CPU,seconds to office software,design software,net surfing,audio and video entertainment,run smoothly small and medium computer games.
2.Q: What is fanless computer?Not used yet,any features and advantages?
A:Generally there is fan inside if computer to expand the heats caused by CPU and other spare working parts;the fanless computer adopts top quality but lower power consumption spare parts to replace the fan.They cause only a little heat to make sure the computer is in good working condition.
Differences between fan and fanless computers:
Noise: fan computer makes much noise in working,even if it’s high quality but fanless computer makes zero noise.
Dust: fan computer accumulates lots of dust for a longer time used,and dust can make the motherboard circuit shorted;fanless computer never has such troubles.
3.Q: Can I add a HDD to extend the computer even if there is a mSATA SSD inside?
A:mSATA SSD is supported in this computer,it is working fast and smaller size.most of people put operating system in SSD.If you need more capacity,we can put the SATA and power cable,screws in the computer,and you can fix the HDD in the back casing,there are 4 holes for HDD fixed.(some model can't support)

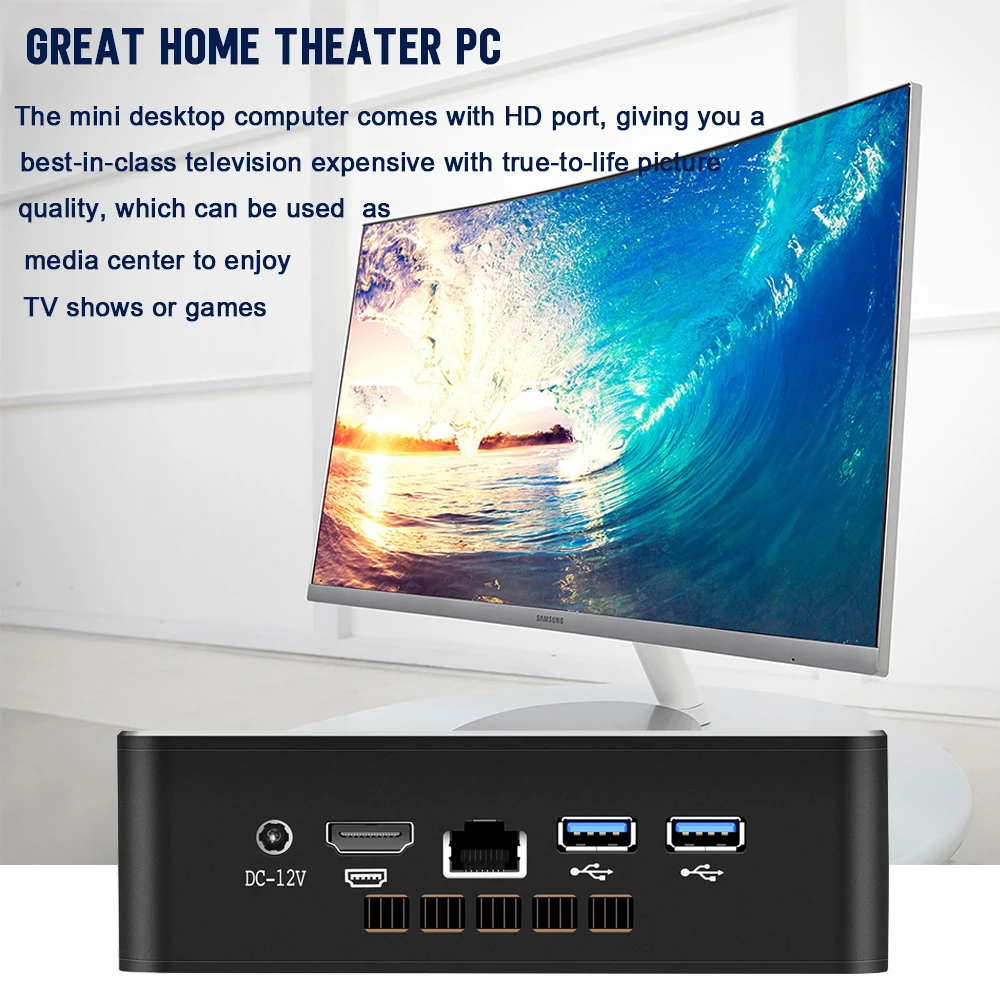

4.Q:Does this computer support bigger size TV or projector? What is the effect of bigger display?
A:This computer with HDMI and VGA ports,supports any size and resolution of TV or projector,it works perfectly with 1080P full HD.In our display room,one us Samsung brand 55 inch Tv,the other one is EPSONTW8000 projector,the display screen is 150 inch,the video is quite perfect.
5.Q:How is its performance? Can I play games on this computer? Because it so small and no fan.
A: The CPU is from In tel the latest technology low power consumption CPU,about 15W,but its performance is quite good,it’s widely used in office,commercial use,live room.It’s works perfectly in WIN7,bule-ray,3D HD videos,it also support well 3D games.
6.Q:Will it be too hot in working? Can it work for 7*24hrs,zero noise attracts me,but I am worried about this.
A:The CPU is In tel latest lower saved CPU,rated power of CPU is only 15W,the CPU is only about 60℃ in lots of testing.And it won’t work in the most powerful performance all the time.As you may know,the laptop CPU temperature is about 78℃ or more.Each one Will be tested 3*24hrs before shipping.Normally the heat doesn’t affect the CPU life at all if the CPU temperature is under 80℃, so don’t worry at all for its cooling.
7.Q:Why do I feel the casing so hot when it ‘s working?
A:The CPU almost touches the back casing to expand the heats,its temperature is almost the same same if that of CPU.1st,the metal casing is for heat expanding more easily,this is one of the reasons to use metal materials as its casing;2st,there is thermal paste with silver material imported from Japan in the CPU plug of motherboard.3th,there is free bracket mount attached to computer,you can make it stand in the bracket mount for cooling.
8.Q:How long can this mini computer used?
A:HLY mini PC with low-power hardware,compared to traditional computer,mini PC is more energy saving and environmental protection,less radiation and longer using life.
3.Q: Can I add a HDD to extend the computer even if there is a mSATA SSD inside?
A:mSATA SSD is supported in this computer,it is working fast and smaller size.most of people put operating system in SSD.If you need more capacity,we can put the SATA and power cable,screws in the computer,and you can fix the HDD in the back casing,there are 4 holes for HDD fixed.(some model can't support)
4.Q:Does this computer support bigger size TV or projector? What is the effect of bigger display?
A:This computer with HDMI and VGA ports,supports any size and resolution of TV or projector,it works perfectly with 1080P full HD.In our display room,one us Samsung brand 55 inch Tv,the other one is EPSONTW8000 projector,the display screen is 150 inch,the video is quite perfect.
5.Q:How is its performance? Can I play games on this computer? Because it so small and no fan.
A: The CPU is from In tel the latest technology low power consumption CPU,about 15W,but its performance is quite good,it’s widely used in office,commercial use,live room.It’s works perfectly in WIN7,bule-ray,3D HD videos,it also support well 3D games.
6.Q:Will it be too hot in working? Can it work for 7*24hrs,zero noise attracts me,but I am worried about this.
A:The CPU is In tel latest lower saved CPU,rated power of CPU is only 15W,the CPU is only about 60℃ in lots of testing.And it won’t work in the most powerful performance all the time.As you may know,the laptop CPU temperature is about 78℃ or more.Each one Will be tested 3*24hrs before shipping.Normally the heat doesn’t affect the CPU life at all if the CPU temperature is under 80℃, so don’t worry at all for its cooling.
7.Q:Why do I feel the casing so hot when it ‘s working?
A:The CPU almost touches the back casing to expand the heats,its temperature is almost the same same if that of CPU.1st,the metal casing is for heat expanding more easily,this is one of the reasons to use metal materials as its casing;2st,there is thermal paste with silver material imported from Japan in the CPU plug of motherboard.3th,there is free bracket mount attached to computer,you can make it stand in the bracket mount for cooling.
8.Q:How long can this mini computer used?
A:HLY mini PC with low-power hardware,compared to traditional computer,mini PC is more energy saving and environmental protection,less radiation and longer using life.
