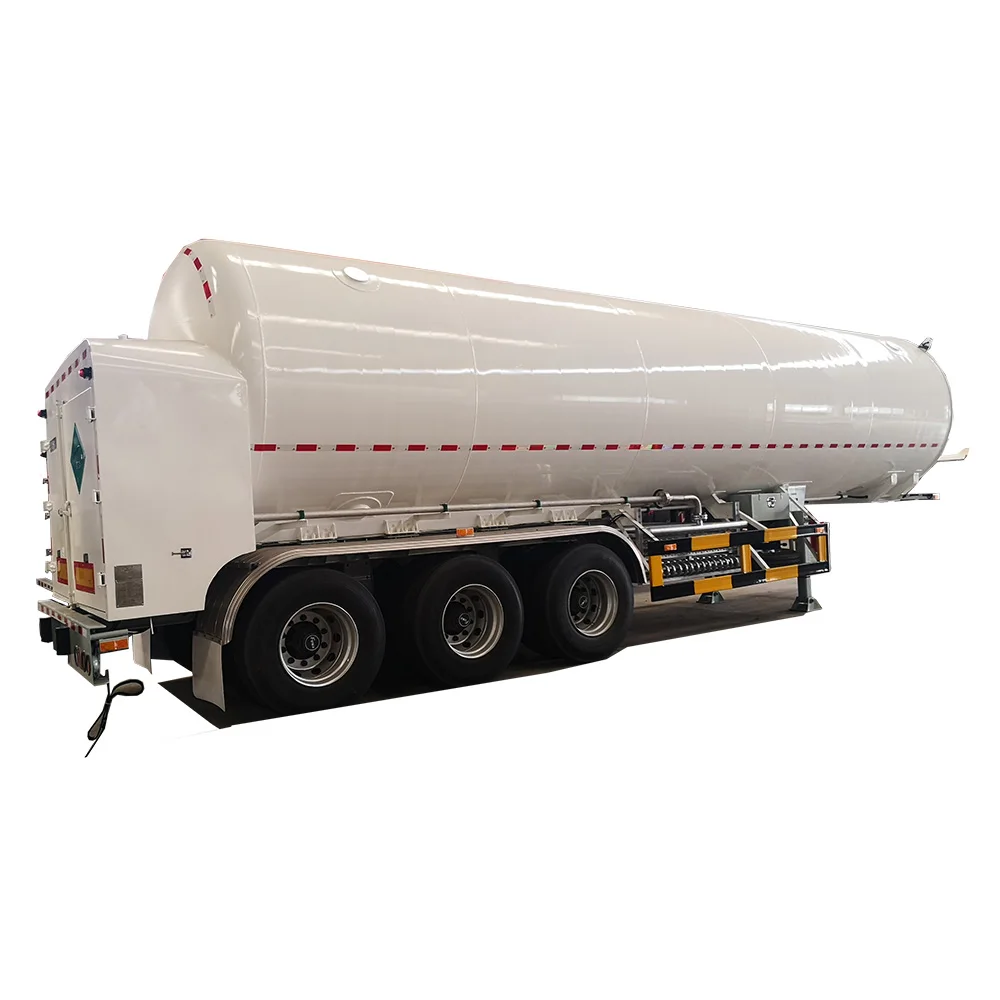

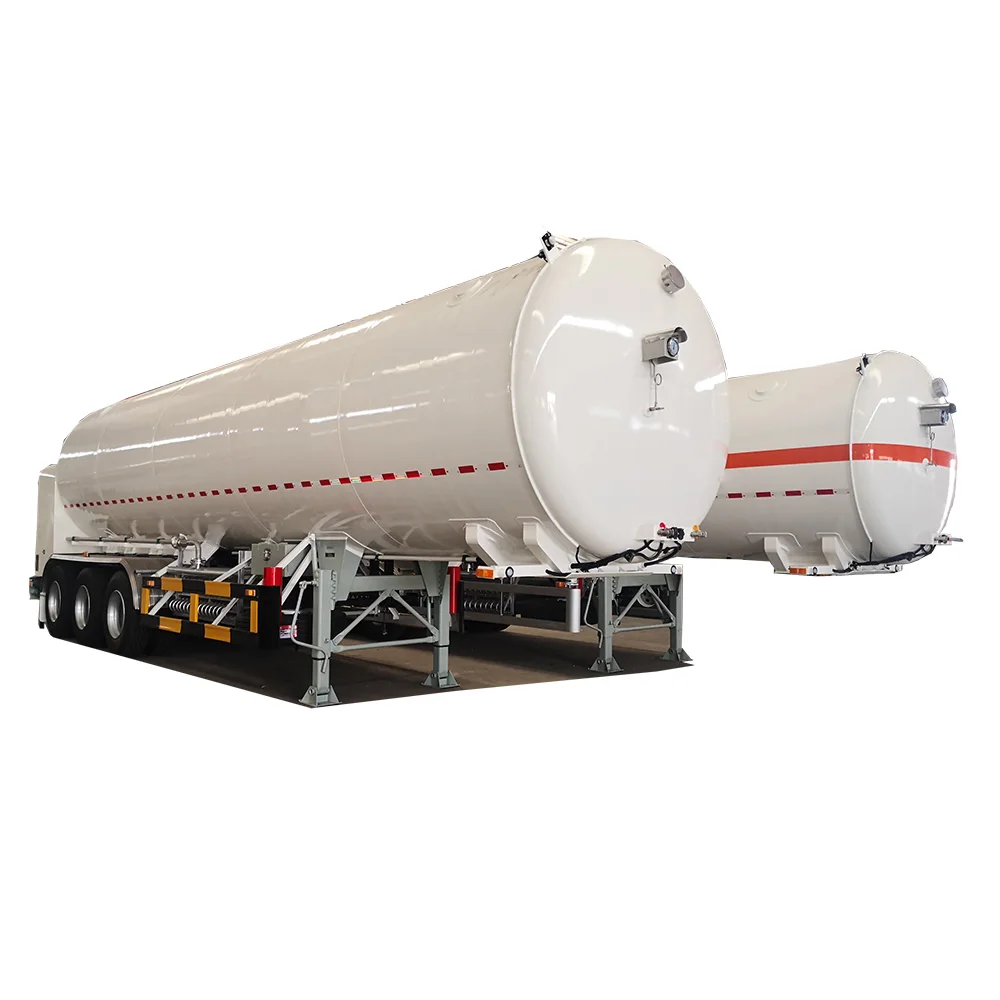

Pure white 3 axle 40 ton cryogenic tank semi trailer (LAR/LIN/LOX/LCO2)

Product Overview

Description

Pure white 3-axle 40 ton cryogenic tank semi trailer (LAR/LIN/LOX/LCO2)

Product advantages of oxygen tanker semi-trailer

1. Design pressure reaches 0.7mpa, long non-destructive storage time and fast unloading speed

2. Lightweight design, the vehicle weight can reach 11580kg

3. Optional pneumatic suspension, running empty can reduce fuel consumption and improve fuel economy

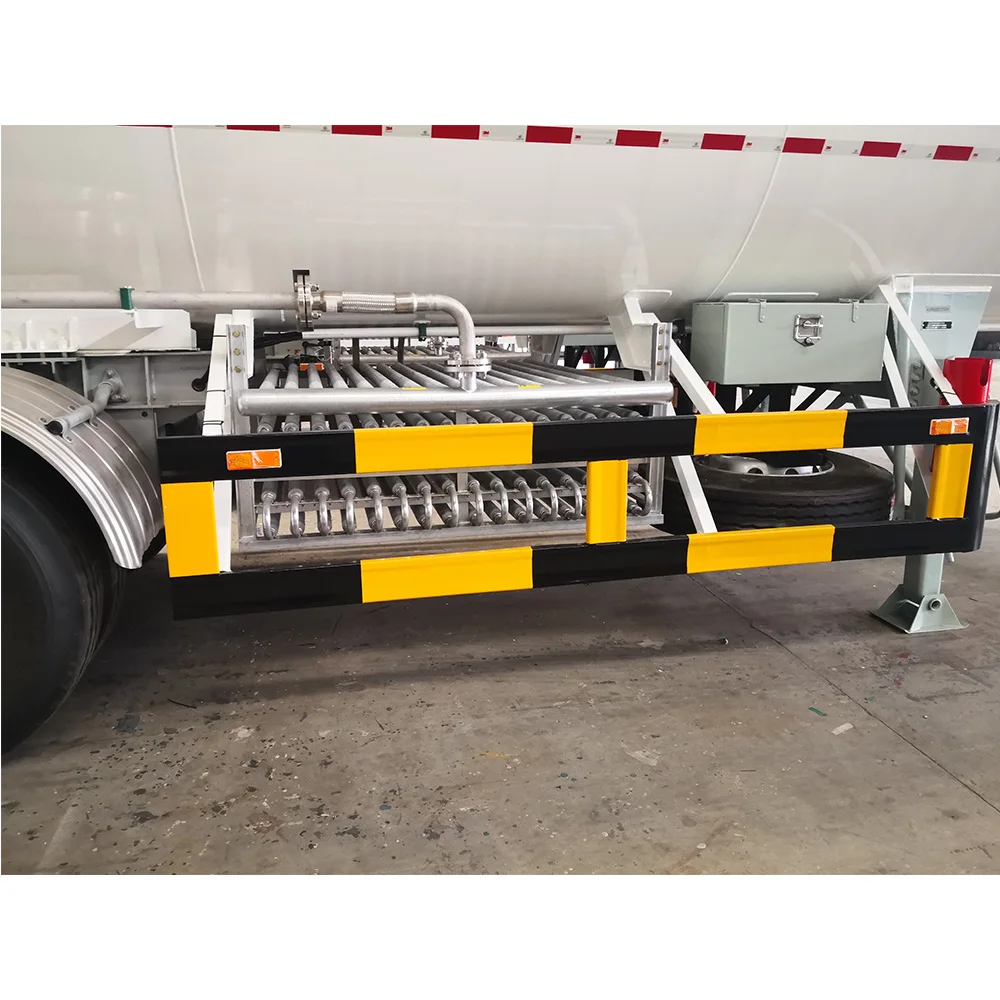

4. Aluminum alloy guardrails and fenders, aluminum alloy wheels, light weight, beautiful appearance

5. LED in the whole car, high brightness, long service life

6. The whole vehicle adopts the reinforcement structure, the internal vacuum insulation cotton padding, the tank will not frost

7. ABS is used to prevent the vehicle from overturning, and there is a broken air brake at the end of the operation box, and the vehicle cannot be started when the valve box is not closed, which improves the safety of the vehicle.

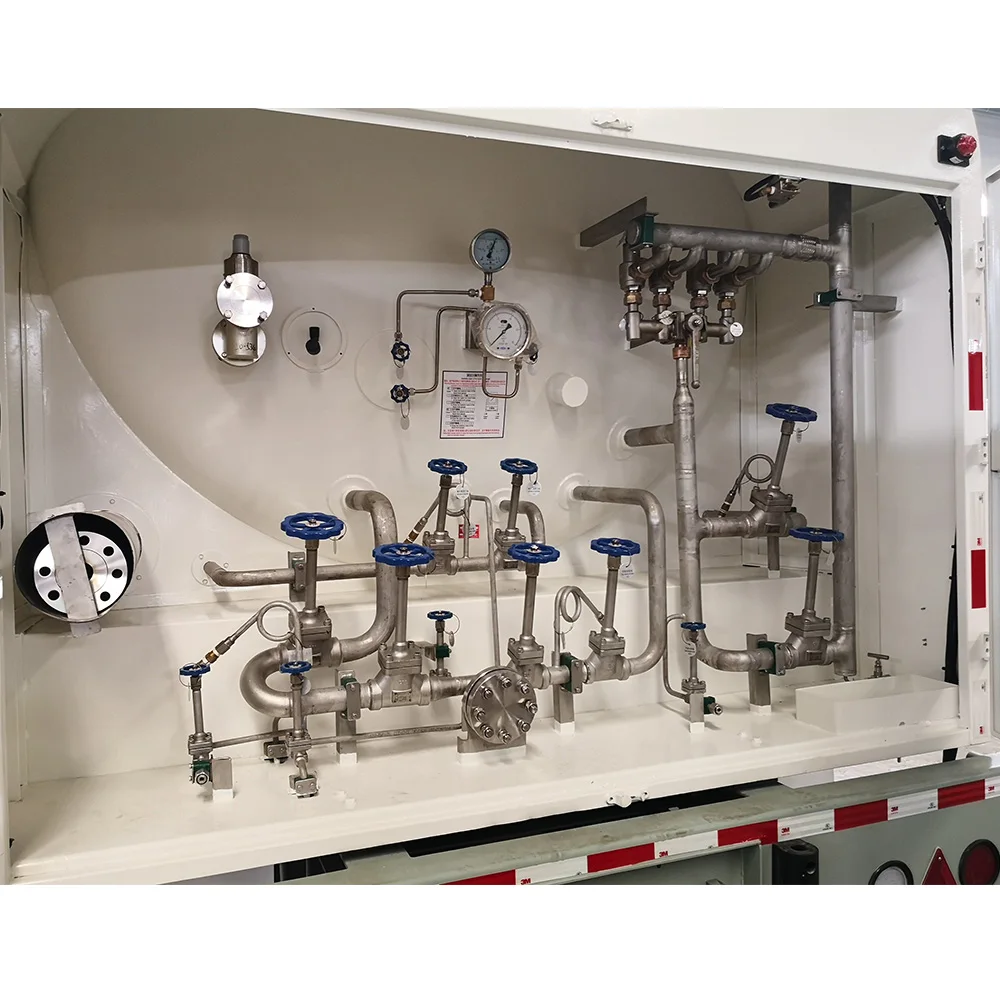

8. The rear operation box is made of aluminum alloy, the height is reduced, which is easy to operate

9. Adopt the international advanced technology process, good quality and economic price.

Technical Parameter

 For 40ton total weight liquid oxygen tank trailer:

Tank Parameters
Tanker volume		27.2 m3	Curb weight		11580kg
Suspension	-      mm 2034    mm	Departure angle	-   ° -   °	Tanker speed limit	Driving	≤80 Km/h
Size	12800 *2500 *3450 mm			Fully loaded	Traction	16000kg
Wheelbase	6870+1310+1310           mm				Axle	24000  kg
medium	Liquid  oxygen	Ambient temperature	-40 ~50	Design service life		/
Tank body
parameter	Capacity	27.2 / 7.2 m3	inside diameter	1800/2000 mm	Total length of tank	11518   mm
	design pressure	0.80/-0.1MPa	Weight	6431   kg	Design service life	10 years
	set  tempreture	-157/50 °C	Filling amount	≤1026kg/m3	Work pressure	<0.75/-0.1 MPa
	Welding joint coefficient	1.0/0.85	Corrosion allowance	0/0  mm	/	/
Structure type	Main structure type		Double layer	Insulation method	High vacuum multilayer insulation
Test	Pressure test pressure		1.04    MPa	Air tightness test pressure		0.8    MPa
	Non-destructive testing		RT,MT,PT	Non-destructive testing ratio		100%,20%
	Pressure after gas replacement		0.07     MPa	Oxygen content in tank		2%

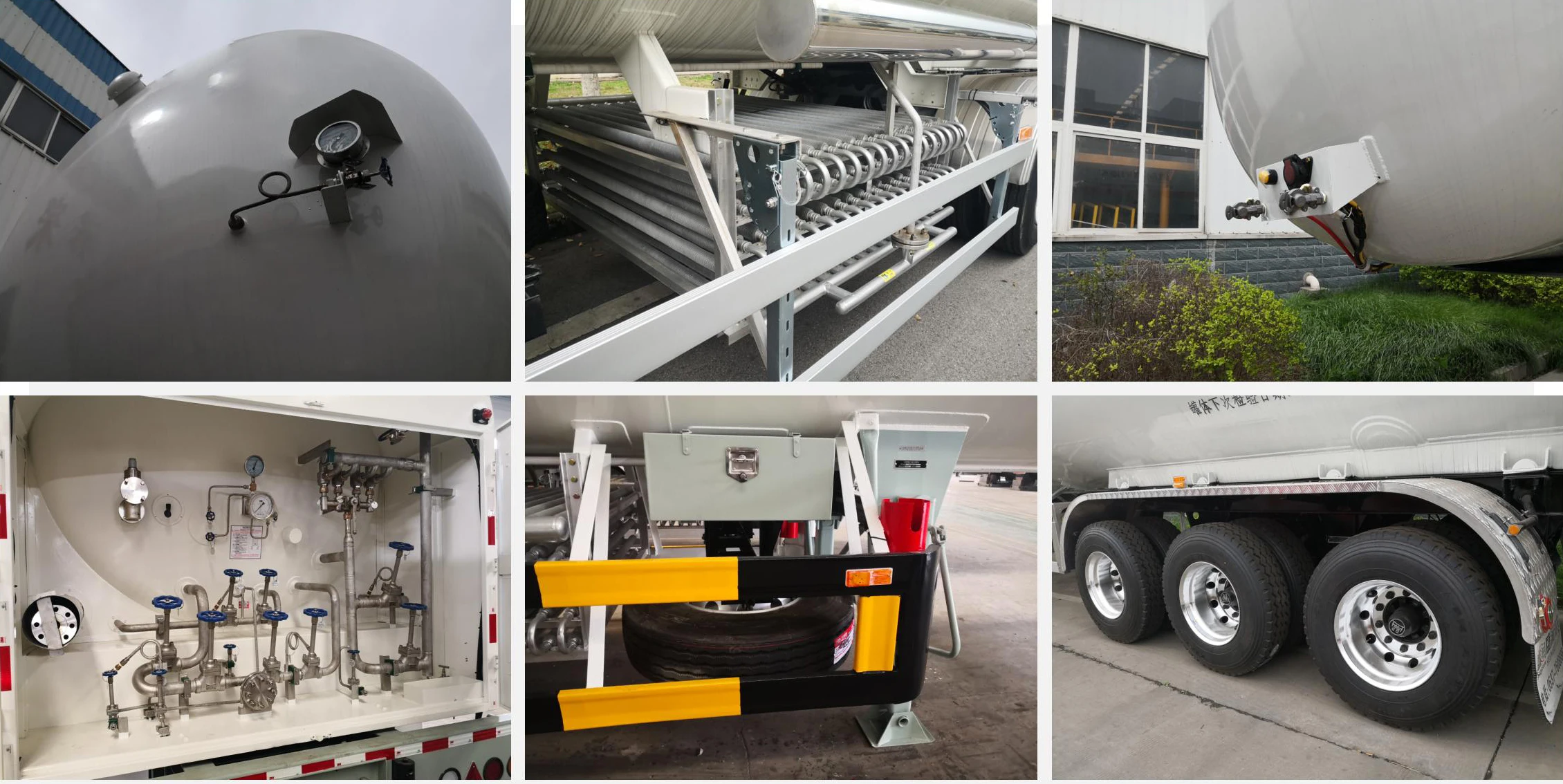

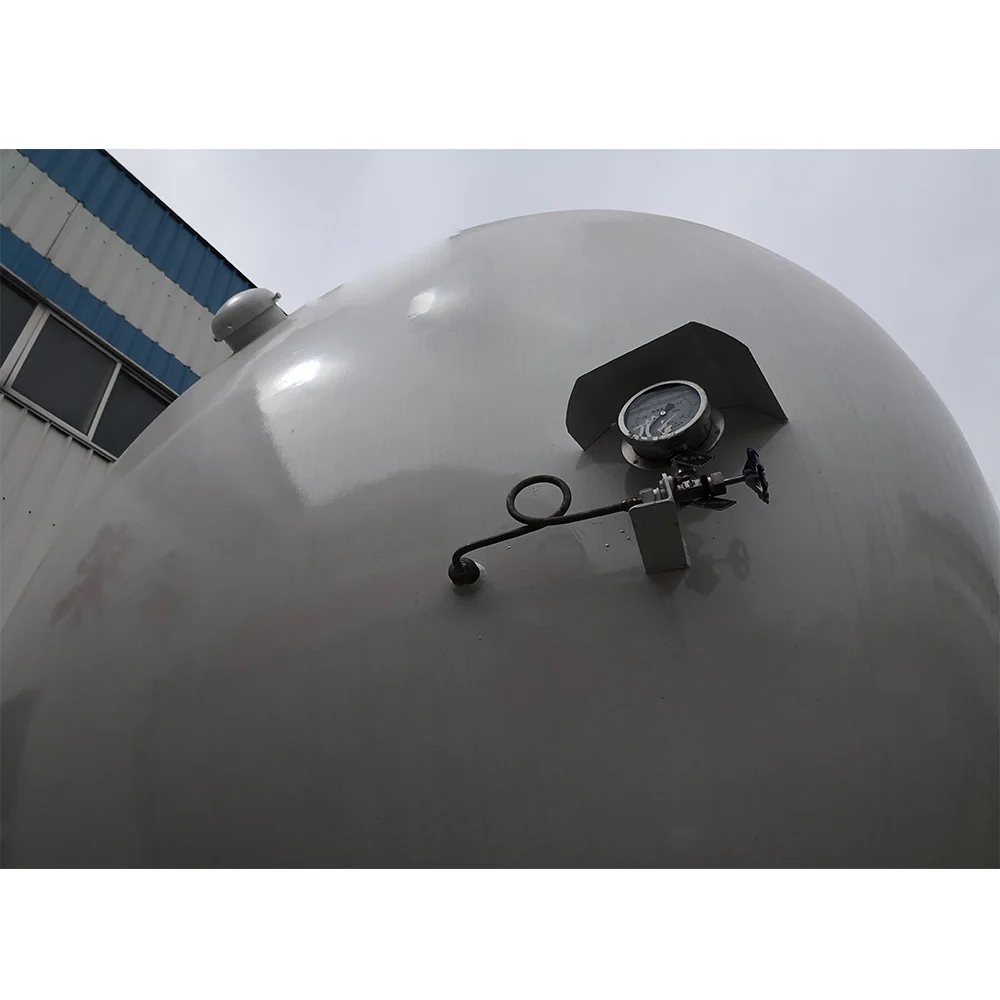

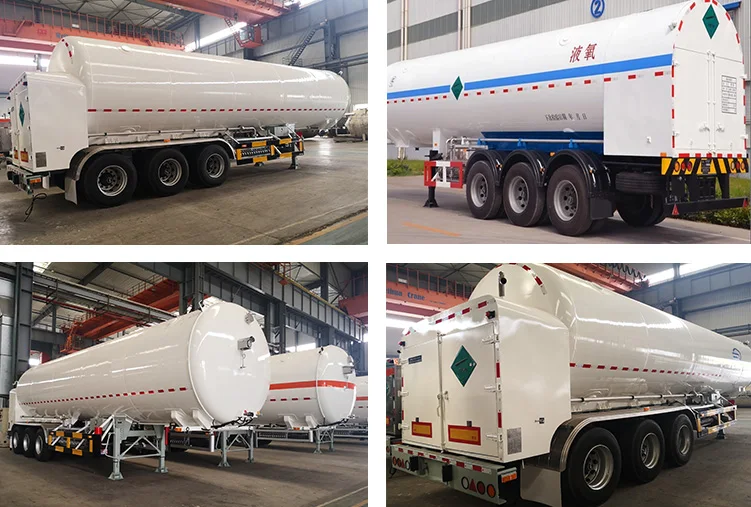

Detailed Images

 There are details for display:

Certifications

related products

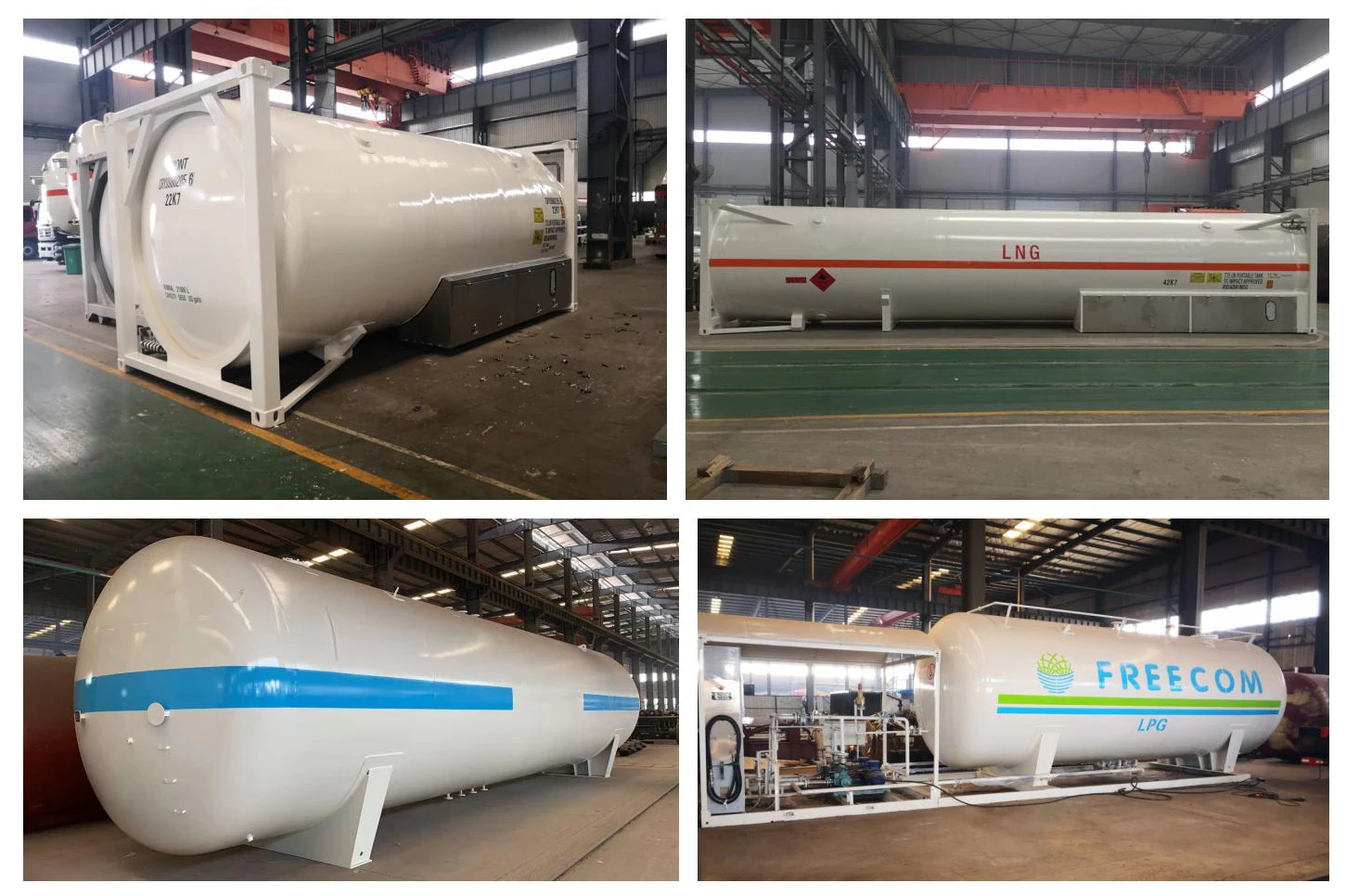

20FT or 40FT LNG Tank Containers and storage tank for your choose.

Purchase Notes

1.Payment term: T/T or L/C

2.Warranty : 12 months (normal situation)

3.Delivery time: 25-45 working days (big quatity need negotiate)

4.MOQ: 1 unit

5.Specification: as your request or refer to the quotation sheet for different product parameters.

6.color: factory recommend or as your needs.

7.Quality control: 1)Various production line processes.2)QA & QC quality control and inspection

3)welcome visit our factory at anytime.

8. 24 hours online for your services.
