12V 24V DC 24V 110V 220V AC Flange Water Flow Control ball valve motorized ball valve control valve

Product Overview

Description

12V 24V DC 24V 110V 220V AC Flange Water Flow Control ball valve motorized ball valve control valve





· Our Advantages ·



Advantages:

• Guangzhou Fols Valve Technology Co., Ltd. aims to provide our customers the best quality products with the most competitive pricing, on-time delivery and full warranty service.



• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.



• 3 production base, large stock, SHORT LEAD TIME, same day shipping.

• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.



• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.



• OEM / ODM service available.





· Product Specification ·



Electric ball valve is a form of quarter-turn valve, it is characterized by well sealed, low resistance, compact structure, easy maintain, long service life. It perfect connects with pipe, allow medium to flow without loss, is suitable for the field that required strictly for seal. Applicative medium like gas, liquid, water, steam and other fibrous material medium in sewage is ok for electric ball valve. It is widely used in food, pharmacy, cosmetics, clean steam, wine industry, beverage industry, chemical industry etc.



Electric Ball Valve is a rotary ball valve by turning 90°, with the characteristics of tine sealing performance, large flow capability, small flow resistant coefficient, simple structure and long service life. The valve passage is equal to the connecting pipe and the medium can nearly flow through it without the loss.



Product features
High precision ball& High tightness seat
Long life ball&seat
The most economical material combination
The best fire safe and static resistance safety
Widely applicable
Various driving types



Body
Nominal size: DN15-DN200
Body material: WCB, 304, 316, 316L
Connection type: Flange
Pressure class: PN16-PN4.0MPa
Structure type: Floating ball core Valve components
Seat material: PTFE: -30~180C
PPL: -30~250C
Core material: 304, 316, 316L
Stem material: 304
Applicable medium: Water, oil, steam, etc Performance





Electric actuator ( Optional)

Type	Control type	Function
Electric actuator	ON-OFF type	Feedback: the active signal, passive contact signal, resistance
(optional)	Regulation type	Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus
	Filed operation	The field, remote control switch regulation and  MODBUS, PROFIBUS field bus





Specification of Electric Actuator
Items Parameter	FOSD-05	FOSD-10	FOSD-16	FOSD-30	FOSD-60	FOSD-125	FOSD-250	FOSD-400
Output torque	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
Rated travel time	10S/20S	15S/30S			30S/60S	100S	100S	100S
Rotation angle	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°	0°-90°
Working current	0.25A	0.48A	0.68A	0.8A	1.2A	2A	2A	2.7A
Starting power	0.25A	0.48A	0.72A	0.86A	1.38A	2.3A	2.3A	3A
Motor power	10W/F	25W/F	30W/F	40W/F	90W/F	100W/F	120W/F	140W/F
Weight	3kg	5kg	5.5kg	8kg	8.5kg	15kg	15.5kg	16kg
Power	AC220V,       AC24V,     AC110V ,    AC220 ,       AC380,      DC24V (choose options)
Input signal	4-20mA (Modulating type)
Output signal	4-20mA (Modulating type)
Insulation resistance	100M/500VDC
Pressure withstanding	1500 VAC ,   one minutes
Inbreaking protection	IP65/IP67
Installation angle	360° any angle
Electrical Interperation	one G1/2 CNCO,one Power cord connection port,one signal wire connection port
Ambient humidity	-30°C  to +60°C
Pilot circuit options	A:with limit position switch style (standard)
	B: with neutral position switch style ( passive contact)
	C:with potentiometer style
	D: both potentiometer and neutral position switch style
	E: with control module style ( Modulating Applications)
	F: DC motor control circuit style
	G:Three-phase current 380V control circuits style
	H:Three-phase current 380V, both neutral position switch and potentiometer style





· Wiring Diagram ·

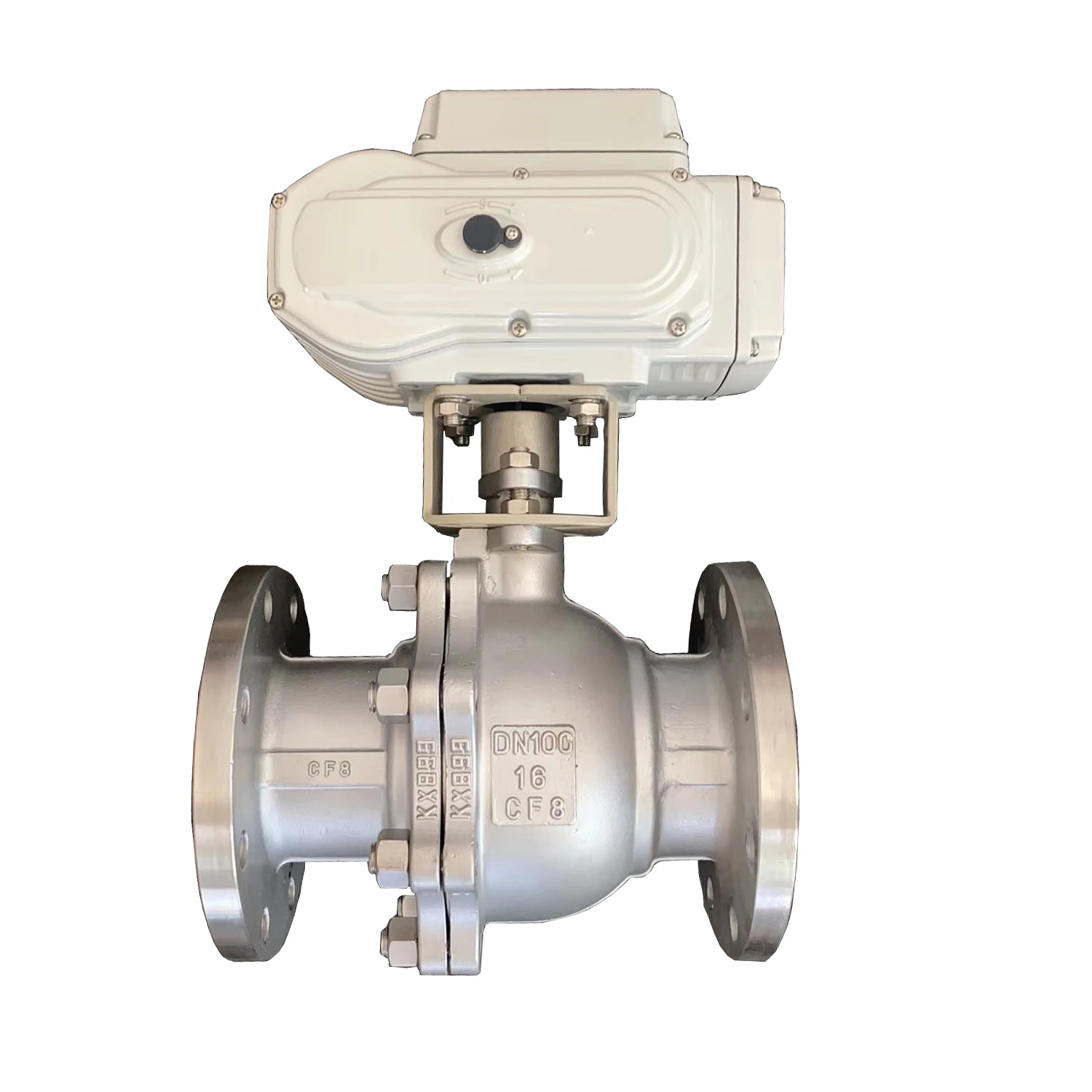

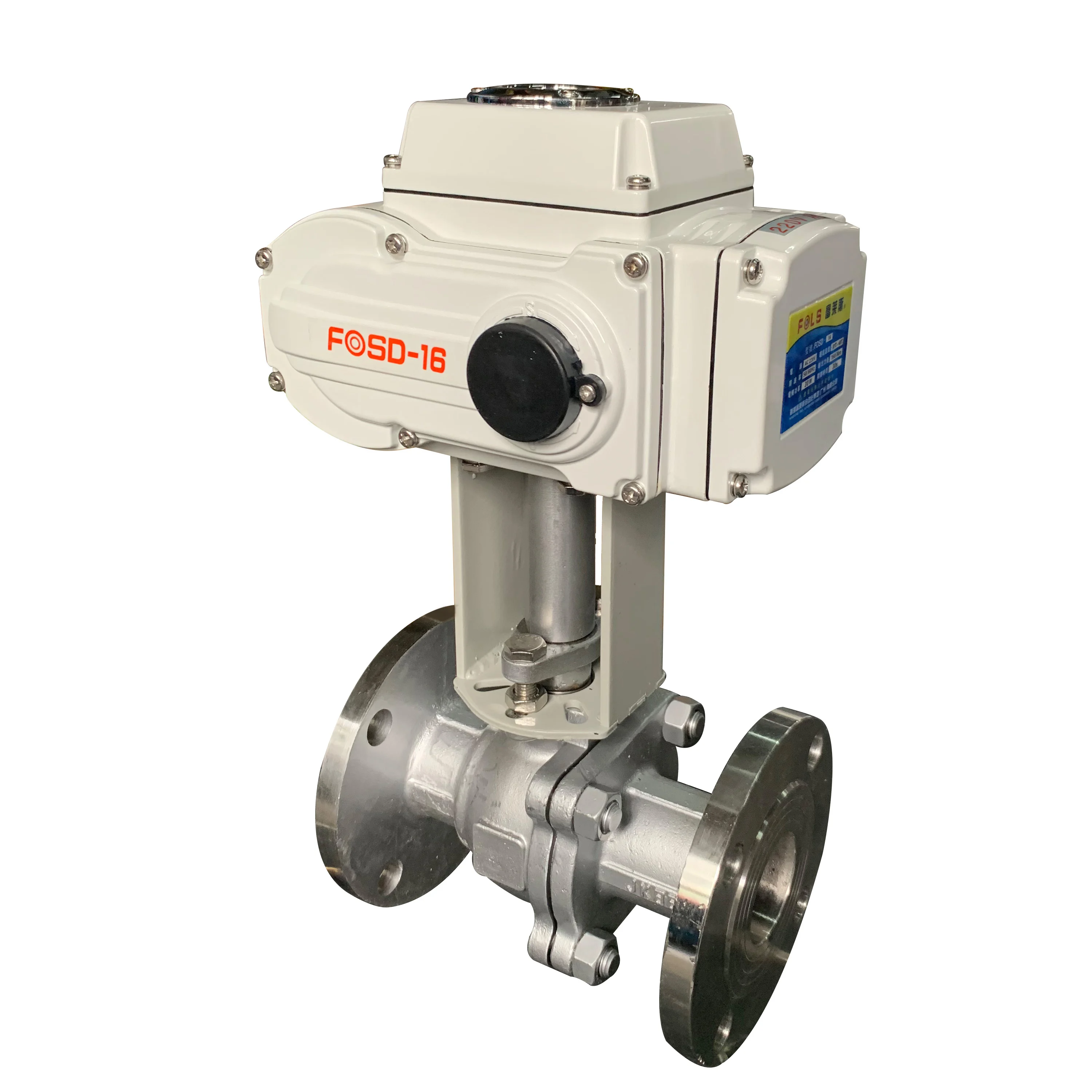

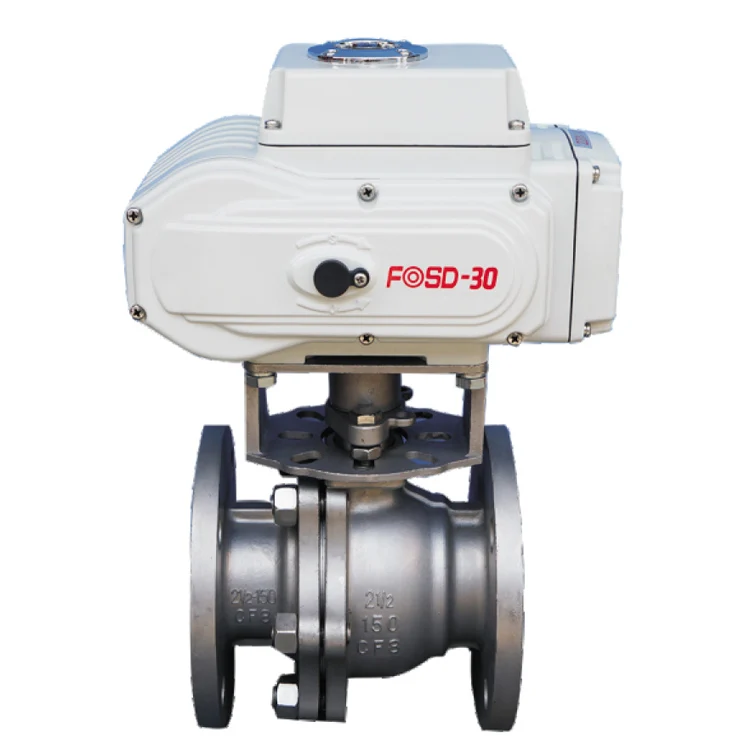

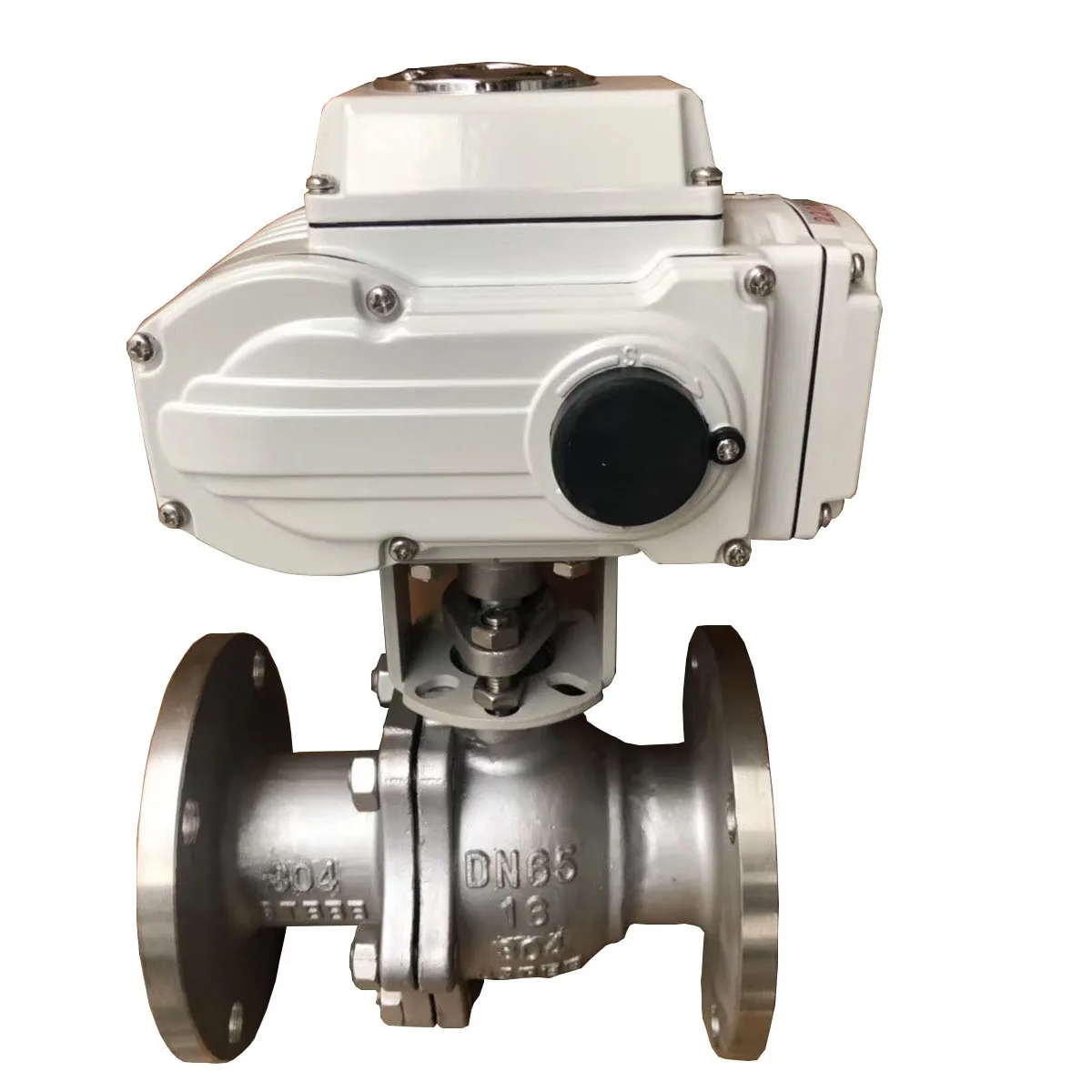

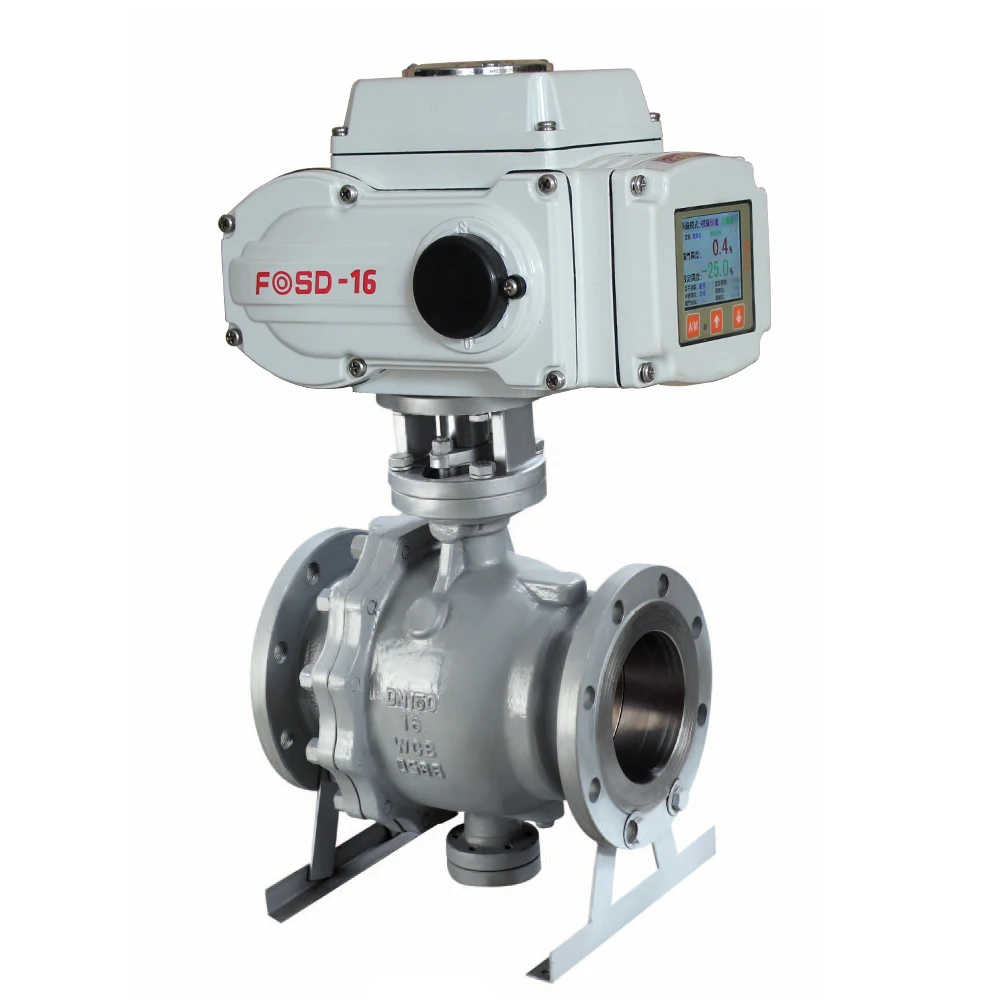

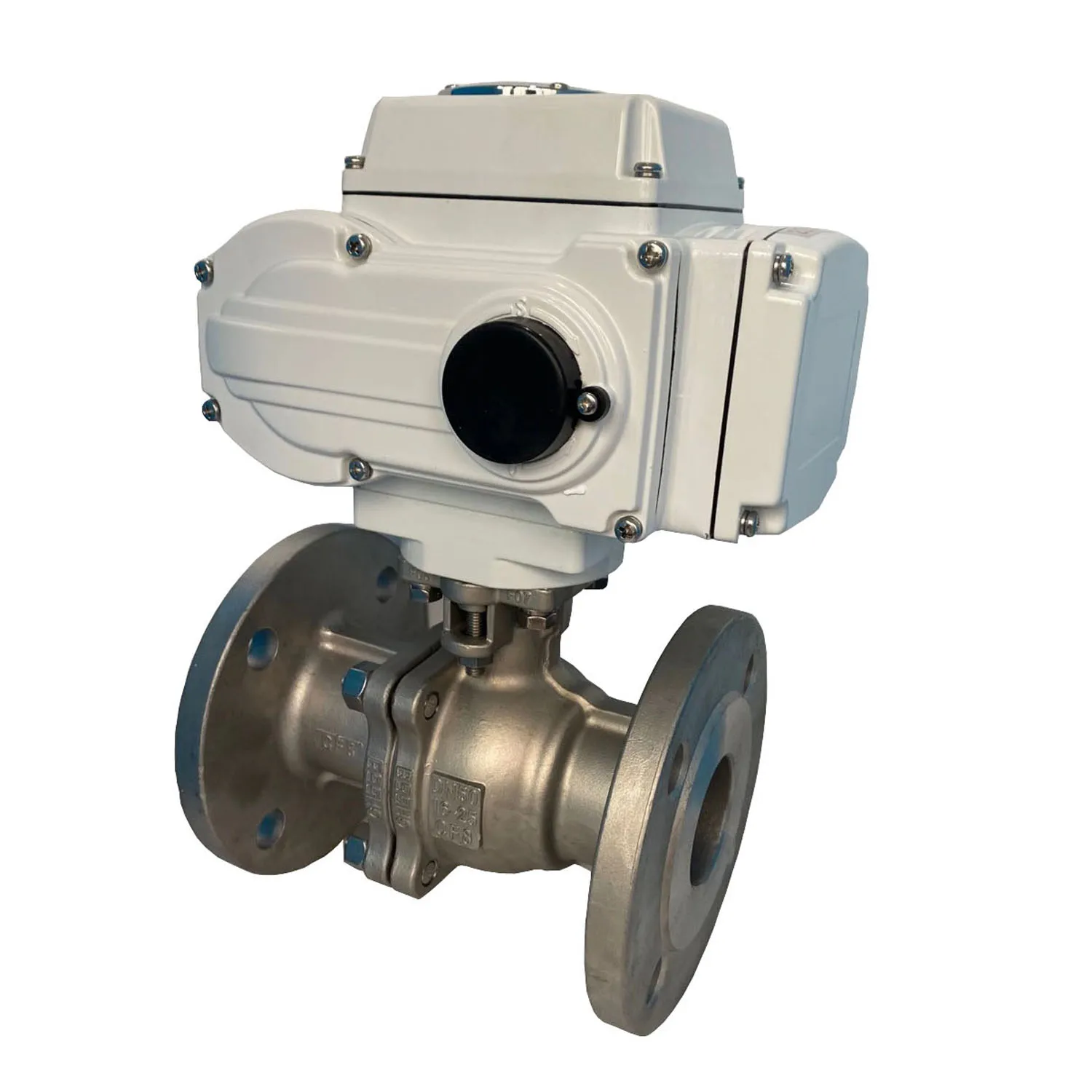

· Product Picture ·





· More type of electric actuator ·

Explosion-proof                        With handwheel                              Multiturn                           Small





ISO 5211 Mounting







· Packing Detail ·
