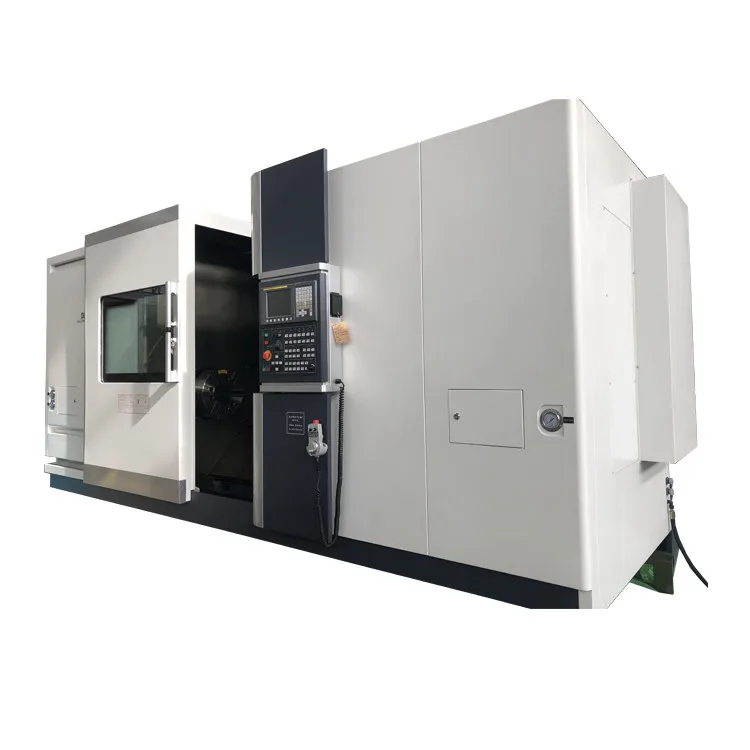

cnc lathe machine DLD30M slant bed CNC lathe machine
- Category: >>>
- Supplier: Dalian Daji CNC Machine Tool Sales Co. Ltd.
Share on (1600224987668):
Product Overview
Description
Product Description
| CNC system | Fanuc/Siemens |
| Max. Swing over bed | 625/645mm |
| Max. Swing over toolpost | 550/600mm |
| Max workpiece length | 1000/1500mm |
| Guideway type | Slide guide rall/linear guide |
| Hydraulic chuck size | 250/300mm |
| Spindle nose | ISO A2-8 |
| Speed range r/min | 30~3500r/min |
| Main motor power kw | 18.5/22kw |
| Diameter spindle through bore mm | 87mm |
| Max bar diameter mm | 74mm |
| Turret | Hydraulic 12-station turret |
| Tool shank mm | 25mm×25mm |
| lndexing time s | 0.4s/1.5s (adjacent/furthest) |
| Hydraulic tailstock/Max travel mm | 900/1270mm |
| Tailstock quill taper | No 5MT |
| Quill diameter/Quill travel Tailstock mm | 140/150mm |
| Max. travel of X-axis mm | 262mm/331mm |
| Max. travel of Z-axis mm | 1050mm/1600mm |
| Position accuracy X/Z mm | 0.015mm/0.021mm |
| Repeated position accuracy X/Z mm | 0.004mm/0.008mm |
| Size & weight mm kg | 5000/6210× 1700 × 1800mm 7900/8400kg |
| Standard configuration | CNC Siemens, CNC Fanuc, Servo-driven spindle, 3-jaw hydraulic chuck 250mm/300mm, Hydraulic tailstock, Chip conveyor, Working lighting, Alarm light, Electric cabinet heat and cold exchanger, Automatic lubrication system of guide rail, Automatic cooling system, A set of keys and tools for machine tool maintenance, Lubrication gun, English documents |
| Optional configuration | Hollow hydraulic chuck250mm/300mm, Tailstock with rotary quill, Conditioner for electric cabinet, Centre rest, Follow-rest, Automatic feeder |
 |
 |
Company Profile
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 35-45 days after we confirm you requirement.
6.What kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash are all accepted if you have other payment,please contact me.
