High Speed Automatic Sticker Cutter Roll Manual Paper Label Rewinding Rotary Paper Die Cutting Machine
High Speed Automatic Sticker Cutter Roll Manual Paper Label Rewinding Rotary Paper Die Cutting Machine
Specifications

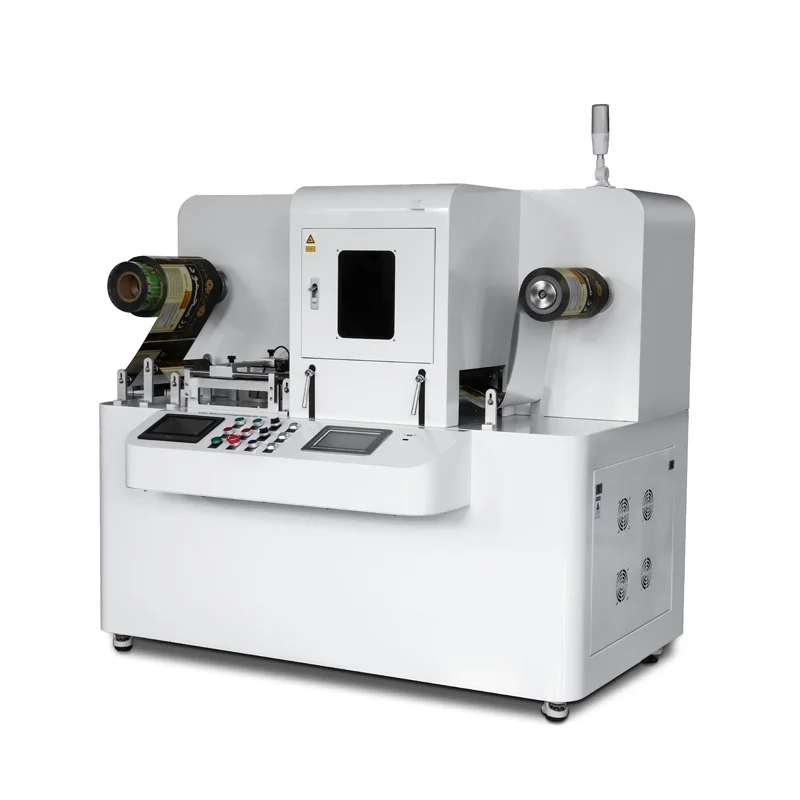

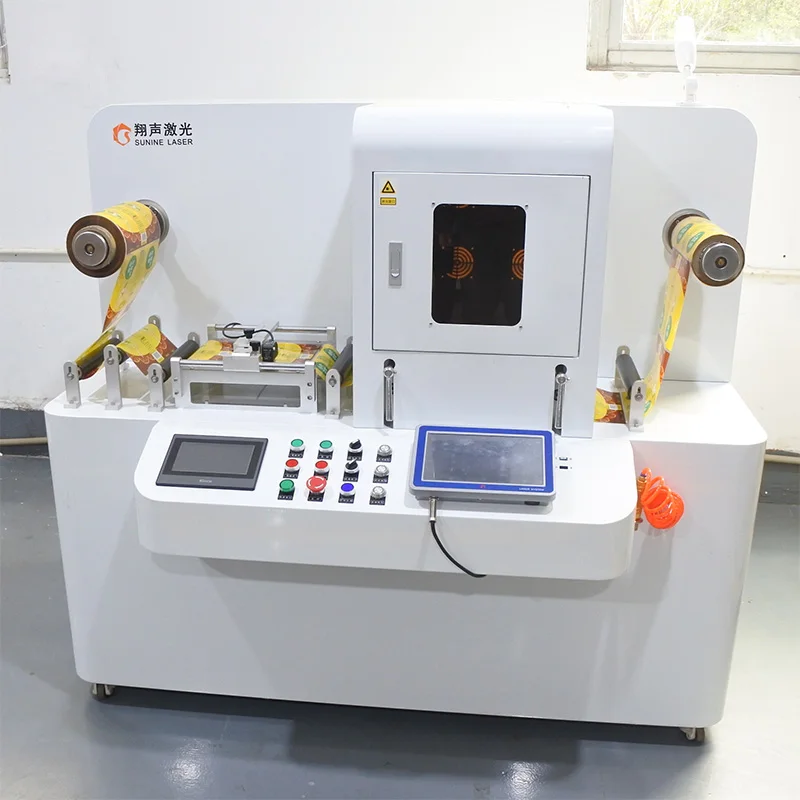

MVZ300 series laser die-cutting is specially designed for continuous cutting, perforating, marking matierals in roll, such as self-adhesive labels and plastic film.
- Without any limits in any graphic cutting
- fast cutting speed and short processing time
- Be capable of continously and automatically cutting labels and film rolls
- Built-in color sensor which is able to precisely detect and position the graphics on labels
-Light spot size is much smaller
- Die-cutting accuracy and marking quality is much better
SPECIFICATIONS OF MVZ300 LASER DIE-CUTTING AND MARKING MACHINE
Model
MVZ300-60
MVZ300-150
MVZ300-200
MVZ300-300
Laser power
60W
150W
200W
300W
Laser source
CO2 laser
Max. cutting width
300mm
Structure
Roll to roll
Applications
Self-adhesive stickers, PE, PMMA
Function
Through cutting, kiss cutting, punching, wave cutting, easy tearing line
Positioning way
Color sensor
Max. scanning field
300mm
File format
PLT, DXF, JPG,BMP
Power supply
AC220V 50Hz 1KW
Working environment
0-40℃
Dimensions
2040mm x 800mm x 1280mm
Max. intermittent die cutting speed
Approximately 30m/min
Max. runnng speed
60m/min
Self-adhesive label die cutting precision
±0. 15mm
In mold label die cutting precision
±0. 25mm
Max. cutting width
300mm
MVZ300 SERIES IS SUITABLE FOR A VARIETY OF DIFFERENT MATERIALS
Related Product
contact supplier
Certifications
Company Information
Packaging & Shipping
FAQ
What are the advantages of laser marking?
Laser marking systems offer reduced downtime, elimination of consumables (both for cost and environmental reasons), permanent marks and reduced preventive maintenance and cost usually associated with ink-based printers.
What materials can be laser marked?
A variety of materials are suited to laser marking, here are just a few examples:
Glass, paperboard, ceramics, metals such as aluminum, cast iron, copper, steel, titanium, etc. Plastics and polymers (PET, PVC, PE, HDPE, LDPE, PPR)
If you are not sure your product’s material, please send some samples to us, our expert will test them for evaluation.
What types of laser can be used for marking?
The three most commonly types of laser used are CO2 laser, fiber laser and UV laser. Different kinds lasers can work on different material. If you are looking for a good recommendation, contact us immediately.
What variables should be considered when selecting the appropriate laser marking system?
Factors to be included in evaluating the correct system include line speed, pitch (spacing) between products, substrate (material) to be marked, code content (amount and field size), environmental conditions and integration needs.
Why should i choose your company?
A powerful R&D team with high education level, a well-trained after-sales team, a wealth of working experience in laser marking industry (more than 10 years), we are the TOP manfacuturer of fly laser marking machines in China. Also, we are not just machine seller, but also solution expert. We are able to provide custom service based on your requirements. Many cases will be shared with you. If you are looking for a supplier who offer high quality laser printers at compeitive price, then do not hesitate to contact us.
If I buy machines from your company, do you provide technical support?
Yes. We have a whole after-sales team at your service. We will provide video of installation as well as online technical training.
What’s your warranty?
Our warranty is 12 months. During the warranty period, we provide customers with free parts for repair; if you need to return to the factory for repair, all repair costs and freight will be borne by us. After the warranty period, we will continue to provide maintenance services. Besides, we offer permenant softeware upgrading service for free.
