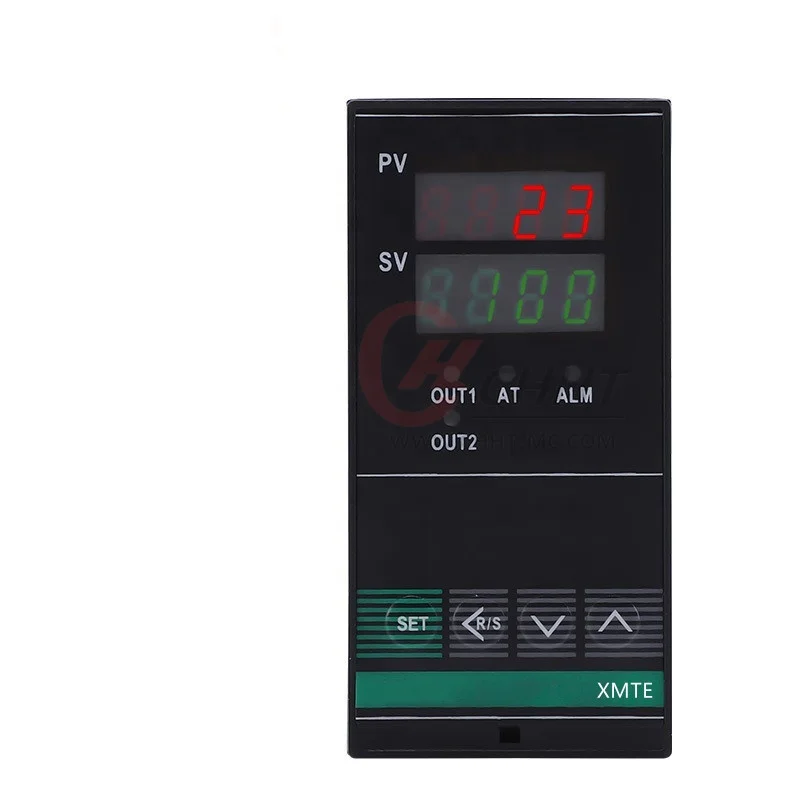

48*96mm input signal K model XMTE temperature control thermostat
- Category: >>>
- Supplier: Shanghai Chenghan Mechanical And Electrical Equipment Co. Ltd.
Share on (1600225192556):
Product Overview
Description
Product Name | 48*96mm input signal K model XMTE temperature control meter |
Materials | ABS |
Type | K/T/J/E/ PT100 |
Sample rate | Twice per second |
Alarm mode | Full range setting |
Contact capacity | AC220V,3A |
Solid state relay trigger signal | voltage ≥12V, current ≥15mA |
SCR trigger signal | ≥100mA |
Power supply | 110V-240V AC 50hz/60Hz |
Power consumption | ≤3W |
Working conditions | Temperature ,0-50℃ Humidity,=85%R |
Digital temperature controller model
XM-T □—6/7□ □ □—□
①②③ ④ ⑤⑥ ⑦
① -- Intelligent double digital display adjusting instrument code
② -- Instrument dimensions (width × height)
Empty: 160 x 80 mm
A: 96 x 96 mm
D: 72 x 72 mm
E: 48 x 96 mm
F: 96 x 48 mm
G: 48 x 48 mm
③ -- Design serial number 6000 7000 series
④ - Output mode:
0: Output contact on-off position adjustment (contact capacity 220V, 3A resistance)
2: Two-bit PID adjustment or time proportional adjustment for the on-off of output contacts
3: Three-position PID adjustment or time proportional adjustment for the on-off of output contacts
4: continuous PID control of output
5: Output drive solid-state relay (SSR) PID regulation
6: Output single-phase thyristor phase shift trigger signal PID regulation (SCR voltage regulation)
7: Output single-phase thyristor zero trigger signal PID adjustment (SCR power adjustment)
8: Output three-phase thyristor trigger signal PID adjustment with additional device (three-phase power modulation)
9: Output DC 0 ~ 10mA, 4 ~ 20mA current signal continuous PID regulation
⑤ -- Alarm mode
0: No alarm
1: With upper limit contact output deviation alarm function (contact capacity 220V, 3A resistance)
2: With lower limit contact output deviation alarm function
3: With upper and lower limit contact output alarm function
4: Other alarm methods required by users (text description when ordering)
⑥ -- Input signal
1: Thermocouple (K, E, S, B, J, T, R, N, etc.)
2: Thermal resistance (PT100, Cu50, Cu100, BA1, BA2, G, etc.)
3: Oher special requirements of the user signal input
⑦ -- Additional instrument functions
V: With 24V DC feed output (can be used as a transmitter power supply)
T: With timing function
P: 30-segment program control (curve heating)
B: Transmitted output current and voltage signals (corresponding to the input and can be isolated)
Q: Other special functional requirements of users
Empty: 160 x 80 mm
A: 96 x 96 mm
D: 72 x 72 mm
E: 48 x 96 mm
F: 96 x 48 mm
G: 48 x 48 mm
③ -- Design serial number 6000 7000 series
④ - Output mode:
0: Output contact on-off position adjustment (contact capacity 220V, 3A resistance)
2: Two-bit PID adjustment or time proportional adjustment for the on-off of output contacts
3: Three-position PID adjustment or time proportional adjustment for the on-off of output contacts
4: continuous PID control of output
5: Output drive solid-state relay (SSR) PID regulation
6: Output single-phase thyristor phase shift trigger signal PID regulation (SCR voltage regulation)
7: Output single-phase thyristor zero trigger signal PID adjustment (SCR power adjustment)
8: Output three-phase thyristor trigger signal PID adjustment with additional device (three-phase power modulation)
9: Output DC 0 ~ 10mA, 4 ~ 20mA current signal continuous PID regulation
⑤ -- Alarm mode
0: No alarm
1: With upper limit contact output deviation alarm function (contact capacity 220V, 3A resistance)
2: With lower limit contact output deviation alarm function
3: With upper and lower limit contact output alarm function
4: Other alarm methods required by users (text description when ordering)
⑥ -- Input signal
1: Thermocouple (K, E, S, B, J, T, R, N, etc.)
2: Thermal resistance (PT100, Cu50, Cu100, BA1, BA2, G, etc.)
3: Oher special requirements of the user signal input
⑦ -- Additional instrument functions
V: With 24V DC feed output (can be used as a transmitter power supply)
T: With timing function
P: 30-segment program control (curve heating)
B: Transmitted output current and voltage signals (corresponding to the input and can be isolated)
Q: Other special functional requirements of users
length wide height(L W H) unit:mm | ||||||
Type | false top frame(W×H) | shell(L×W×H) | open pore size(W×H) | |||
XMTG | 48×48 | 44×44×100/78 | (44+1)×(44＋1) | |||
XMTE | 48×96 | 44×92×100/78 | (44+1)×(92＋1) | |||
XMT | 160×80 | 150×130×75/78 | (152+1)×(76＋1) | |||
XMTD | 72×72 | 68×68×100/78 | (92+1)×(44＋1) | |||
XMTA | 96×96 | 92×92×100/78 | (92+1)×(92＋1) | |||
NOTICE
when ordering, pls let us know below information.
1.Type of temperature controller
XMTG/XMTE/XMT/XMTD/XMTA...
2.Dimensions of temperature controller
48×48mm/48×96mm/160×80mm/72×72mm/96×96mm...
3.Power supply
110V-240V
4.Input signal
K,J,E,S,N,T,B,R,Cu50,Pt100,0-5VDC,1-5VDC,0-20mA,4-20mA
5.Output signal
Relay,SSR,SCR
If you have other question,pls contact our.
Q1:How can I get more information about your product?
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.please contact us directly.
Q3:What is the payment way of your company?
A3:T/T,sight L/C,Paypal,Western Union,Alibaba trade assurance,Escrow,Etc.
Q4:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.
Q5:How long for manufacturing once we place order?
A5:It's about 7-15 days after payment or disposit.
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.please contact us directly.
Q3:What is the payment way of your company?
A3:T/T,sight L/C,Paypal,Western Union,Alibaba trade assurance,Escrow,Etc.
Q4:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.
Q5:How long for manufacturing once we place order?
A5:It's about 7-15 days after payment or disposit.
