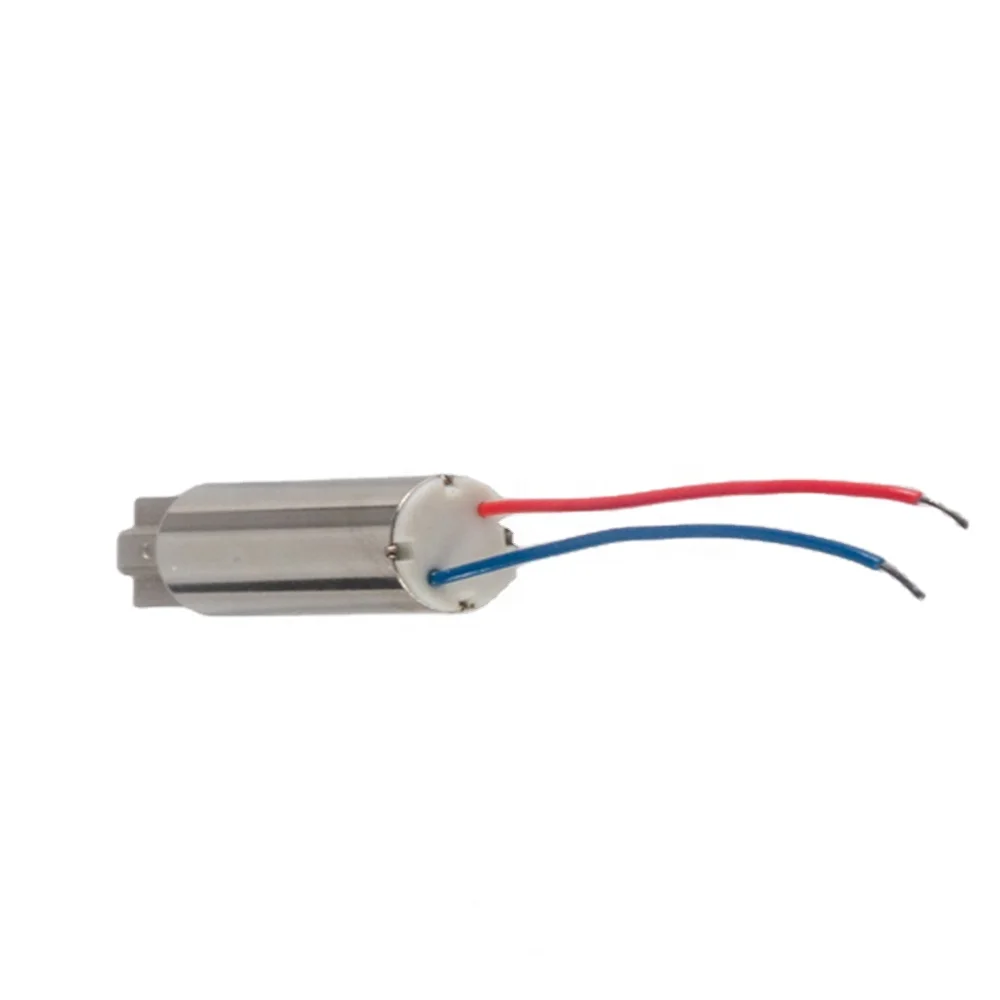

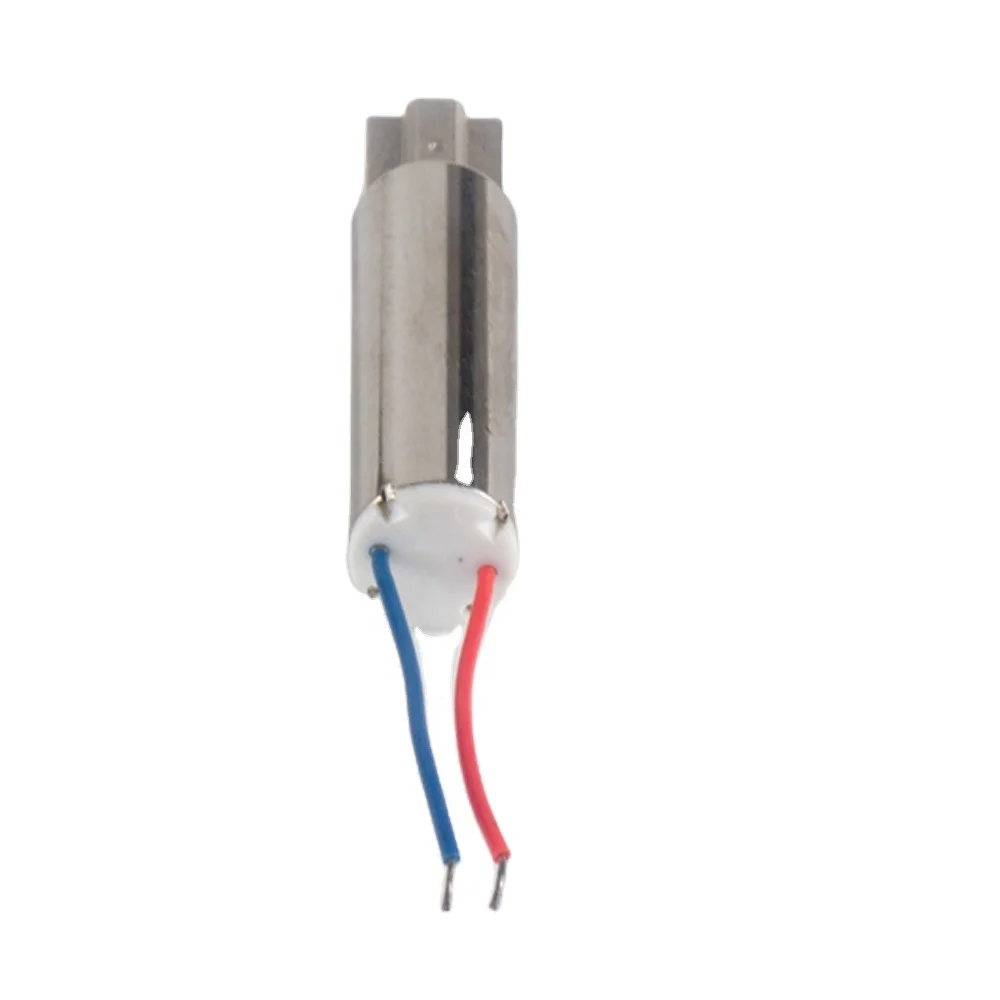

S4Z11A028 001 Low Current 1.3v mini 4mmx11mm DC Cylindrical Vibration Micro Motor Used in Mobile Phone Home Beauty Devices (1600225195793)

Share on (1600225195793):


Price:$0.95 - $1.03
Price in USD:Details

Quantity:


Product Overview

Description



S4Z11A028-001 Low Current 1.3v mini 4mmx11mm DC Cylindrical Vibration Micro Motor Used in Mobile Phone Home Beauty Devices


Product Description


Prices are primarily determined by the diameter of the body. Generally speaking, our 6mm diameter types are the lowest cost, followed by 4mm diameter which are approximately 10% higher in price. Our 7mm diameter vibration motors are approx. 20% higher than our 4mm types. Our low current consumption vibration motors are priced at approximately 3 times higher in than the equivalent standard current version. Connectors and rubber sleeves / boots may be added to most leaded parts. Contact us for quote.






Electrical Data:


Show Me All Products (Shown below are only six models of them: S4Z11B003-001; S4Z11A003-001; S4Z11B030-191; S4Z11B028-001; S4Z11A028-001;  S4Z11B105-202. If you want to know about other models, please email us.)


SAIBOW P/N
Installation method
Motor Size
Voltage
Current
Rated speed (rpm)
Vibe Force (G)
Dia / Hgt
Body
Overall
Operating(VDC)
Rated (ma) MAX
Typical* (ma) Avg.
Leadwire / FPC / SMD
(mm)
(mm)
(mm)
S4Z11B003-001
Leadwire
4
11
15.8
2.2~3.6
70
57
10500
1.15
S4Z11A003-001
Leadwire
4
11
15.8
1.1~1.6
85
62
8500
1
S4Z11B030-191
Leadwire
4
11
15.8
2.2~3.6
70
53
10500
1.15
S4Z11B028-001
Leadwire
4
11
16.9
2.2~3.6
65
53
12000
1.3
S4Z11A028-001
Leadwire
4
11
16.9
1.1~1.6
80
48
10000
1.1
S4Z11B105-202
Dip
4
11.3
15.6
2.2~3.6
70
53
14000
1.3


The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.


MOUNTING CONFIGURATIONS OF VIBRATION MOTORS




LRA Structure:

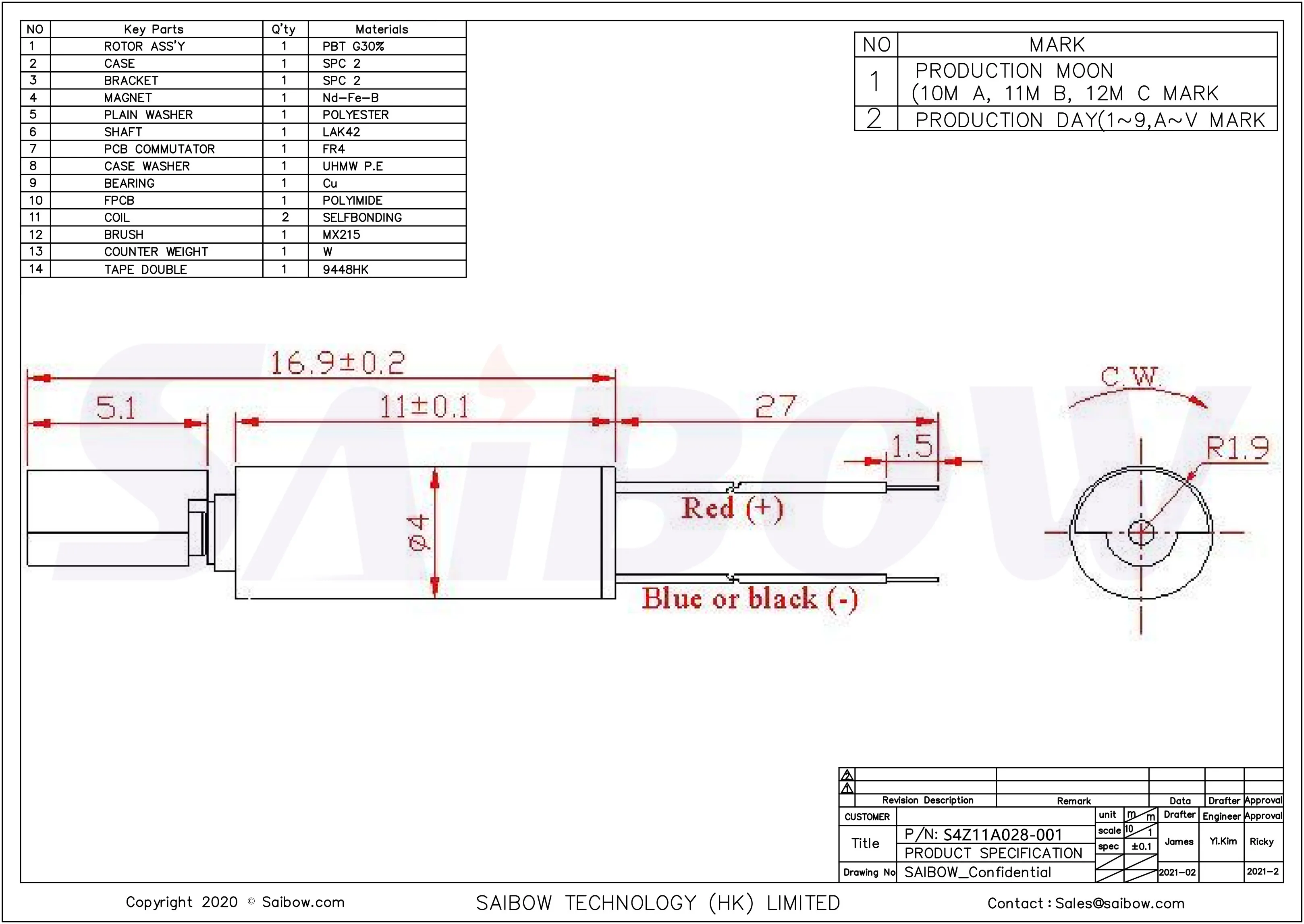

Product Drawing:




APPLICATIONS:




You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.

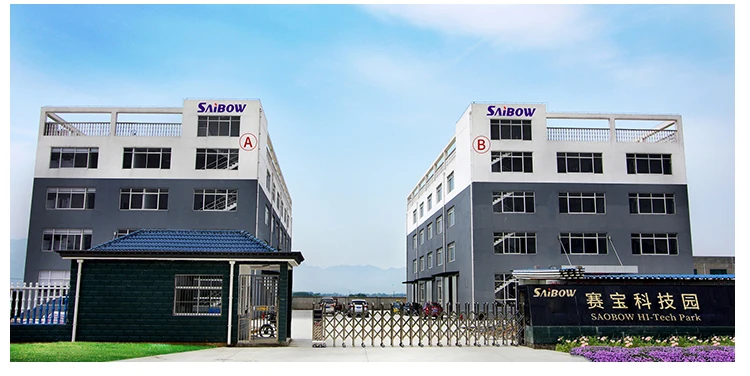

Company Profile
