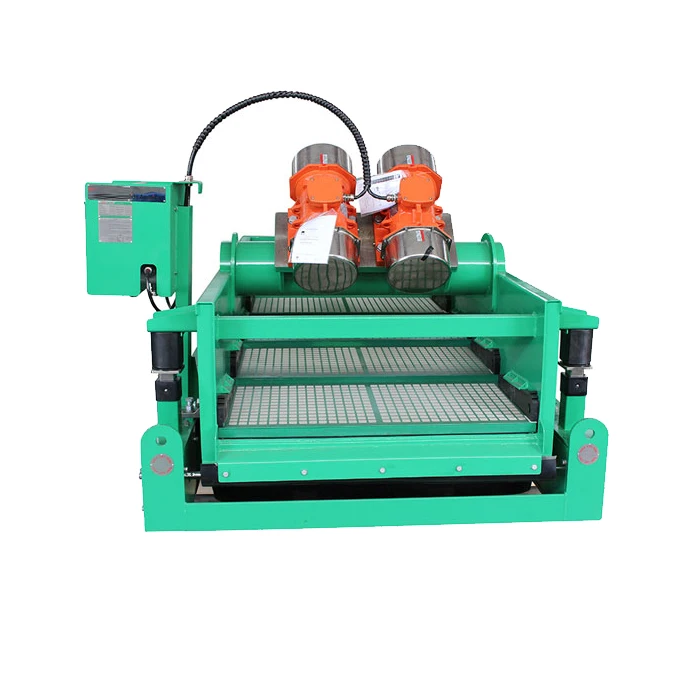

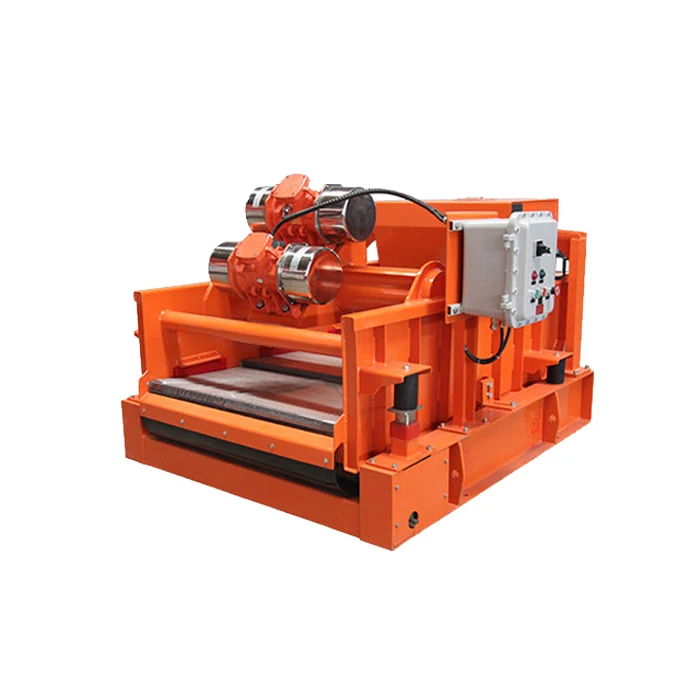

API shale shaker with mesh screens for solid control

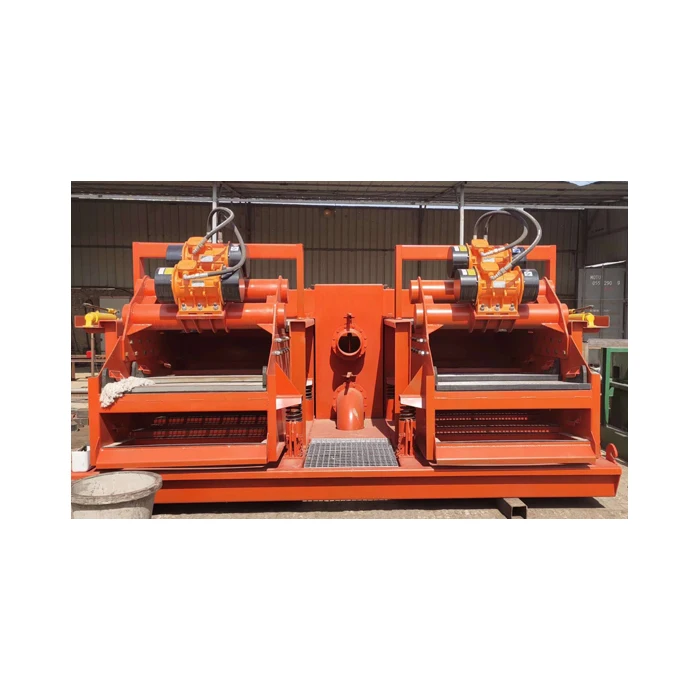

Shale shaker is first phase solid control equipment in drilling fuids processing sytem, also know as key solids contral equipmnet in drilling mud system, shale shaker decides performance of the whole solids control systme. Solids control  can design double shakers and truplicate shakers on single skid according to client's special requirements and also supply relevant connection manufold according to currant industry situation, we provide both third reneration linear motion shale shaker and foutth generation balanced elliptical shale shaker.

Shale shaler absorbed advanced tech at home and abroad, complete series shale shaker can meet custimers variablr demand. Client feedback proved the advantages fo this kinds of shale shaker: high G-force, Wide Screen Area, Compressed Structures,Cost-effective,Ect.

Model:

1.ZS752 series Mini Shakers have been widely used in trench-less HDD water well drilling, Diamond core drilling etc. Best option for compact system and low flow ect.

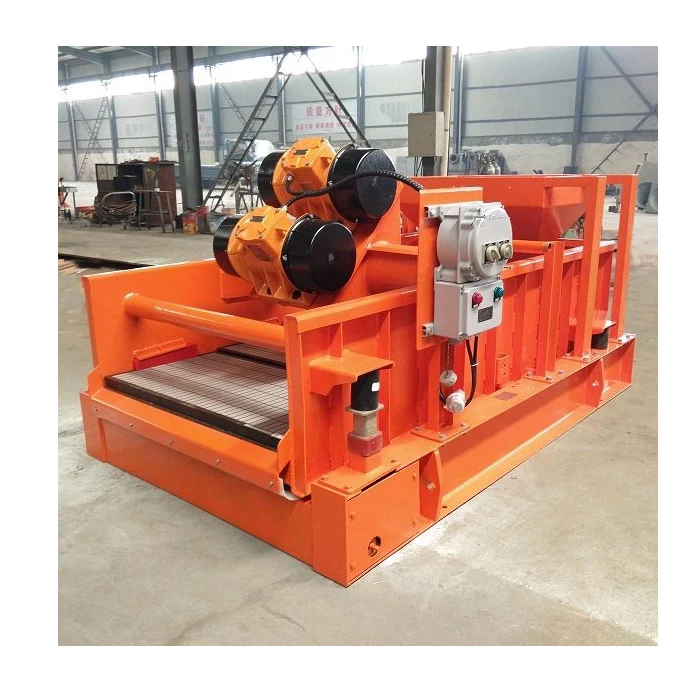

2. ZS703/ZS594 Series single deck shale shaker is popular in oil gas drilling, big trench-less HDD projects, or other industry seperation demand

3. ZS706 series double deck shaker is properly designed for piling, TBM,big oil gas rig, bit trench-less projects, or the industry seperation for multi phase seperation.

Features

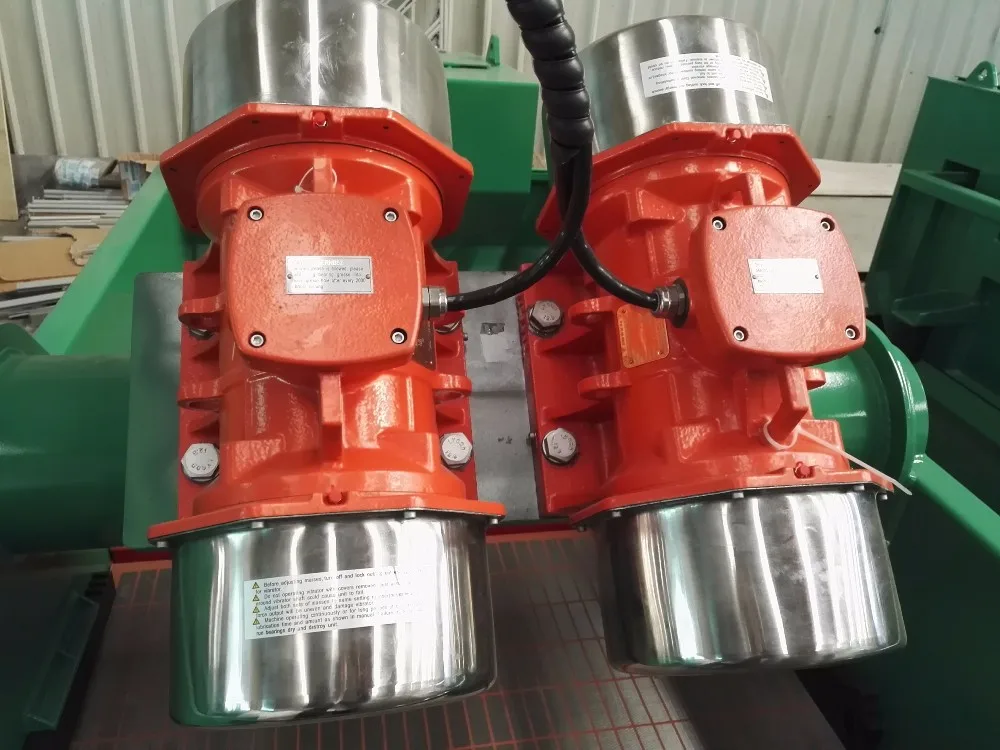

1. Italy OLI or Us Martin brand Viberation Motors

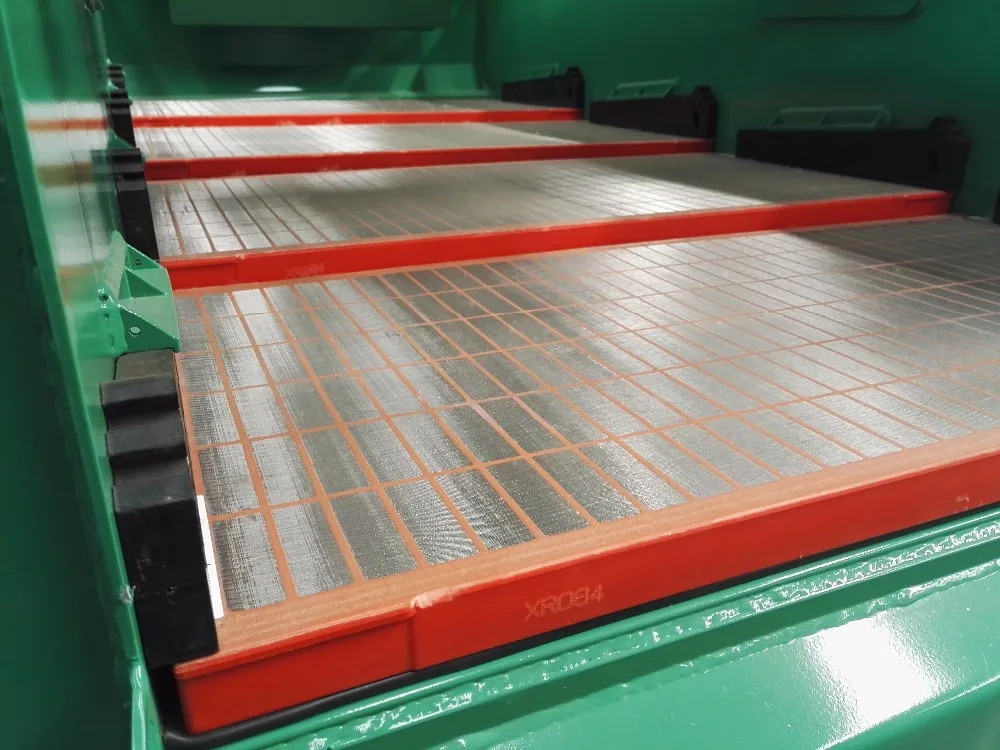

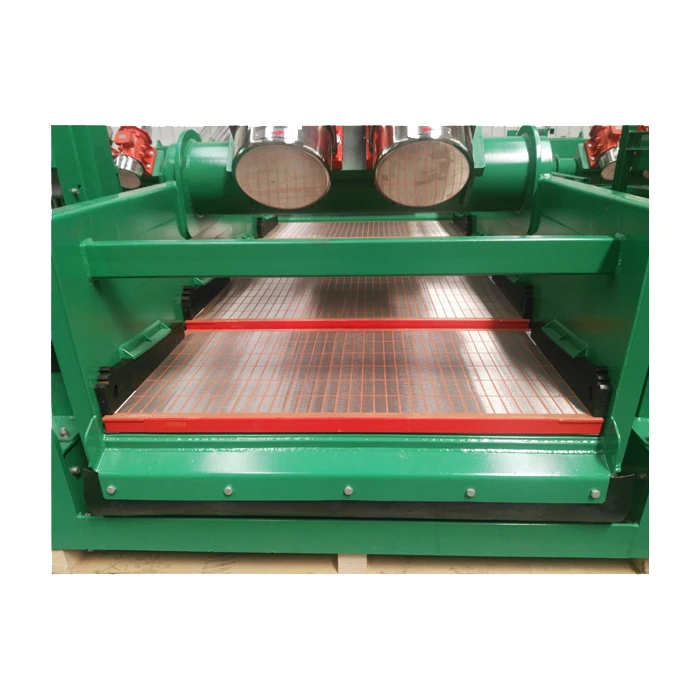

2.Pretentioned composite frame screen with gear unit for fast screen change and longer screen life

3.Heavy duty design and heat treatment for the shale shaker basket to get the adjusable G force up to 8.0G

4. The shale bed below the screen is made from stainless steel to have anti-corrosion features for longer life;

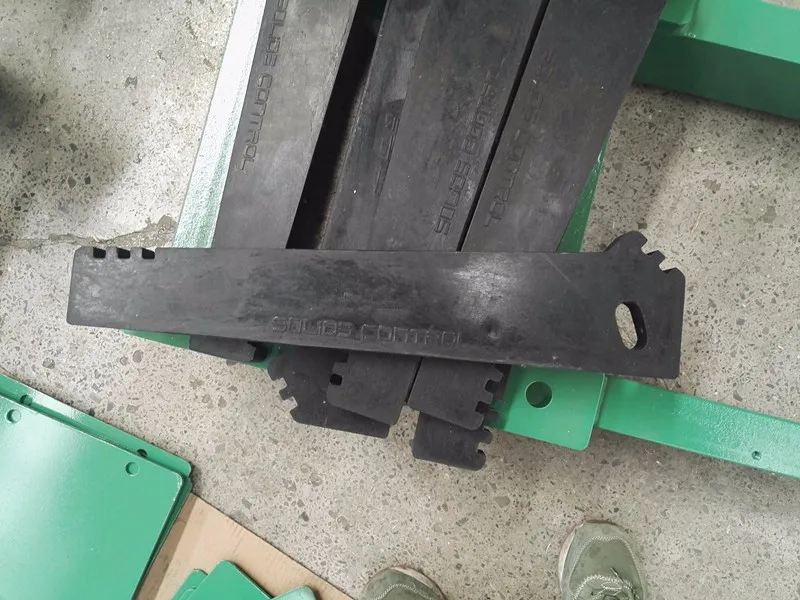

5.Patent shaker screen seal technology for avoiding fine solids bypass and to have easy maintance.

6.Mechanical deck angle adjustment while working reliable for different drilling fluids.

7.User friendly shaker locking system made from stainless steel.

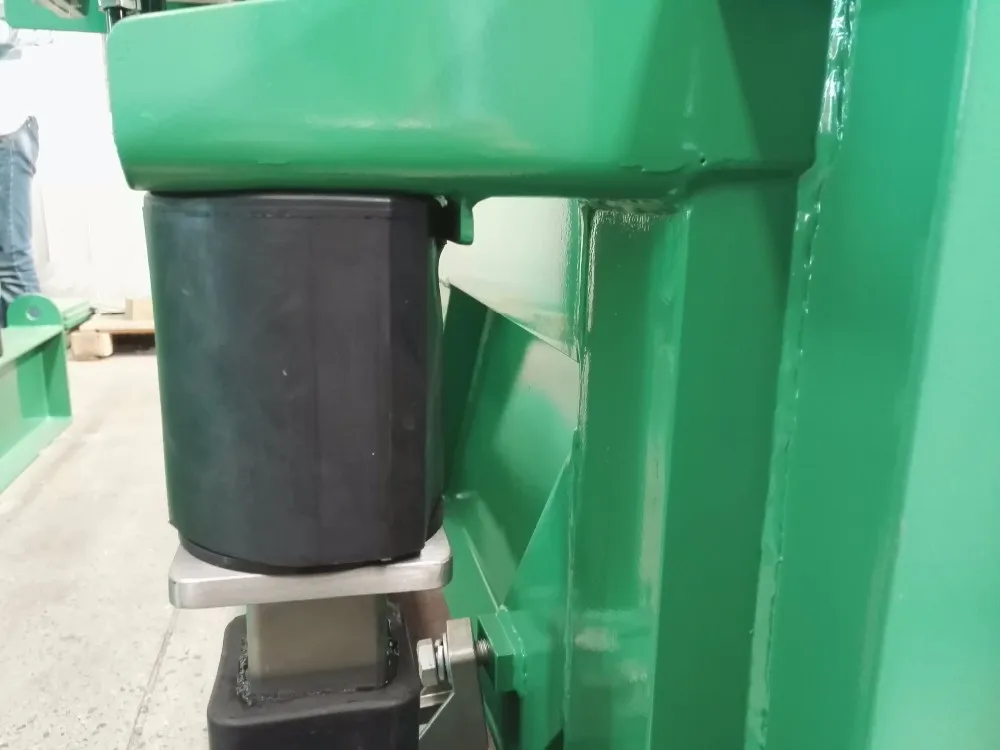

8.The viberation spring is covered with rubber for safty and less noise.

Product Overviews



Main Parameters



Model	ZS752E-DM	ZS703F-HB	ZS703E-DZ	ZS954F-HB	ZS706E-HB
Viberation Model	Linear Motion	Linear Motion	Linear Motion	Linear Motion	Linear Motion
Capacity	45 m3/h (200GPM)	120m3/h (528GPM)	140m3/h (616GPM)	120m3/h (528GPM)	120m3/h (528GPM)
Viberation Motor	2*0.75KW	2*1.72KW	2*1.72KW	2*1.72KW	2*1.94KW
Screen Qty	2 Panels	3Panels	3 Panels	4 Panels	6 Panels
Screen Area	1.35M2	2.63M2	2.63M2	2.7M2	upper layer2.0m3
Screen Size	750*900mm	700*1250mm	700*1250mm	585*1165mm	upper layer:2.6m2
Adjustable G force	less than7.1G	less than7.5G	less than7.5G	less than7.5G	less than7.5G
Viberation Amplitude	3.92-5.62mm	4.14-5.96mm	4.14-5.96mm	4.14-5.96mm	4.14-5.96mm
Deck Angle Range	+2°	-1~+5°	-1~+5°	-1~+5°	-1~+5°
Weir Height	710mm	735mm	1042mm	735mm	895mm
Ex standard	ExdIIBt4/IEC EX/ATEX	ExdIIBt4/IEC EX/ATEX	ExdIIBt4/IEC EX/ATEX	ExdIIBt4/IEC EX/ATEX	ExdIIBt4/IEC EX/ATEX
Weight	910Kg	1550Kg	1700Kg	1600Kg	1870Kg
Dimension:	1670*1730 *1070mm	2730*1940 *1270mm	2500*1980 *1480mm	2940*1940 *1270mm	2730*2030 *1430mm

Remark: Above capacity only for reference, actual capacity will be various as per screen API No. and mud condition.
