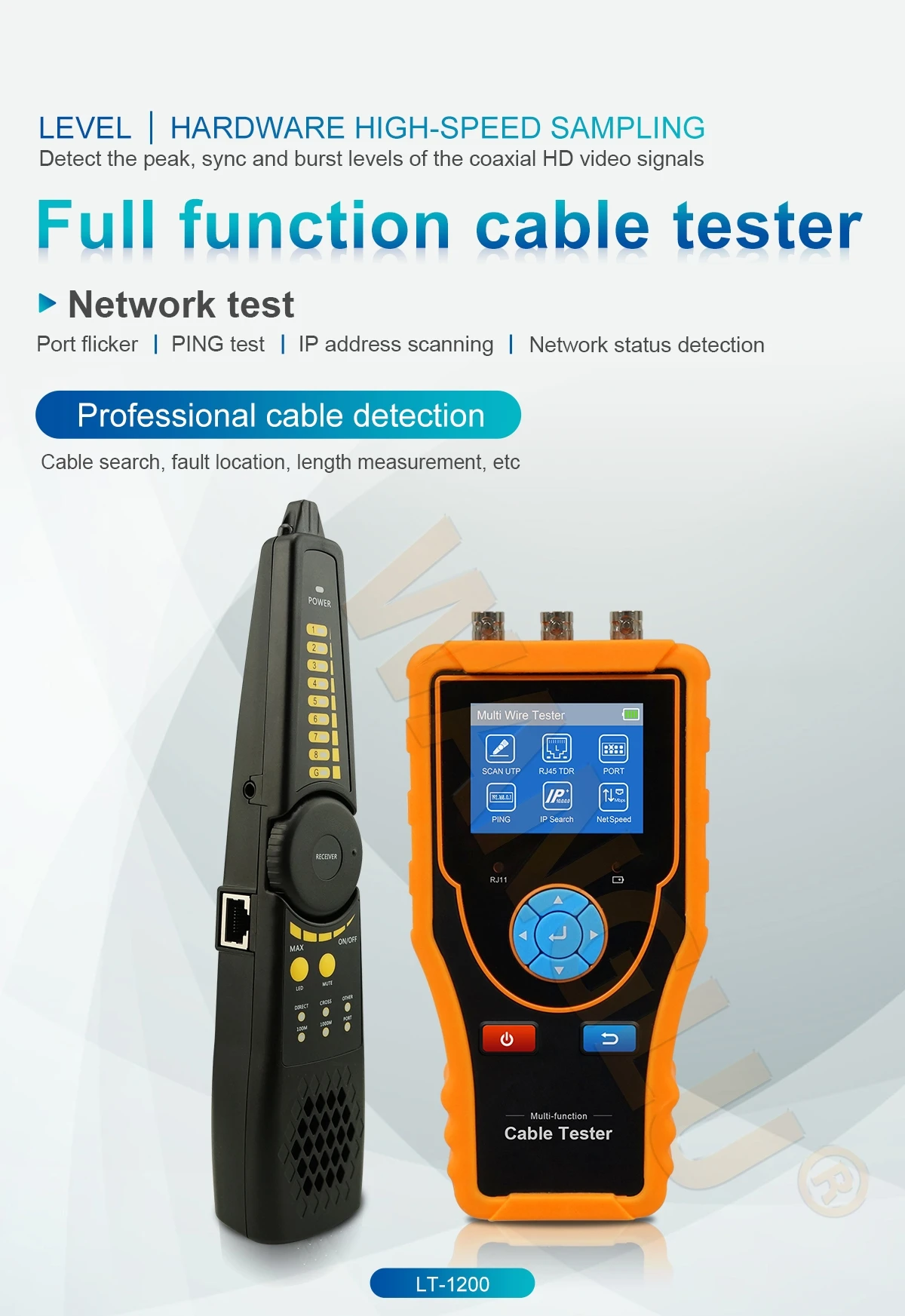

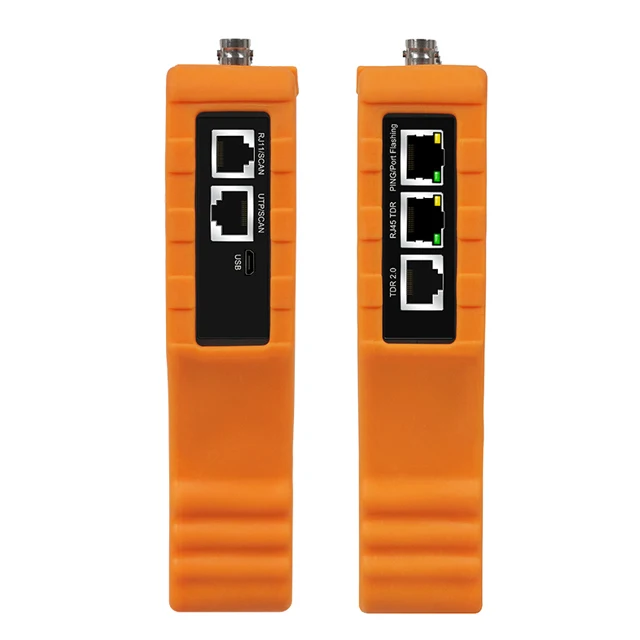

2.4 inch multifunction network cable tester wire tracer tracker for RJ45 RJ11 TDR Coaxial BNC UTP cable test
Model: LT-1200T
- 2.4 inch TFT-LCD screen, 320x240 resolution
- Cable tracer, can search UTP cable, BNC cable from mess cable
- Port Flash, PING test, IP address Scan, Link Monitor, etc
- TDR Opens and short circuit test, the Max. distance is 1.2km
- RJ45 cable TDR test, cable quality test
- UTP cable test, test cable’s sequence, type and remote kit
- Can detect TVI, CVI, AHD, CVBS video signal peak value, SYNV value and burst value
Product Description
- 2.4 inch TFT-LCD screen, 320x240 resolution

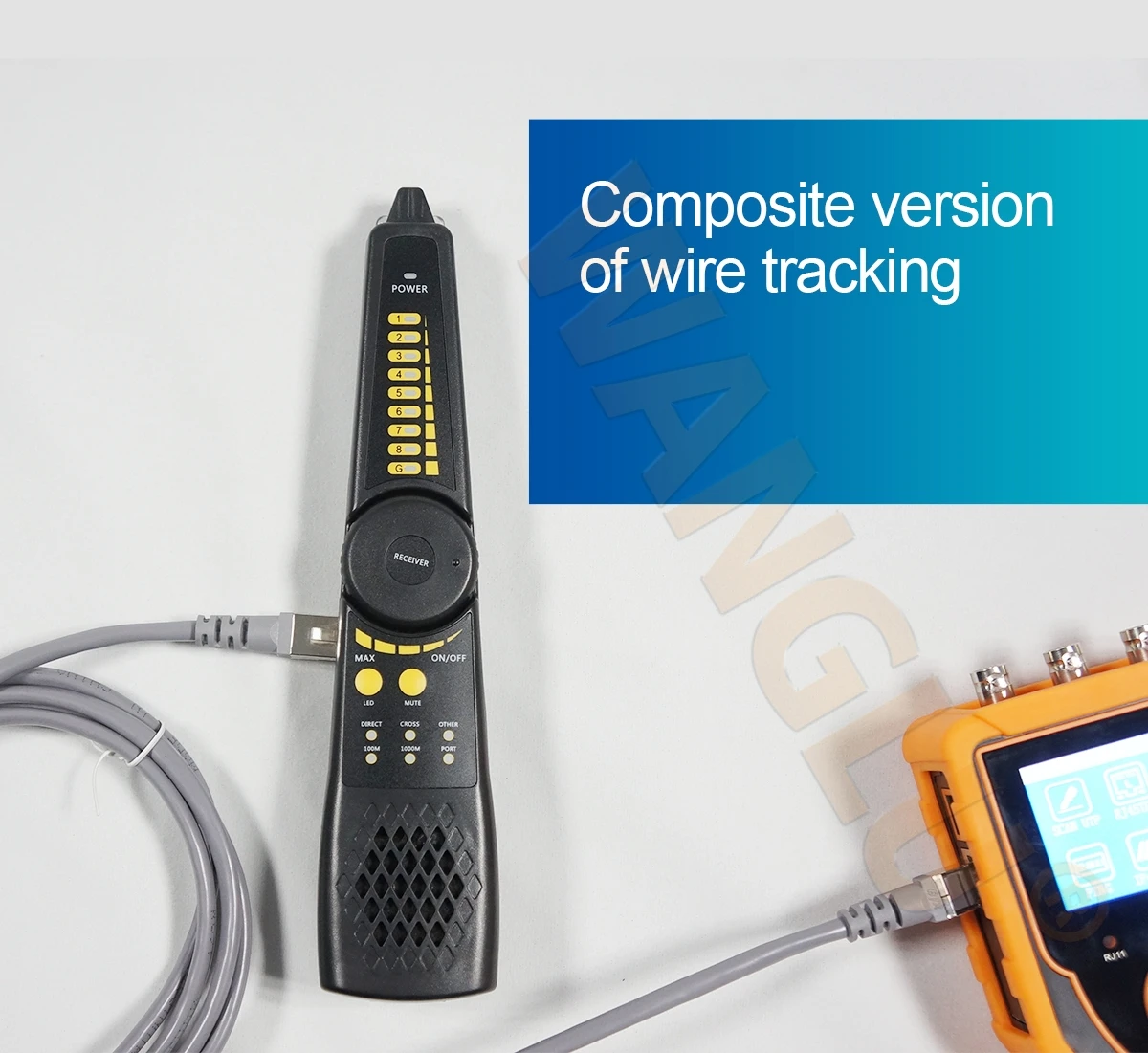

- Secondary code digital mode, decisively rejects noise and false signals, locate cables quickly and easily.

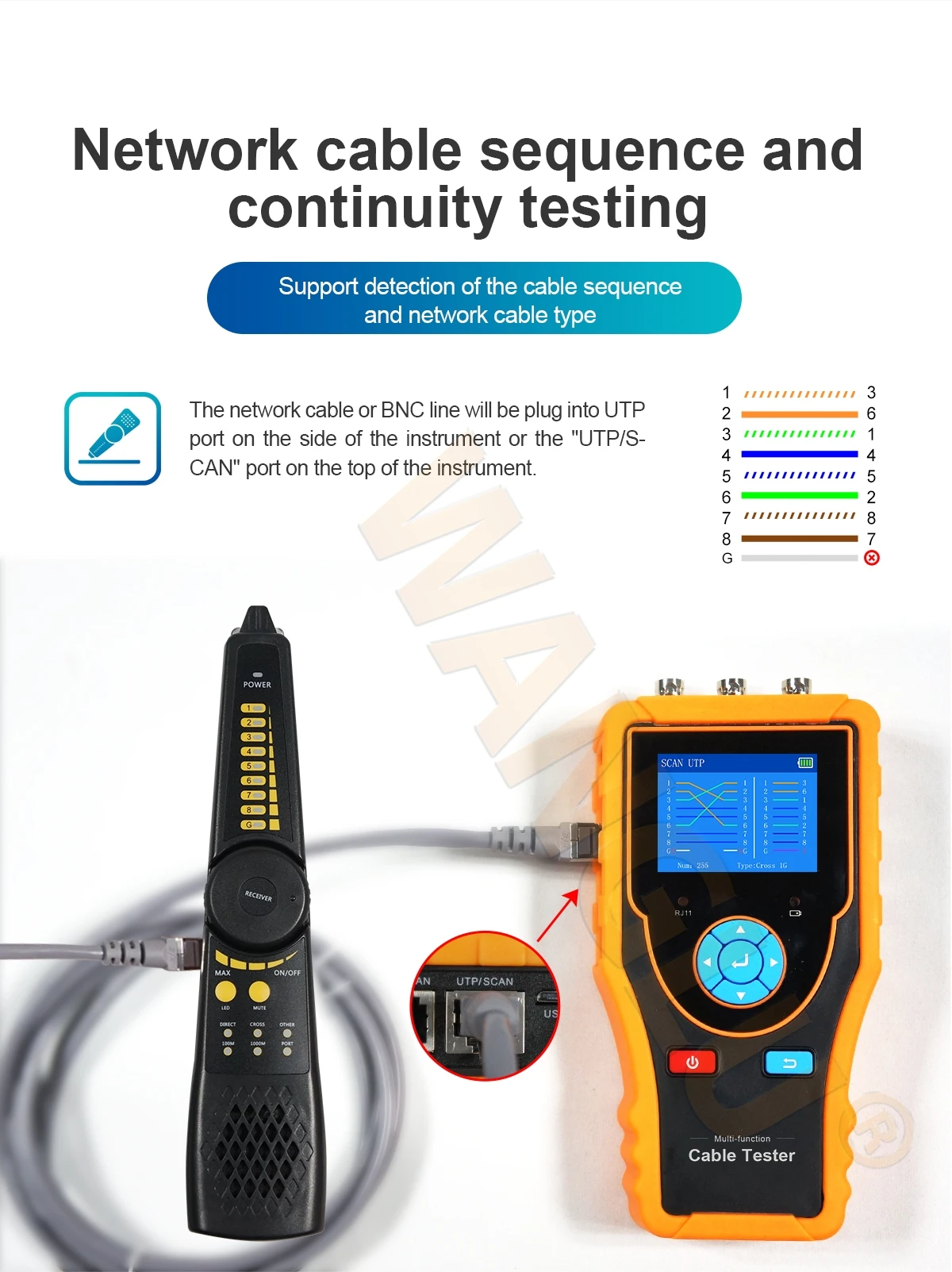

- Advanced UTP cable test, test UTP cable's sequence, type and remote kit, quickly detect the near-end, mid-end and far-end fault point of RJ45 cable connector.
- RJ45 cable TDR test, test cable quality, length and attenuation.

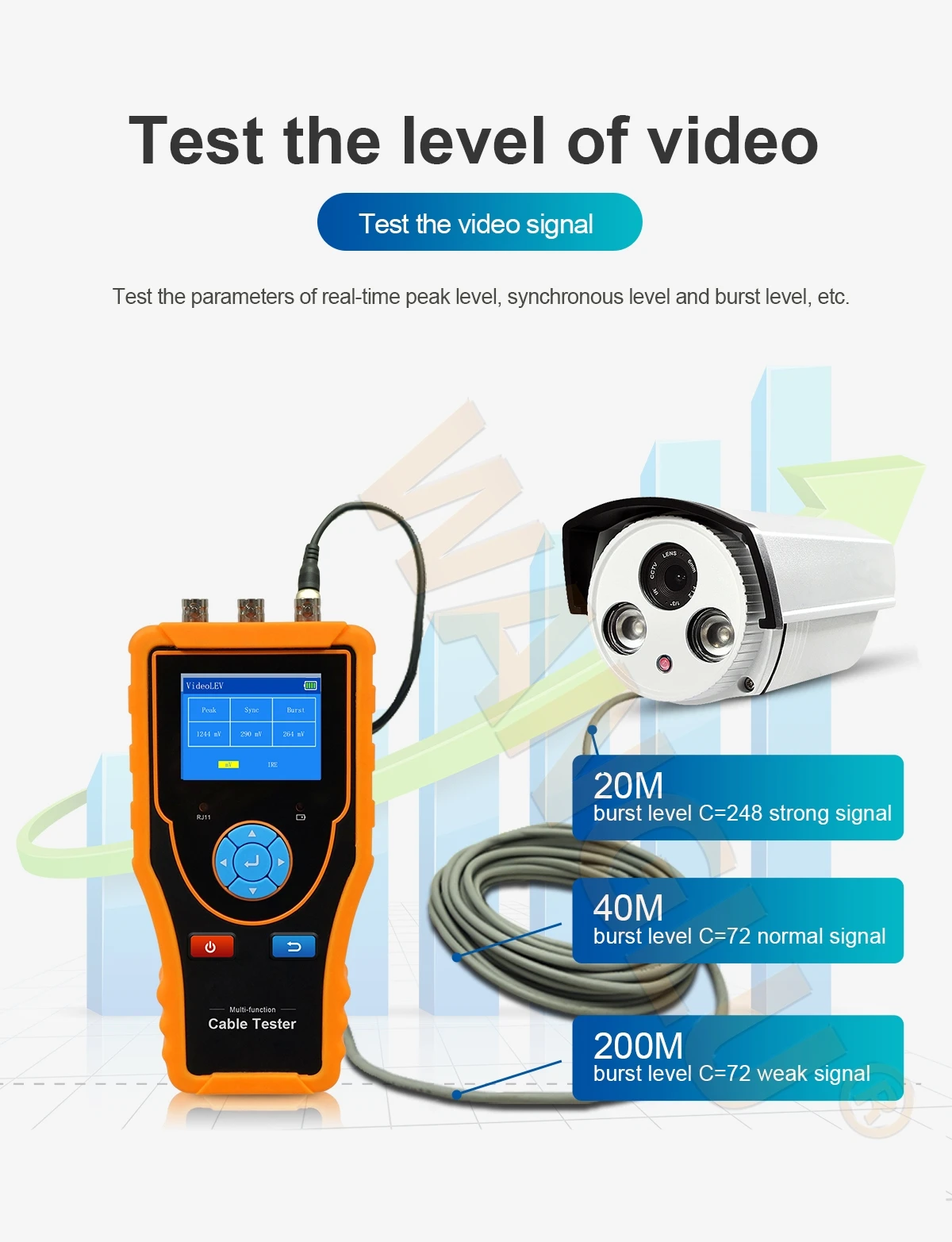

- HD Coaxial video level meter, can detect the TVI/CVI/AHD/CVBS signal peak value, SYNC value and burst value.
- Port Flash, can search the switch port which connect the meter.

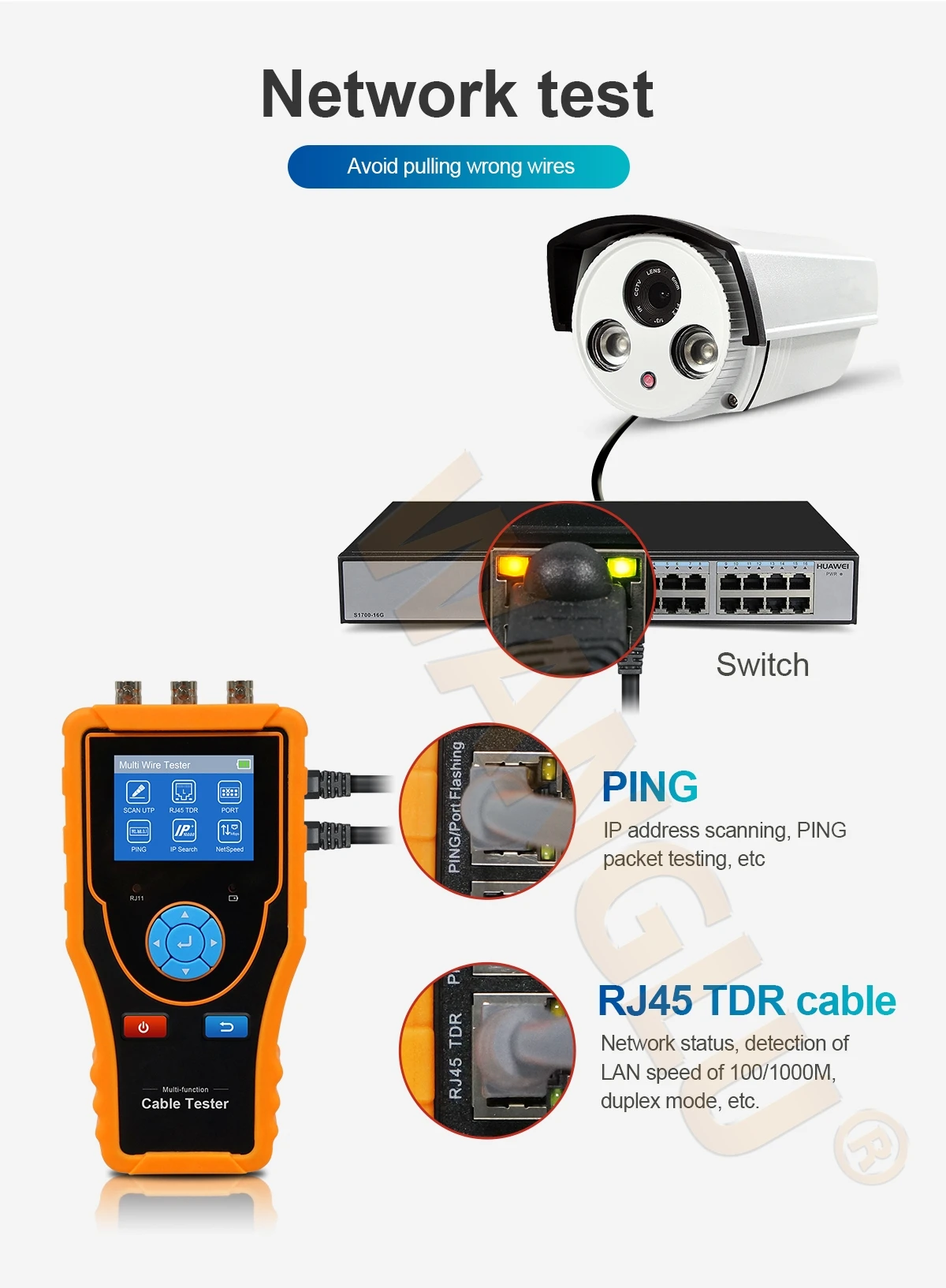

- PING test, check whether IP camera or other network equipment’s Ethernet port is working normally, the IP address whether is correct.
- IP Scan, quickly find the IP address of the IP camera or other network equipment which connected to the meter.
- Link status, quickly identify the connected network port (10/100/ 1000M) and duplex mode (full duplex / half duplex)

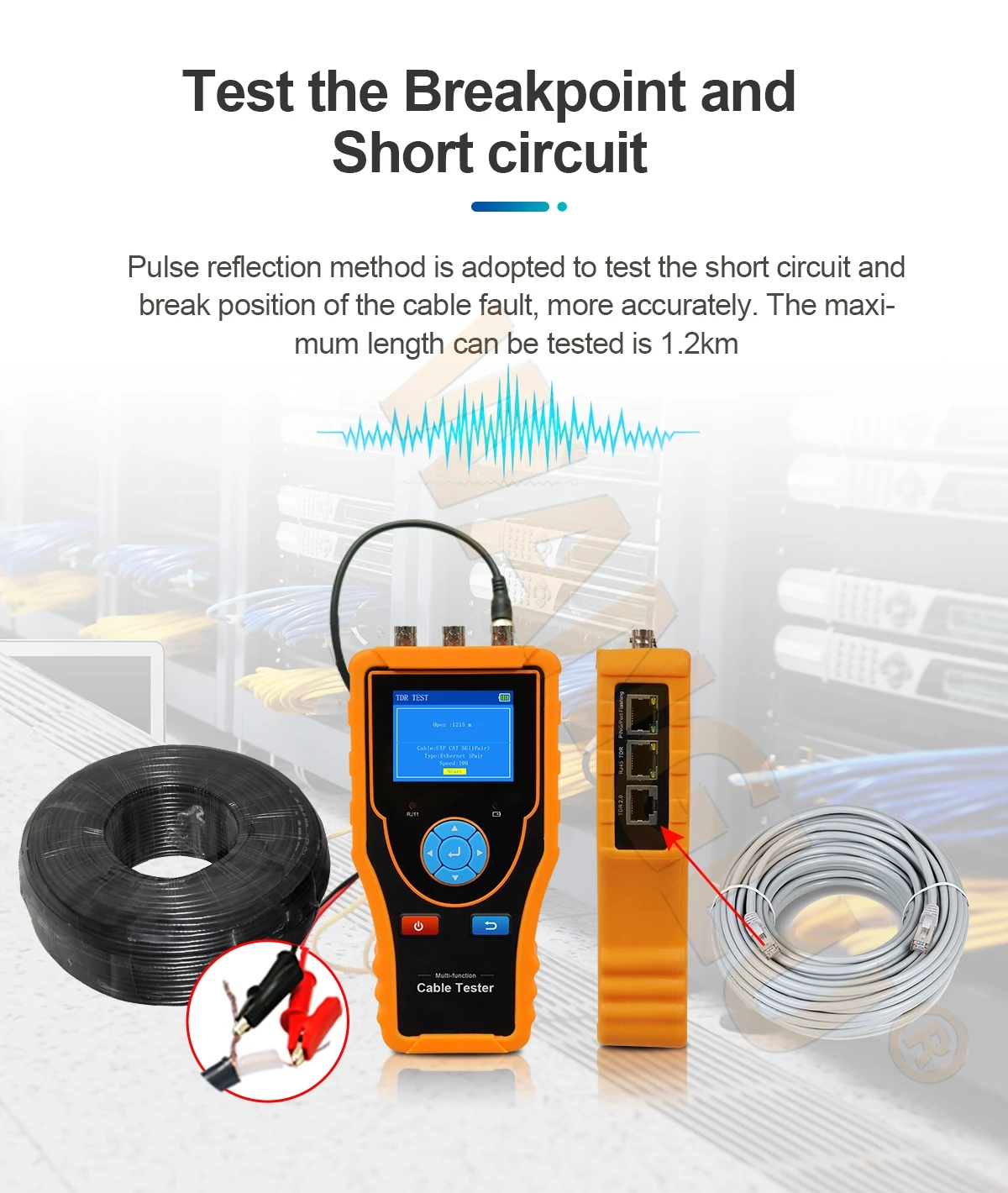

- TDR cable test 2.0, can test break point and short-circuit of cat 6e/5e (4 pairs), power line, BNC cable and Telephone line, etc. the Max. 1.2km length
- 3.7 V /1800mAh Lithium Ion Battery, after 3 hours charging, working time lasts 16 hours
Item series | LT-1200T | |
Display | 2.4 inch TFT-LCD screen , 320x240 resolution | |
Cable test and cable tracer | UTP cable test | Test UTP cable's sequence, type and remote kit, quickly detect the near-end, mid-end and far-end fault point of RJ45 cable connector |
Cable type | RJ45 Twisted pair, RJ11 telephone line, BNC cable etc. | |
The fault of RJ45 cable connector | Can determine the fault point of RJ45 cable connector from LOCAL/Remote indicator light | |

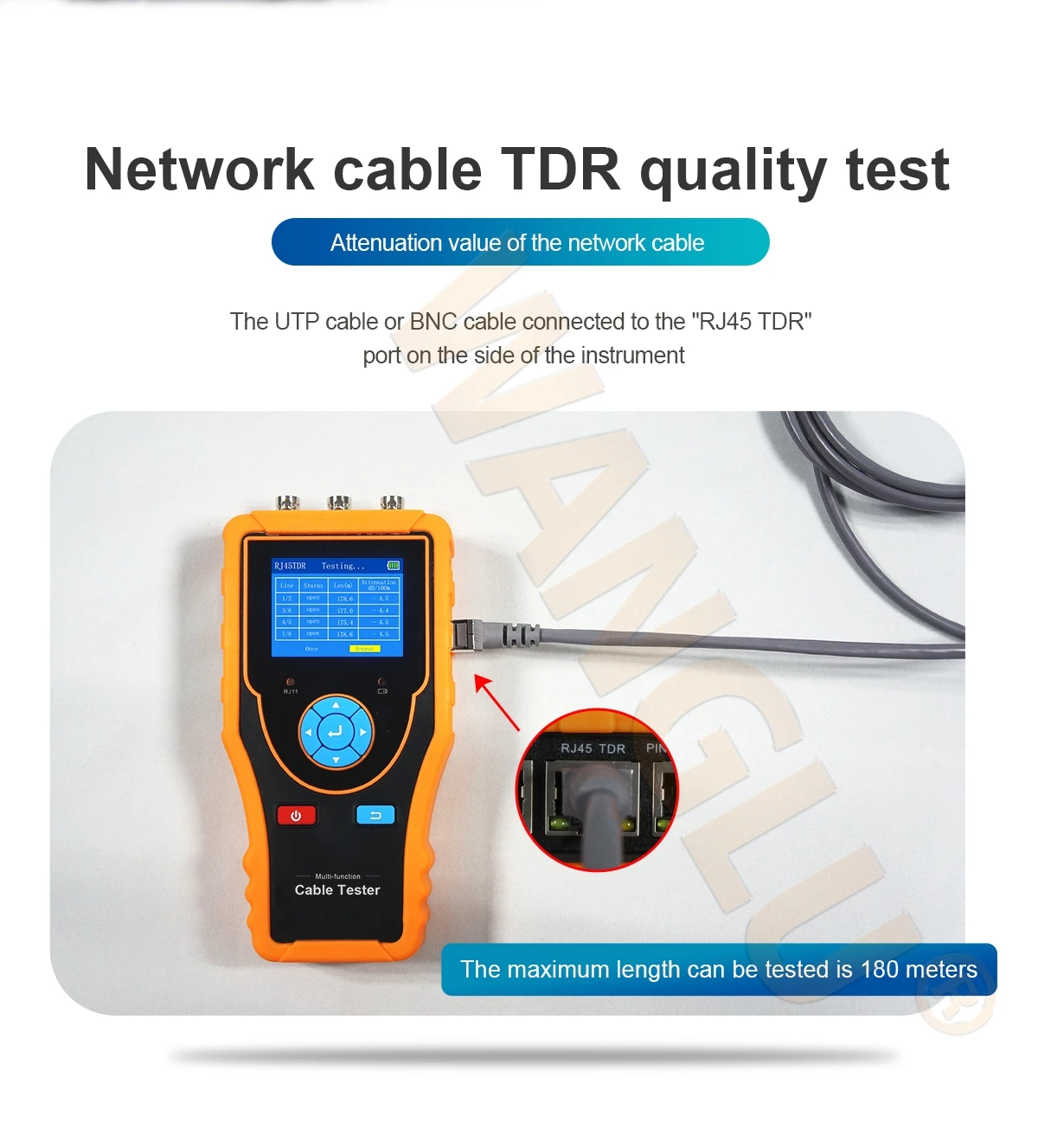

RJ45 TDR cable test | Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M. | |
TDR cable test | Can test break point and short-circuit of cat 6e/5e (4 pairs), power line, BNC cable and Telephone line, etc. the MAX. 1.2km length. | |

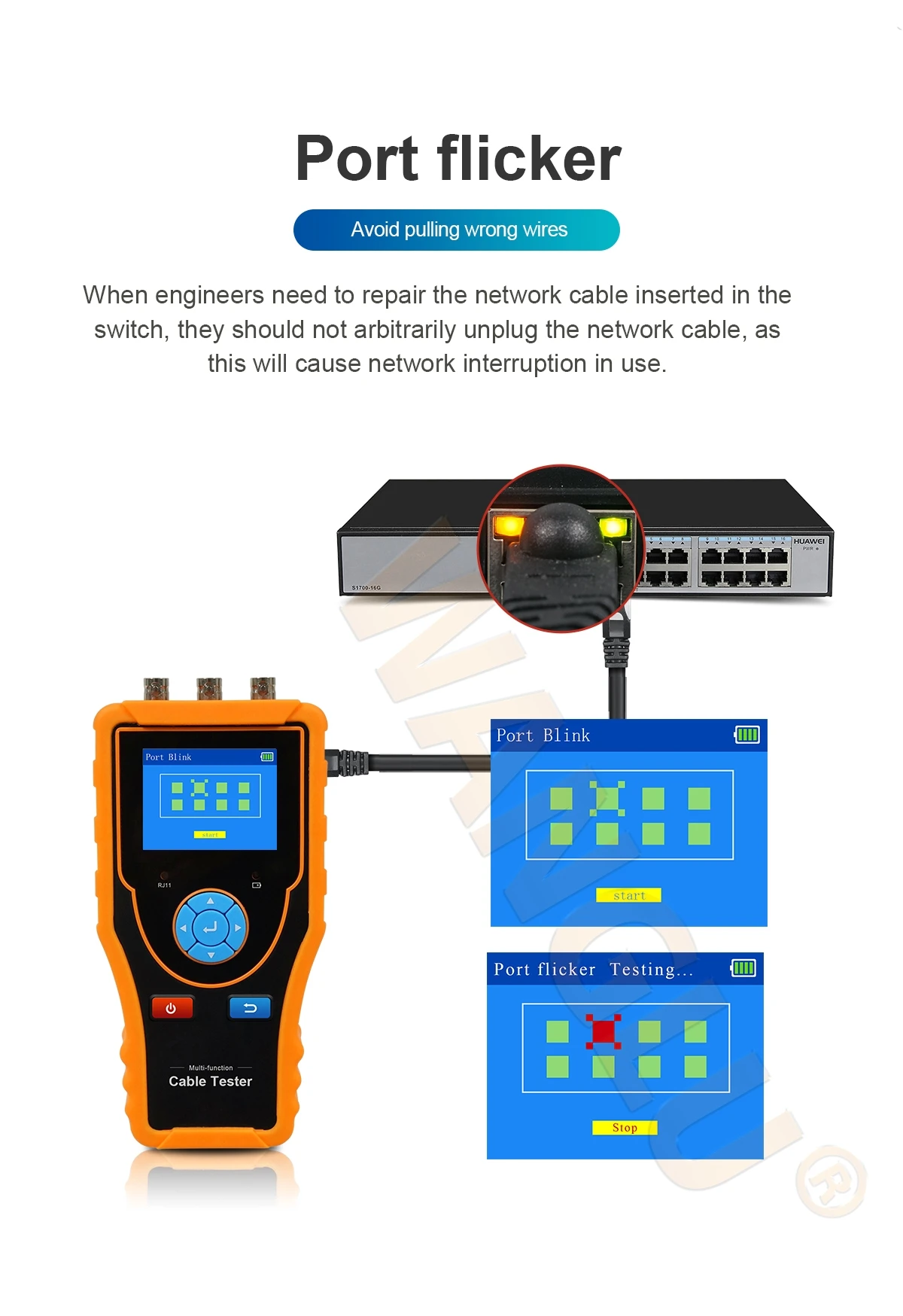

Port flashing | Can search the Ethernet switch port which connect the meter | |
PING test | Check whether IP camera or other network equipment’s Ethernet port is working normally, the IP address whether is correct. | |
IP Scan | Quickly find the IP address of the IP camera or other network equipment which connected to the meter | |
Link Monitor | Quickly identify the connected network port (10/100/ 1000M) and duplex mode (full duplex / half duplex). | |
External power supply | DC 5V/1A | |
Battery | Built-in 3.7V Lithium Ion battery, 1800mAh. The cable Receiver battery: two AA batteries | |
Rechargeable | After charging 3 hours, normal working time 16 hours | |
Auto off | 1-30 (mins) | |
Working Temperature | -10℃---+50℃ | |
Working Humidity | 30%-90% | |
Dimension/Weight | 126mm x 83mm x 33mm / 0.32kg | |
