china factory directly supply 750ml 6000bph yemen mineral water bottling production line
Detailed Images
Technical parameters
Model
CGF16-12-6
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-12
Production Capacity(500mm)(b/h)
2000-4000
4000-6000
7000-9000
10000-12000
12000-15000
Filling Precision
≤±5mm(Liquid Level)
Polyester Bottle Standard(mm)
Diameter:
D40-D80,
Height:
130-280mm
Bottle Diameter D50-D100,Height:150-320mm
Suitable Cap Shape
Plastic Screw Cap
Water Pressure
of Washing Bottle(Mpa)
0.18
Water Consumption
for Water Bottle(kg/h)
800
1600
2500
3500
5000
Spraying Position
5
5
6
12
15
Dripping Bottle Position
3
3
3.5
7
8
Gas Source Pressure(Mpa)
Normal Pressure
Gas Consumption(m3/min)
0.3
0.3
0.4
0.5
0.6
Total Power(kw)
4.23
5.03
6.57
8.63
9.63
Total Weight
2000
3500
5500
6000
8000
Dimension(L*W*H)(mm)
2100*1500*2200
2450*1800*2200
2750*2180*2200
3500*2200*2250
3500*2200*2250
Feature
1. Each water filling machine element tha contacts with the liquid is made of high quality Stainless steel 304, if needed, SS 316 is also available.
2. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.
3. Most elements of the electrical system use famous international brand, such as Mitsubish, Omron brand.
4. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc.
5.The quality of the equipments reaches the international advanced level.
6. Advanced technologies, human-machine interface touch screen and PLC program control are adopted in this machine.
7. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
8. Easy to operate, save the cost of workers.
Packaging & Shipping
Packing
wooden carton package
Shipping
60 days after received the deposit

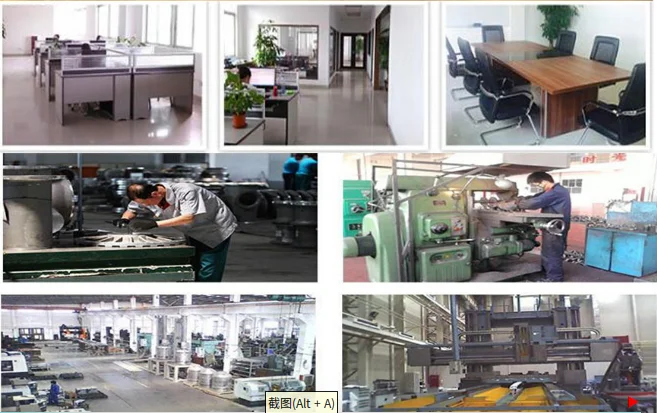

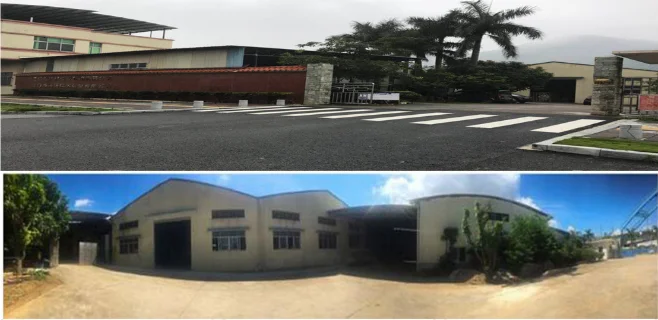

Company Information
Jiangmen Tings Drinking Water Equipment Co., Ltd., as advanced machinery manufacture in China, it is specializing in beverage and water equipment production line. It provides perfect project for whole set of beverage production equipments, from water purifying, beverage filling to bottle packing. The company devotes to technology research and development. The R&D team has 15 skilled technicians. Through the concerted efforts, we institute and innovate a number of leading technology and equipment series, including PET bottle blow molding machine, 3/5 gallons bottled water filling production line, completed water bottling line composite beverage bottling production line, 3—10L water bottling equipment, sachet liquid filling machine, self-standing pouch liquid filling machine, cup liquid filling machine and other related device.
Our Services
• One year warranty for the whole system.
• Free equipment installation and debugging.
• After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.
• We can provide internship service and help you train the operator and mechine.
• Free production technology and process configuration.
• We can help you to design the product line , workshop and provide turn-key project.
Contact information
Welcome to visit our factory.
Any inquiry please feel free to contact me directly anytime, phone, WhatsApp, Wechat, Skype, mail!
