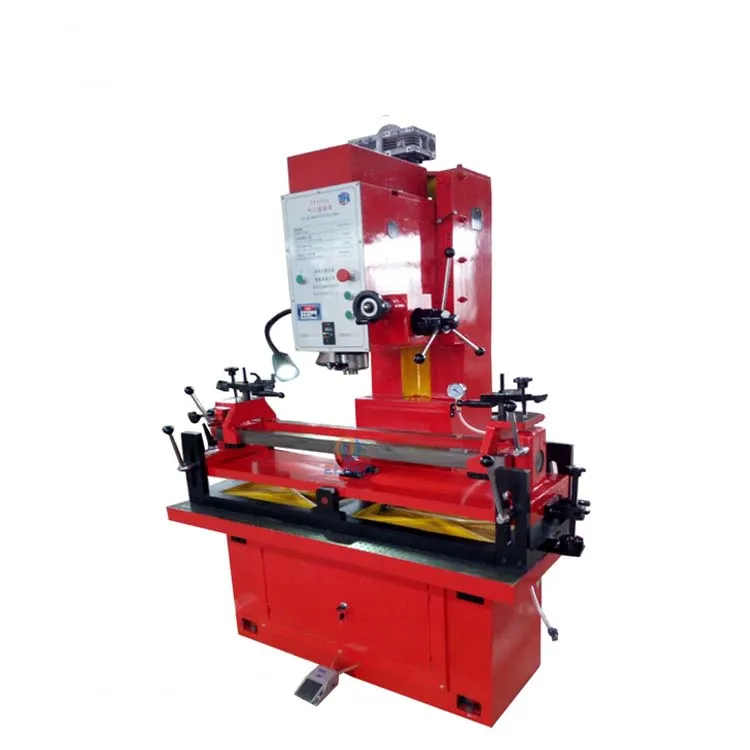

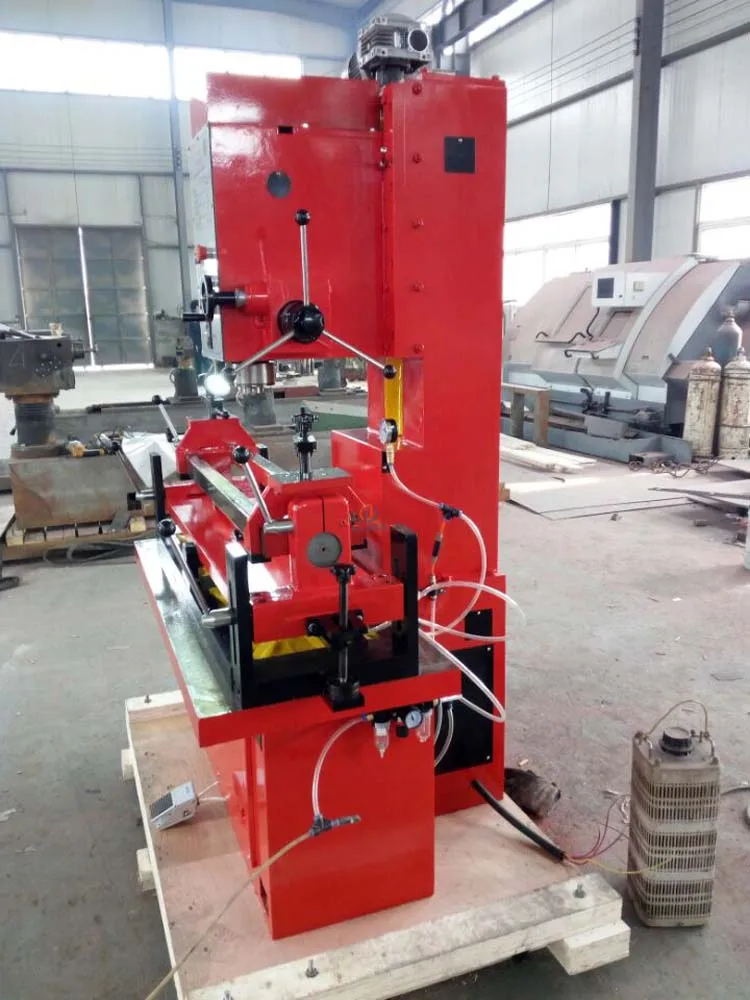

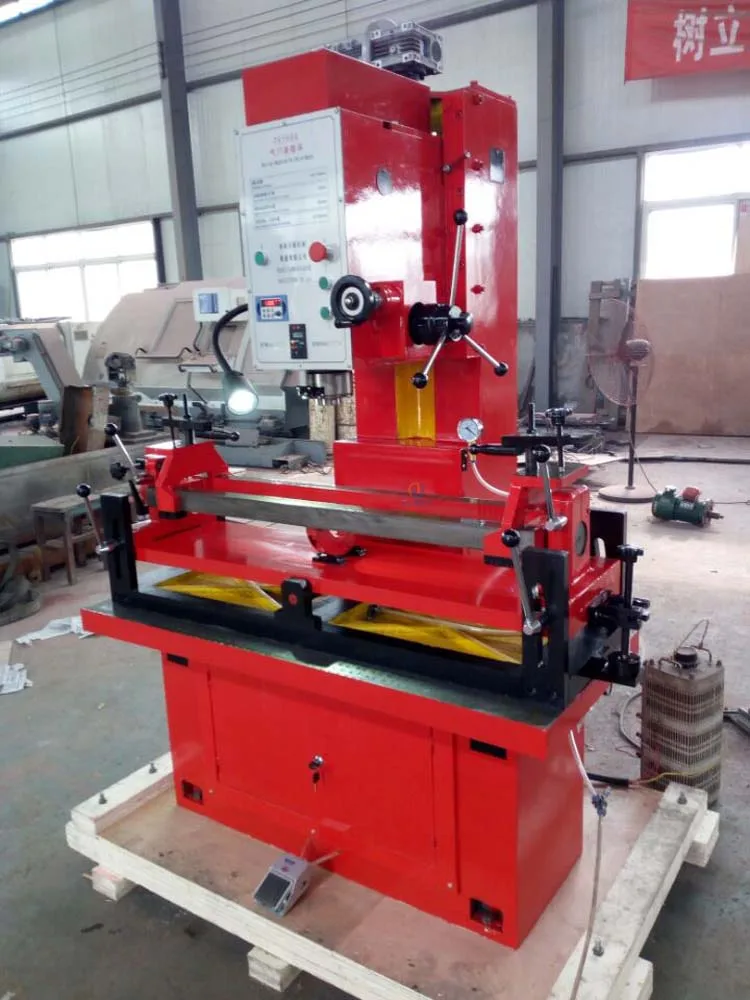

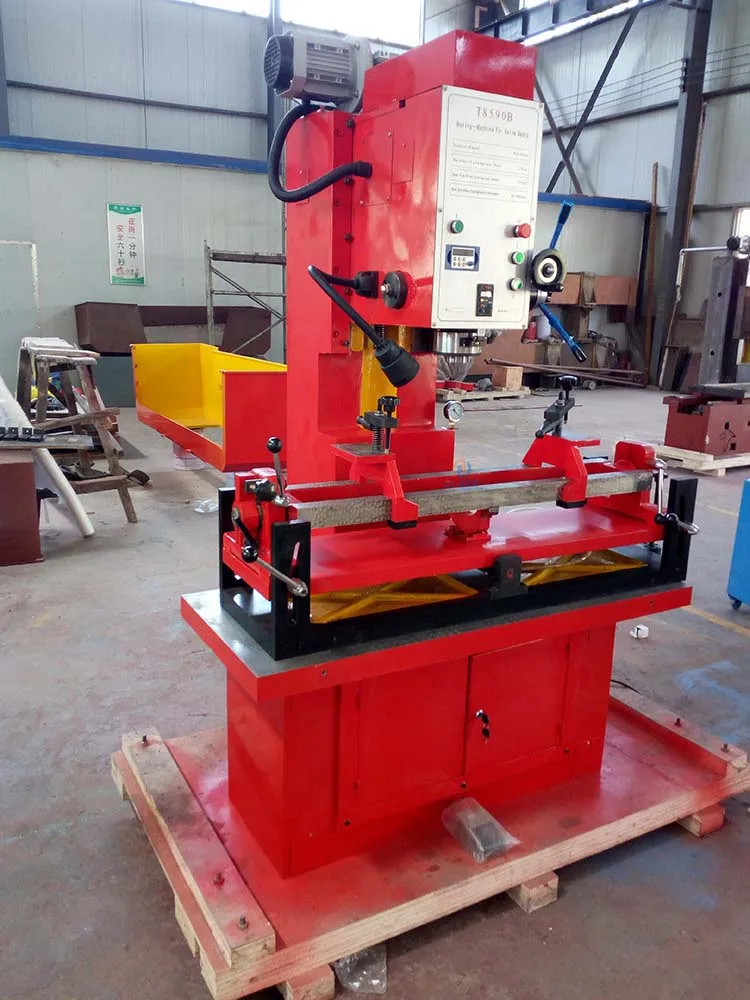

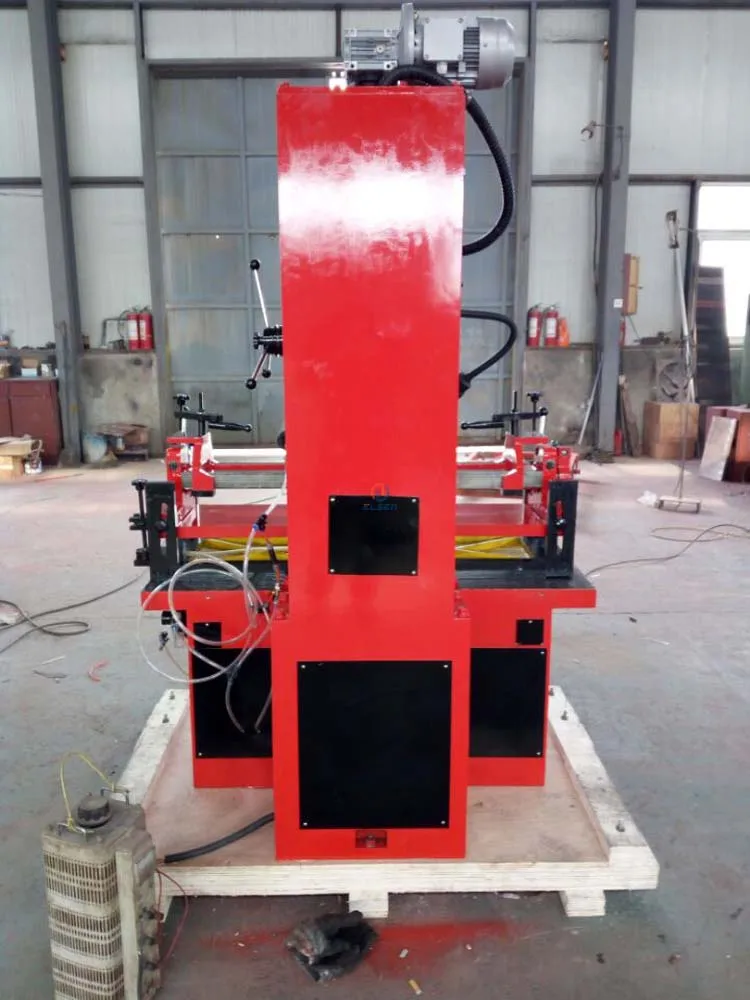

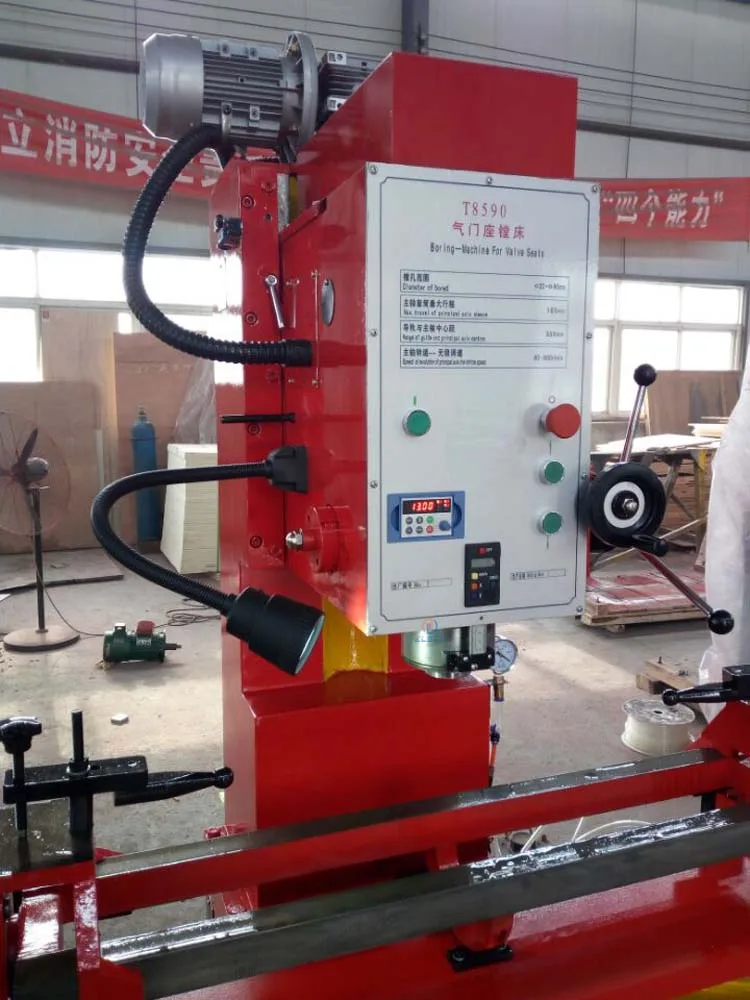

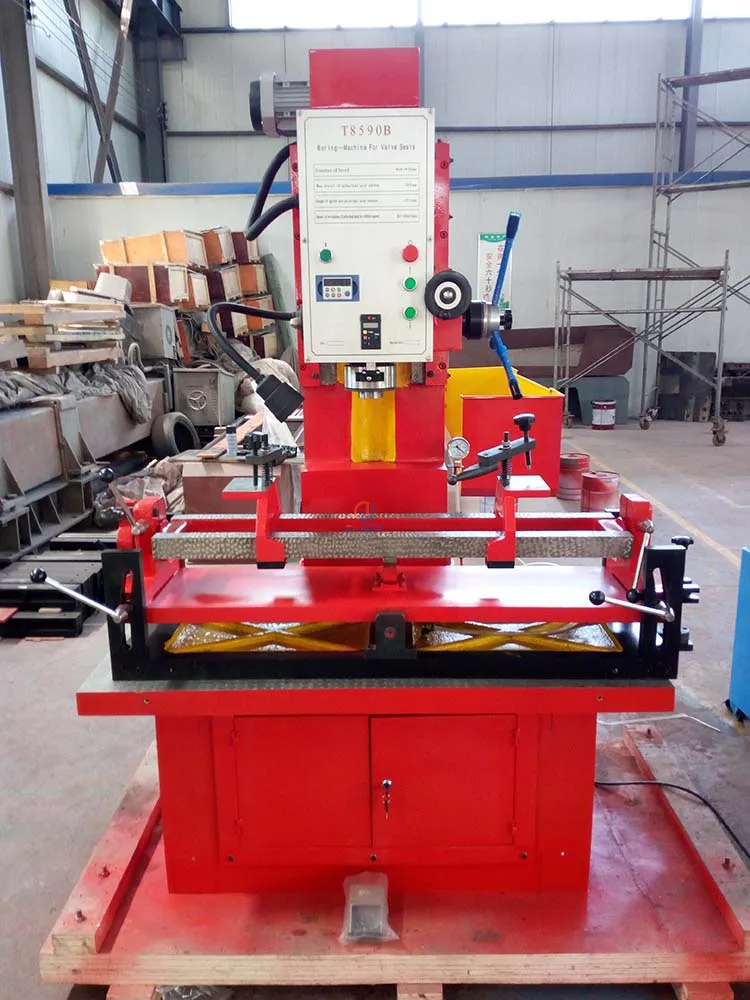

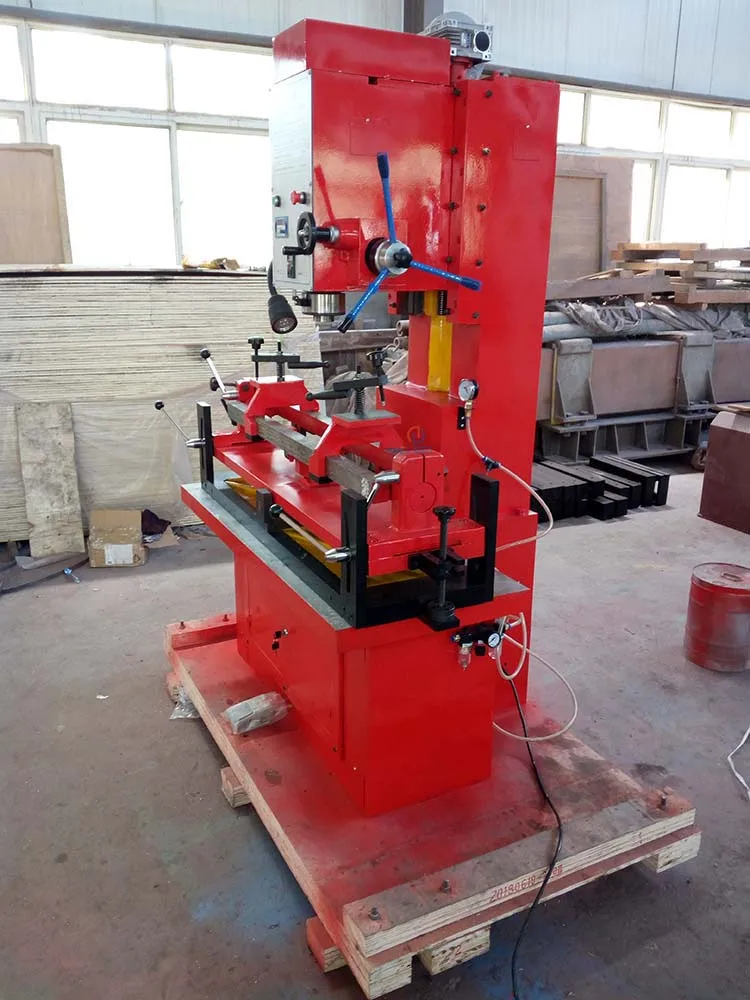

Engine Cylinder Head Gas Valve Seat Boring Machine T8590B
- Category: >>>
- Supplier: Xuzhou Elsen Machine Tool Co. Ltd.
Share on (1600225487546):
Product Overview
Description
Products Description

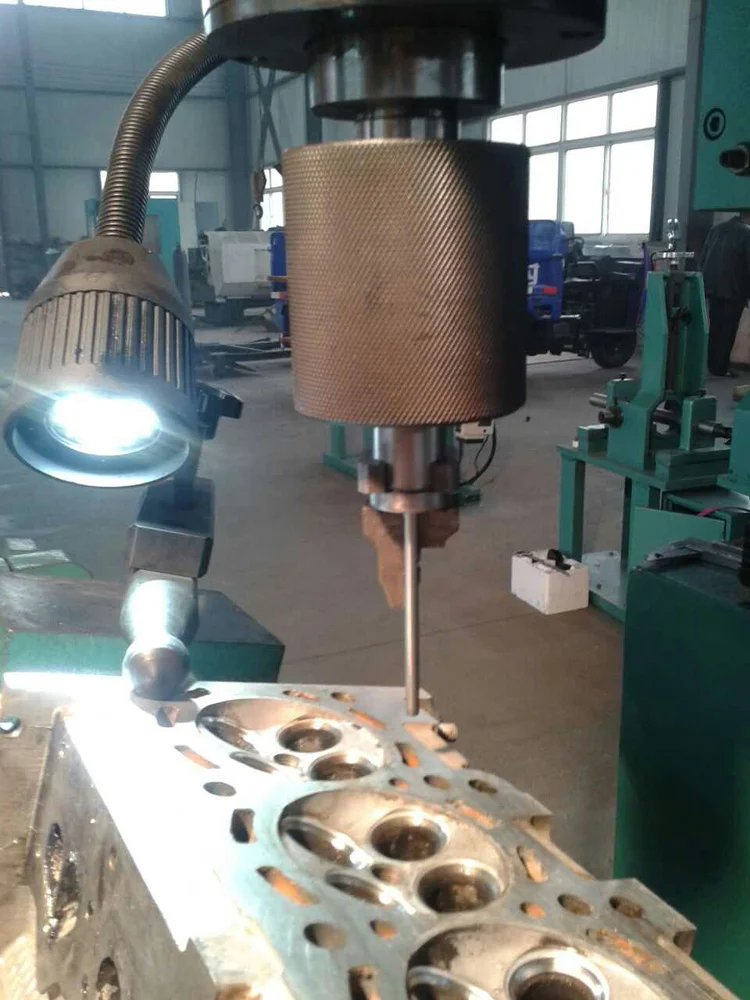

It mainly used for boring and repairing the gas valve seats hole,when equipped with all sorts of clamping device,It can manufacture the gas valve seats hole for cylinder cover with various angles,when equipped with boring-drilling tolls,It also can bore ,drill,ream the pipe seat hole of gas valve or ream and repair it.
Structure characters:

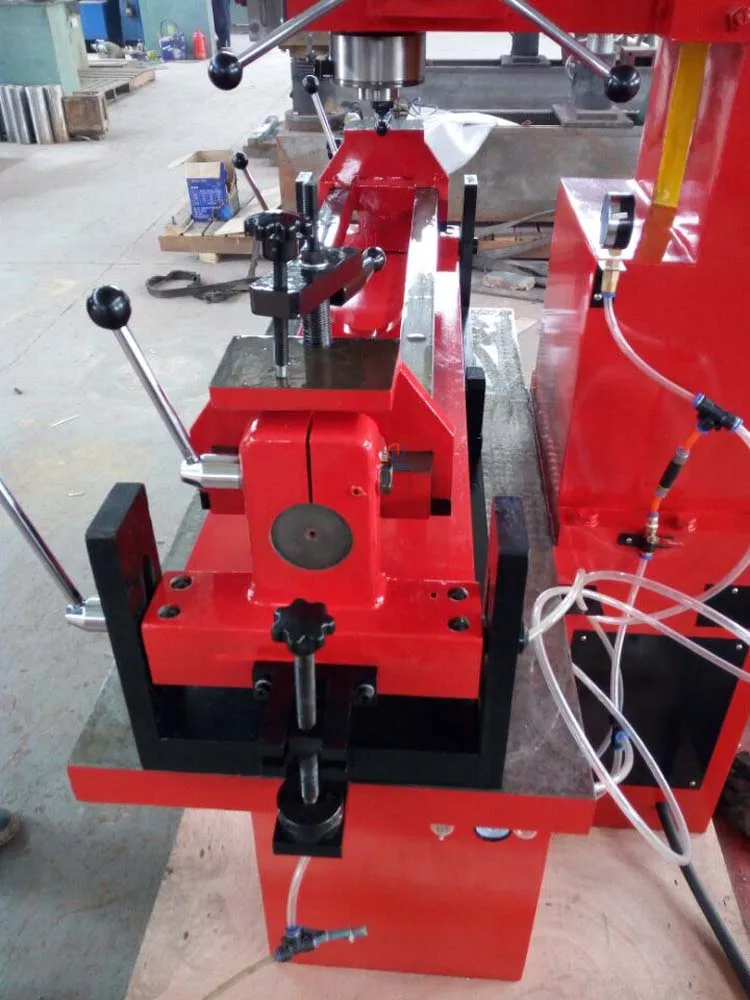

1,It adopts the air-floating work table, which can be easy centering of work piece and spindle.
2,The feeding system of the tools has two ways:rough and finishing, which can improve the work efficiency and processing rate.
3,It adopts vertical rectangle guide-way, which can increase the rigidity of the machine ,and guarantee the processing precision for all kinds of the gas valve seats hole on different diameter.
4,It equips with the vacuum examining device, for quickly measuring the work piece.
Structure characters:
1,It adopts the air-floating work table, which can be easy centering of work piece and spindle.
2,The feeding system of the tools has two ways:rough and finishing, which can improve the work efficiency and processing rate.
3,It adopts vertical rectangle guide-way, which can increase the rigidity of the machine ,and guarantee the processing precision for all kinds of the gas valve seats hole on different diameter.
4,It equips with the vacuum examining device, for quickly measuring the work piece.
Specification | T8590B |
Boring diameter | 20-90 mm |
Spindle speed range | 80-900 rpm (Stepless) |
Spindle travel | 185mm |
Distance from spindle axis to guiderway surface | 350mm |
Max. distance from end of spindle to working table | 750mm |
Moving speed of machine head | 512 mm/min |
Main motor power | 1.1/0.85kw 1400/950 rpm |
Overall dimensions(L×W×H) | 1300×800×1930 mm |
Packing dimensions(L×Wx H) | 1470x980x2170mm |
N.W. / G.W. | 1200/1400 kg |
