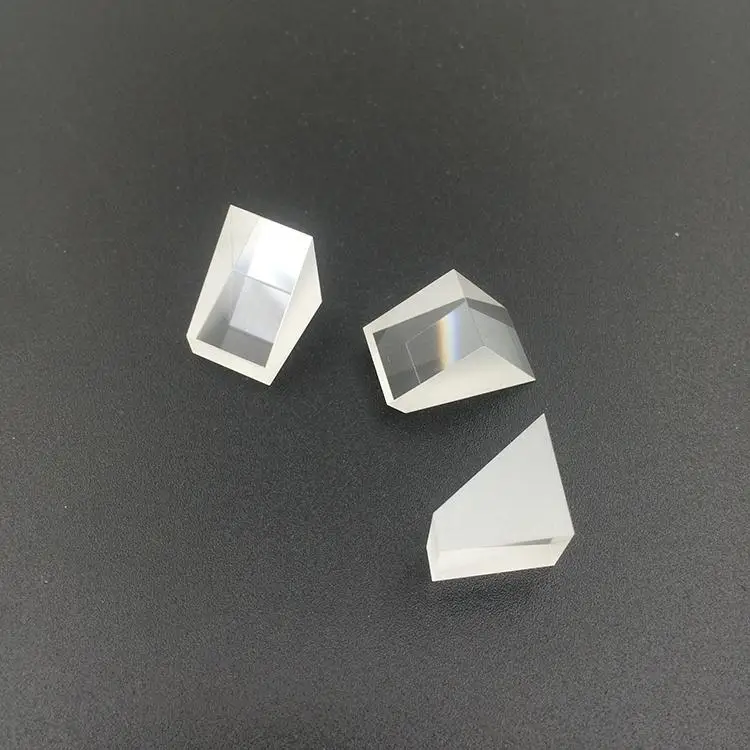

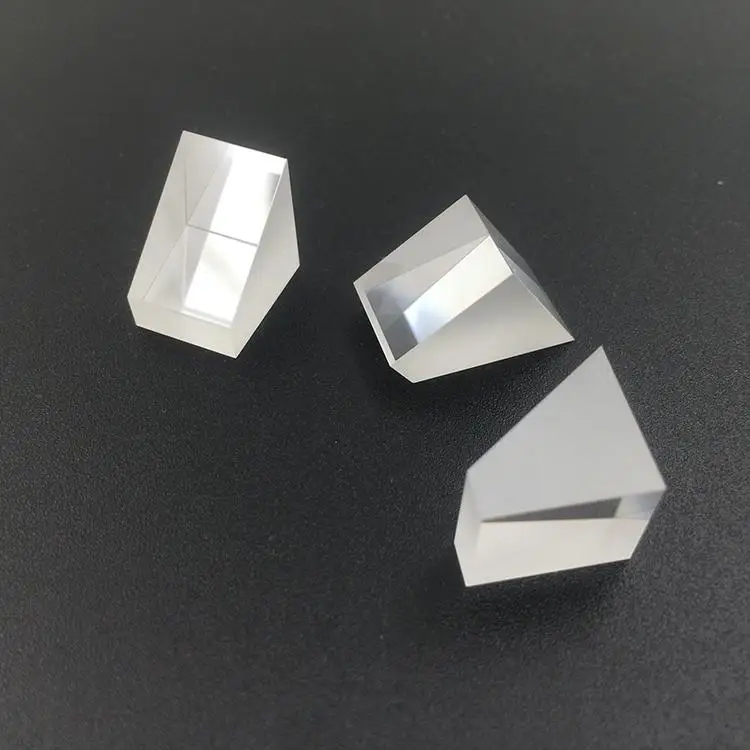

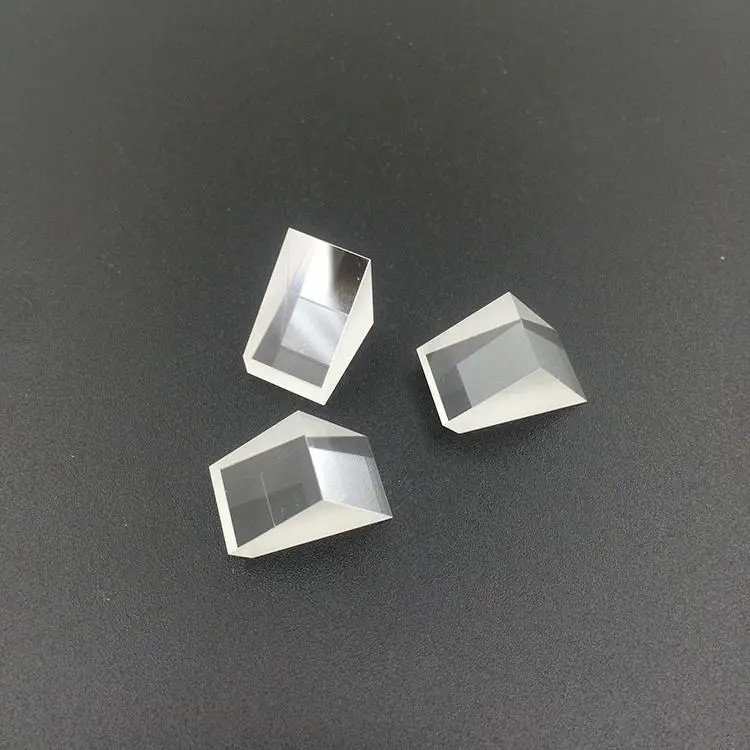

Optical Anamorphic Prisms for converting the elliptical beam shape

PRODUCT DESCRIPTION

An anamorphic prism pair is a pair of prisms which is usually used for reshaping the profile of a laser beam. For example, An anamorphic prism pair is used to expand a laser beam in one dimension. This makes it ideal for converting the elliptical beam shape of laser diodes into a nearly circular one by magnifying the elliptical beam in one dimension. They can also be used to convert a circular beam into an elliptical beam.

FEATURE

1. Converts Elliptical Beam to Circular

2. Uncoated is also available

3. Anti-Reflection Coated for Common Diode Wavelengths

PARAMETER

Anamorphic Prism
technical requirements	tolerance range
size range	1~280mm
dimensional tolerance	+0/-0.05mm
parallelism tolerance	±2''~±30''
surface quality	40-20
surface precision	λ/10 per @633nm
bevelling	0.1-0.5mm
Coating	as per requested
Substrate	N-SF11 or other material as requested
This is customized item, pls click here to contact with us for quotation

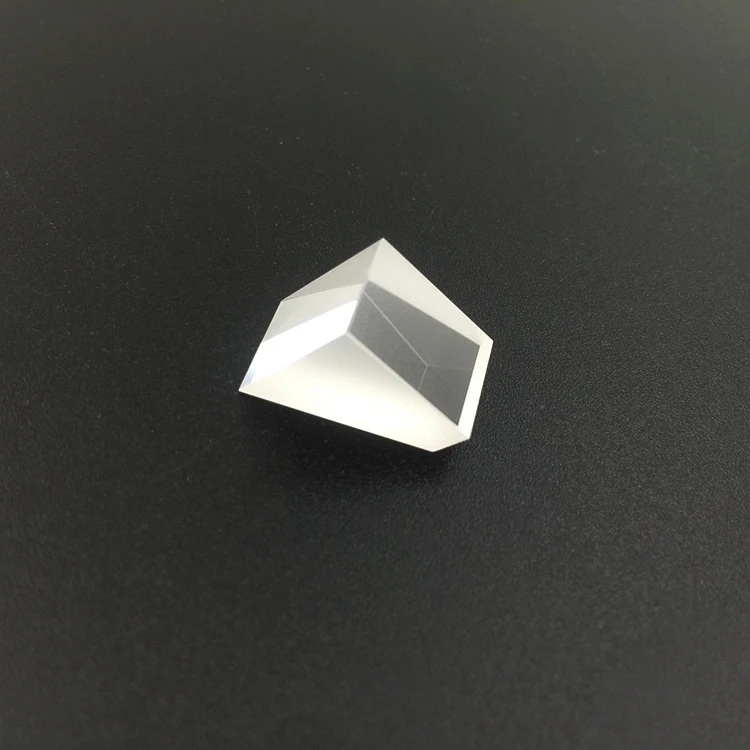

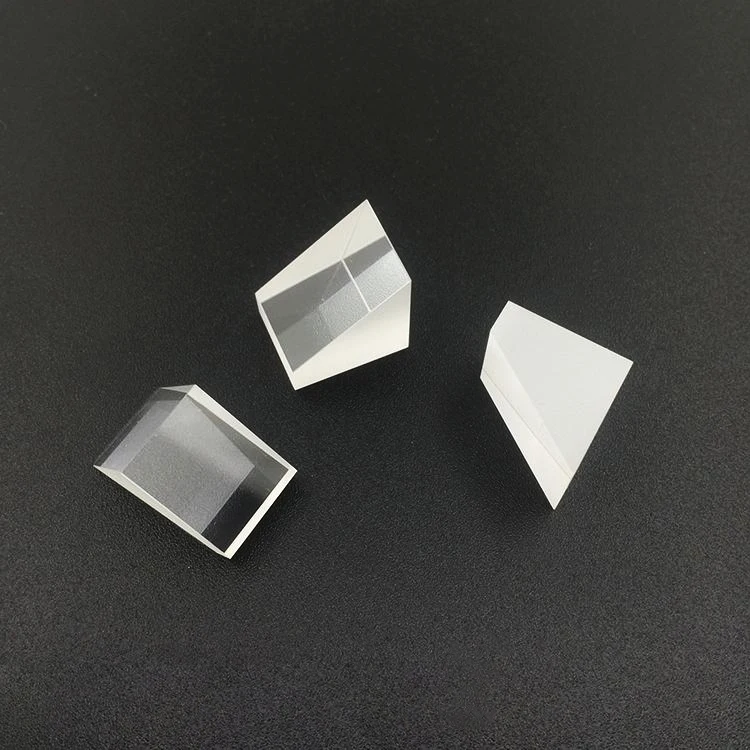

PRODUCT IMAGE

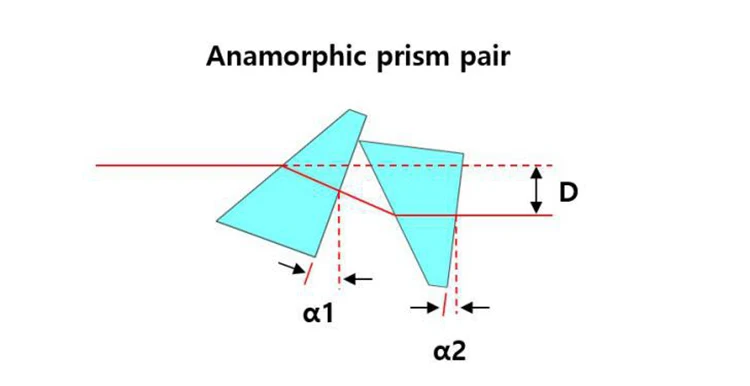

THE SCHEMATIC

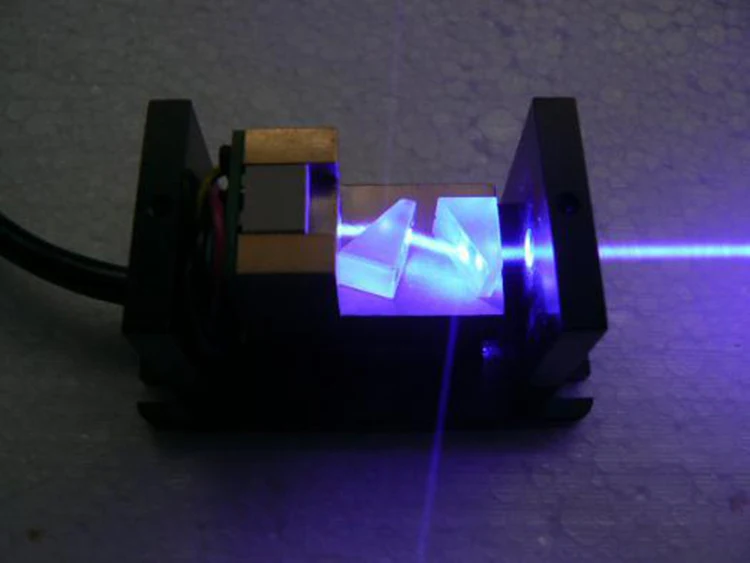

APPLICATION DEMONSTRATION
