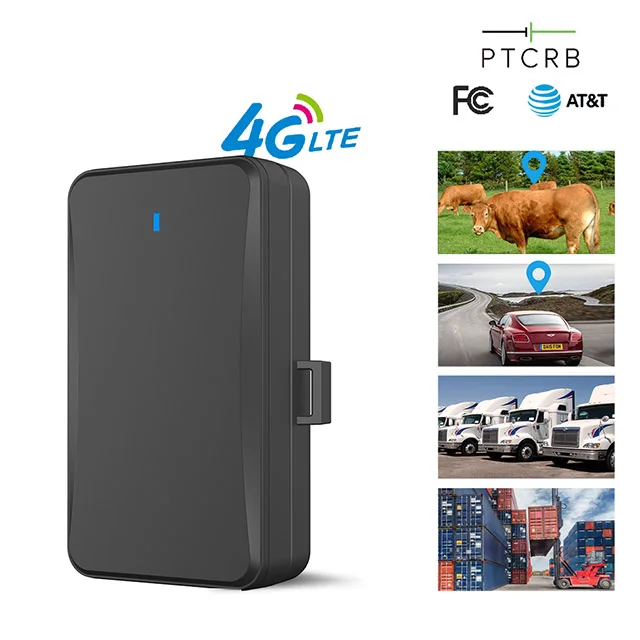

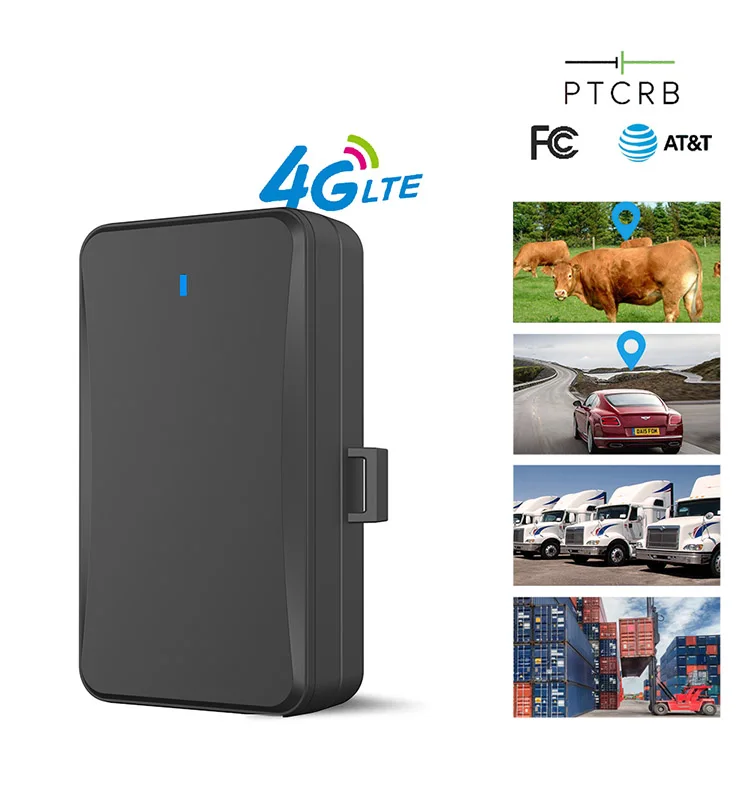

10000mAh rechargeable battery 4G Concox JM LL01 LTE GNSS Asset jm ll01 GPS Tracker for cow sheep goat horse animal
- Category: >>>
- Supplier: Shenzhen Innosio Technology Co. Ltd.
Share on (1600225520182):
Product Overview
Description
10000mAh rechargeable battery 4G Concox JM-LL01 LTE GNSS Asset jm ll01 GPS Tracker for cow sheep goat horse animal
Model:LL01
Feature:

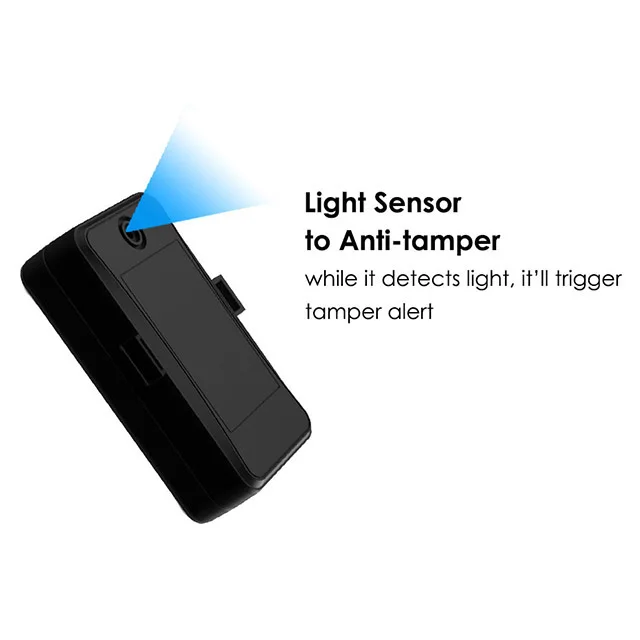

LTE: Cat M1 & NB2 & GSM10,000mAh Battery PoweredTamper Alert

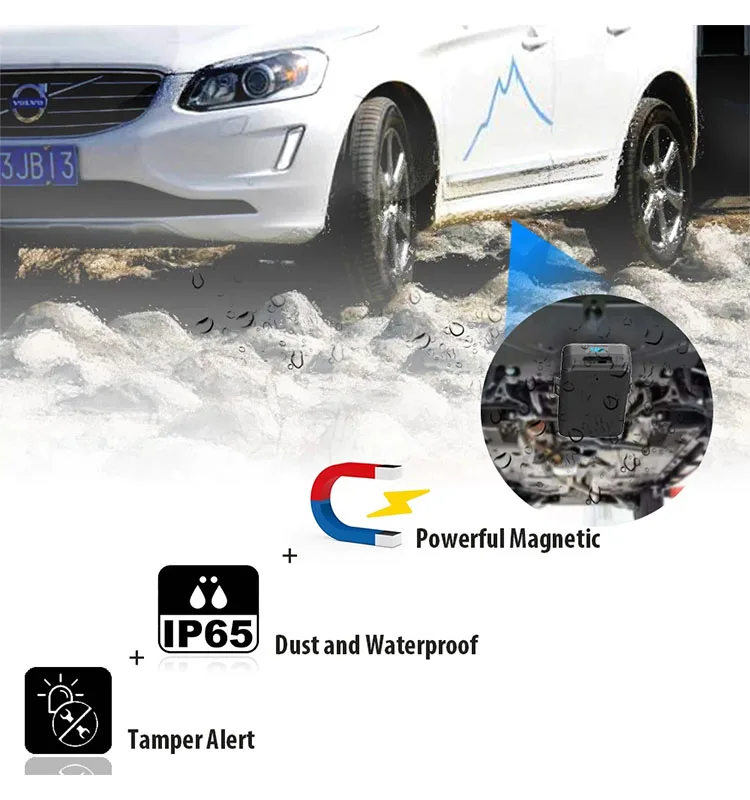

Strong Magnet Mount
IP65 Dust & Water Resistance
3 Years Standby Time
Technicial Parameter:
| GSM Specification | |
| GPRS | Class 12, TCP/IP |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM 850/GSM 900:33±3dBm |
| GSM 1800/GSM 1900:30±3dBm | |
| Max frequency error | ±0.1ppm |
| LTE Specification | |
| Operating band | LTE Cat-M1/NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28/B66 |
| Data transmission | LTE Cat M1: Max. 588kbps (DL), Max. 1.119Mbps (UL) |
| LTE Cat NB2: Max. 127kbps (DL), Max. 158.5kbps (UL) | |
| EGPRS: Max. 296kbps (DL), Max. 236.8kbps(UL) | |
| GPS Specification | |
| GPS chipset | MTK high sensitivity chip |
| Frequency | L1,1575.42MHz C/A code |
| GPS channel | 66 |
| Location accuracy | <10 meters |
| Tracking sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start≤1sec |
| Avg. cold start≤40sec | |
| Interfaces | |
| Cellular antenna | Internal only |
| GNSS antenna | Internal patch antenna |
| LED indicators | CEL,PWR |
| Micro USB interface | Used for charging and debugging |
| Others | |
| Battery | 10000 mAh, 3.7V Li-Polymer battery |
| Operating temperature | –20℃ to +70℃ |

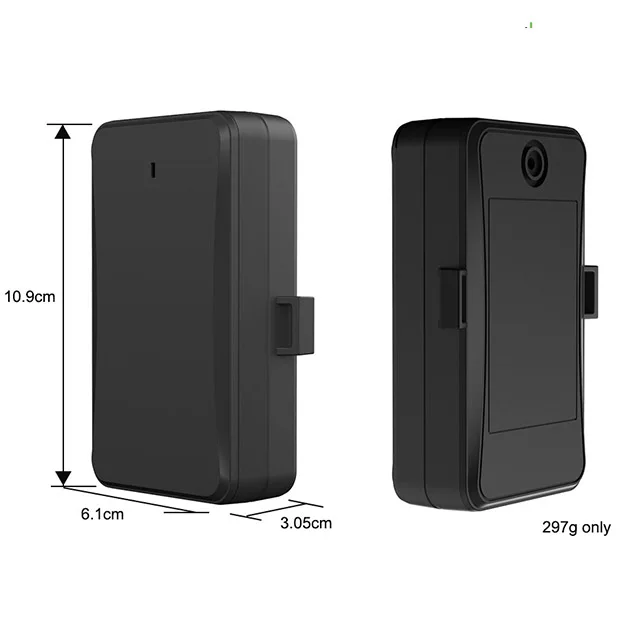

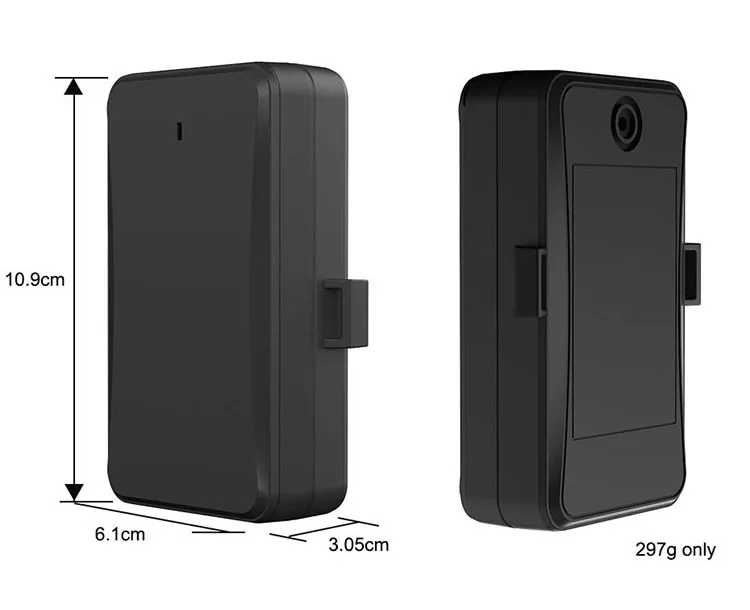

| Device dimension | 109 X 61 X 30.5mm |
| Device weight | 297g |
| Operating voltage | 4.5V-5.5V DC |
