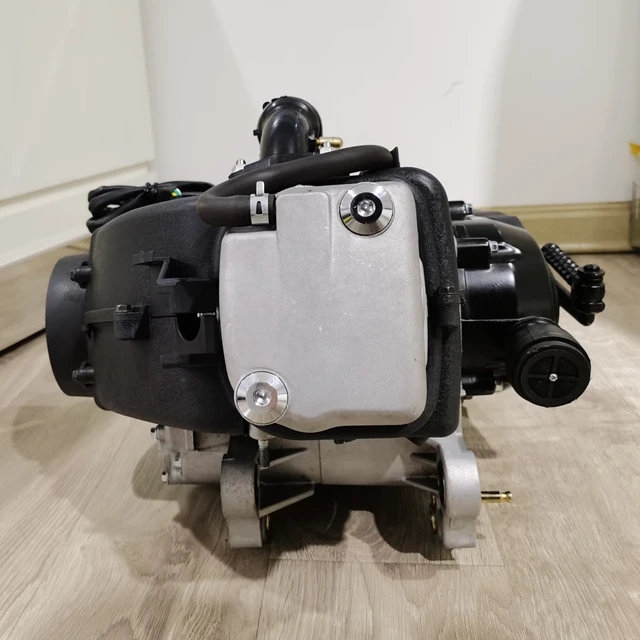

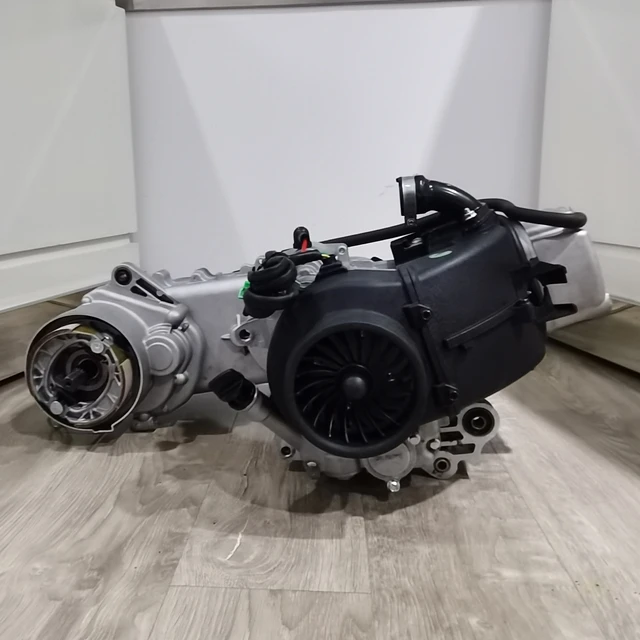

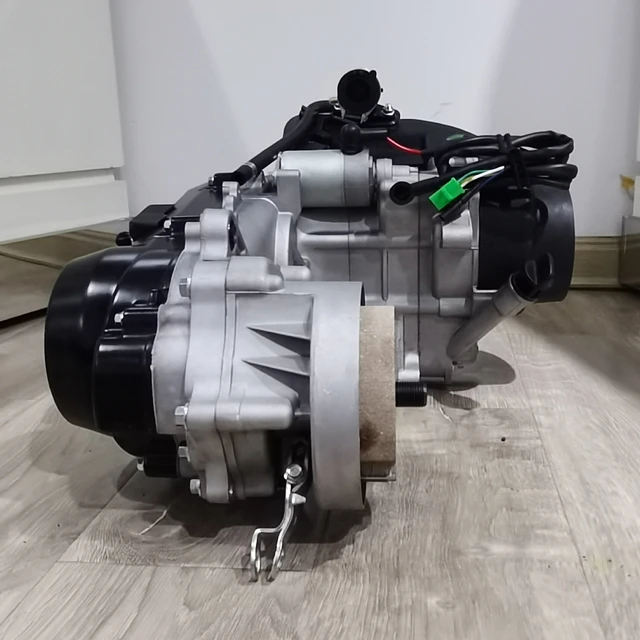

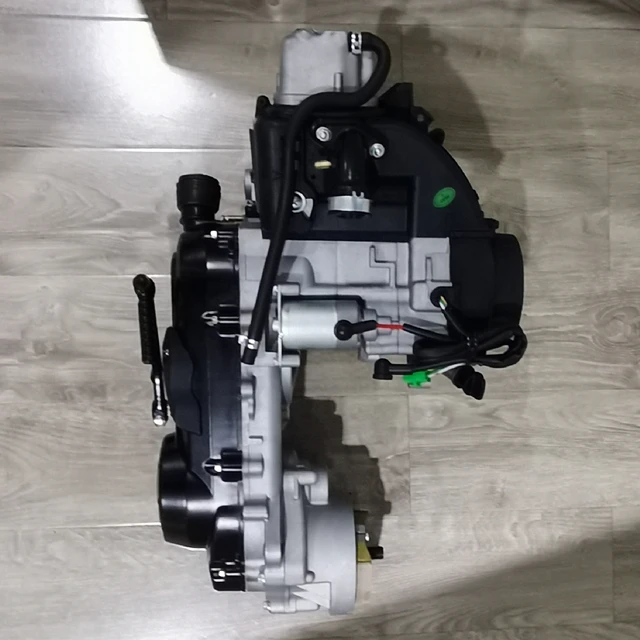

50cc low noise long life scooter air cooled gasoline engine
- Category: >>>
- Supplier: Jinlang Science And Technology Co. Ltd.
Share on (1600225550605):
Product Overview
Description
Products Description
Pao Pao 50cc electric starter
It adopts GY6-125cc engine format, which has low starting sound, long service life and improved starting performance.
Pao Pao 50cc Drive pulley left half structure
The air intake has been significantly improved. It has a good cooling effect on the CVT drive train. The left half of the Drive
pulley is composed of an aluminum die-casting part, and the air inlet blades are larger.
Bench test data of Pao Pao 50cc fan cover shows that the spark plug gasket temperature is about 5℃ lower than that of Jinlang's ordinary four-stroke 50cc fan cover.
200-hour bench durability test parts in kind: cylinders, pistons, camshafts.
After the test, the wear of the above-mentioned parts is normal, but there is no obvious strain on the mating surface, and the defects of strain marks can explain the obvious advantages of increasing the oil filter structure.

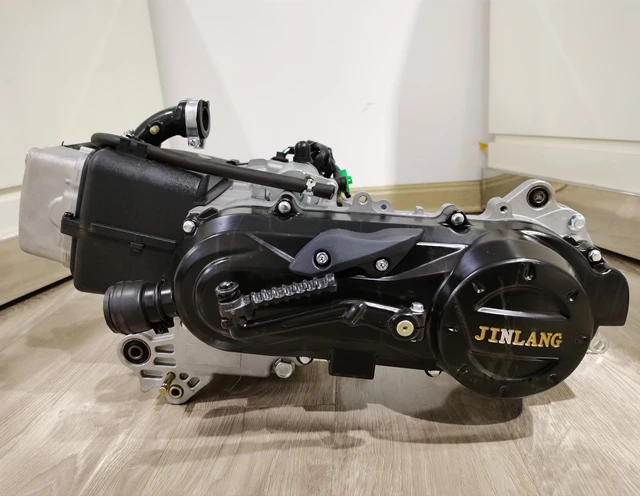

Pao Pao 50cc foot start adopts the front stepping type of GY6-125cc engine, which is safe and labor-saving when consumers use foot start, which is convenient for women to use and has a long service life.
It adopts GY6-125cc engine format, which has low starting sound, long service life and improved starting performance.
Pao Pao 50cc Drive pulley left half structure
The air intake has been significantly improved. It has a good cooling effect on the CVT drive train. The left half of the Drive
pulley is composed of an aluminum die-casting part, and the air inlet blades are larger.
Bench test data of Pao Pao 50cc fan cover shows that the spark plug gasket temperature is about 5℃ lower than that of Jinlang's ordinary four-stroke 50cc fan cover.
200-hour bench durability test parts in kind: cylinders, pistons, camshafts.
After the test, the wear of the above-mentioned parts is normal, but there is no obvious strain on the mating surface, and the defects of strain marks can explain the obvious advantages of increasing the oil filter structure.
Pao Pao 50cc foot start adopts the front stepping type of GY6-125cc engine, which is safe and labor-saving when consumers use foot start, which is convenient for women to use and has a long service life.
Fit for Scooter Vehicle
This engine is adapted to the models with 10 to 13 inch tires (same as the adapted models of GY6-50)
PRODUCT SPECIFICATIONS
Engine model | 1P39QMB-3(PaoPao 50) |
Type | Single cylinder、4-stroke、forced air-cooled |
Cylinder diameter (mm) | 39mm |
Piston stroke (mm) | 41.5mm |
Total displacement (ML) | 49.6ml |
Compression ratio | 10.5:1 |
Maximum power and corresponding crankshaft speed (kW / RPM) | 2.2kW/7500rpm |
Maximum torque and corresponding crankshaft speed (N.m / RPM) | 2.8N.m/6000rpm |
Minimum no-load stable speed (RPM) | 2000r/min |

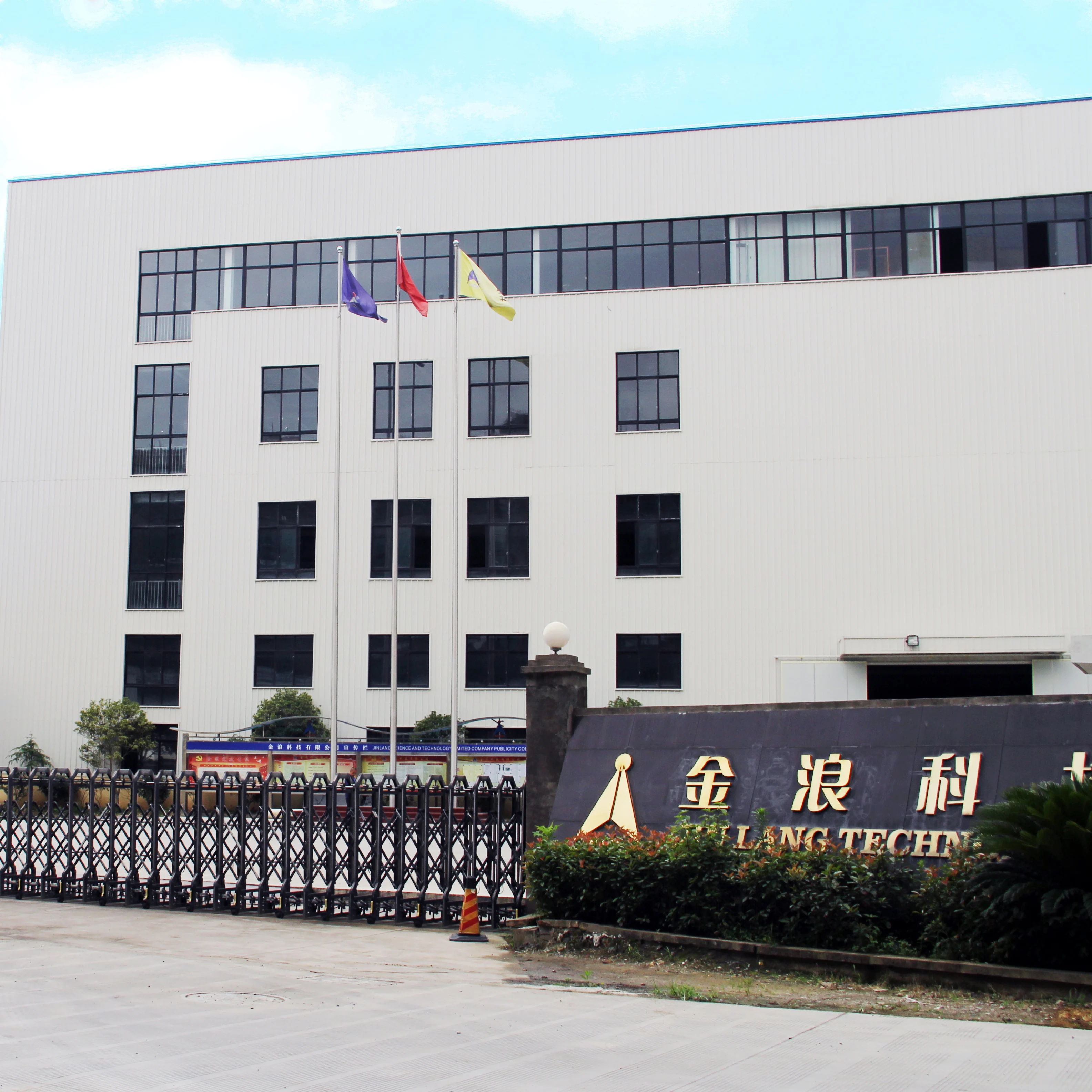

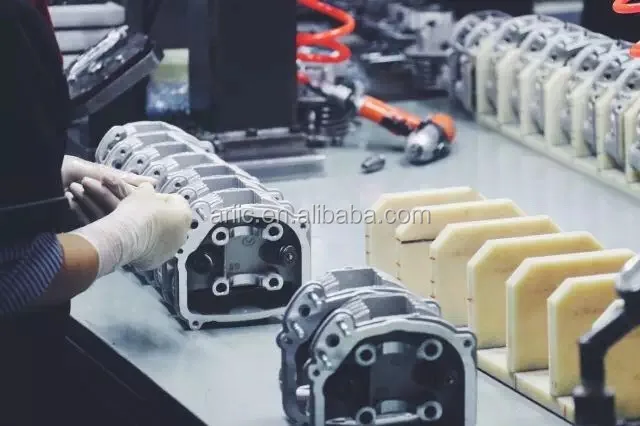

Company Profile
