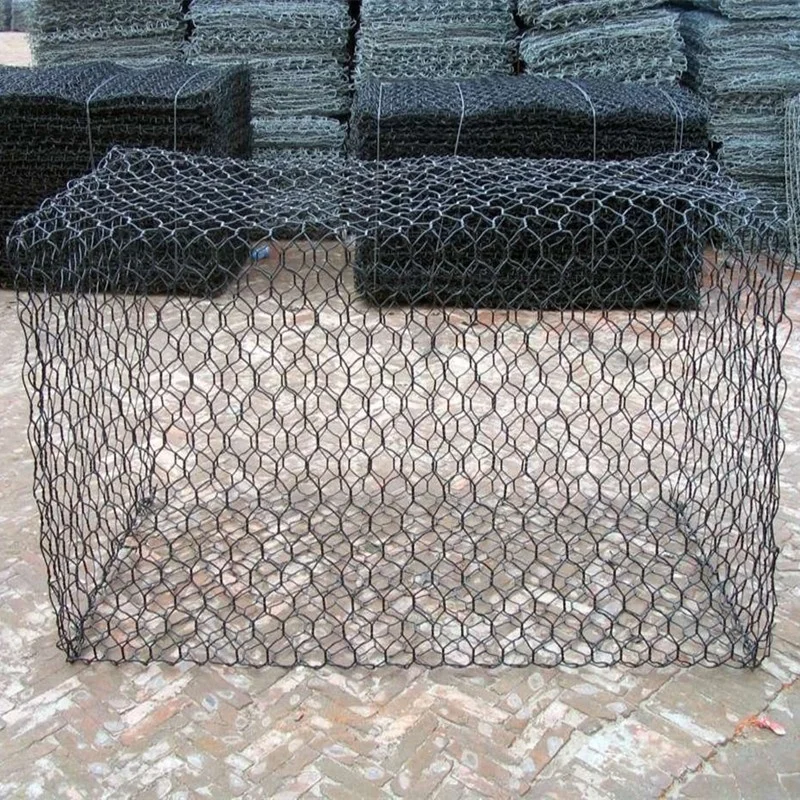

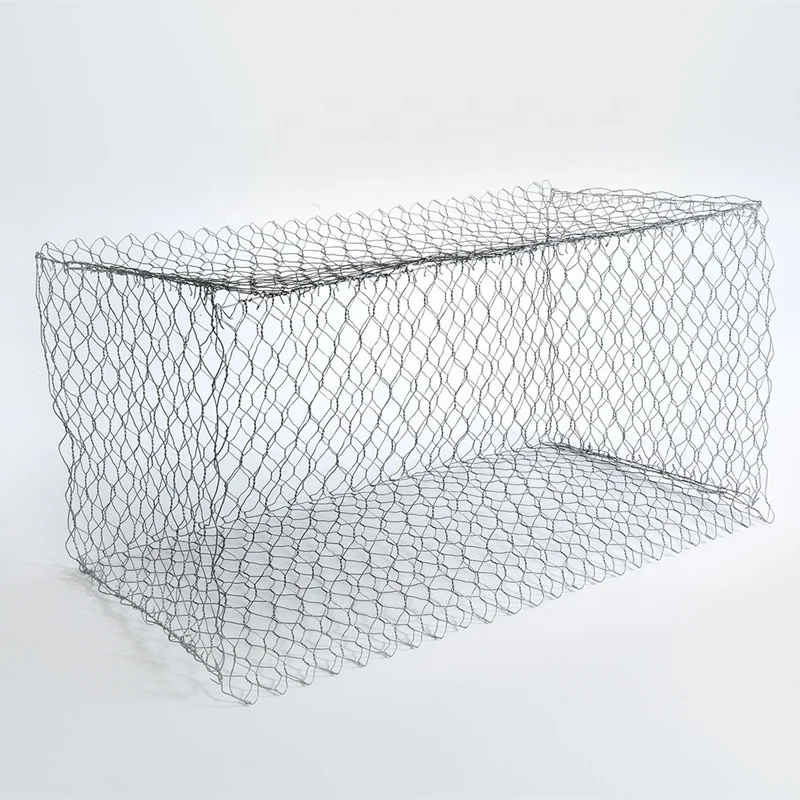

2.2mm Gabion Mesh Box 60X80mm Mesh for River Bank 2*1*1m
- Category: >>>
- Supplier: Hebei Chingo Trade Co. Ltd.
Share on (1600225567177):
Product Overview
Description
Product Description

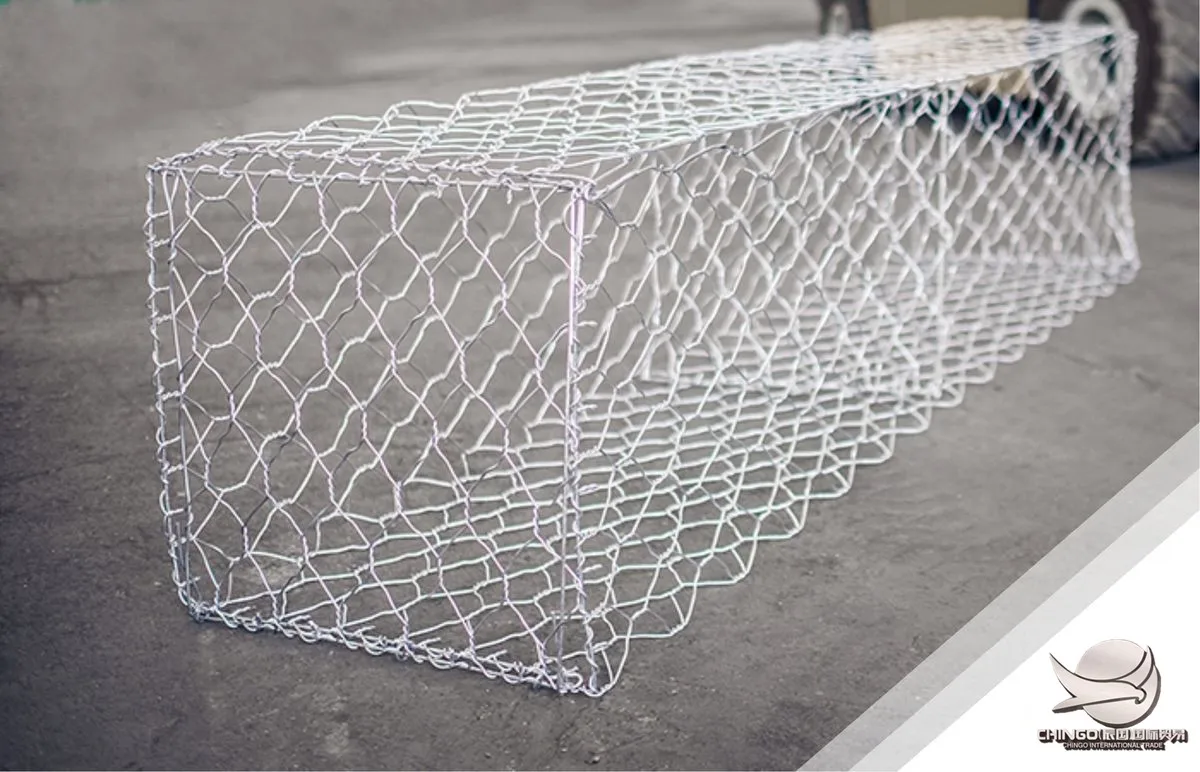

Gabion Basket
The gabion basket from Chingo has other names like gabion box, gabion wall, gabion cage, stone cage,etc. Gabion basket is manufactured from 8×10 double twisted hexagonal woven steel wire mesh, as per ASTM A975-97 Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects. The steel wire used in the manufacture of the Gabion is heavily Galfan (zinc-5% aluminum-mischmetal [Zn-5 Al-MM] alloy) coated soft temper steel. A PVC coating is then applied to provide additional protection for use in polluted, contaminated or aggressive environments: in salt, fresh water, acid soil or wherever the risk of corrosion is present. The PVC coating has a nominal thickness of 0.02 in. (0.50 mm). The Gabion is divided into cells by diaphragms positioned at approximately 3 ft (0.9m) centers. To reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter. Gabions shall be manufactured and shipped with all components mechanically connected at the production facility.
Specification
HEIGHT: | 500mm / 800mm / 1000mm / 1200mm / 1500mm |
WIDTH: | 500mm / 1000mm / 1500mm / 2000mm |
LENGTH: | 1000mm / 2000mm / 3000mm |
WIRE THICKNESS | 2.2mm / 2.4mm / 2.7mm |
MESH SIZE: | 60mm*80mm / 80mm*100mm / 100mm*120mm |
SURFACE TREATMENT: | Pre Hot Dipped Galvanized (100g/m²) Pre Hot Dipped Galvanized (200g/m²) Galfan Wire (Zinc & Aluminium Alloy) Electric Galvanized + PVC Coated (All colors in Ral) Electric Galvanized + PE Coated (All colors in Ral) |

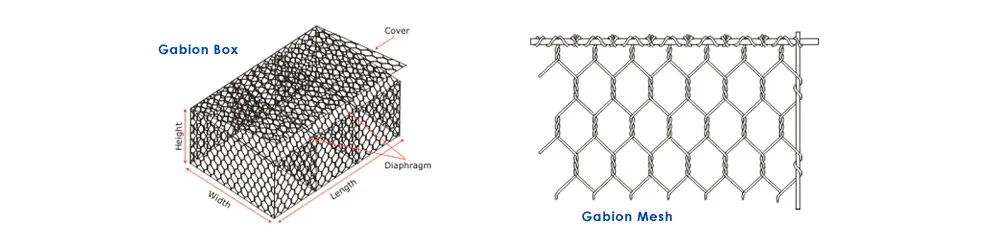

NOTES:
Height: the height of the gabion basket.
Width: the width of the gabion basket.
Length: length of gabion basket.
Wire Thickness: the diameter of gabion mesh.
Lacing Wire: low carbon steel wire to tie the separated gabion mesh to be basket.
Selvedge Wire: the diameter of the wire on the edge of gabion basket.
Diaphragm: a single piece of gabion mesh to separate the basket to several cells.
Pre – Hot Dipped Galvanized: the wire material already been hot dipped galvanized before producing the gabion basket.
Galfan Wire: low carbon steel wire coated by zinc – aluminium alloy.
Electric Galvanized + PVC Coated: electric galvanized (zinc coating 8~12g) + PVC coated low carbon steel wire before production.
Electric Galvanized + PE Coated: electric galvanized (zinc coating 8~12g) + PE coated low carbon steel wire before gabion basket production process.
Height: the height of the gabion basket.
Width: the width of the gabion basket.
Length: length of gabion basket.
Wire Thickness: the diameter of gabion mesh.
Lacing Wire: low carbon steel wire to tie the separated gabion mesh to be basket.
Selvedge Wire: the diameter of the wire on the edge of gabion basket.
Diaphragm: a single piece of gabion mesh to separate the basket to several cells.
Pre – Hot Dipped Galvanized: the wire material already been hot dipped galvanized before producing the gabion basket.
Galfan Wire: low carbon steel wire coated by zinc – aluminium alloy.
Electric Galvanized + PVC Coated: electric galvanized (zinc coating 8~12g) + PVC coated low carbon steel wire before production.
Electric Galvanized + PE Coated: electric galvanized (zinc coating 8~12g) + PE coated low carbon steel wire before gabion basket production process.
Category
Gavalnized Gabion Basket
PVC Coated Gabion Basket
Product Advantage
Woven Type
Different with other wire mesh fences, the gabion basket is not welded by the wires but woven together. Using this type of method
forming the gabion mesh box, it can cut down the cost of the gabion box prices. And its appearance also looks very nice because of
woven type. To choose it for your use, it will be a great choice.
forming the gabion mesh box, it can cut down the cost of the gabion box prices. And its appearance also looks very nice because of
woven type. To choose it for your use, it will be a great choice.
Long Lifetime
The gabion basket has used the high zinc coating galvanized wire to woven together, it has good anti-corrosion factor. Even in the bad weather or bad natural conditions, the gabion box can have a long more than dozens of years lifetime. No special technology needed.Weather proof under natural destroy, corrosion resistant. No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing

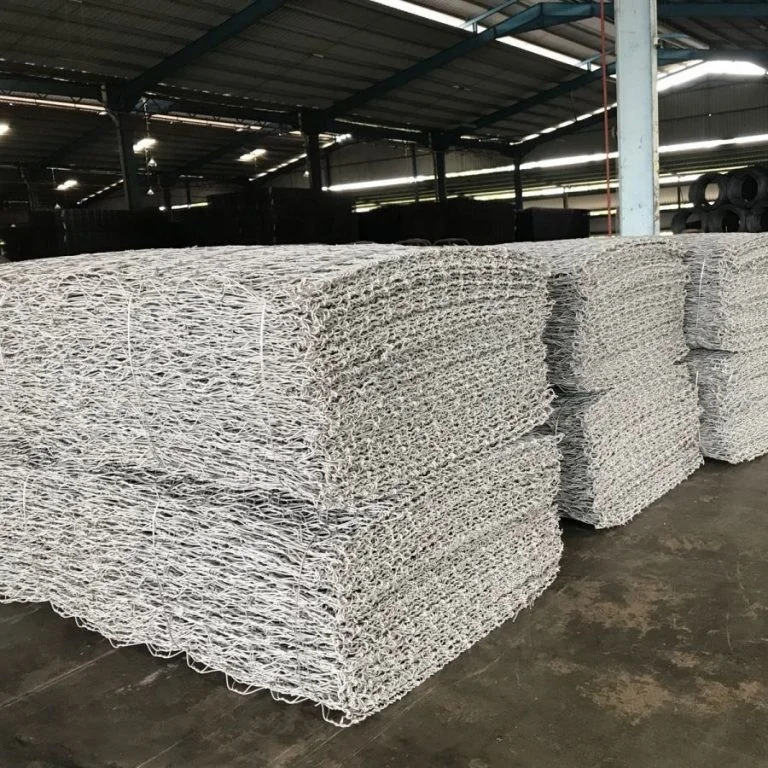

Mixed to form a integrity with the natural environment.Good permeation can prevent the damage by hydrostatic. Less transport freight. It can be folded together for transport and further installation.
Economic
For the simple structure and woven type, the cost of the gabion box is lower than the other fencing products. And the gabion box is usually applied in the big prairie, so it will need a big quantity, with the low cost, to choose the gabion basket can control your budget very well
Application

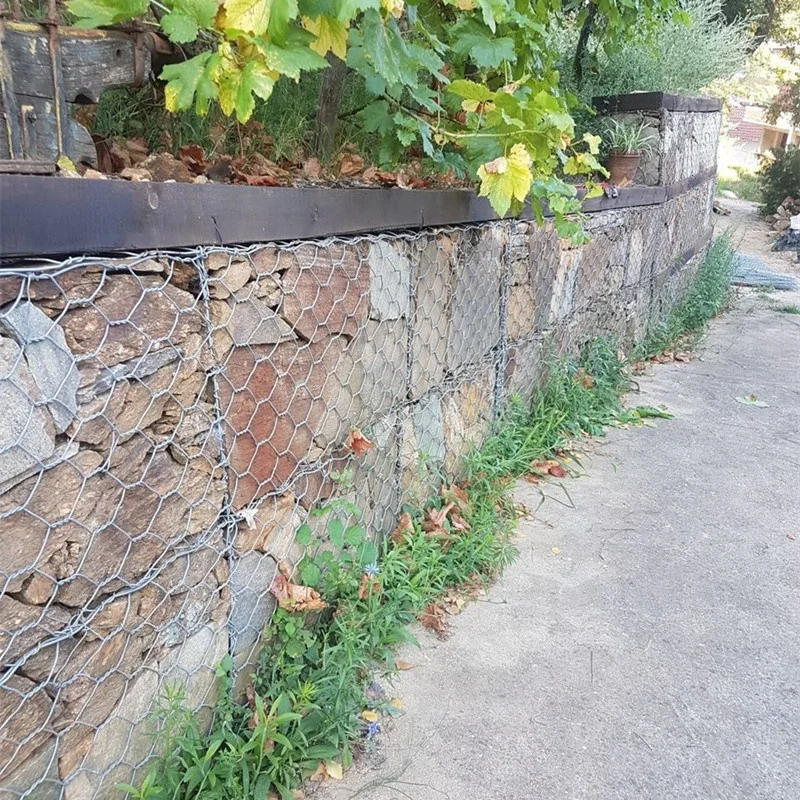

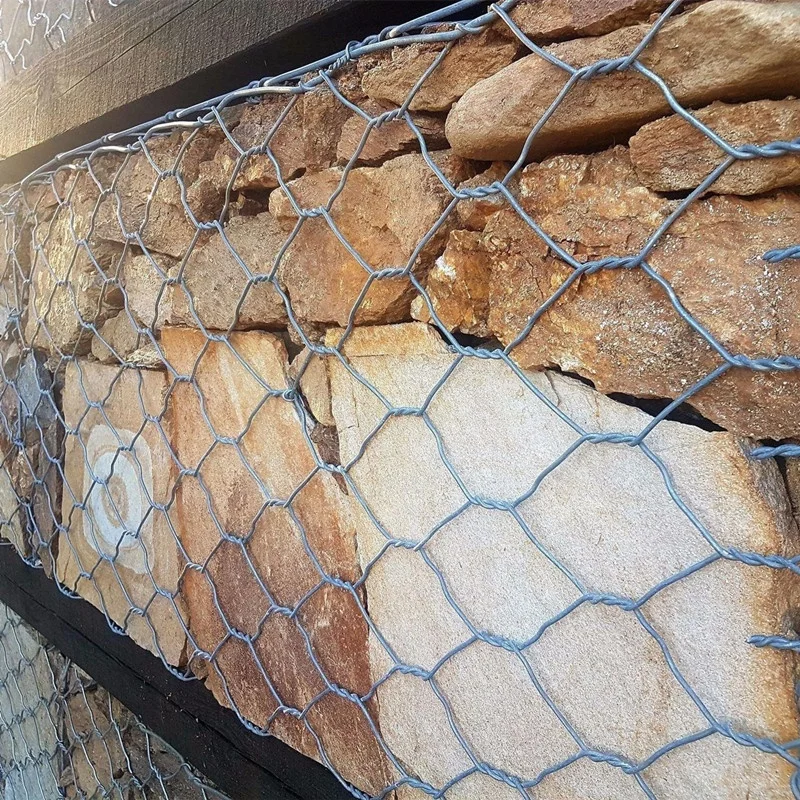

Gabion basket has many applications like gabion retaining walls, gardening landscape,soil and water conservation, road protection, river training and bridge protection,etc,. Gabion basket Retaining walls are built in order to hold back soil which would otherwise move downwards. The purpose is to stabilize slopes and provide useful areas at different elevations, such as terraces for agriculture, buildings, roads and railways. Gabion Retaining walls are built in order to hold back soil which would otherwise move downwards. The woven gabion basket and welded gabion box play the same role in gardening landscape, however welded mesh gabions box are made from heavier mesh with smaller openings. Therefore welded mesh gabions are better to shape, faster to install, quicker to fGabion basket and gabion mattress in the river training applications, continue to help the river to maintain the original ecological environment. What’s more, it’s beneficial to the river long-term stability. They are economical and environmentally friendly products.ill, and more beautiful to look at. Gabion basket and gabion mattress in the river training applications, continue to help the river to maintain the original ecological environment. What’s more, it’s beneficial to the river long-term stability. They are economical and environmentally friendly products.
Installation Instructions
The installation of gabion basket from Chingo

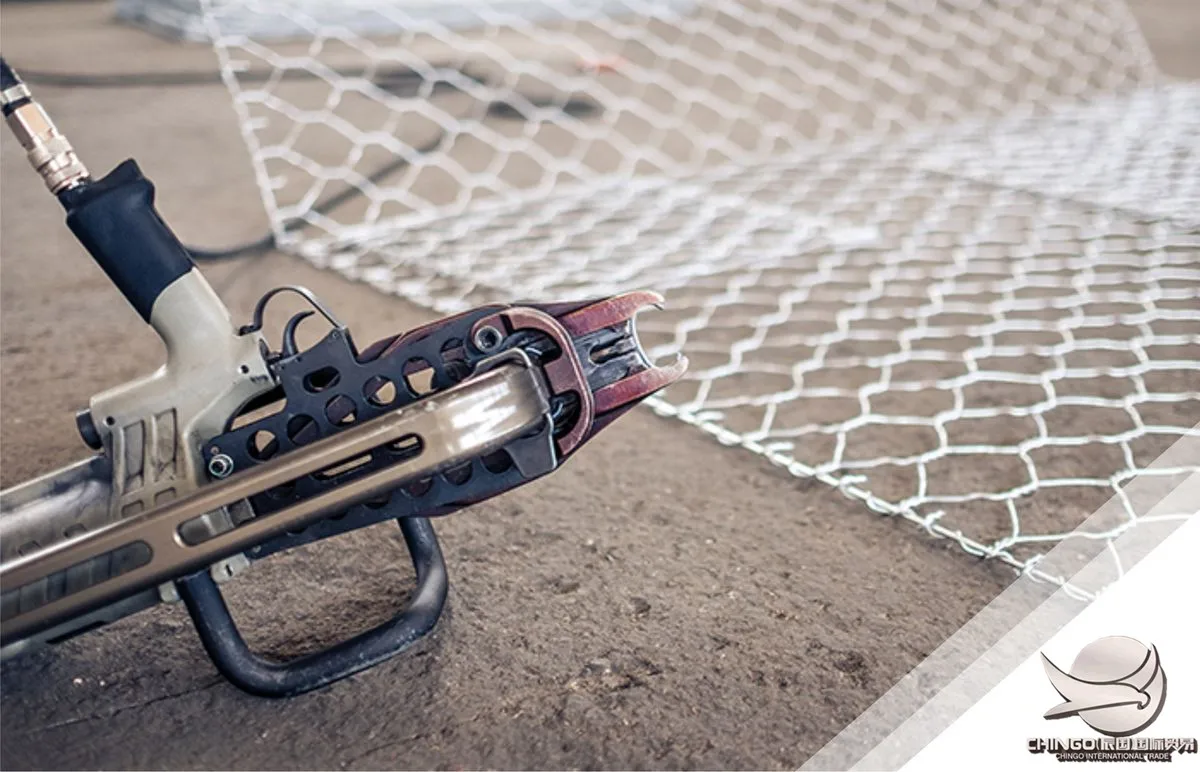

There is no need to dig a foundation, all the gabion basket need is a firm base that they will not sink into. Make sure the ground is compact which can be done by compacting hardcore into the leveled ground if necessary. The fill should be of a gradient of 100-200mm as the aperture of the mesh is 75mm, you don’t want rocks coming through the mesh or to leave voids in the gabion basket. Using the lacing wire supplied lace the corners of the baskets tying the ends off with a pair of pliers. There is no need to lace the sides already clipped. Next lace the formed gabion basket together as shown with the blue lines on the diagram. There is an easier way if time is of the essence. You can purchase helicoils, which are long springs that you wind down the corners of the baskets. These springs attach the front and side panel of a gabion basket and its adjacent panel in one go. You only need 2 springs per basket and 2 extra for the end of a run (in the case of 1m cubes). You don’t need lacing wire for the sides when you use this method. The springs are more obvious than the lacing wire. When filling the baskets it is necessary to insert a brace in the middle of the basket. This is important to stop the face bulging when filling. The higher the wall the more important this is as the more force exerted on the face. 1/3rd fill the basket and then create a windless which are the red ties in the diagram to the left. Make a loop from the back to the front of the gabion basket and join the ends with pliers. Put a sturdy flat stone in this loop and turn in circle creating a tourniquet effect which pulls the front tight. Fill on top of this which will hold the stone in place. Repeat 2/3rds of the way up. Finally lace the lids down with the lacing wire provided. Remember to attach all higher rows to the lower ones as well.
Company Profile
Chingo Trade Co., Ltd.
Hebei Chingo Trade Co., Ltd. is a professional supplier of metal mesh products in the north of China. Our factory engaged in the research, development, sale and service of mesh fence, stainless steel wire mesh, perforated sheet, gabion mesh. Hebei Chingo Trade Co., Ltd has professional and advanced production equipment, It also has independent laboratory, advanced testing equipment and professional testers.
We adhere to the "high quality and low profit" operation principle, which makes our products very popular and competitive in the market. Our company strictly implements ISO9001 quality management system and dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We welcome the OEM orders. Whether selecting a current product from our catalog or any other needs, you can talk to our customer service center about your sourcing requirements.
We adhere to the "high quality and low profit" operation principle, which makes our products very popular and competitive in the market. Our company strictly implements ISO9001 quality management system and dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We welcome the OEM orders. Whether selecting a current product from our catalog or any other needs, you can talk to our customer service center about your sourcing requirements.
Real Factory Certification
Advanced equipment and skilled workers ensures our high efficient production and large output.
Skillful Workers
All our workers are passing through the Induction training before taking up their posts.
Strict QC System
We have strict quality control system to inspect our products before, during and after production. Any defects will be separated and we promise all our products we delivered are qualified.
