Product Description

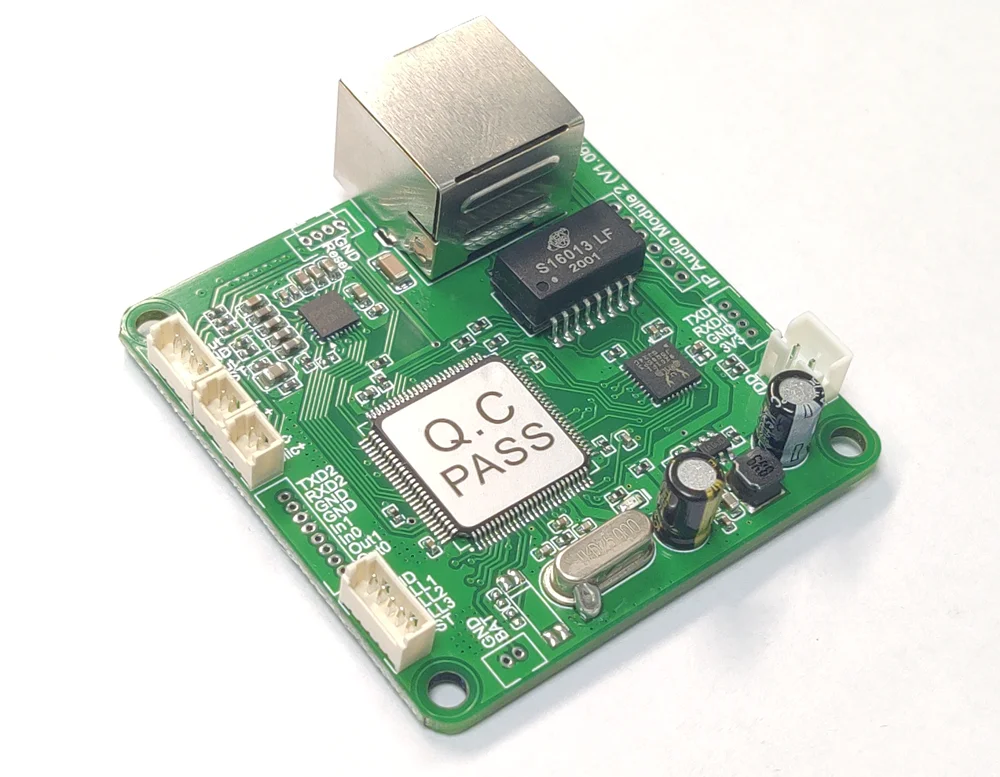

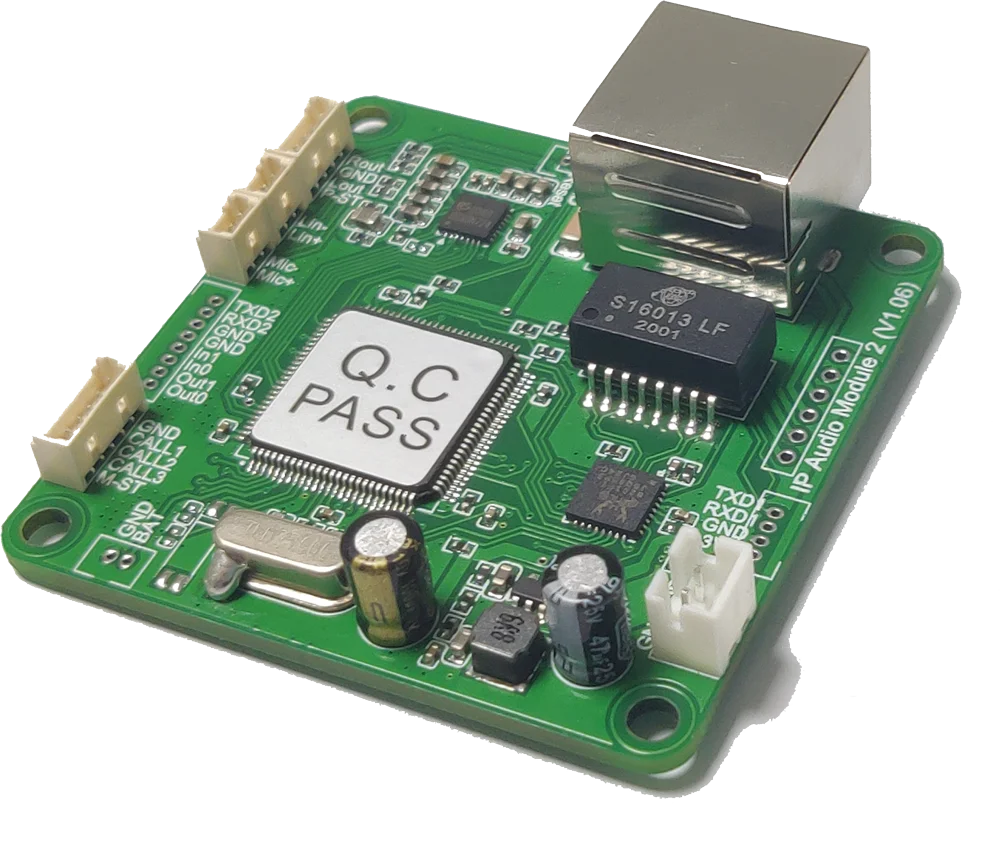

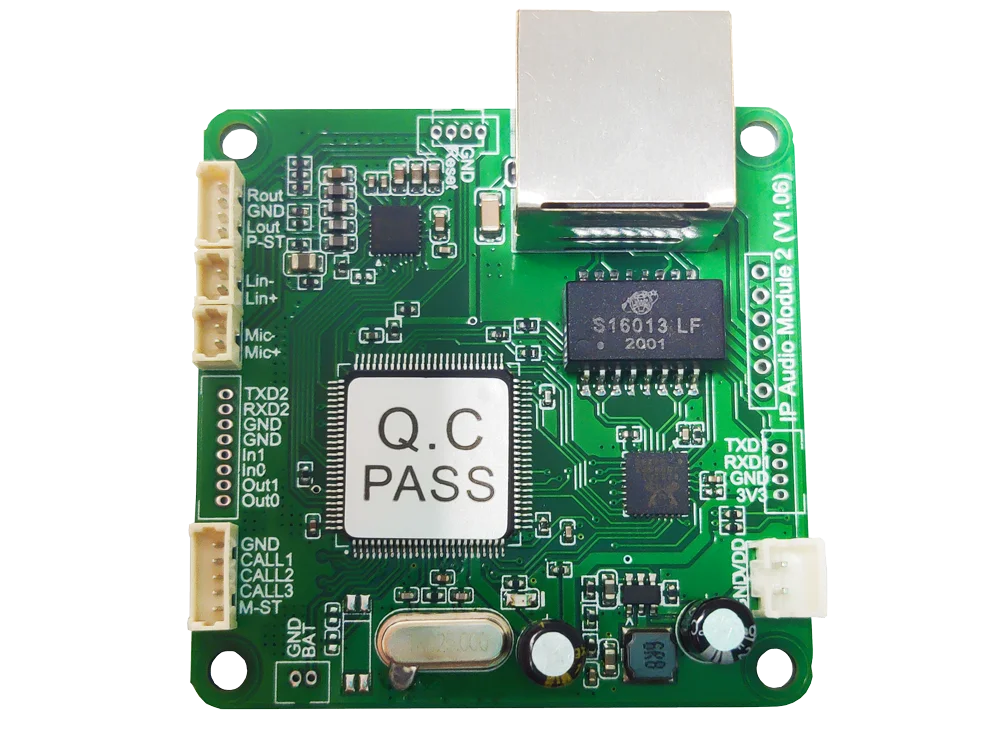

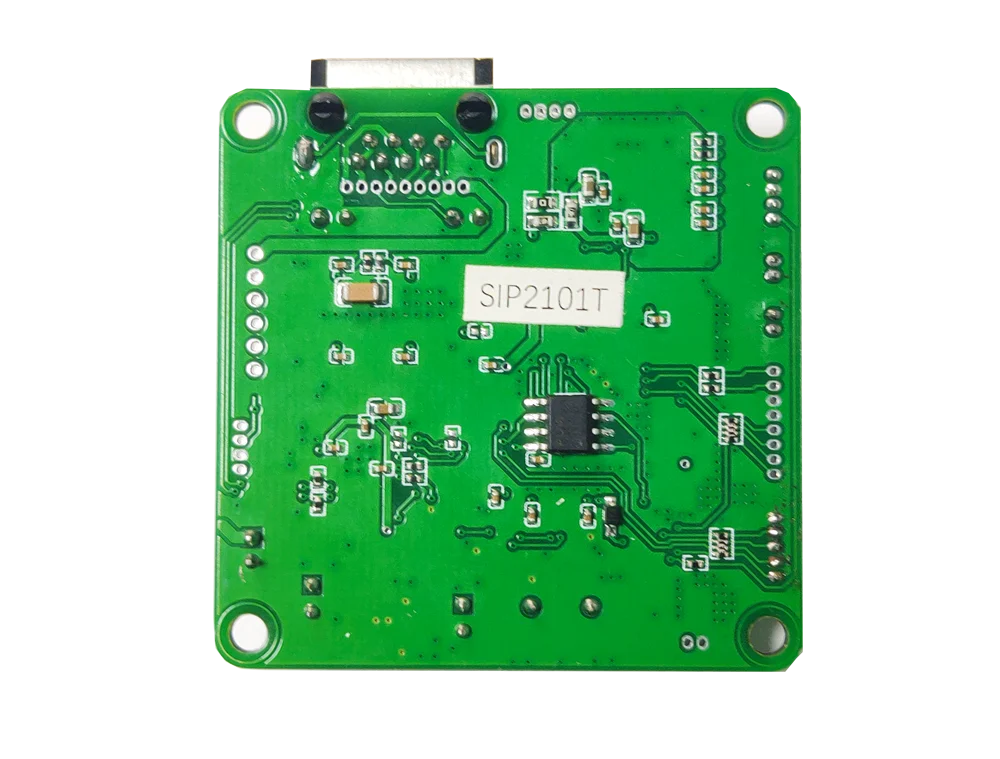

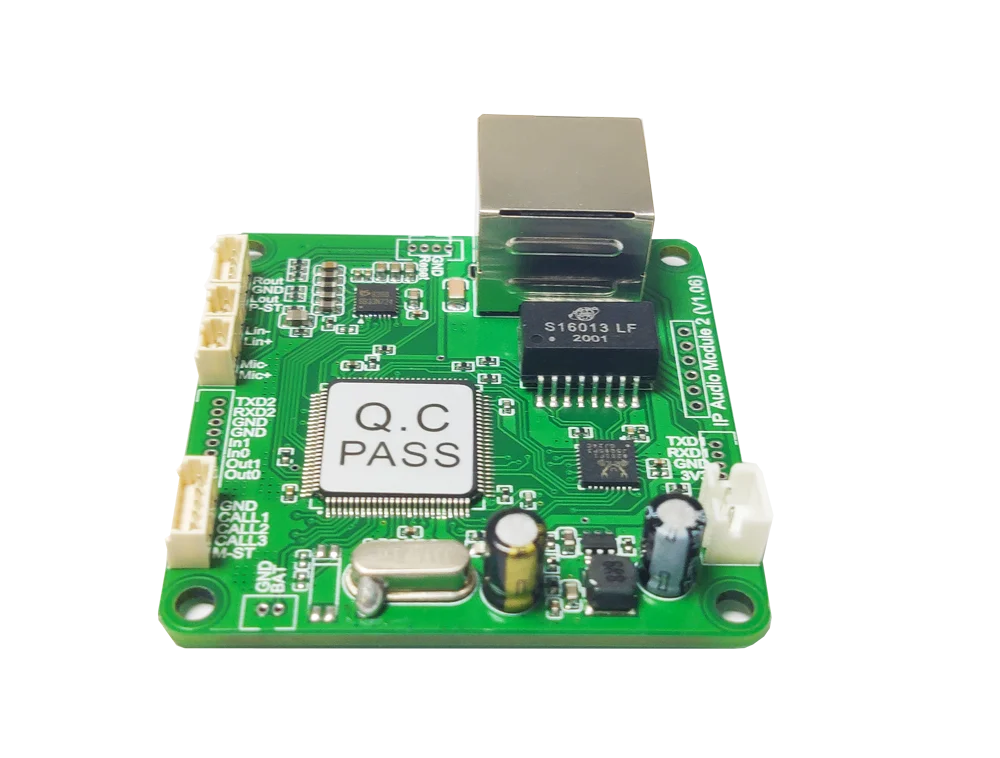

SIP AUDIO MODULE SIP2101T
SIP2101T network audio module is a general independent SIP audio function module, which can be easily embedded into OEM products.
The module encodes and decodes the SIP protocol and RTP audio stream from the network.
The module supports a variety of network protocols and audio codec protocols, and can be used for VoIP and IP paging, high-quality music streaming media playback and other applications.
The module supports a variety of network protocols and audio codec protocols, and can be used for VoIP and IP paging, high-quality music streaming media playback and other applications.
Characteristic
Standard RJ45 network interface, provide firmware online remote upgrade;
Based on ARM + DSP architecture, high-speed industrial chip is adopted, and the start-up time is less than 1 second;
It has audio line output port, which can be connected with active speaker for amplifying;
With audio line input port, it can be connected with active microphone for intercom.
Specification
Power input | DC 4.7 ~ 16 V Maximum working current, 200mA |
Temperature | Industrial grade: - 40 ~ 65 ℃ Storage temperature range - 40 ~ 85 ℃ |
Network interface | 10 / 100M base adaptive Ethernet interface IPv4 capable SIP,TCP/IP, UDP, RTP,DHCP,HTTP |
Mic / linein input | Typical amplitude 1000mvrms Frequency response: 20 Hz … 20 kHz (-3 dB) Dynamic range: 90 dB, SNR -90 dB, THD <0.05% |
Line out output | load 510 Ω, typical 1000vrms, SNR 95dB (in playback mode) |
Bidirectional mode （Intercom mode） | AEC(Linear and non-linear )8kHz sampling, ADPCM coding. The minimum delay is 80 ms |
Decoding mode （playback mode） | Wav (PCM + ima ADPCM) Mp3 G.711 a/u, G.722 and other formats. (Provide stereo playback, maximum 48Khz, 320kbps audio streamThe minimum delay is 50ms) |
Encoding mode （recording mode） | G.711a/u, G.722 The minimum delay is 30ms |
Control serial interface | Baud rate 115.2kbps |
Module size | Length × width × height: 50 × 50 × 17mm |
Structure

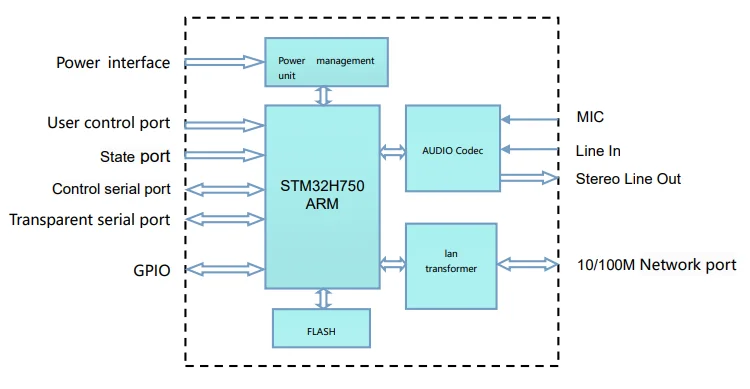

SIP2101T uses a 400MHz ARM processor architecture and a professional bidirectional audio codec . The arm processor isresponsible for data transmission, user command analysis and execution, and power amplifier interface control.
The professionalaudio codec is responsible for audio input and output. Its internal structure is as follows:
Its appearance structure is as follows:
Application
Outdoor loudspeaker
Desktop walkie talkie
intercom terminal
PLAY
The network audio equipment can receive the audio stream from the network, and convert it into an analog audio signal for output after being decoded. The figure below is a standard playback application scenario.
The SIP2101T/SIP2103T network audio module is used as a playback terminal, and only needs to increase the power supply and external power amplifier. It can be used as a device alone, or integrated in other audio equipment (power amplifier, or active speakers, etc.) to make it a network audio playback terminal.
INTERCOM
SIP2103T can be used in a two-way SIP intercom system
The broadcast intercom host can use our company's broadcast system control software, broadcast equipment, network microphones, etc., or use the SIP server prepared by the user.
This VoIP Telephone Circuit is ideal for access system, railway applications, tunnels, highways, campus, parking lot, power stations, oil&gas station, marine applications, underground mining, retail banking, clean rooms, firefighter, taxi, industrial, prisons, parking-lots, power stations, chemical plants, etc.
The company is a national high-tech enterprise with high-tech products.
We have set up R & D center, chip factory and comprehensive manufacturing base in Guangzhou. The factory covers an area of 8500 square meters. The company is committed to building international top brands.
We have a professional and strong R & D team to provide further customization in terms of firmware, software and solution requirements.
