Laboratory Drying Oven from China supplier 136 L with temperature 250 degree
- Category: Chemical & Pharmaceutical Machinery >>>
- Supplier: Shanghai Lianhua Industrial Co. Ltd.
Share on (1600225599213):
Product Overview
Description
Product Description

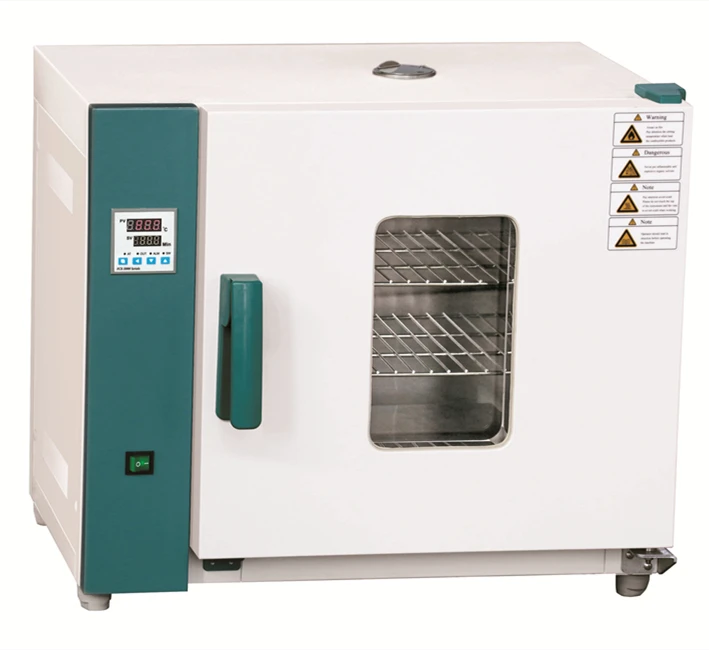

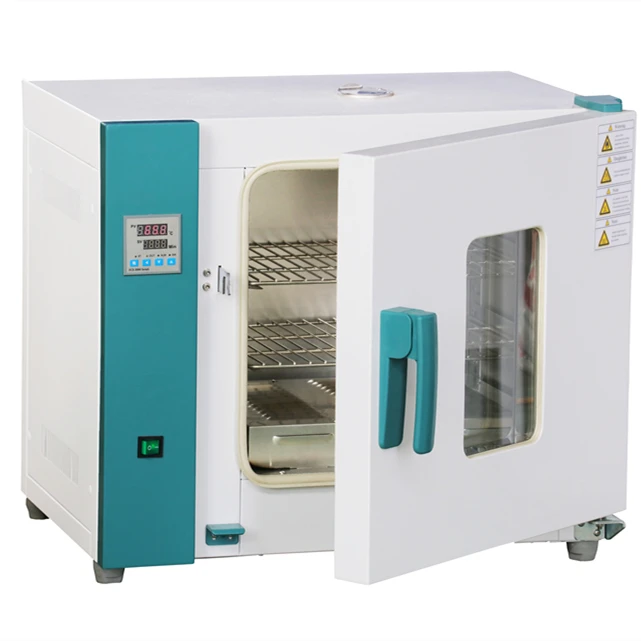

Horizontal Drying Oven
Features
1. Horizontal forced air type, high space utilization and good temperature uniformity
2. 101: Forced fan cooling intake structure, the maximum working temperature<50 ℃, the fan long-term longevity operation
3. 202: Classical natural convection drying method
4. New anti-hot handle
Specifications
| Model | 101-0A/101-0AB | 101-1A/101-1AB | 101-2A/101-2AB | 101-3A/101-3AB | |
| 202-0A/202-0AB | 202-1A/202-1AB | 202-2A/202-2AB | 202-3A/202-3AB | ||
| Cycle Mode | 101 means Forced convection;202 means Natural convection | ||||
| Function | Temp. Range | RT+10-250℃ | |||
| Temp. Resolution Ratio | 0.1℃ | ||||
| Temp. Motion | ±1℃ | ||||
| Temp. Uniformity | ±2.5% | ||||
| Structure | Inner Chamber | B model:High quality stainless steel; | |||
| without B model:High strength galvanized sheet | |||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||
| Insulation layer | High quality rock wool board(with CE) | ||||
| Heater | 101 model with Stainless steel electric heating tube; | ||||
| 202 model with Nickel chromium alloy heating wire | |||||
| Power rating | 1.2kW | 1.6kW | 2.3kW | 3.0kW | |
| Exhaust hole | φ28mm top(with function of test hole) | ||||
| Controller | Temp. control mode | Two temperature section PID intelligent | |||
| Temp. setting mode | Touch button setting | ||||
| Temp. display mode | LED Digital display | ||||
| Timer | 0-9999min(with timing wait function) | ||||
| Operation function | Fixed temperature operation, timing function,auto stop. | ||||
| Additional function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | ||||
| Sensor | PT100 | ||||
| Safety device | Over temperature sound-light alarm | ||||
| Specification | Inner Chamber size(W*L*H)(mm) | 350*350*350 | 450*350*450 | 550*450*550 | 600*500*750 |
| Exterior size (W*L*H)(mm) | 652*472*587 | 752*472*687 | 852*572*786 | 902*622*986 | |
| Packing size (W*L*H)(mm) | 755*615*735 | 855*615*835 | 955*715*935 | 1005*765*1135 | |
| Volume | 43L | 71L | 136L | 225L | |
| Shelf number | 9 | 13 | 17 | 21 | |
| Load per rack | 15kg | ||||
| Shelf space | 25mm | ||||
