Fully Automatic Heavy Gabion Wire Mesh Making Machine
- Category: >>>
- Supplier: Hebei Kaiye Machinery Equipment Co. Ltd.
Share on (1600225624704):
Product Overview
Description
Product Overview

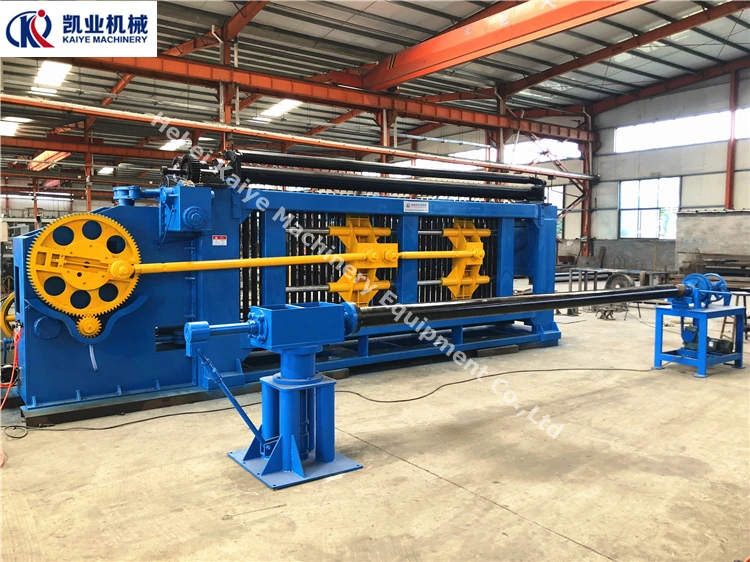

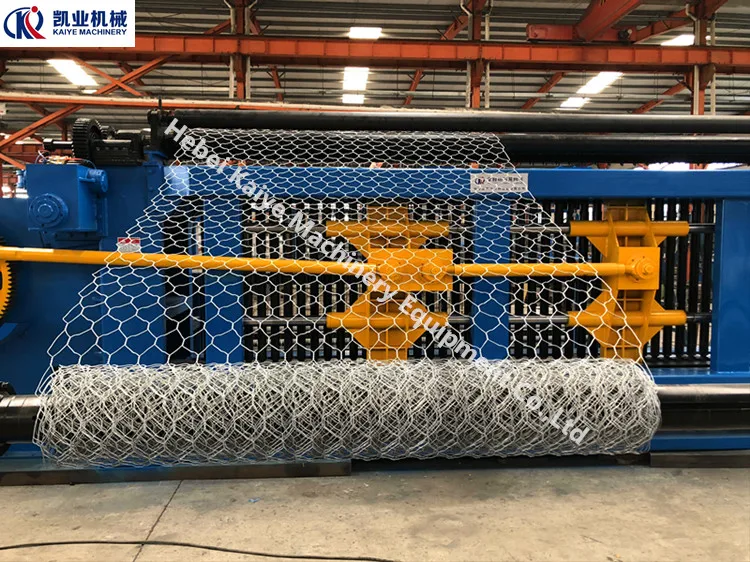

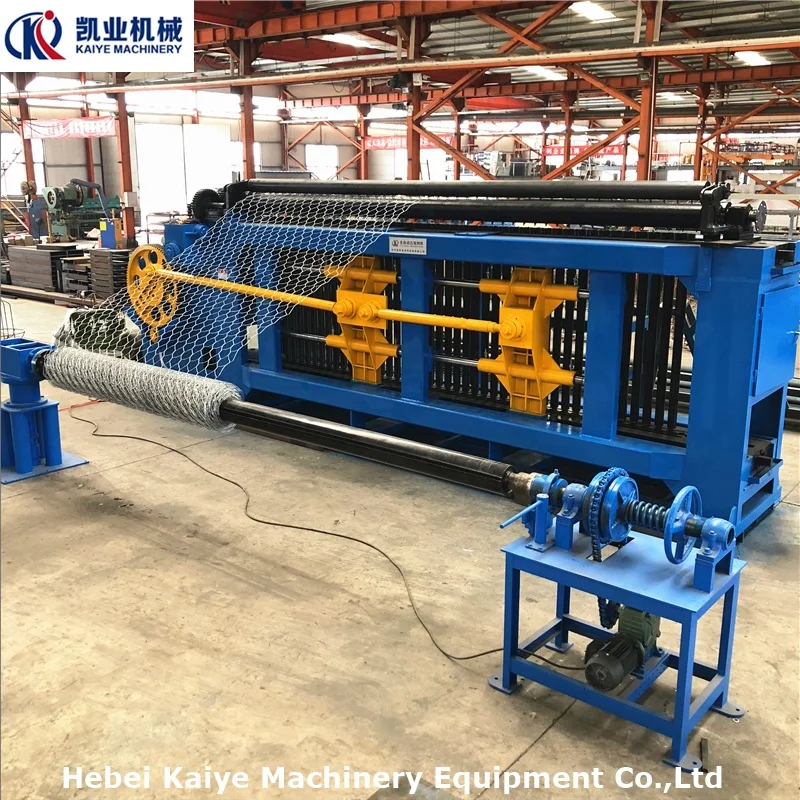

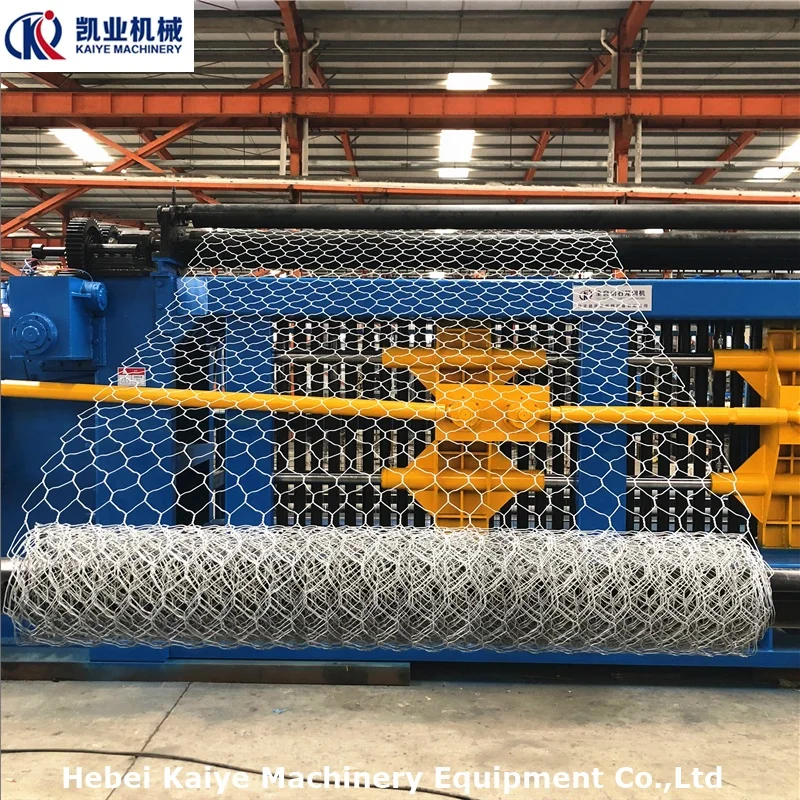

Gabion mesh machine
Gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.
The product has widely purpose, with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
Gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can produce machinery according to customers'requirements. For example, the normal gabion mesh twisting is three times ,length is 35 mm . We can produce 5 times twisting gabion mesh ,length canbe 50-55 mm.
The product has widely purpose, with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
Gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can produce machinery according to customers'requirements. For example, the normal gabion mesh twisting is three times ,length is 35 mm . We can produce 5 times twisting gabion mesh ,length canbe 50-55 mm.
♦♦♦♦♦Main Features
1. New type double block gabion mesh machine
2. High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8.The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8.The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
Standard production line | ||||
1 | Gabion mesh machine | 1 set | ||
2 | Netting winging machine | 1 set | ||
3 | Wire tension device | 1 set | ||
4 | Spring coiling machine | 1 set | ||
PRODUCT SPECIFICATIONS
Different specifications of gabion mesh machine | ||||||||||||
Mesh size | Width | Wire diamater | Spindle Speed | Power of motor | Theoretic output | |||||||
Model | (mm) | (mm) | (mm) | (r/min) | (kw) | (m/h) | ||||||
KY23-60-3T | 60X80 | 2300 | 1.6-3.0 | 25 | 11 | 165 | ||||||
KY23-80-3T | 80X100 | 1.6-3.0 | 25 | 195 | ||||||||
KY23-100-3T | 100X120 | 1.6-3.2 | 25 | 225 | ||||||||
KY23-120-3T | 120X150 | 1.6-3.5 | 20 | 255 | ||||||||
KY33-60-3T | 60X80 | 3300 | 1.6-3.0 | 25 | 15 | 165 | ||||||
KY33-80-3T | 80X100 | 1.6-3.2 | 25 | 195 | ||||||||
KY33-100-3T | 100X120 | 1.6-3.5 | 25 | 225 | ||||||||
KY33-120-3T | 120X150 | 1.6-3.8 | 20 | 255 | ||||||||
KY43-60-3T | 60X80 | 4300 | 1.6-2.8 | 25 | 22 | 165 | ||||||
KY43-80-3T | 80X100 | 1.6-3.0 | 25 | 195 | ||||||||
KY43-100-3T | 100X120 | 1.6-3.5 | 25 | 225 | ||||||||
KY43-120-3T | 120X150 | 1.6-3.8 | 20 | 255 | ||||||||
PRODUCT CONFIGURATION
★ Move block system
The system is designed with two blocks to ensure the stable operation of the machine and larger wire diameter.
★ Spring making machine
Spring machine uses six shaft , can produce six springs at the same time, and the mechanical speed can be adjusted.
★ Automatic oil cup
We designed automatic oil cups where it was not easy to add lubricants.This can make the machine run better and prolong the service life of the machine.

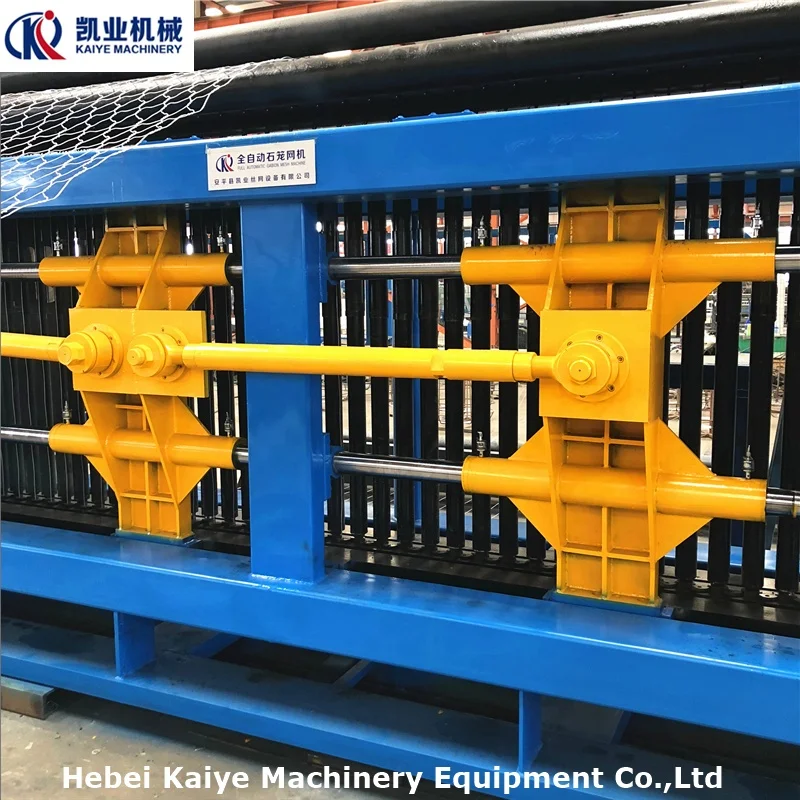

★ Gabion mesh twist system
The gabion mesh twist system has been corrected accurately to ensure the neatness and beauty of mesh standards.
★ Installation tools
We have given away installation tools to save customer time.
★ Small air compressor
Machinery has been equipped with air compressor, convenient for customers.
OUR SERVICE
♦♦♦♦♦ Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
♦♦♦♦♦ After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
COMPANY INFORMATION

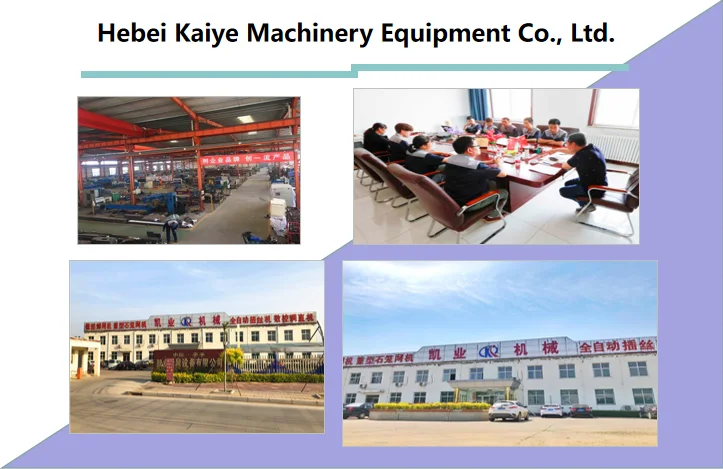

Factory History
Hebei Kaiye Machinery Equipment Co., Ltd., founded in 2000, is famous as "Hometown of wire mesh" in China. We are a professional manufacturer of wire mesh machinery. Our company has been developing smoothly and quickly and now we have more than 150 employees. We can provide high quality machinery and excellent service.
Factory workshop
We have our own wire mesh machinery and several pilot plants with strong technical force and advanced production and checkout equipment.Our main products: wire mesh welding machine, 3D panel production line, reinforcement mesh welding machine, EPS panel production line, Gabion mesh machine, Chain link fence machine and so on.
Factory R&D Team
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 8 years. Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of customers.
Certification
CUSTOMER AND MARKET
Factory Customer
Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, Poland, Ukraine, Russia, Kazakhstan, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil.
FAQ
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, Certificate of origin, Certificate of quality etc, your customs clearance will be no problem.
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, Certificate of origin, Certificate of quality etc, your customs clearance will be no problem.
If you are interested in our products, please contact us now.
