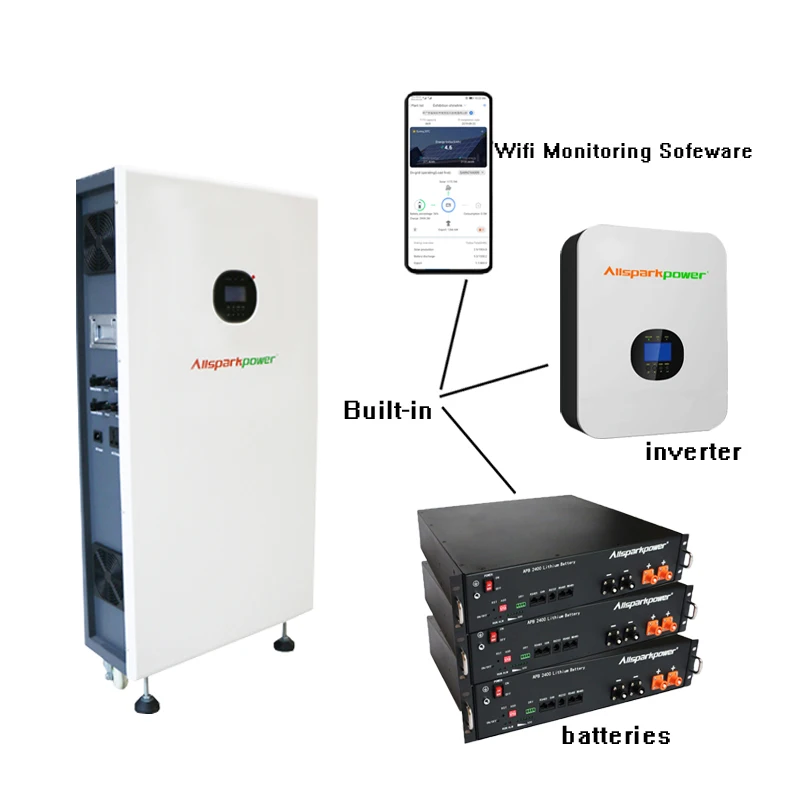

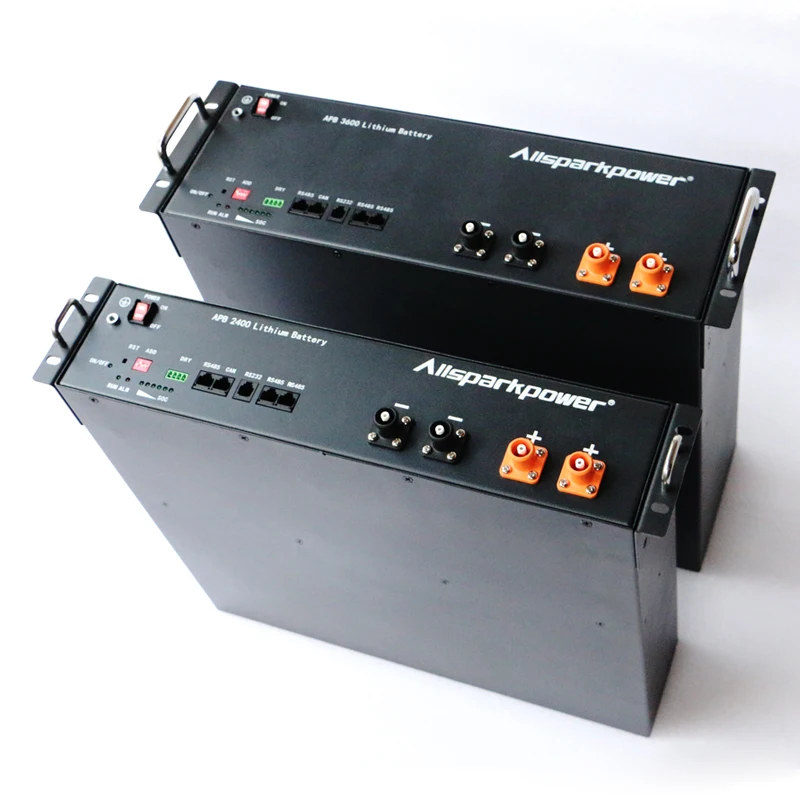

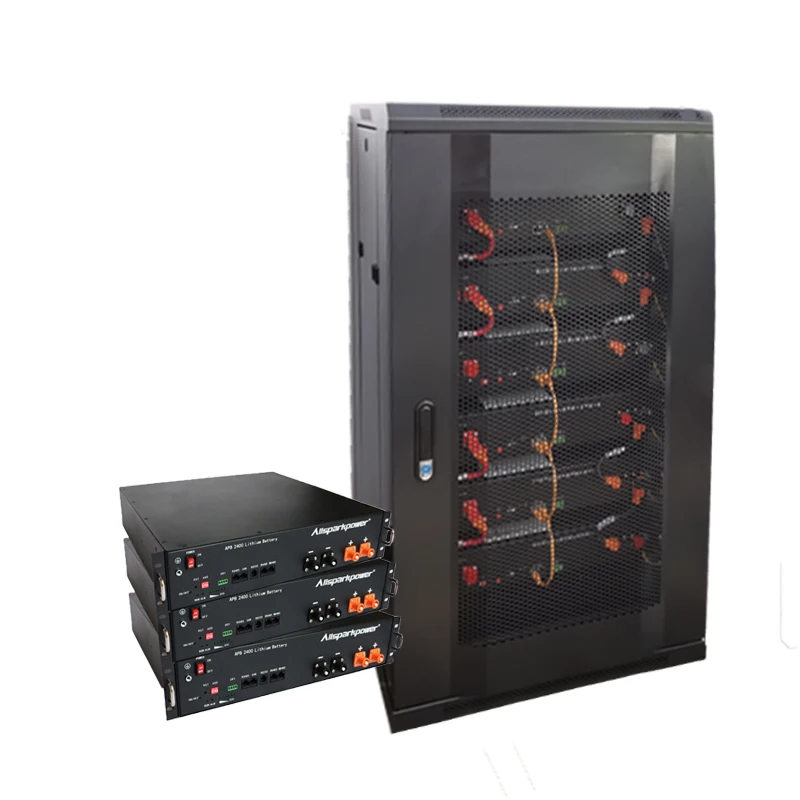

Longer lifespan 10kwh 48v 200ah lifepo4 battery pack solar lithium ion battery with BMS for home solar system
- Category: >>>
- Supplier: Hunan Boltpower Storage Technologies Co. Ltd.
Share on (1600225625842):
Product Overview
Description
Longer lifespan 10kwh 48v 200ah lifepo4 battery pack solar lithium ion battery with BMS for home solar system
Product Overview
Lithium Ion Battery Packs
Standardized model:
48V 50ah
48V 75ah
48V 100ah
can be achieved to combine at will.
Applications:
Wheelchairs and scooters
Solar/wind energy storage
Back-up power for small UPS
Golf trolleys & buggies
Electric bikes
Wheelchairs and scooters
Solar/wind energy storage
Back-up power for small UPS
Golf trolleys & buggies
Electric bikes
Key Features :
Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery. Helping to minimize replacement cost and reduce total cost of ownership.
Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range : -20℃~60℃
Superior Safety: Lithium Iron Phosphate chemistry eliminate the risk of explosion or combustion due to high impact overcharging or short circuit situation.
Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery. Helping to minimize replacement cost and reduce total cost of ownership.
Lighter Weight : About 40% of the weight of a comparable lead acid battery. A "drop in" replacement for lead acid batteries.
Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity.
Wider Temperature Range : -20℃~60℃
Superior Safety: Lithium Iron Phosphate chemistry eliminate the risk of explosion or combustion due to high impact overcharging or short circuit situation.
Specifications:

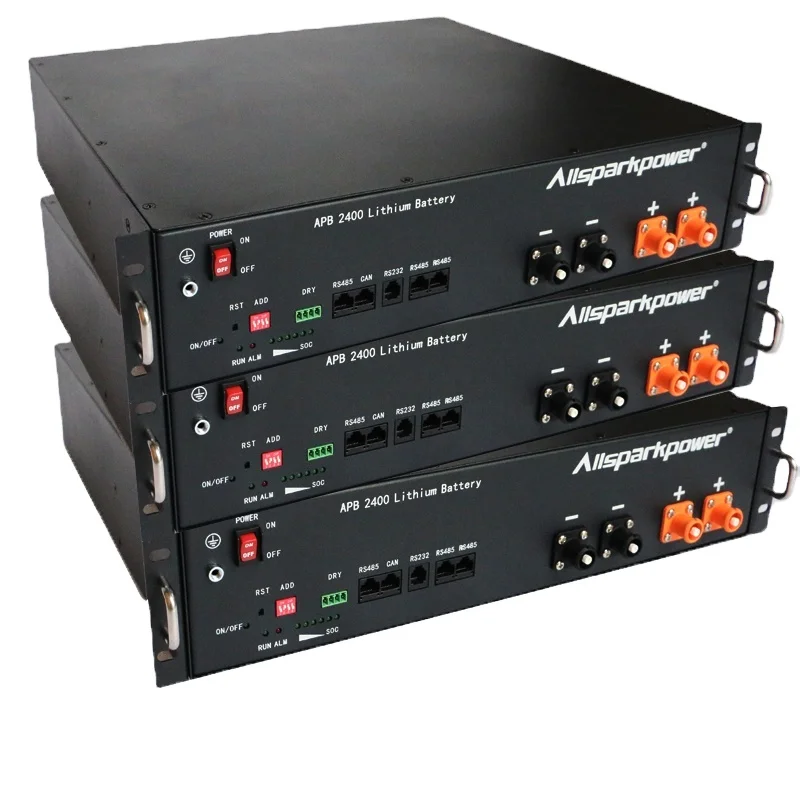

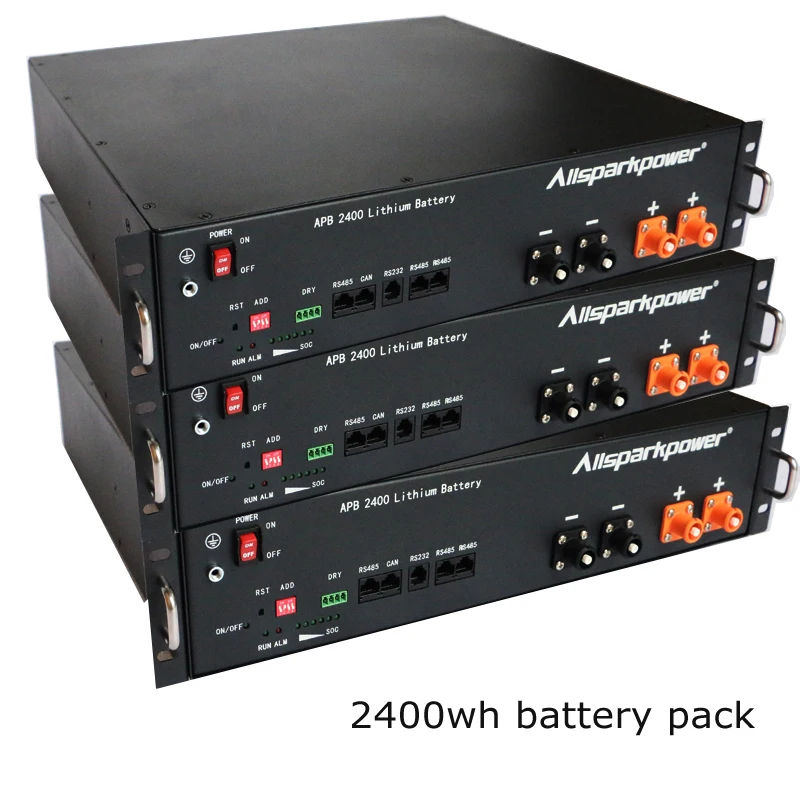

Sing Battery Pack Model | APB 2400 | APB 3600 | APB 4800 |
Nominal Voltage(V) | 48 | 48 | 48 |
Nominal Capacity(Wh) | 2400 | 3600 | 4800 |
Dimension(mm) | 442*410*100 | 442*420*150 | 482*420*177.5 |
Weight(Kg) | 22 | 25 | 48 |
Discharge Voltage (V) | 45 ~ 53.5 | 45 ~ 53.5 | 45 ~ 53.5 |
Charge Voltage(V) | 52.5 ~ 53.5 | 52.5 ~ 53.5 | 52.5 ~ 53.5 |
Charge / Discharge Current (A) | 25 (Recommended) 50 (Max) 100 (Peak@15s) | 37 (Recommended) 75 (Max) 100 (Peak@15s) | 50 (Recommended) 100 (Max) 100 (Peak@15s) |
Communication Port | RS232 .RS485 .CAN | RS232 .RS485 .CAN | RS232 .RS485 .CAN |
Working Temperature/℃ | 0-50 | 0-50 | 0-50 |
Humidity | 5%~85% | 5%~85% | 5%~85% |
Design life | 10+ Years (25 /77℉) | 10+ Years (25 /77℉) | 5%~85% |
Cycle Life | >4000, 25℃ | 10+ Years (25 /77℉) | 10+ Years (25 /77℉) |
Authentication Level | UL / TÜV / CE / UN38.3 | UL / TÜV / CE / UN38.3 | UL / TÜV / CE / UN38.3 |
Single string quantity(pcs) | 15 | 15 | 15 |
SIMILAR PRODUCTS
Warranty and after-sales:
1. Return directly and exchange for a new one (terminal)
2. Send spare parts for repair (agent side)
3. Our Agency will do the after-service.
2. Send spare parts for repair (agent side)
3. Our Agency will do the after-service.
The customer must install in strict accordance with the requirements of the installation manual, and the warranty is not covered. If the installation is not performed according to the installation manual. In the case of correct installation, the supplier is responsible for quality problems arising from non-human factors during the warranty period.
Packing&Shipping
MOQ: | 1 set | |
Packing: | Export Carton+Pallet, 1 set 1 package | |
Trade term: | FOB Shenzhen or Guangzhou; EXW, CIF,DDU and DDP are available. | |
Delivery time: | 7-10 working days for sample order, 15- 25 working days for mass order. | |

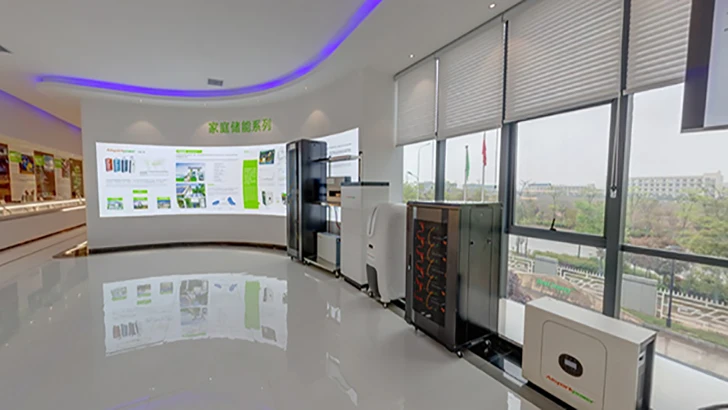

Company Introduction:
Hunan Boltpower New Energy Co, Ltd. is our rich aluminum lithium ions battery giga factory which is nearly 200,000 square meters, with total investment of 403 million USD. Its annual output is around 1,200,000,000 Ah high power of lithium ion battery cells which is widely used in car jump starter, energy storage power supply, UAV power supply,automotive start stop power supply, electric vehicles, power tools and other fields. We will have 17 automation production line, the total output can reach 913 million USD per year,and will create nearly 3,000 jobs in local city.
Hunan Boltpower Storage Technologies Co, Ltd. is the holding subsidiary of Hunan Boltpower New Energy Co, Ltd, which locates in the Changsha national high technology industry park, focuses on home energy including home solar system, home battery system and home energy management system.
Hunan Boltpower New Energy Co, Ltd. is our rich aluminum lithium ions battery giga factory which is nearly 200,000 square meters, with total investment of 403 million USD. Its annual output is around 1,200,000,000 Ah high power of lithium ion battery cells which is widely used in car jump starter, energy storage power supply, UAV power supply,automotive start stop power supply, electric vehicles, power tools and other fields. We will have 17 automation production line, the total output can reach 913 million USD per year,and will create nearly 3,000 jobs in local city.
Hunan Boltpower Storage Technologies Co, Ltd. is the holding subsidiary of Hunan Boltpower New Energy Co, Ltd, which locates in the Changsha national high technology industry park, focuses on home energy including home solar system, home battery system and home energy management system.
