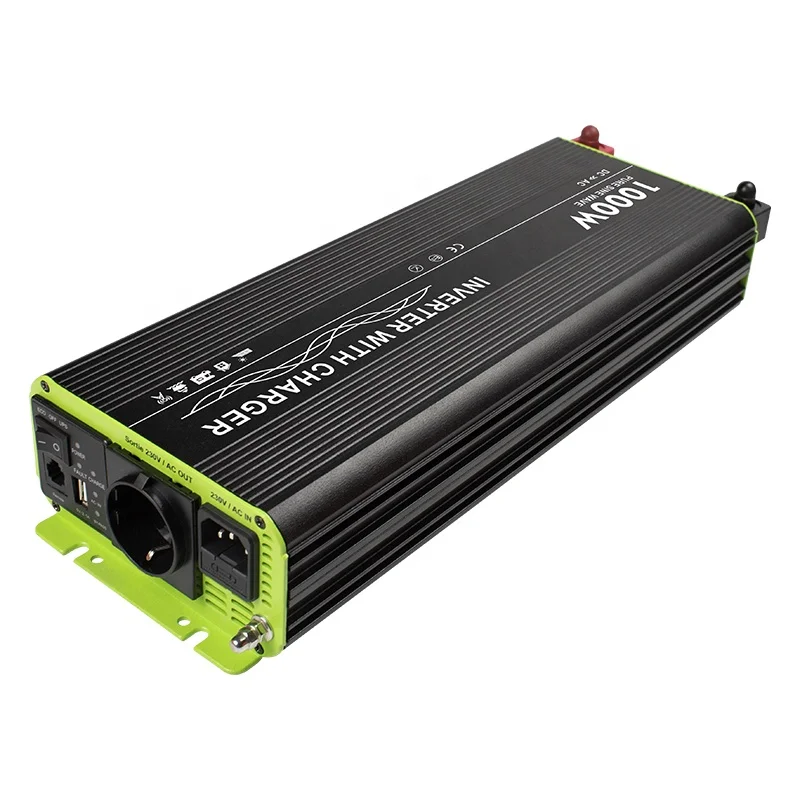

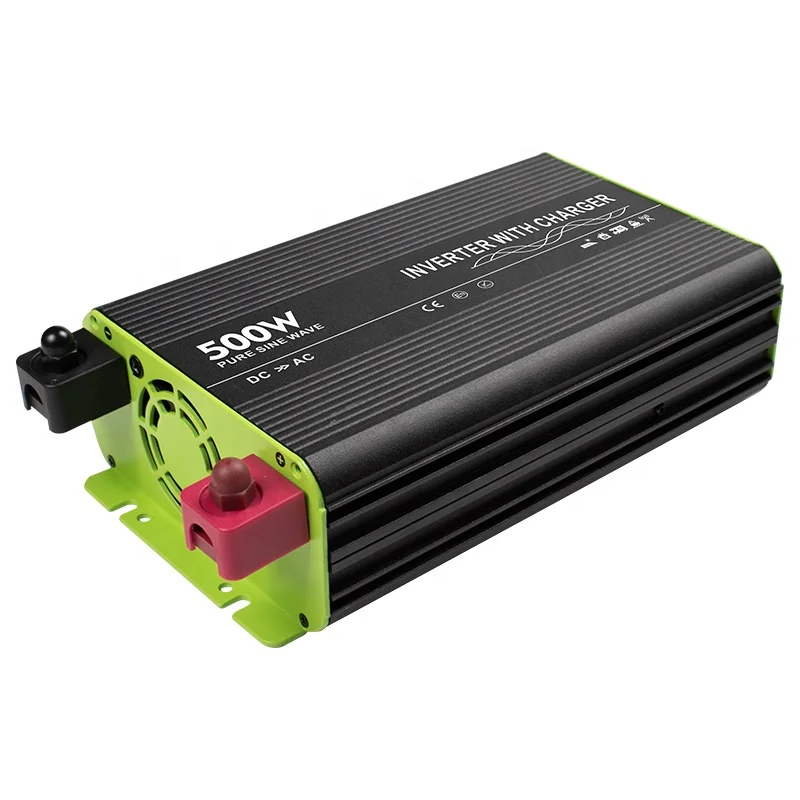

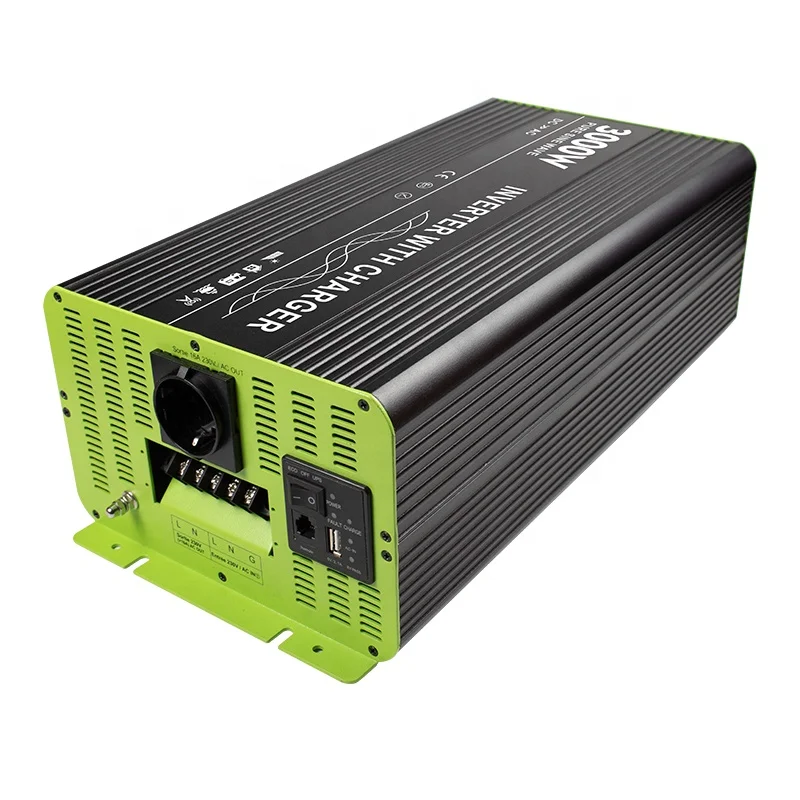

Фабрика обеспечивает ИБП инвертор 300w 500w 1000w 1500w 2000w 2500w 3000 Вт Чистая синусоида Инвертор с зарядным устройством
Фабрика обеспечивает ИБП инвертор 300w 500w 1000w 1500w 2000w 2500w 3000 Вт Чистая синусоида Инвертор с зарядным устройством
Фабрика обеспечивает ИБП инвертор 300w 500w 1000w 1500w 2000w 2500w 3000 Вт Чистая синусоида Инвертор с зарядным устройством
Фабрика обеспечивает ИБП инвертор 300w 500w 1000w 1500w 2000w 2500w 3000 Вт Чистая синусоида Инвертор с зарядным устройством
Фабрика обеспечивает ИБП инвертор 300w 500w 1000w 1500w 2000w 2500w 3000 Вт Чистая синусоида Инвертор с зарядным устройством
Фабрика обеспечивает ИБП инвертор 300w 500w 1000w 1500w 2000w 2500w 3000 Вт Чистая синусоида Инвертор с зарядным устройством
Фабрика обеспечивает ИБП инвертор 300w 500w 1000w 1500w 2000w 2500w 3000 Вт Чистая синусоида Инвертор с зарядным устройством

Фабрика обеспечивает ИБП инвертор 300w 500w 1000w 1500w 2000w 2500w 3000 Вт Чистая синусоида Инвертор с зарядным устройством

Share on (1600225626017):


Price:55,00 $ - 65,00 $

Quantity:


Product Overview

Description


2021 factory provide UPS inverter 300w 500w 1000w 1500w 2000w 2500w 3000w pure sine wave inverter with charger




























































































































































































































































SPECIFICATION
MODEL RSC300PRSC500PRSC1000PRSC1500PRSC2000PRSC2500PRSC3000P
OUTPUTRATED POWER300W500W1000W1500W2000W2500W3000W
SURGE POWER600W1000W2000W3000W4000W5000W6000W
AC VOLTAGEFactory setting set at 110V/220V AC
FREQUENCYFactory setting set at 50HZ/60Hz
WAVE FORMTure sine wave(THD<3%) at rated input voltage
AC REGULATION±10%
STANDARD RECEPTACLESSchuko/UK/Australia/Universal/USA/France/JP/Brazile
FRONT PANEL INDICATOROperation and fault status
INPUTBAT.VOLTAGE12V24V48V          12V                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       24V48V
VOLTAGE RANGE10.8-15.5VDC21.6-31VDC43.2-62VDC10.8-15.5VDC21.6-31VDC43.2-62VDC
DC CURRENT50A25A13A50A25A13A
FUSE35A*235A*120A*135A*235A*120A*1
NO LOAD CURRENT DRAW0.51A0.25A0.17A0.51A0.25A0.17A
EFFICIENCY>92%
BATTERY TYPESRecommend use Open & sealed lead acid battery
BATTERY INPUT PROTECTIONBAT.LOW ALARM10.8±0.2V21.6±0.4V43.2±0.8V10.8±0.2V21.6±0.4V43.2±0.8V
BAT.LOW SHUTDOWN10.2±0.2V20.4±0.4V40.8±0.8V10.2±0.2V20.4±0.4V40.8±0.8V
BAT.OVER SHUTDOWN15.5±0.2V31±0.4V62±0.8V15.5±0.2V31±0.4V62±0.8V
REVERSE POLARITYBy design inside fuse
by passATS transferThe power switch to battery within 2s if the city power cut off.
DC outputcharging current range10A10A20A30A30A40A
OUTPUTOVER TEMPERATURE75℃
OUTPUT SHORTProtection type:Shut down o/p voltage;re-power on to recover
OVER LOAD120% rated power/protection type:shut down o/p voltage;re-power on to recover within 10 times
ENVIRONMENTWORKING TEMP.0~+40℃@100% load;60℃ @50% load
WORKING HUMIDITY20%­90% RH non-condensing
STORAGE TEMP.­30~+70℃/­22~+158℉
STORAGE HUMIDITY10%­95% RH non-condensing
SAFETYCECompliance to EN50498
LVDCompliance to EN60950-1
ROHSCompliance to EN50581
E-MARKE13*10R05/01*14562*00
LED BUZZERLOW BAT.ALARMBuzzer sound 2 times and red light blink 2 times every 8s
LOW BAT.SHUTDOWNBuzzer sound 3 times and red light blink 3 times every 8s
OVER BAT.SHUT DOWNBuzzer sound 4 times and red light blink 4 times every 8s
OVER TEMPBuzzer sound 5 times and red light blink 5 times every 8s
OVER LOADLight blink constantly
OTHERCOOLINGLoad and Temp. control the fan
CONTROL WIRINGRJ11
APPLICATIONHome and office applications,power tools and portable equipment,vehicle,yacht and solar system.

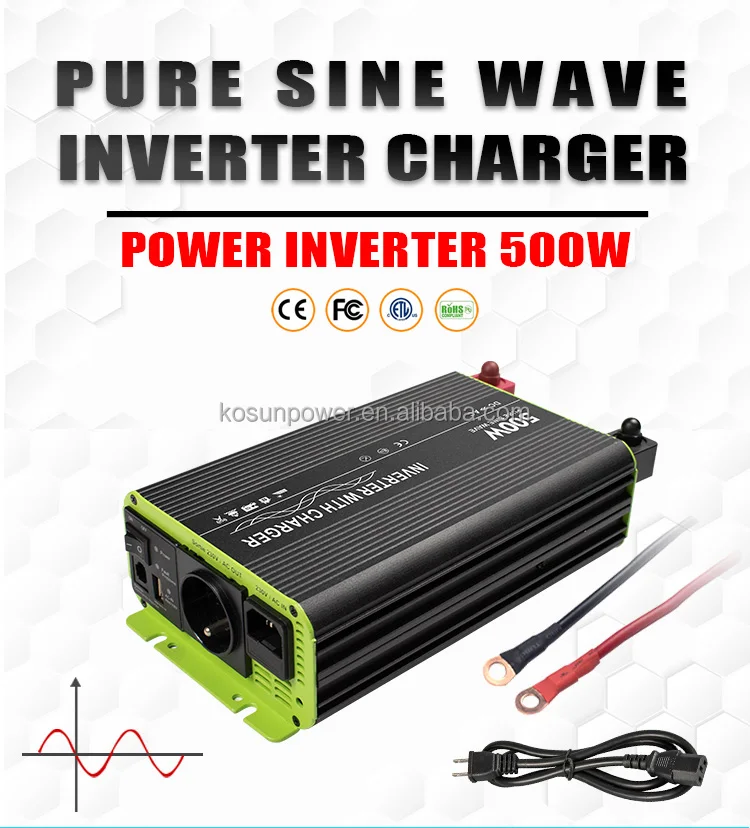

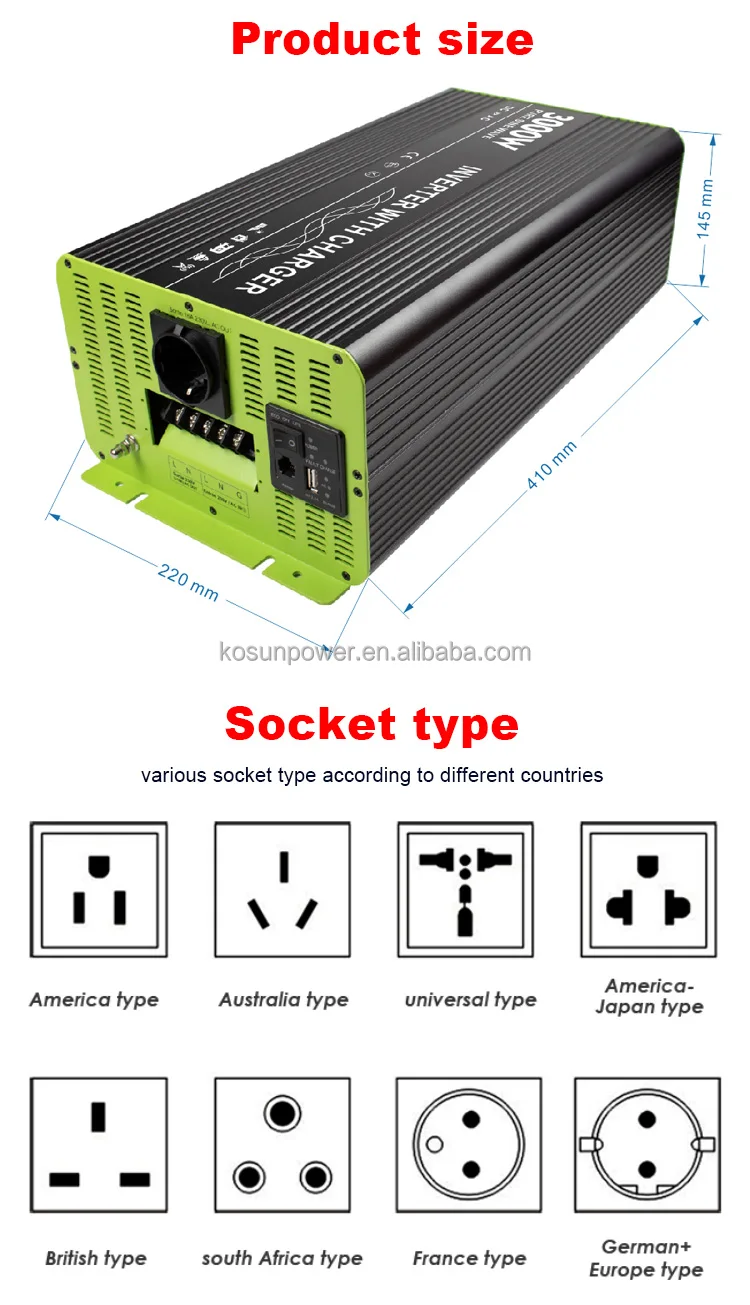

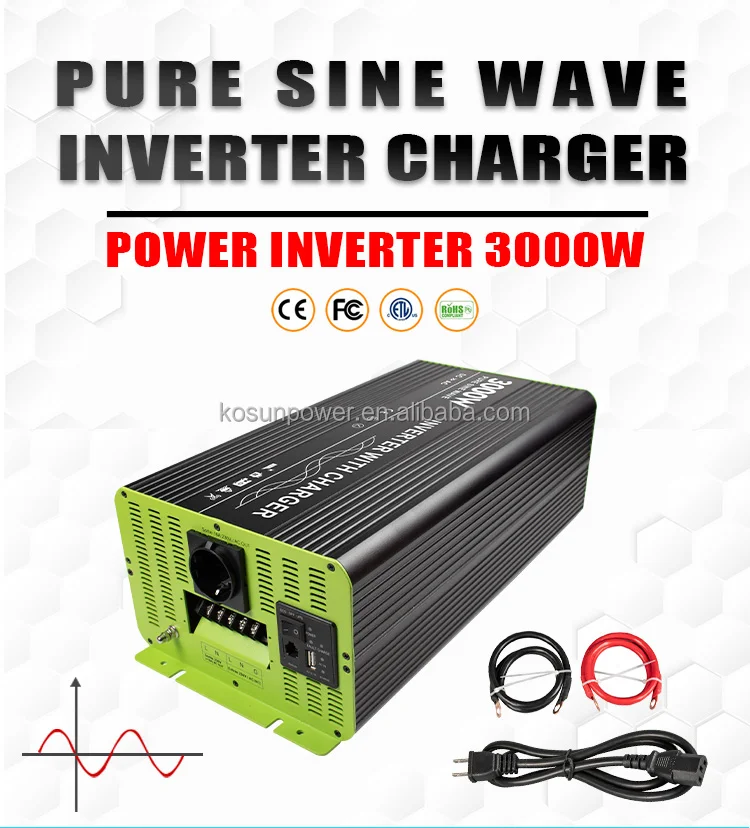

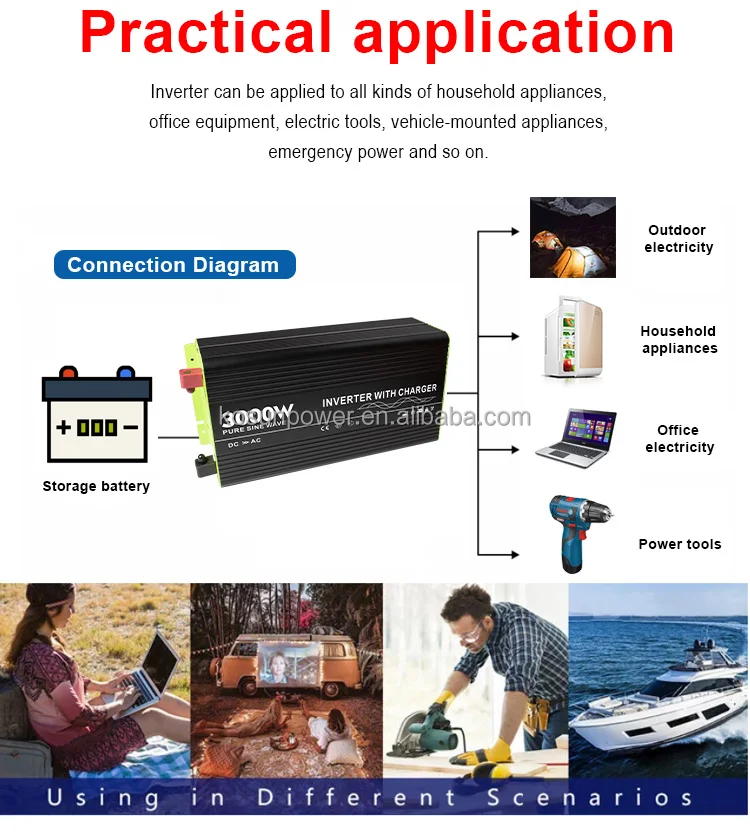

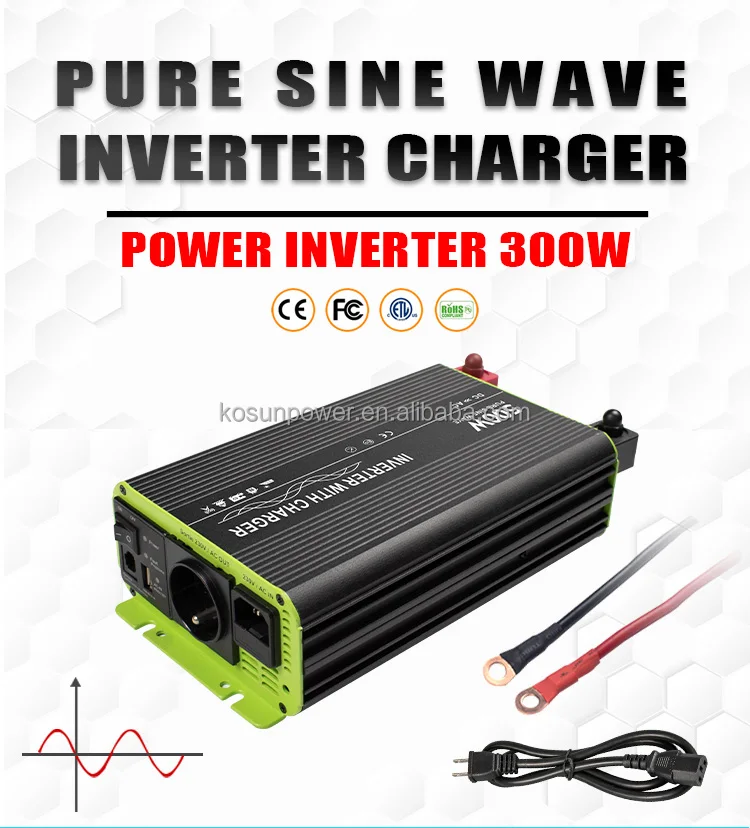

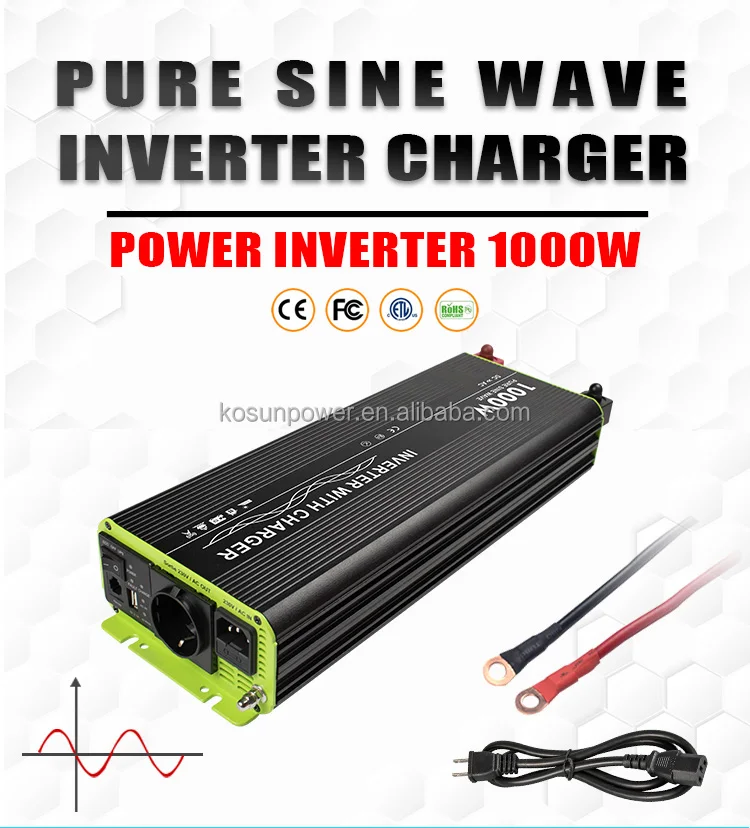

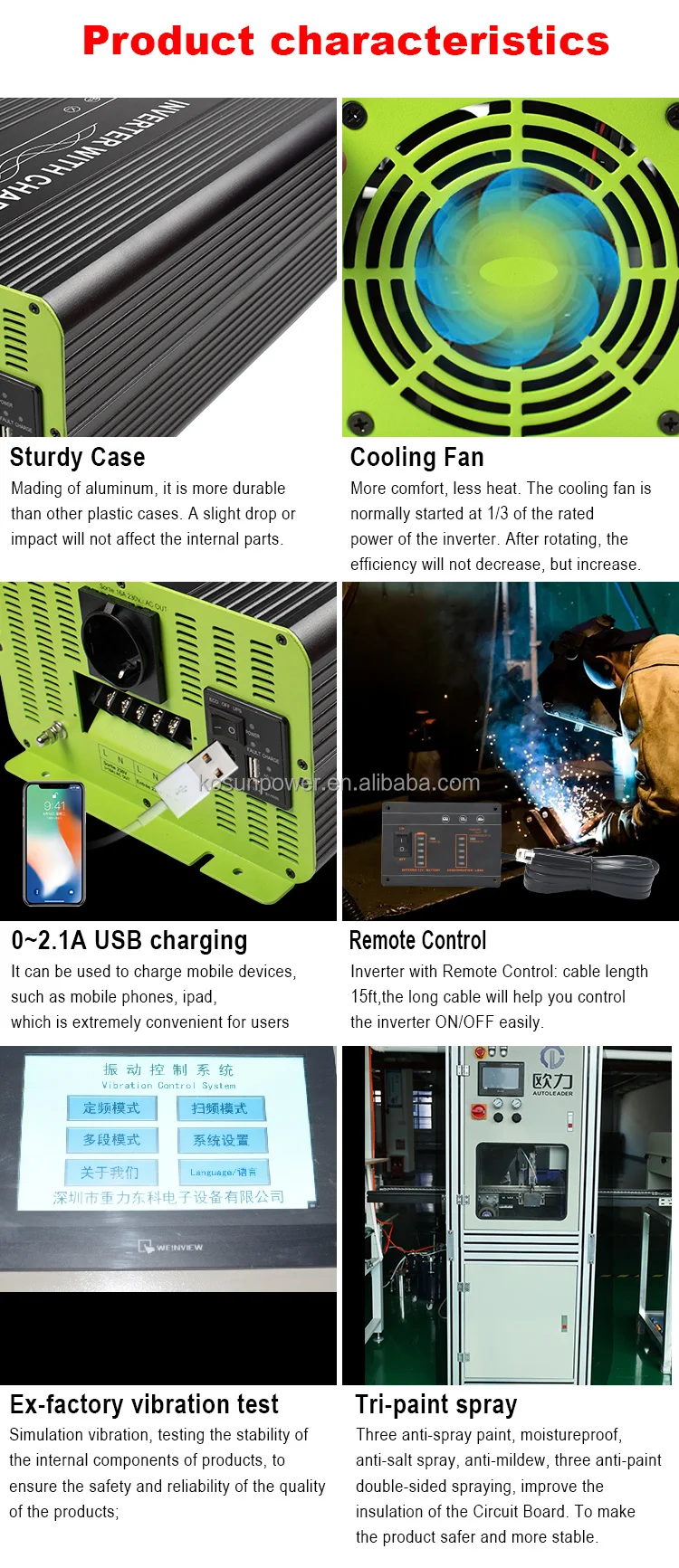

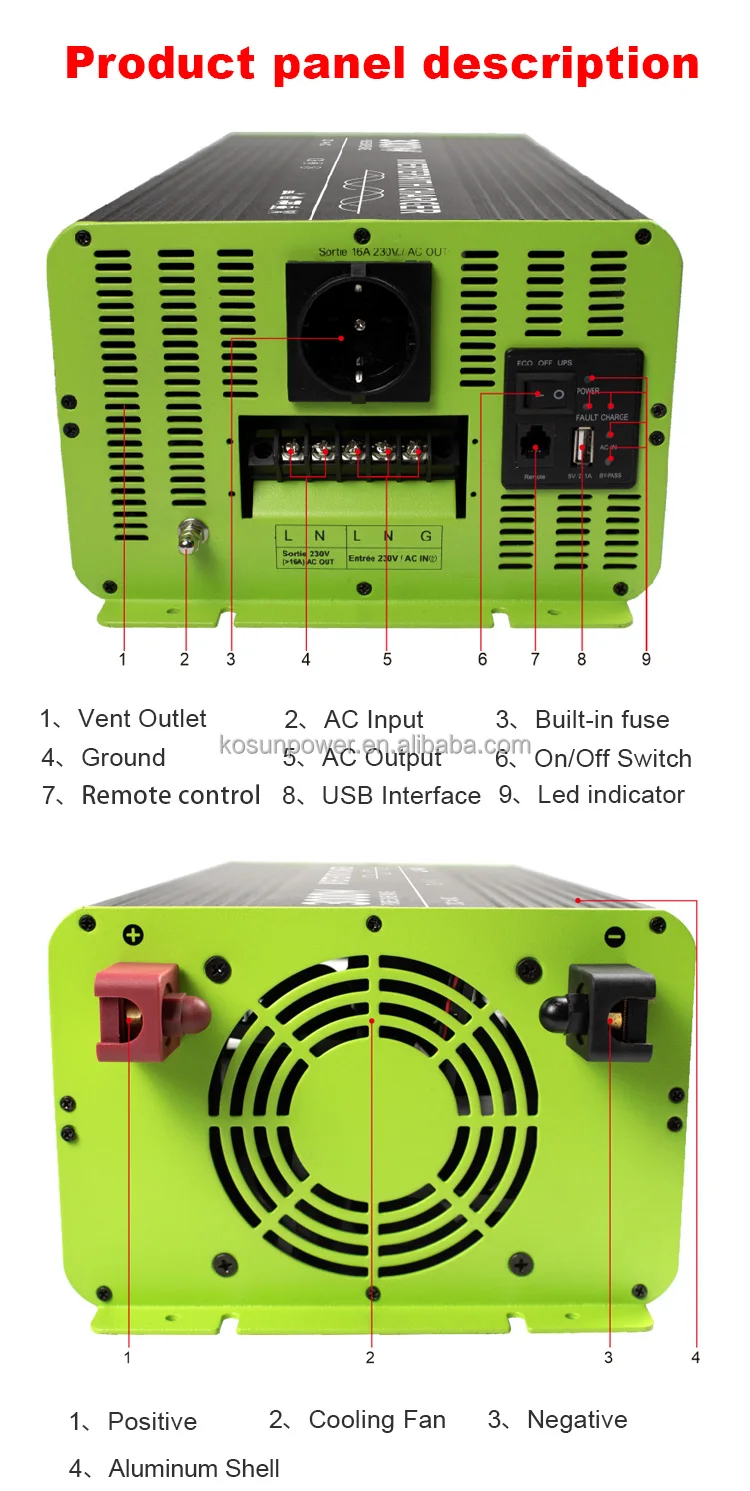

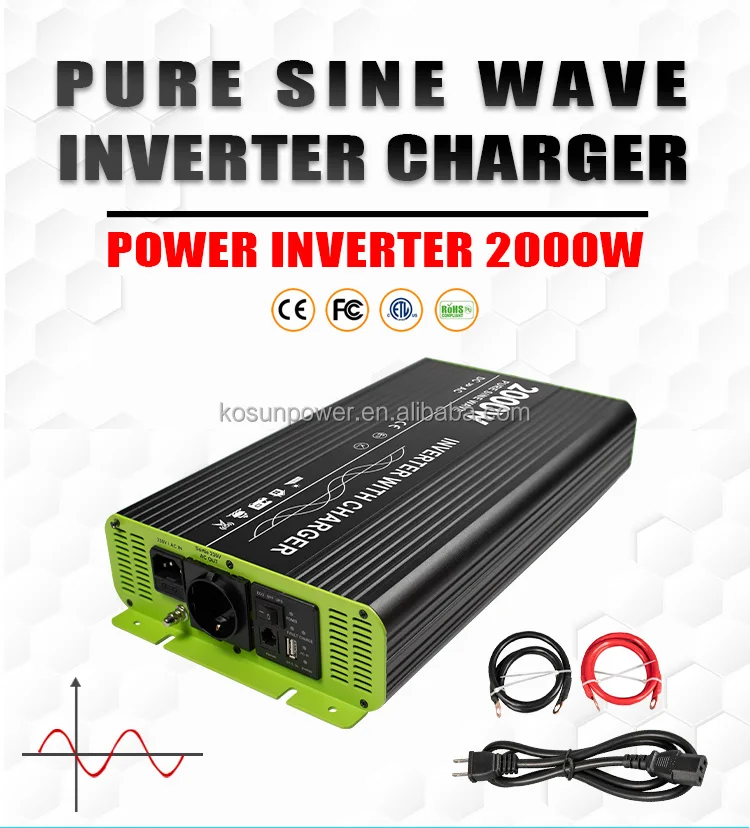

 RSC3000P-_01.jpgRSC3000P-_04.jpgRSC3000P-_05.jpgRSC3000P-_06.jpgRSC3000P-_07.jpgRSC2000P-_01.jpgKSC1000P-_01.jpgKSC500P-_01.jpgKSC300P-_01.jpg
