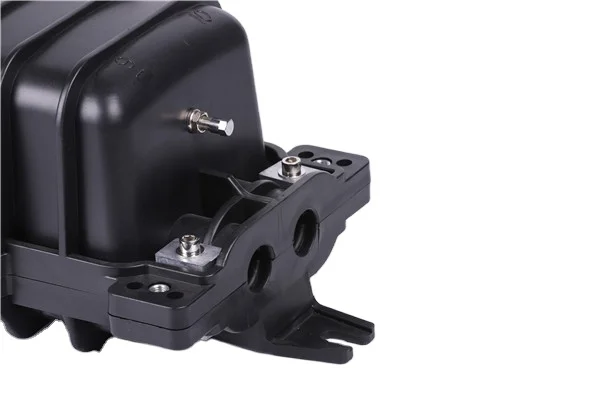

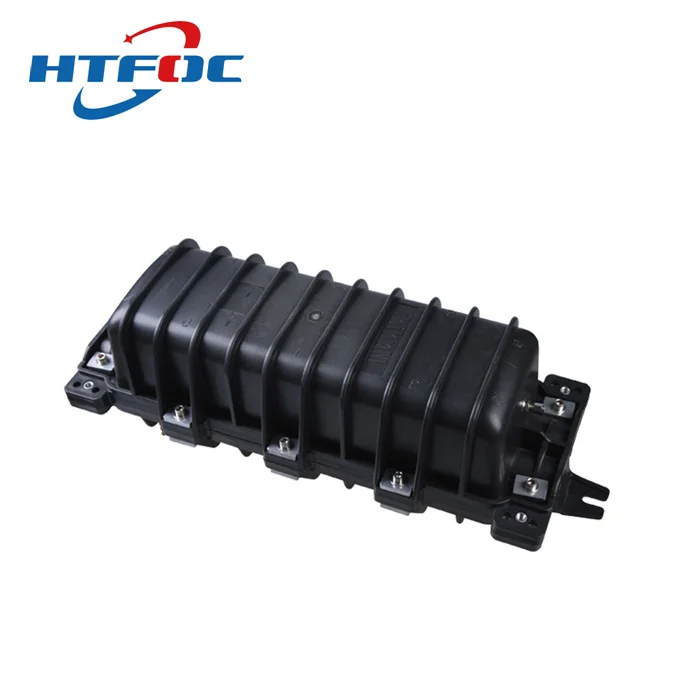

144Core In line Optical distribution enclosure fiber optic joint splice closure dome Horizontal fiber optic equipment
- Category: >>>
- Supplier: Ningbo Huitong Communication Co. Ltd.
Share on (1600225696014):
Product Overview
Description
144Core Aerial joint box fiber cable optic joint splice closure dome Horizontal In-line Optical distribution enclosure IP68
FTTH 144core Joint Box Direct Burial Outside Plant 24 core optical fiber cable joint closure 96 core fiber optic splice
Quick Detail

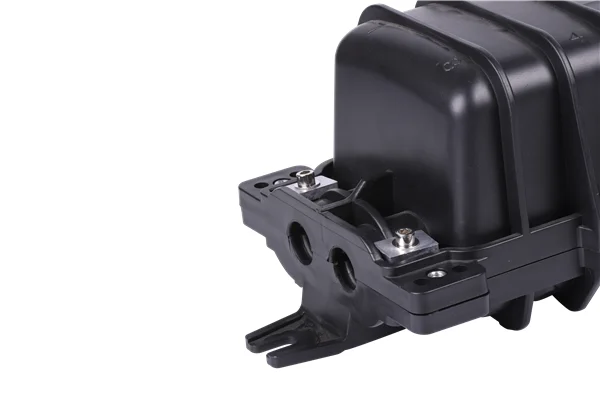

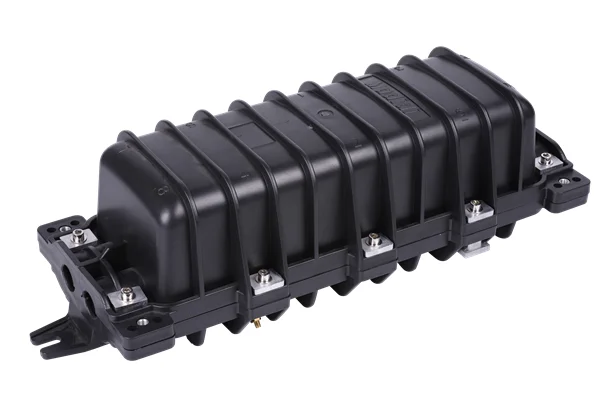

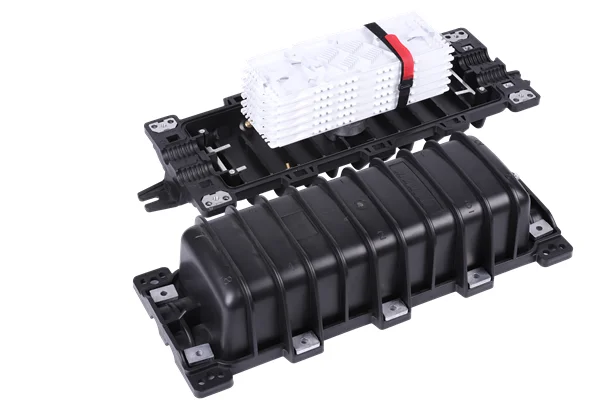

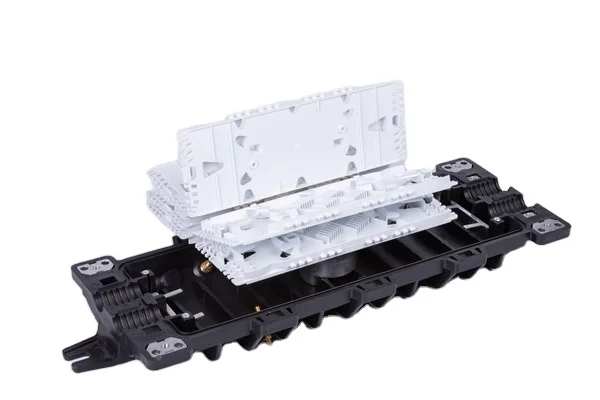

HUITONG Model No. SC-H144-04 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
Specifications
Model No. | SC-H144-04 | Color | Black |
Capacity | 144 cores | Protection Level | IP68 |
Material | PC, PC+ABS,PP | Inlet/outlet | 2+2 |
Dimension(MM) | 650*217*180 | Screw mechanical | |
Inlet cable port | 25MM | Outlet cable port | 25MM |
Applications
Widely used in FTTX access network ,FTTH
Telecommunication Network
LAN/WAN, CATV Networks
Data Communications Network
Fiber optic Network
Features
Available for 12, 24, 48, 72,96 cores and thee max capacity can reach 144 cores
Easy installation and can be installed at temperatures between -40°F~176°F ( -40°C~80°C)
High impact resistant and UV resistant thermoplastic for long life
Made of engineering plastic with high strength and anti-corrosion, 100% water proof, which can provide a long term reliability
Competitive Advantage:
2/2 input/outport round cable port
Outdoor use IP68 , Environment adaptiveness
Great Mechanical performance (Good sealing,Protection)
Easy management and maintain
Great resisting aging performance
Available used in aerial, underground, wall-mounting, Pole-mounting
Operating temperature: -40℃~65℃
function of mechanical splice, fusion splice, light splitting, wiring distributions.

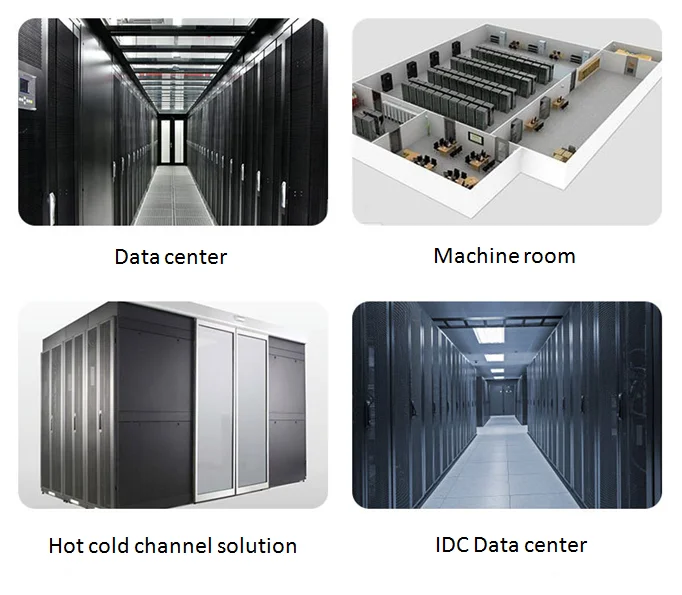

Application
Packaging & Shipping
Our Services

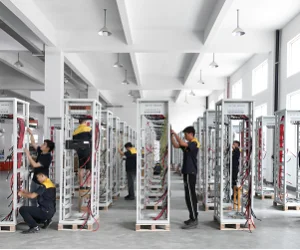

Company Information
FAQ
Can I have a sample order for this product?
We welcome sample order to test and check quality. Mixed samples are acceptable.
What about the lead time?
Sample needs 3-7 days, mass production needs 2-4 weeks.
Do you have any MOQ limit for sample order?
Low MOQ, 1pc for sample checking is available.
What’s the life time for your products?
Normally it is 20 years.
How do you ship the goods and how long does it take to arrive?
Samples ship by DHL, UPS, FedEx or TNT, etc. It usually takes 3-5 days to arrive. Large order by Airline and Sea shipping.
How to proceed an order for the product?
Firstly let us know your requirement or application.
Secondly We quote according to your requirement or our suggestion.
Thirdly customer confirms the samples and places formal order.
Fourthly We arrange the production and delivery.
Do you offer guarantee for the products?
We offer 1 year warranty to our products.
