Product Overview
Description
Product Description

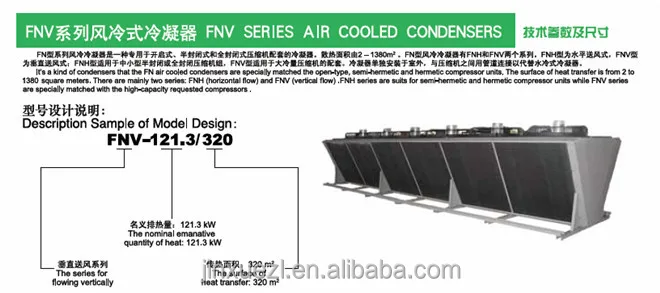

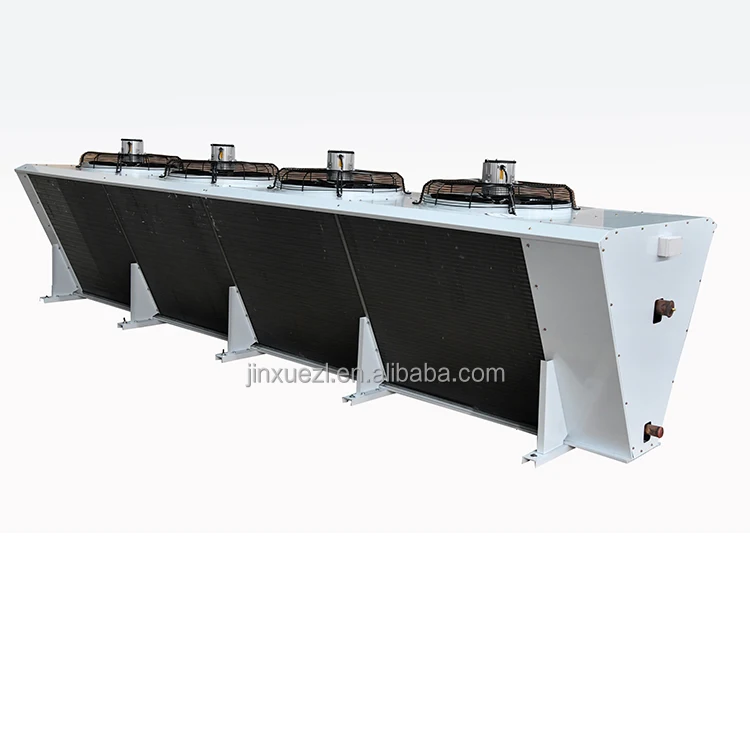

FNV series is a kind of condenser that are specially matched the open-type,semi-hermetic and hermetic compressor units,The surface of heat transfer is from 2 to 1380 square metres.Scientific designs,steady air flow,can fully exert heat-transfer capacity of the condensing unit.Rational performance design,high energy effeciency,Axial Fan,good-looking figure,low processing noise level.Convenient design for maintain(front board can be easily taken down).
| Model | Capacity | Surface | Fans Data | Connection | Dimensions | |||||
| 15KDT | L | B | H | |||||||
| Diameter | Single Power | Airflow | Inlet | Outlet | ||||||
| KW | m2 | mm | W | m3/h | mm(φ) | mm(φ) | mm | mm | mm | |
| FNV-38.9/105 | 38.9 | 105 | 2*φ450 | 2*280 | 2*4700 | 22 | 19 | 1390 | 1000 | 910 |
| FNV-44.4/120 | 44.4 | 120 | 2*φ500 | 2*460 | 2*6700 | 22 | 19 | 1440 | 1000 | 910 |
| FNV-55.5/150 | 55.5 | 150 | 2*φ550 | 2*600 | 2*8730 | 25 | 19 | 1490 | 1000 | 910 |
| FNV-66.5/180 | 66.5 | 180 | 2*φ600 | 2*760 | 2*10700 | 25 | 19 | 1590 | 1000 | 910 |
| FNV-74.0/200 | 74.0 | 200 | 2*φ600 | 2*760 | 2*10700 | 28 | 22 | 1730 | 1000 | 910 |
| FNV-81.4/220 | 81.4 | 220 | 2*φ630 | 2*800 | 2*11695 | 28 | 22 | 1870 | 1000 | 910 |
| FNV-92.5/250 | 92.5 | 250 | 2*φ630 | 2*800 | 2*11695 | 28 | 22 | 2180 | 1000 | 910 |
| FNV-103.6/280 | 103.6 | 280 | 3*φ600 | 3*760 | 3*10700 | 28 | 22 | 2300 | 1000 | 910 |
| FNV-111.0/300 | 111.0 | 300 | 3*φ630 | 3*800 | 3*11695 | 28 | 22 | 2450 | 1000 | 910 |
| FNV-118.4/320 | 118.4 | 320 | 3*φ630 | 3*800 | 3*11695 | 28 | 22 | 2690 | 1000 | 910 |
| FNV-133.2/360 | 133.2 | 360 | 3*φ630 | 3*800 | 3*11695 | 38 | 28 | 2860 | 1000 | 910 |
| FNV-85.1/230 | 85.1 | 230 | 1*φ800 | 1*1500 | 1*24000 | 28 | 22 | 1450 | 1340 | 1490 |
| FNV-170.2/460 | 170.2 | 460 | 2*φ800 | 2*1500 | 2*24000 | 38 | 28 | 2610 | 1340 | 1490 |
| FNV-255.3/690 | 255.3 | 690 | 3*φ800 | 3*1500 | 3*24000 | 50 | 38 | 3770 | 1340 | 1490 |
| FNV-340.4/920 | 340.4 | 920 | 4*φ800 | 4*1500 | 4*24000 | 60 | 42 | 3960 | 1340 | 1490 |
| FNV-425.5/1150 | 425.5 | 1150 | 5*φ800 | 5*1500 | 5*24000 | 60 | 42 | 6120 | 1340 | 1490 |
| FNV-510.6/1380 | 510.6 | 1380 | 6*φ800 | 6*1500 | 6*24000 | 60 | 42 | 7280 | 1340 | 1490 |
Products Categories
Company Information

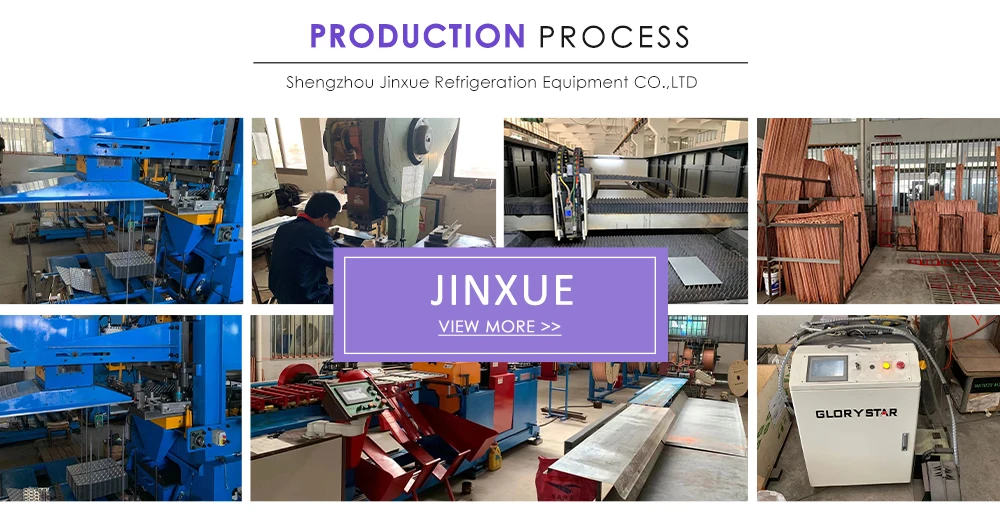

Production Process
Packaging Shipping
FAQ
Q1.Why we can choose you?
We can provide you with quick response service, quality products, shorter lead time, more competitive price and flexible payment term.
Q2.How is quality ensured?
We have established a strict quality control rules based on ISO quality management system, the third party inspection is accepted and also an original report is available to customer directly.
Q3.Can I get an OEM order?
Normally by sea, railway or land shipment, if only a sample required, air or courier delivery is available, however the incurred charges should be borne by customer.
Q4.Which payment terms can you accept?
T/T, L/C, D/P or Western union is available.
