2C x 1.5mm fire resistant fire rated alarm cable
US $18.50-$20.00
Copper Cores PVC Insulated 2.5mm2 x 19 Core Armoured Control Screen Cables
- Category: Control Cables >>>
- Supplier: Zhengzhou,Huadong,Cable,Co.,Ltd.,[Henan,China]Zhengzhou
Share on:
Product Overview
Description
Product Description

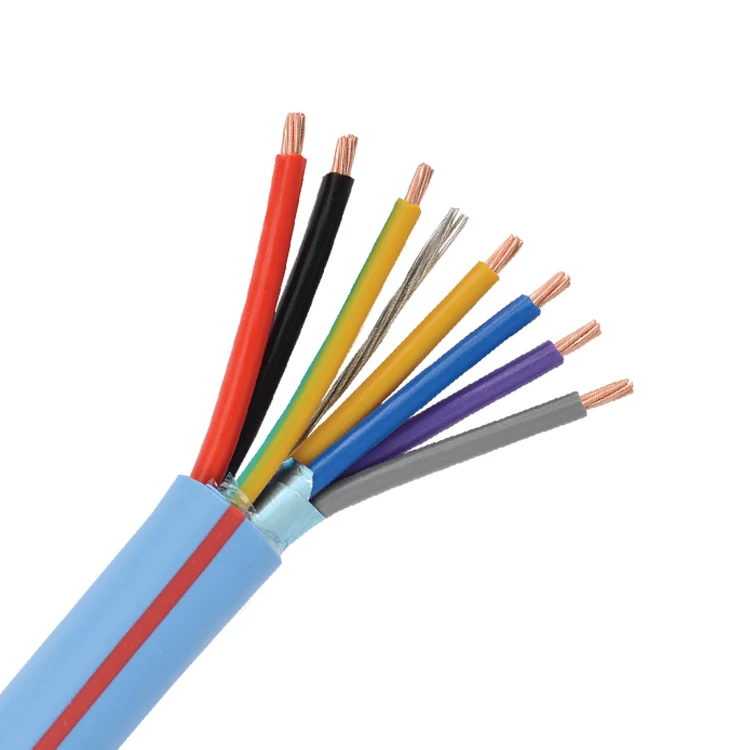

Copper Cores PVC Insulated 2.5mm2 x 19 Core Armoured Control Screen Cables Application:
Control cables are multi-conductor cables used in automation and instrumentation applications. Control cables can measure and regulate transmissions of automated processes. Control cables are often UL rated. Control cables typically are shielded with a foil shield, braid shield or combination of the two.
Control cable can be used to signal transmission, measurement, control and regulation. With their construction propeties, it can apply to under light, medium or high mechanical stresse, and also offer various degrees of protecion against electrical interference and resistance to caustin oils and substances.
Control cable can be used to signal transmission, measurement, control and regulation. With their construction propeties, it can apply to under light, medium or high mechanical stresse, and also offer various degrees of protecion against electrical interference and resistance to caustin oils and substances.

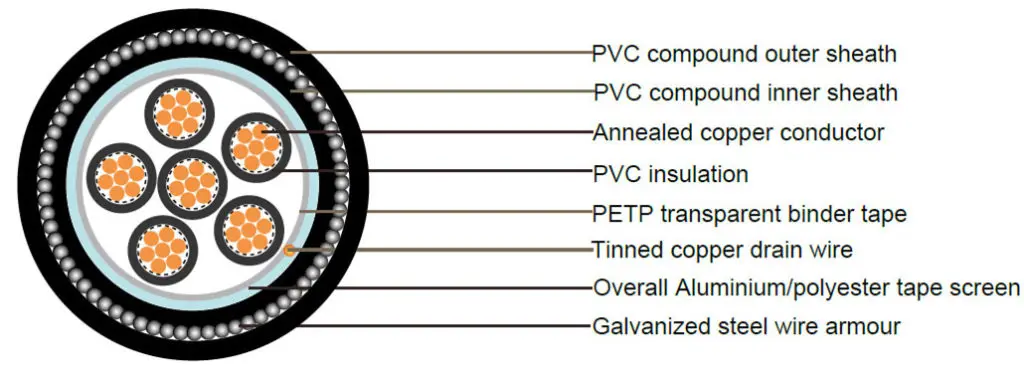

Control Cable Structure:

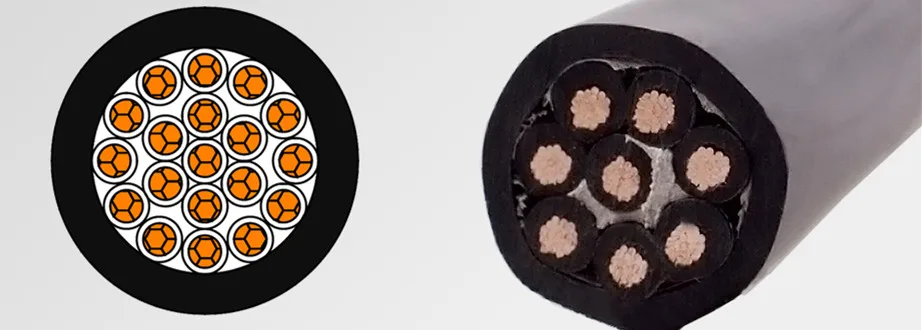

Copper Cores PVC Insulated 2.5mm2 x 19 Core Armoured Control Screen Cables Technical Parameter
Control Cable (UL) SVT E166124 VE-1 18AWG/2C TYPE SVT L105054 18AWG/2c FT-2
| 9 Core CVV-SWA Control Cable | |||||||||||
| No.of core | Nominal cross-sectional area | No.&dia.of wires | Thickness of insulation | Thickness of inner sheath | Diameter of steel wire armour | Thickness of outer sheath | Overall diameter (Approx.) | Maximum conductor (at20C) | Minimum insulation resistance (at70C) | Cable weight (Approx.) | Standard Length |
| mm2 | No./mm | mm | mm | mm | mm | mm | Ohm/km | Ohm/km | kg/km | m | |
| 9 | 0.5 | 7/0.30 | 0.8 | 1.2 | 1.25 | 1.8 | 20.5 | 36 | 0.0162 | 680 | 500/D |
| 0.75 | 7/0.37 | 0.8 | 1.2 | 1.25 | 1.8 | 21.5 | 24.5 | 0.0142 | 750 | 500/D | |
| 1 | 7/0.40 | 0.8 | 1.2 | 1.25 | 1.8 | 22 | 18.1 | 0.0135 | 770 | 500/D | |
| 1.5 | 7/0.50 | 0.8 | 1.2 | 1.25 | 1.8 | 23 | 12.1 | 0.0115 | 885 | 500/D | |
| 2.5 | 7/0.67 | 0.8 | 1.2 | 1.6 | 1.8 | 26 | 7.41 | 0.0093 | 1230 | 500/D | |
| 4 | 7/0.85 | 1 | 1.2 | 1.6 | 1.8 | 29.5 | 4.61 | 0.0092 | 1630 | 500/D | |
| 6 | 7/1.04 | 1 | 1.2 | 1.6 | 1.9 | 32 | 3.08 | 0.0078 | 1975 | 500/D | |
Control Cable VDE Standards
| YY Cable (YSLY / HSLH) | Versatile unscreened or unshielded cable suitable for most situations where there is only light mechanical stress |
| CY Cable (YSLCY / HSLCH) | Multicore screened flexible cable with Polyethylene Terephthalate (PETP) for electromagnetic interference free-transmission |
| SY Cable (YSLYSY / HSLHSH) | Flexible shielded cable with galvanised steel wire braid for additional mechanical protection |
| LiYCY Cable | Screened and shielded cable for applications where moderate mechanical stress and electromagnetic screening is required |
| LiYY Cable | Unscreened and unshielded cable for light duty in dry and humid environments |
| LiHH Cable | Unscreened LSZH low capacitance control |
| LiHCH Cable | Screened LSZH data transmission cable |
Company Information
Zhengzhou Huadong Cable Co.,Ltd is an import and export trade co,pany in Zhengzhou City, Henan province, China, which is a branch of Henan Huadong Cable Group. Our factory occupied 50000 square meters, and specialize in overhead ABC cable, AAC, ACSR, AAAC, 0.6-35KV power cable, control cables, welding cables, rubber cables, mining cables. We can provide standard cables with GB, IEC, BS, ICEA, ASTM, DIN, VED and JIS srandards. What's more, We can design cables according to your requirement. Now you can send the inquiry, leave your email, then our sales manager will send you quotation as soon as possible. High Temperature Fire Resistant Multicore Flexible Control Wire Cable SY YY KVVR LSZH Cable
Production Flow
Our factory has advanced equipment of 20 sets production lines and 25 sets testing machinas, The production capacity is more than 12 million kilometers. We have skillful staff over 20-year experience,before starting working, every worker need to be trained professionally. Therefore, we can promise the product will be 100% quantified.

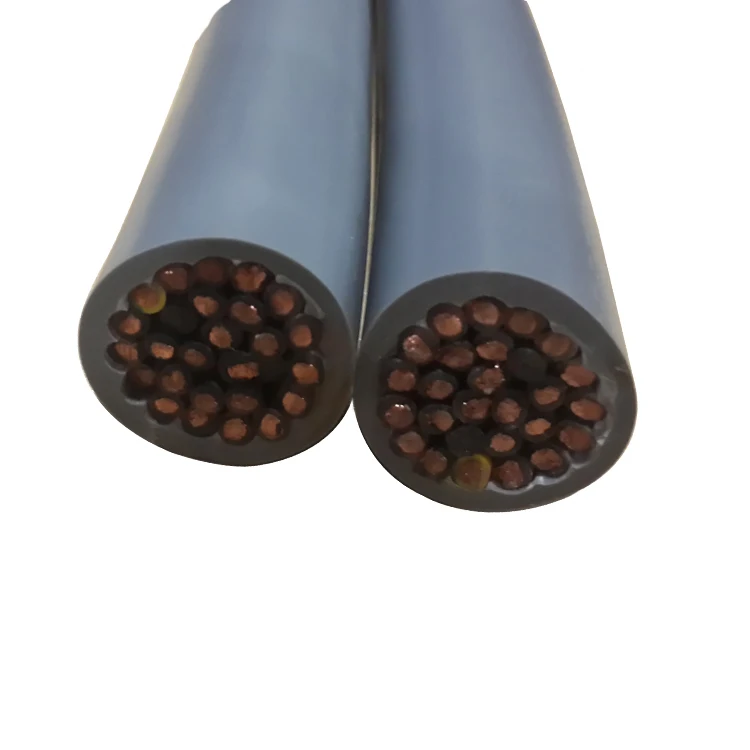

Copper Cores PVC Insulated 2.5mm2 x 19 Core Armoured Control Screen Cables Testing High Temperature Fire Resistant Multicore Flexible Control Wire Cable SY YY KVVR LSZH Cable
In our factory, every roll wire need to be test strictly, We wil test resistance, insulation thickness, the tension, stretch and so on. Before packing, every cable need to be test quantified, and we can make promise the 100% quantified. High Temperature Fire Resistant Multicore Flexible Control Wire Cable SY YY KVVR LSZH Cable

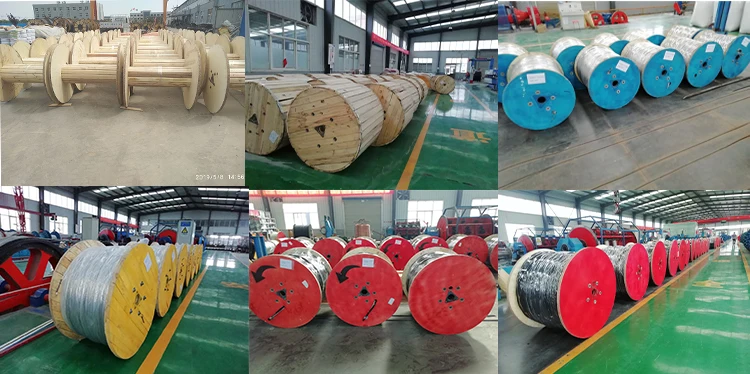

Packaging & Shipping
Copper Cores PVC Insulated 2.5mm2 x 19 Core Armoured Control Screen Cables Package: Control Cable (UL) SVT E166124 VE-1 18AWG/2C CSTYPE SVT L105054 18AWG/2c FT-2
When you identify the details, don't forget to choose the package and its color. In usually, customer usually choose wooden drum and you can choose paint blue color, yellow color or red color. If you don't like these package or color, we can customize for you, now, you can send us your wanted package and colors.
Copper Cores PVC Insulated 2.5mm2 x 19 Core Armoured Control Screen Cables Delivery: Control Cable (UL) SVT E166124 VE-1 18AWG/2C TYPE SVT L105054 18AWG/2c FT-2
First of all, we will delivery on time. Especially in the busy season, we will word overtime to make sure delivery on time.
Secondary, about the loading, the cable will be protected well, all the needed measure will be adopted.
Thirdly, we have cooperated with profesional shipping agent and shipping company to keep you receive the intact on time.
Now you can send us the inquiry.
Our Services
Buyer Feedback
We promise 100% quantified product, and we will also pay attentiont to package and delivery. Therefore, our customer can receive the perfect product. Come to start our business.
FAQ
1. The time you can get the quotation after the sending the inquiry
In the working time, our sales manager will send quotation to your email box within 1 or 2 hours. On the contrast, we will send you email within 12 hours. Therefore, email is needed to let us know, then we can contact with you.
2. For Sample
We can provide you the sample for free, if you want to check the cable, you can ask the sales manager.
3.Payment
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight
4. what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
......
If you have any other question, you can send us inquiry, we will reply to you as soon as possible
