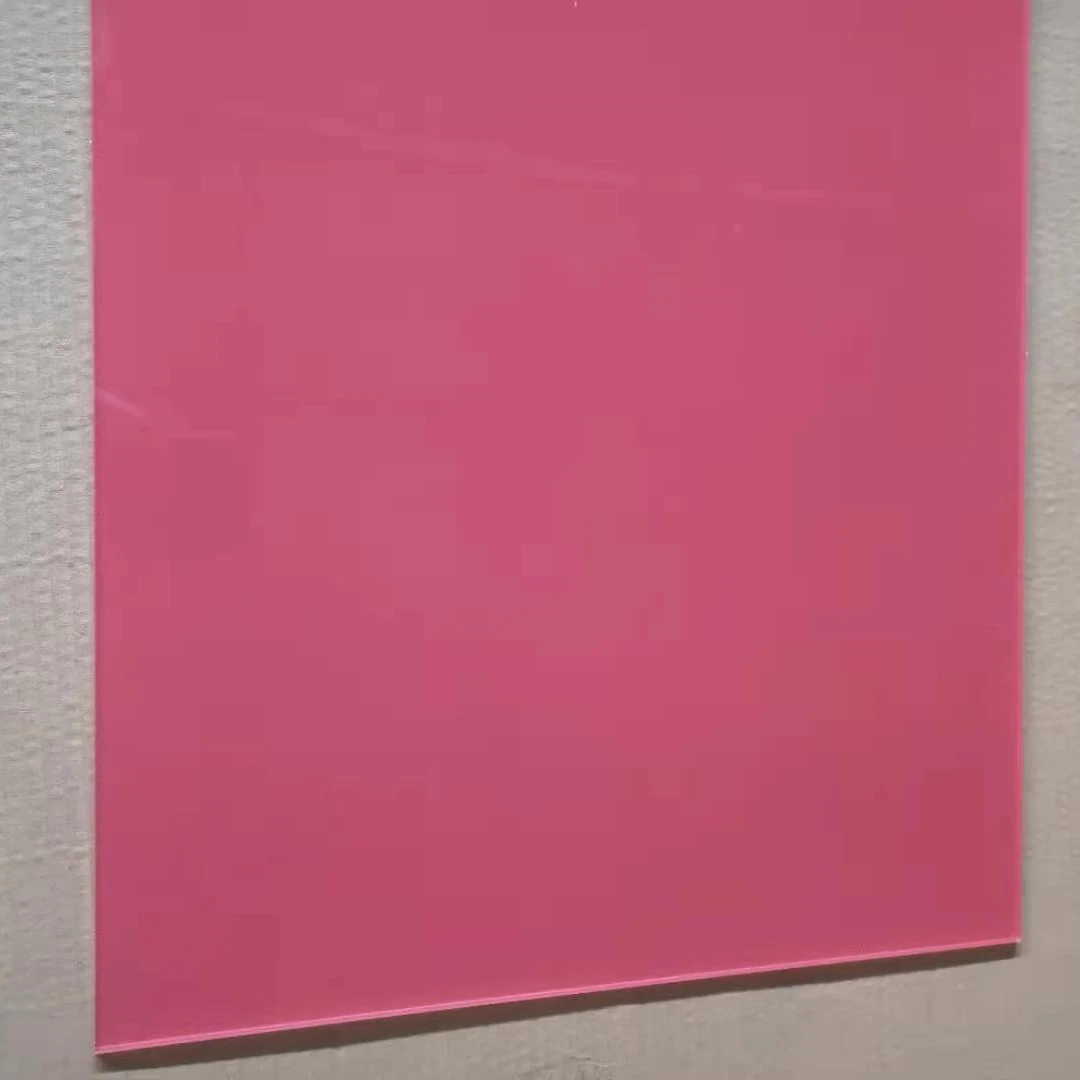

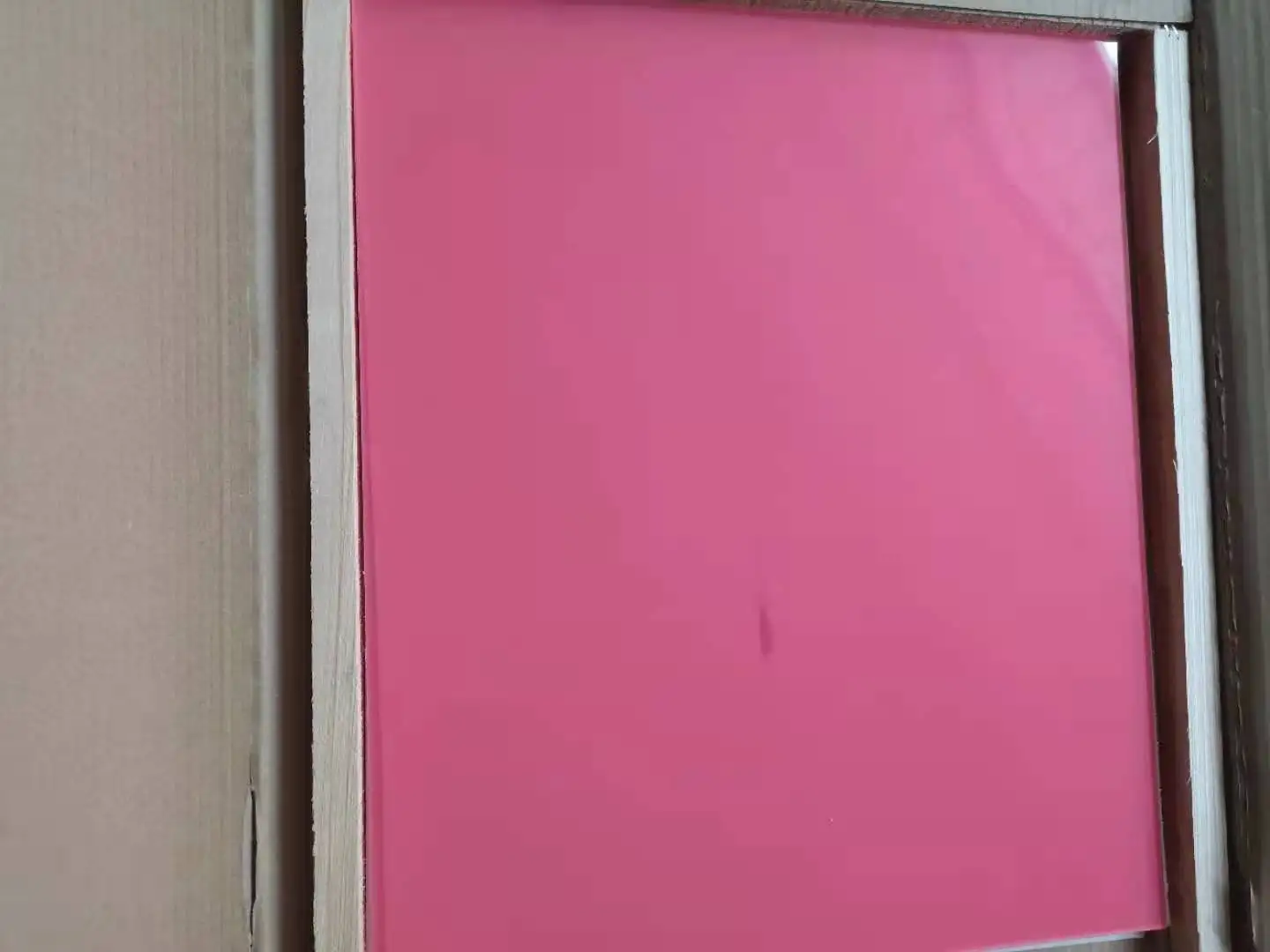

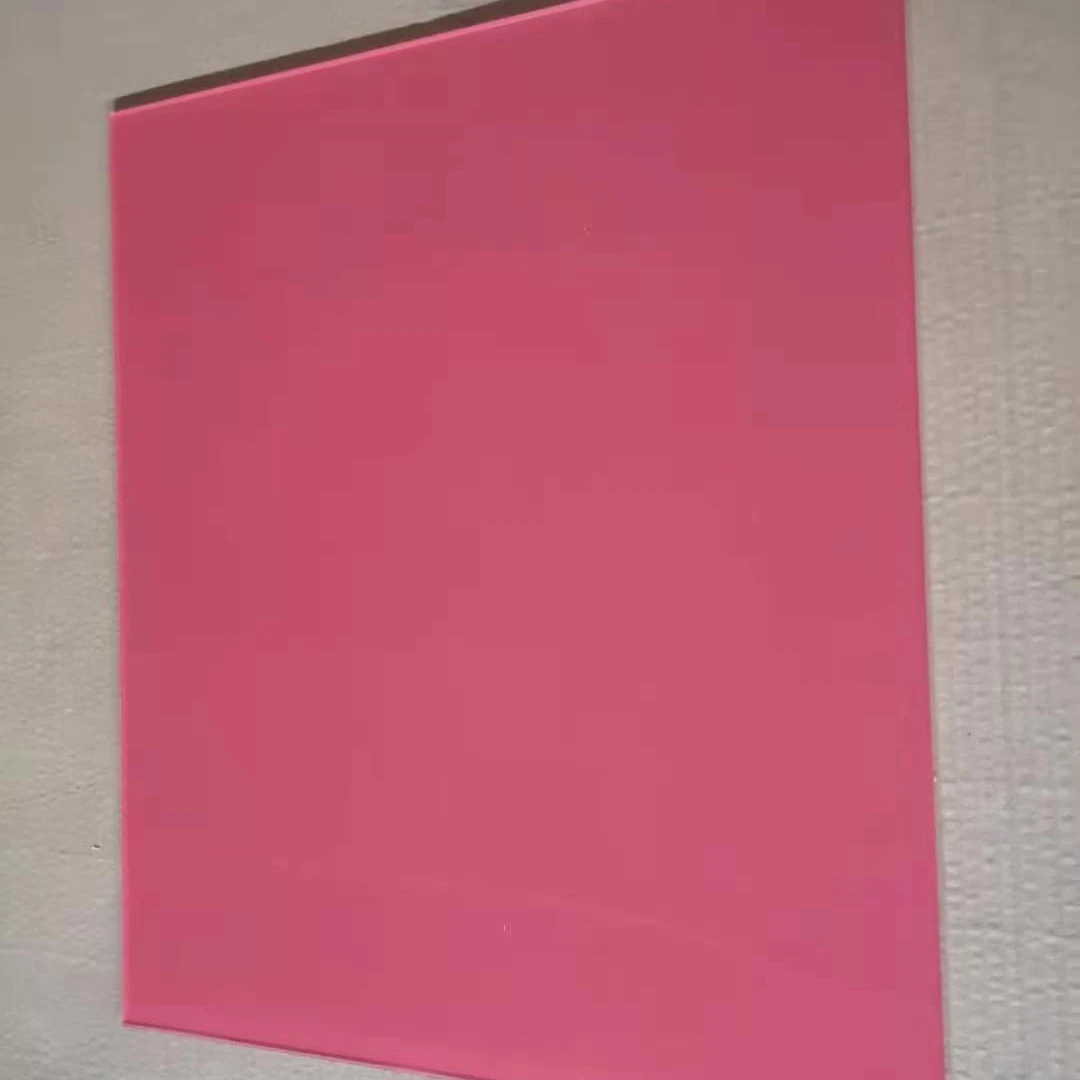

1.14mm flexographic printing plate photopolymer plate for printing label
- Category: >>>
- Supplier: Shanghai Shangkai Industry Co. Ltd.
Share on (1600225777644):
Product Overview
Description
Product Description
Specification
1- Item
New SK114H flexo photopolymer printing plate
2- Description
1)Excellent dot and isolated line reproduction
2)Solid printing performance
3)High latitude of exposure and processing
4)Good ink transfer
5)High impression
3-Technical Parameters
New SK114H flexo photopolymer printing plate
2- Description
1)Excellent dot and isolated line reproduction
2)Solid printing performance
3)High latitude of exposure and processing
4)Good ink transfer
5)High impression
3-Technical Parameters
Type | SK114H |
Thickness(mm) | 1.14mm |
Rigidity(Shore A) | 70-72 |
Recommend relief depth(mm) | 0.8-1.0 |
Image reproduction | 2%~98% |
Maximum line line/inch | 140 |
Minimum isolated line | 0.15mm (0.006inch) |
Minimum isolated dot | 0.3mm (0.012inch) |
Size mm (inch) | 457*762(18*40),762*1016(30*40),900*1200(35*47),1067*1524 (42*60), 1320*2032 (52*80), |
Back exposure (seconds) Main exposure (minutes) Wash version (minutes) Dry (hours) Detackfying(minutes) Post exposure(minutes) | 20-40 8-15 5-10 1.0-1.5 4-6 3-5 |
Note: | Platemaking conditions: modulator tube 80W(intensity in 365nm:9.7mW/cm2),Temperature of plate maker:24-30°C |
Suitable ink | Suitable for water and alcohol-based ink, incompatible with oil-based ink, hydrocarbon solvent or the ink containing ethyl acetate of more than 25% |
Storage—raw plates | Unexposed plates should be stored in cool areas (4-32°C)away from heat. The plates must be placed flatly, and protected from contacting UV light. It is recommended to unpacked and handled in yellow light. |
Storage—finished Plates | Printing plate should be avoid excessive white light, irradiating from sunlight and exposing in high concentrated ozone environments for a long time either. After being unloaded, the plates should be cleaned thoroughly. |
Guarantee Period | Under the recommended storage condition, guarantee period of Flexographic Printing Plate is 24 months. |
Company Profile
Shanghai shangkai industry co,Ltd is a joint-stock enterprises ,the company specializes in sales of flexo printing plates and flexo printing consumables,offering accomplished after-sale services.shanghai shangkai industry has more than 12 years of sales history and a professional enterprise with advanced managerial and technological system.
The products by the company are highly recognized for their reasonable prices and superb qualities,quality、price and service are the majorconcern of the company currently.
Shanghai shangkai industry is proud of its over 400 clients in China and other countries,which both the printing factory direct users,but also the various size professional plate-making company.
Shanghai shangkai industry adhrers to the principle of customer first,striving to improve the overall quality of its staff, to further training programs regarding service quality and to perfect the order-delivrey-settlement flow process and the customer information management.The company is confident in the provision of high-quality products and after-sale services to meet the various demands by its customers and clients.
The products by the company are highly recognized for their reasonable prices and superb qualities,quality、price and service are the majorconcern of the company currently.
Shanghai shangkai industry is proud of its over 400 clients in China and other countries,which both the printing factory direct users,but also the various size professional plate-making company.
Shanghai shangkai industry adhrers to the principle of customer first,striving to improve the overall quality of its staff, to further training programs regarding service quality and to perfect the order-delivrey-settlement flow process and the customer information management.The company is confident in the provision of high-quality products and after-sale services to meet the various demands by its customers and clients.

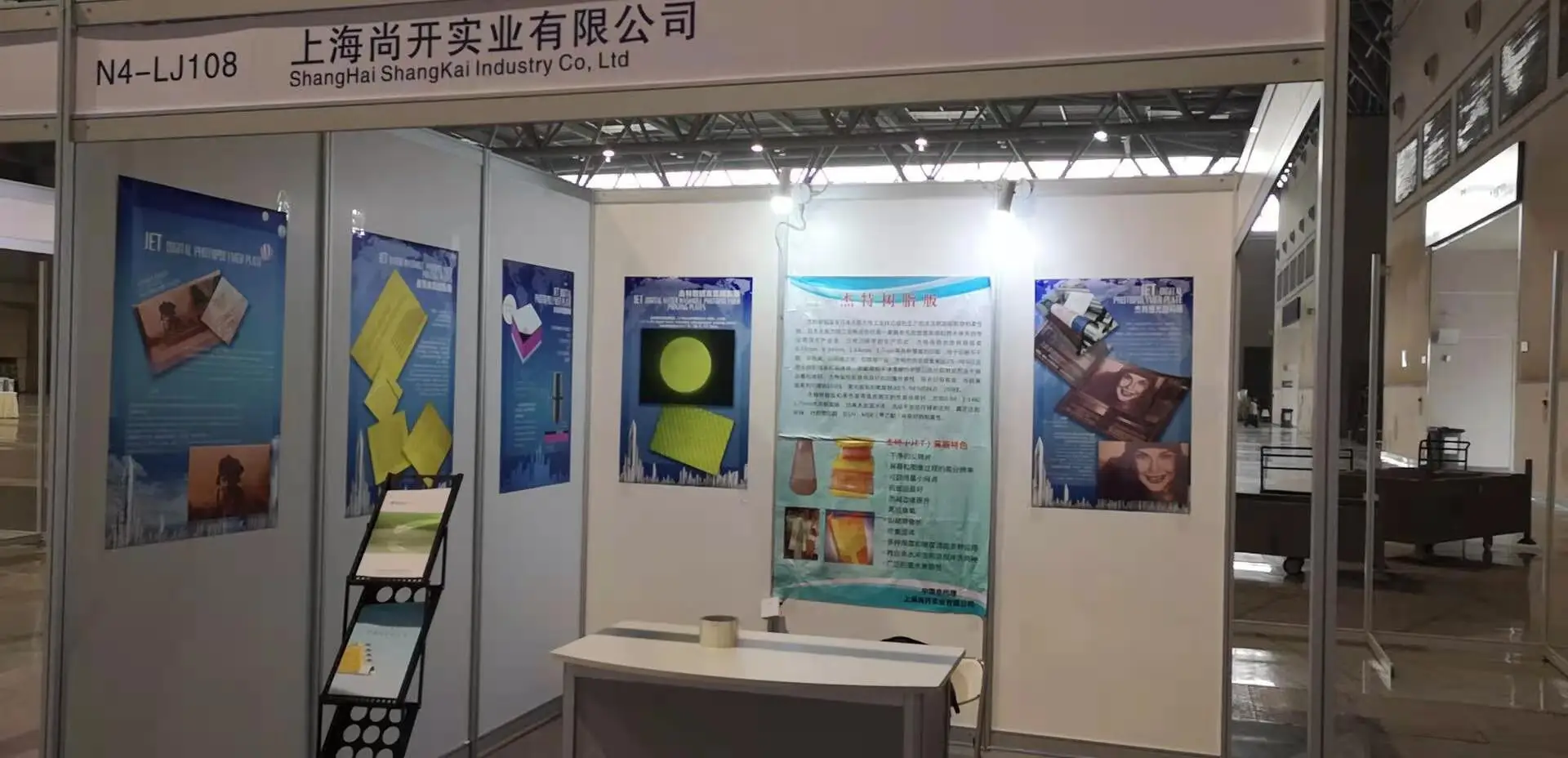

Exhibition
Main Market

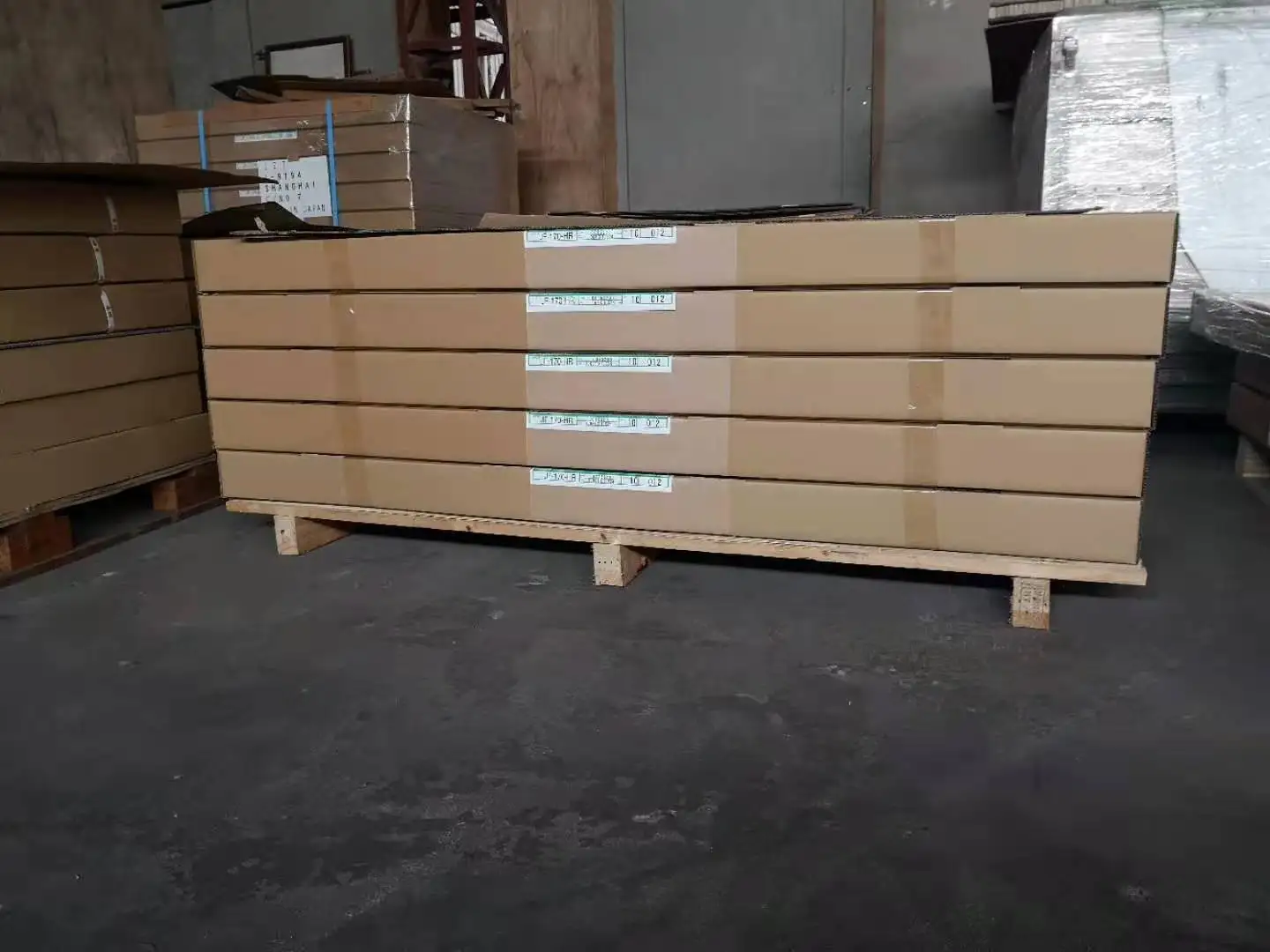

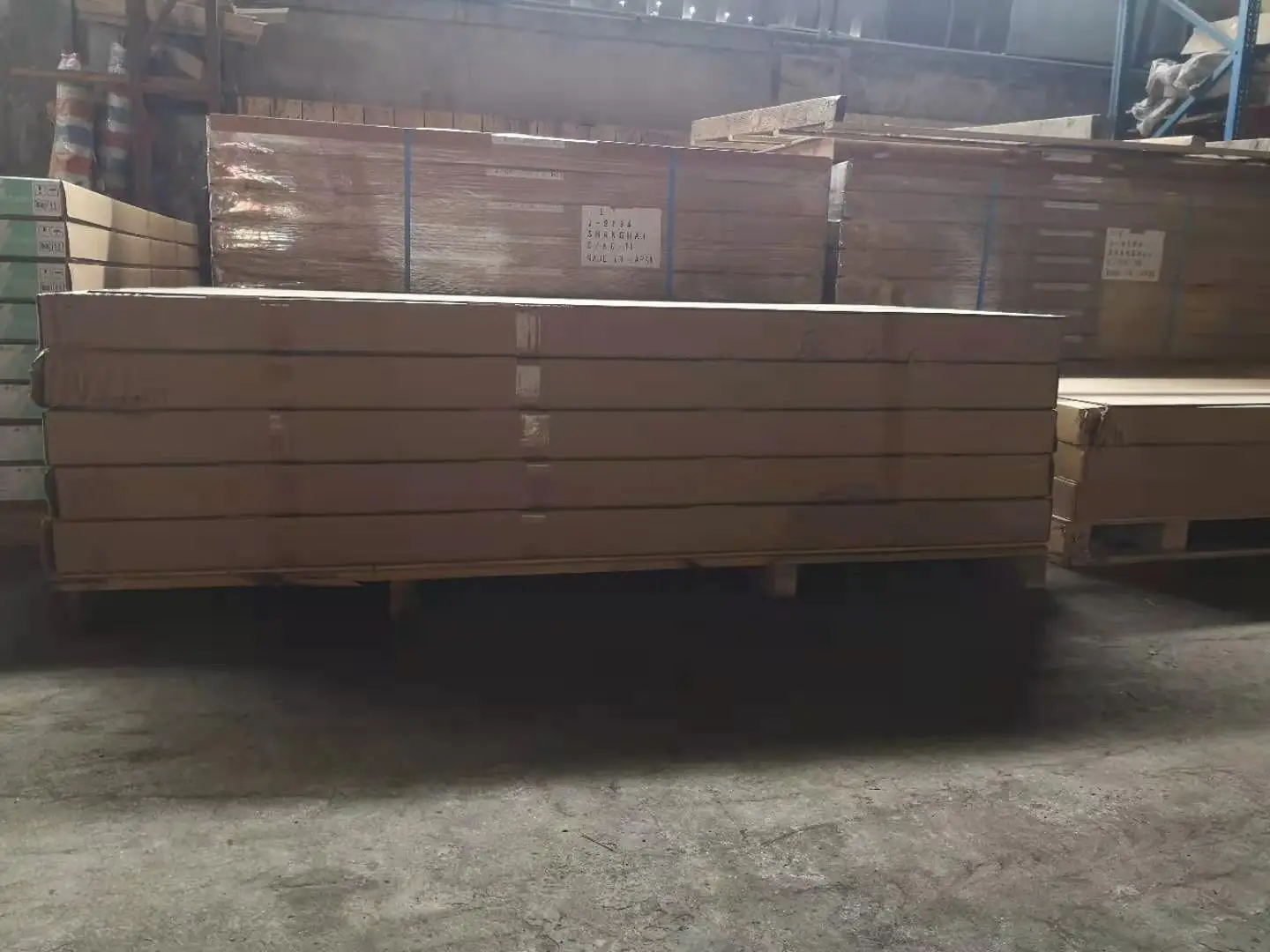

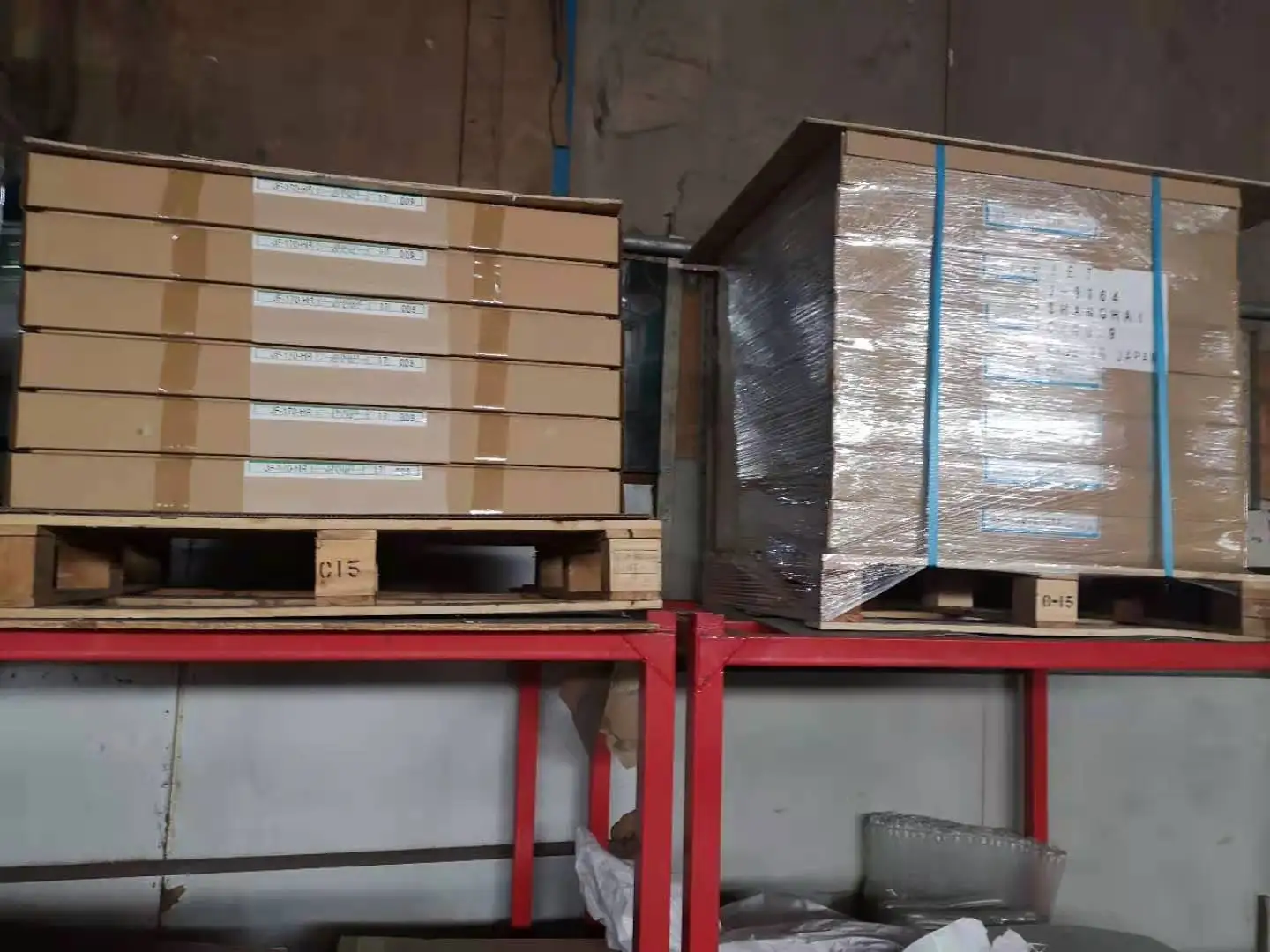

Packing And Shipping
Our Services
1. We have our own brand,currently the sales region covers 20 countries and regions around the world. We specialize in this field for more than 12 years, with the strength of market, with good quality and pretty competitive price.
2. We provide OEM services, we can do OEM for products of your brand(print your graphics on the products). The processing method, the size, the quality, etc. will all follow your requirements.
3. Reply the inquiry in 24 working hours.
4. Experienced staffs answer all your questions.
Please feel free to contact me online or send me a message if you are interested in our products, thank you!
2. We provide OEM services, we can do OEM for products of your brand(print your graphics on the products). The processing method, the size, the quality, etc. will all follow your requirements.
3. Reply the inquiry in 24 working hours.
4. Experienced staffs answer all your questions.
Please feel free to contact me online or send me a message if you are interested in our products, thank you!
