Solar Controller SDLA12TA/SDLA12TB MPPT Solar Controller Charging Module for 12V 1 1000AH Lead Acid Battery

Feature:

1. Suitable for 1-1000AH 12V Lead-Acid Battery charger.

2. Suitable for 12V Solar panels power point voltage(V MMPT) is 17.5-18.5V.

3. Used in car battery charging, solar panel charging, lead acid battery charger, electric bicycle charger, solar UPS, portable industrial and medical equipment, independent battery charger.

4. Photovoltaic battery maximum power point tracking (MPPT).

5. Overcurrent protection, battery overvoltage protection, charger status indication.

Specification:

Item Type: MPPT Solar Controller Charging Module

Power supply voltage: 12V Solar panels or 18-28VDC power supply

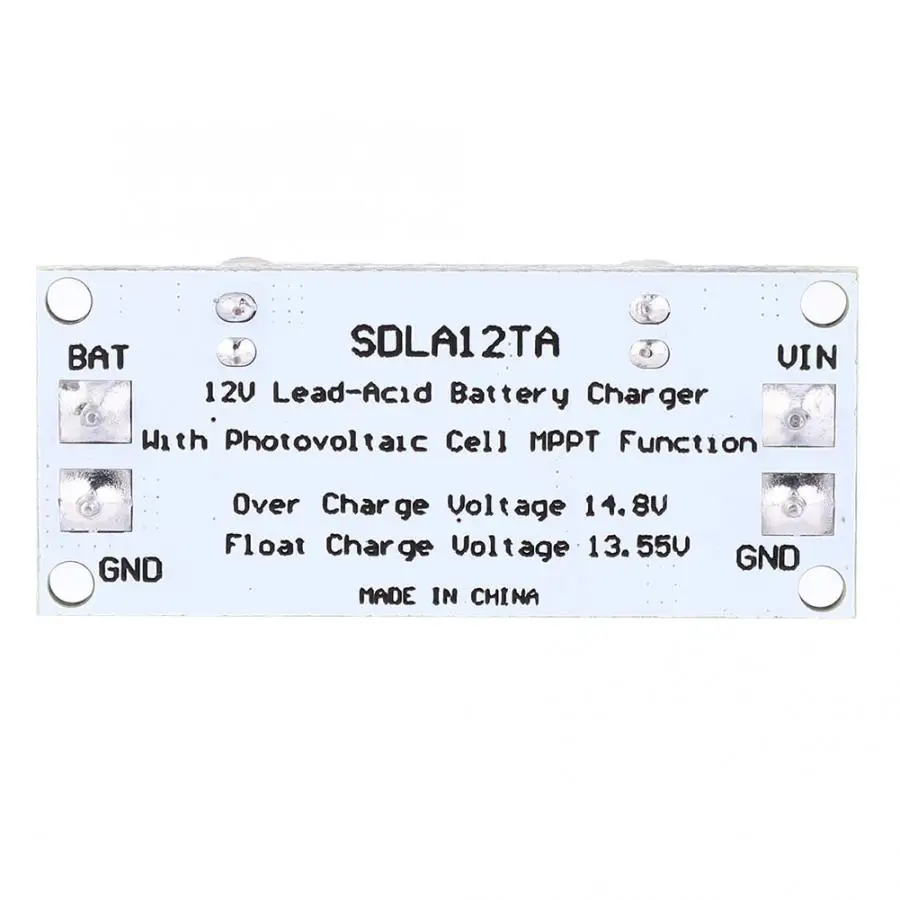

Over Charge Voltage: 14.8V

Float Charge Voltage: 13.55V

Maximum Charge Current: 3A(default)

Quiescent Current: About 1.8mA

High PWM Switching Frequency: 300KHz

Fixed Over-Charge Voltage

Overcurrent protectionAutomatic Conditioning of Deeply Discharged Batteries

Automatic Recharge

Charger Status Indication

Battery Overvoltage Protection

Operating Ambient Temperature -40℃ to +85℃

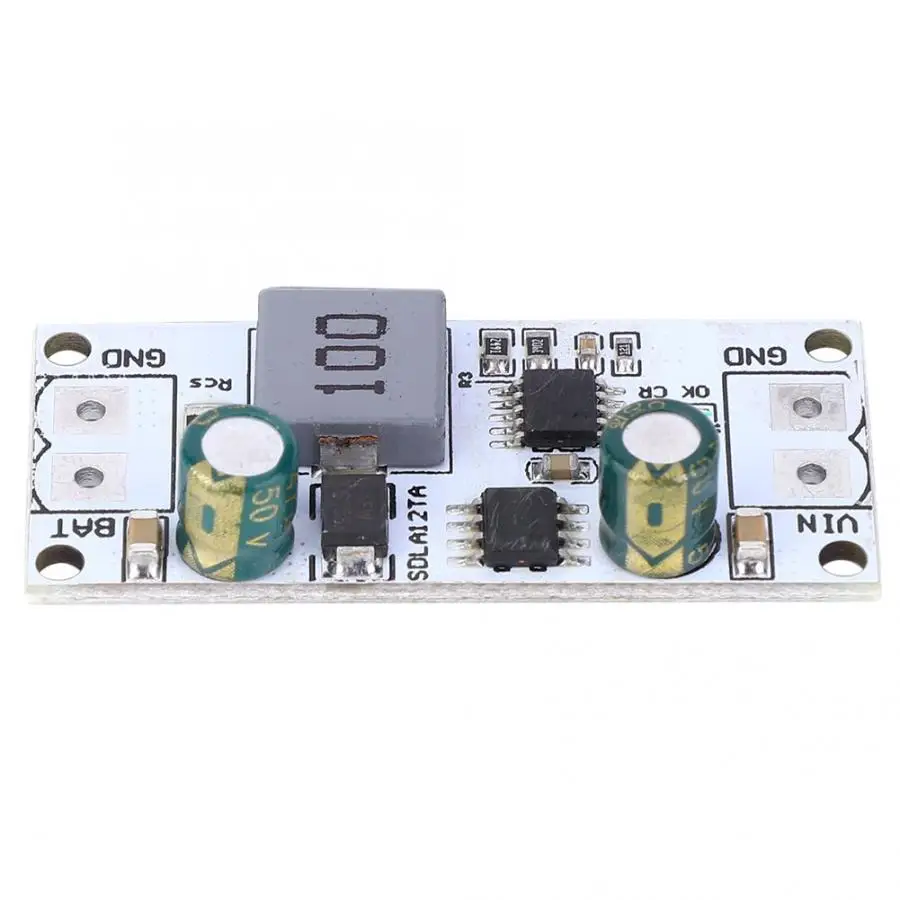

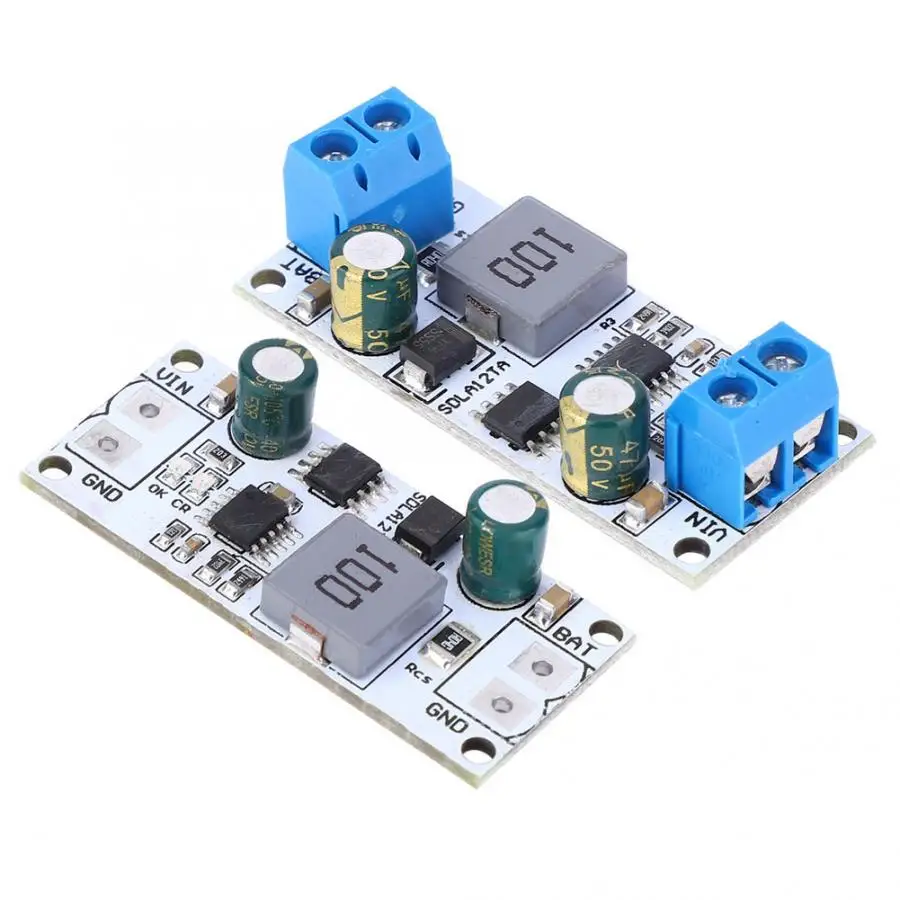

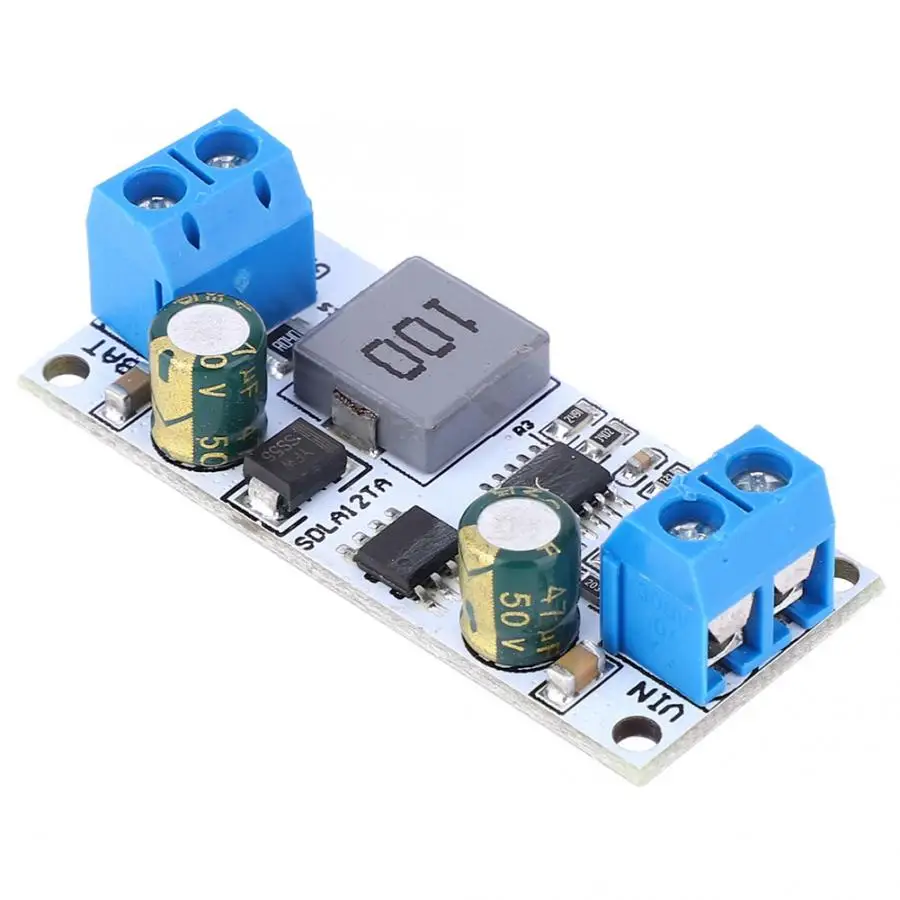

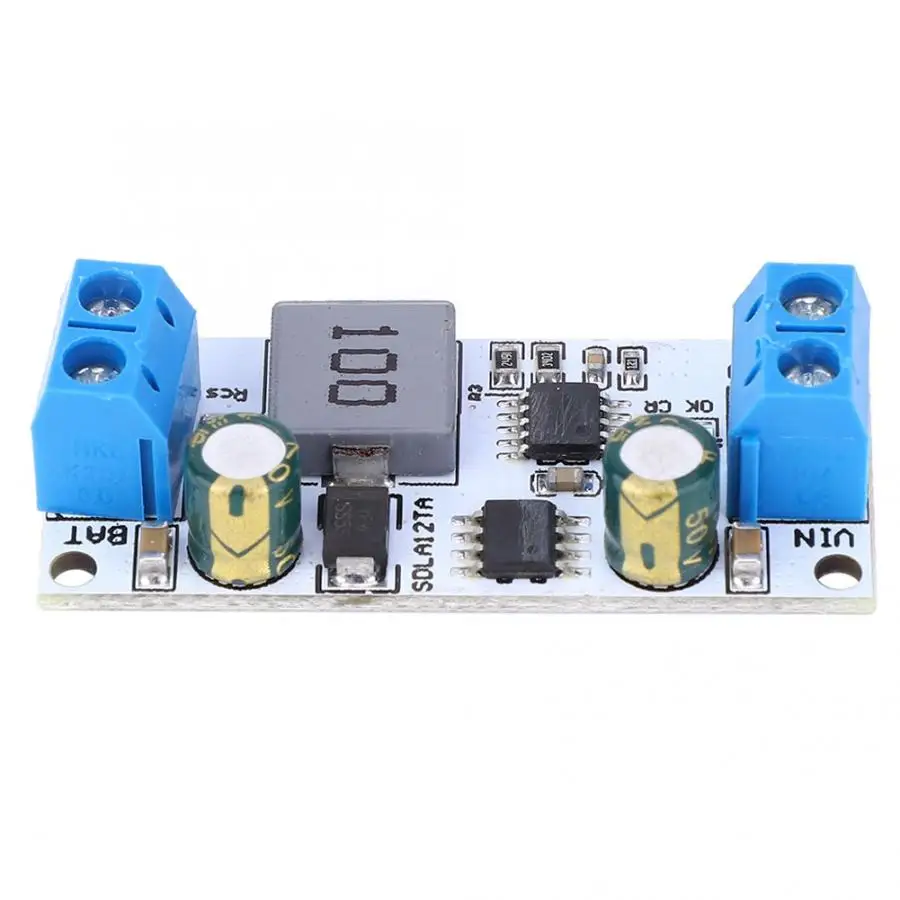

Optional Type: With Terminal, Without Terminal
