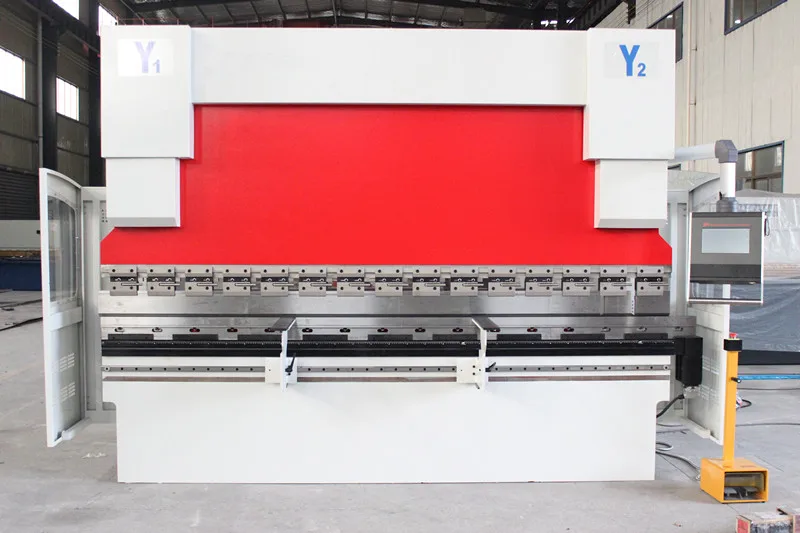

YALIAN WC67Y WC67K 30 300 ton 4 foot die block bending metal sheet steel hydraulic press brake machine
- Category: >>>
- Supplier: Nantong Usky Import And Export Co. Ltd.
Share on (1600225868076):
Product Overview
Description
Product Overview
Main Configuration
1.Full EU streamlined design, heat treatment rack,high rigidity worktable.
2.Estun NC controller E21/DA41for Y axis and X axis control.
3.Working-piece counting function.
4.Bending retraction function
5. Backgauge with ball screw and Manual R axis
6.Optional V axis for compensation function.
7.light curtain for safty , optional DSP laser protection.
8. CE certificate and ISO9001*2008
1.Full EU streamlined design, heat treatment rack,high rigidity worktable.
2.Estun NC controller E21/DA41for Y axis and X axis control.
3.Working-piece counting function.
4.Bending retraction function
5. Backgauge with ball screw and Manual R axis
6.Optional V axis for compensation function.
7.light curtain for safty , optional DSP laser protection.
8. CE certificate and ISO9001*2008
FEATURES AT A GLANCE
COMPACT DIMENSIONS
EXTENDING UNDERCARRIAGE
SAFETY FRAME
SIMPLE CONTROL
SEASY MAINTENANCE
VERSATILITY
EXTENDING UNDERCARRIAGE
Machine Back
Controller(ESA,DELEM,ESTUN)
Electric Box(Siemens,Schneider)
PRODUCT SPECIFICATIONS
Bending Capability | 80/3200 | 100/3200 | 100/4000 | 125/3200 | 125/4000 | 160/3200 | 160/4000 |
Nominal Force(KN) | 800 | 1000 | 1000 | 1250 | 1250 | 1600 | 1600 |
Worktable Length(mm) | 3200 | 3200 | 4000 | 3200 | 4000 | 3200 | 4000 |
Column Distance(mm) | 2490 | 2490 | 3000 | 2490 | 3000 | 2490 | 3000 |
Throat Depth(mm) | 250 | 320 | 320 | 320 | 320 | 320 | 320 |
Ram Stroke(mm) | 120 | 120 | 120 | 120 | 120 | 180 | 180 |
Main Motor Power(KW) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 |
Bending Capability | 160/6000 | 200/3200 | 200/4000 | 200/6000 | 250/3200 | 250/4000 | 250/6000 |
Nominal Force(KN) | 1600 | 2000 | 2000 | 2000 | 2500 | 2500 | 2500 |
Worktable Length(mm) | 6000 | 3200 | 4000 | 6000 | 3200 | 4000 | 6000 |
Column Distance(mm) | 4100 | 2490 | 3000 | 4600 | 2500 | 3000 | 4600 |
Throat Depth(mm) | 320 | 320 | 320 | 320 | 350 | 350 | 350 |
Ram Stroke(mm) | 200 | 200 | 200 | 200 | 250 | 250 | 200 |
Main Motor Power(KW) | 11 | 11 | 11 | 15 | 15 | 15 | 15 |
Bending Capability | 300/3200 | 300/4000 | 300/6000 | 400/4000 | 400/5000 | 400/6000 | 500/4000 |
Nominal Force(KN) | 3000 | 3000 | 3000 | 4000 | 4000 | 4000 | 5000 |
Worktable Length(mm) | 3200 | 4000 | 6000 | 4000 | 5000 | 6000 | 4000 |
Column Distance(mm) | 2500 | 3000 | 4600 | 3100 | 3600 | 4600 | 3100 |
Throat Depth(mm) | 350 | 350 | 350 | 350 | 350 | 350 | 350 |
Ram Stroke(mm) | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
Main Motor Power(KW) | 18.5 | 18.5 | 18.5 | 22 | 22 | 30 | 30 |
Bending Capability | 500/6000 | 500/8000 | 600/6000 | 600/8000 | 800/6000 | 800/8000 | 1000/6000 |
Nominal Force(KN) | 5000 | 5000 | 6000 | 6000 | 8000 | 8000 | 10000 |
Worktable Length(mm) | 6000 | 8000 | 6000 | 8000 | 6000 | 8000 | 6000 |
Column Distance(mm) | 4600 | 6100 | 4600 | 6100 | 4600 | 6100 | 4600 |
Throat Depth(mm) | 350 | 350 | 400 | 400 | 400 | 400 | 500 |
Ram Stroke(mm) | 250 | 300 | 300 | 300 | 300 | 300 | 400 |
Main Motor Power(KW) | 30 | 30 | 37 | 45 | 45 | 55 | 55 |
PRODUCT CONFIGURATION
Mechanical compensation
Siemens Motor and sunny pump
Backguage
