Item | Pressure regulators |
Warranty | 1 years |
Place of Origin | China |
Brand Name | F isher |
Model Number | Types 1301F and 1301G |

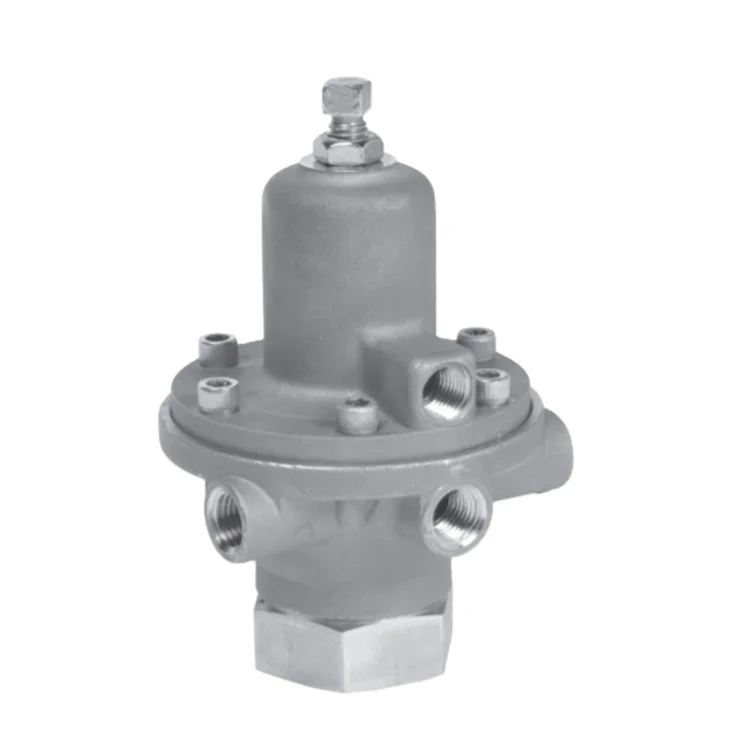

Product name | Gas regulator Types 1301F and 1301G pressure regulators |
Available Constructions | 1301F Series: inlet 6000 psig/1301G Series: inlet 6000 psig |
Body Size and End Connection Style | 1/4 NPT |
Maximum Inlet Pressure | Air and Gas: 6000 psig / 414 bar |
Outlet Pressure Ranges | Type 1301F: 10 to 225 psig /Type 1301G: 200 to 500 psig |
Standard Temperature Capabilities | Nylon Disk & Neoprene Gaskets: -20 to 180°F / -29 to 82°C |
High Temperature Capbailities | PTFE Disk & FKM Gaskets: -20° to 400°F / -29 to 204° |
Pressure Registration | Internal |
Approximate Weight | 8 Pounds / 3.6 kg |
Orifice Size | 5/64-inch / 2.0 mm |
