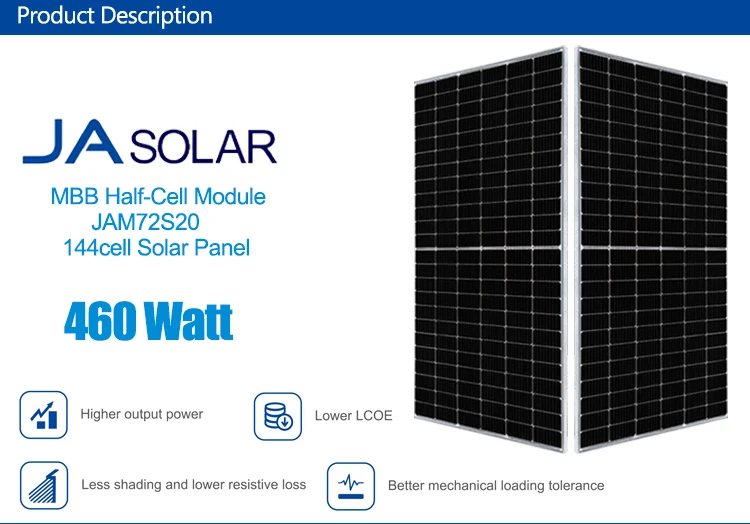

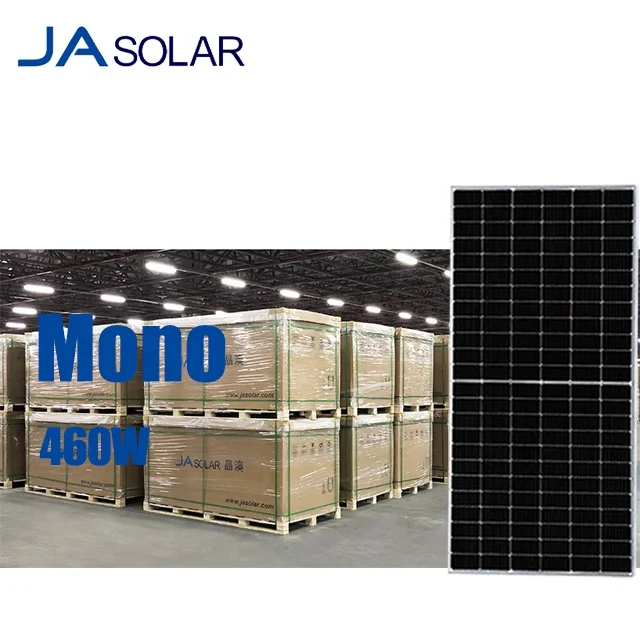

JA Cheap price 460 watt first hand agent monocrystalline roof tile solar panels for home

Product Overview

Description

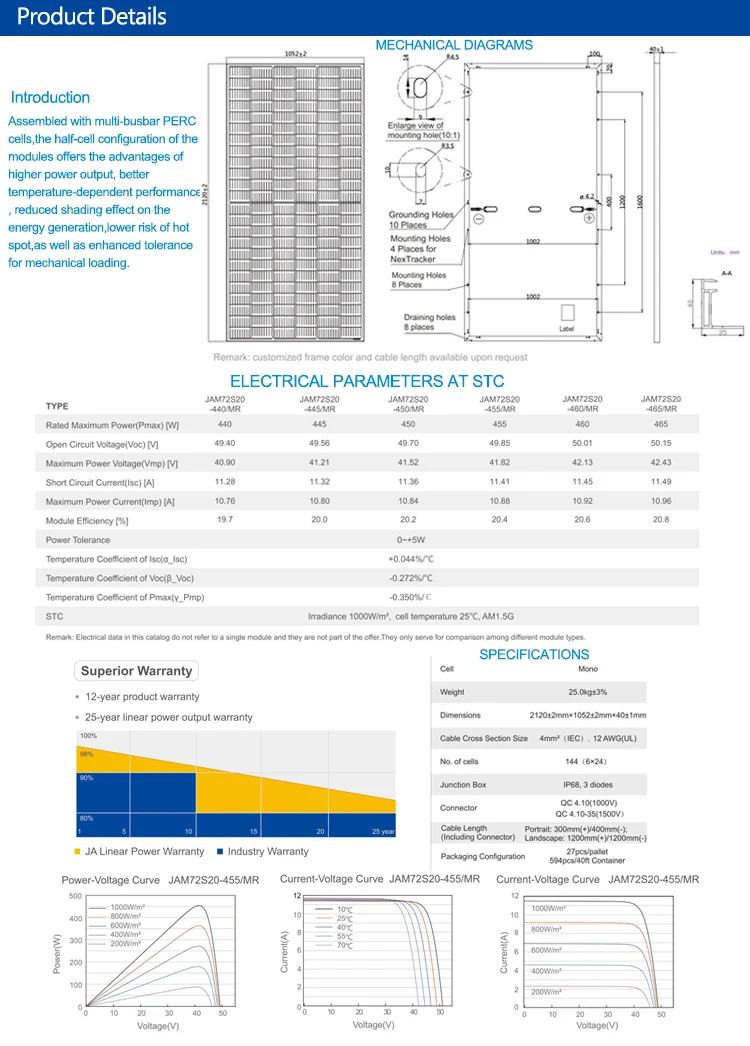

SPECIFICATIONS
Cell	Mono
Weight	25.0kg±3%
Dimensions	2120±2mm x 1052±2mm x 40±1mm
Cable Cross Section Size	4mm² (IEC), 12AWG (UL)
No. of Cells	144 (6x24)
Junction Box	IP68, 3 diodes
Connector	QC 4.10(1000V), QC4.10-35(1500V)
Cable Length(Including Connector)	Portrail: 300mm(+) 400mm(-) Landscape: 1200mm(+) 1200mm (-)

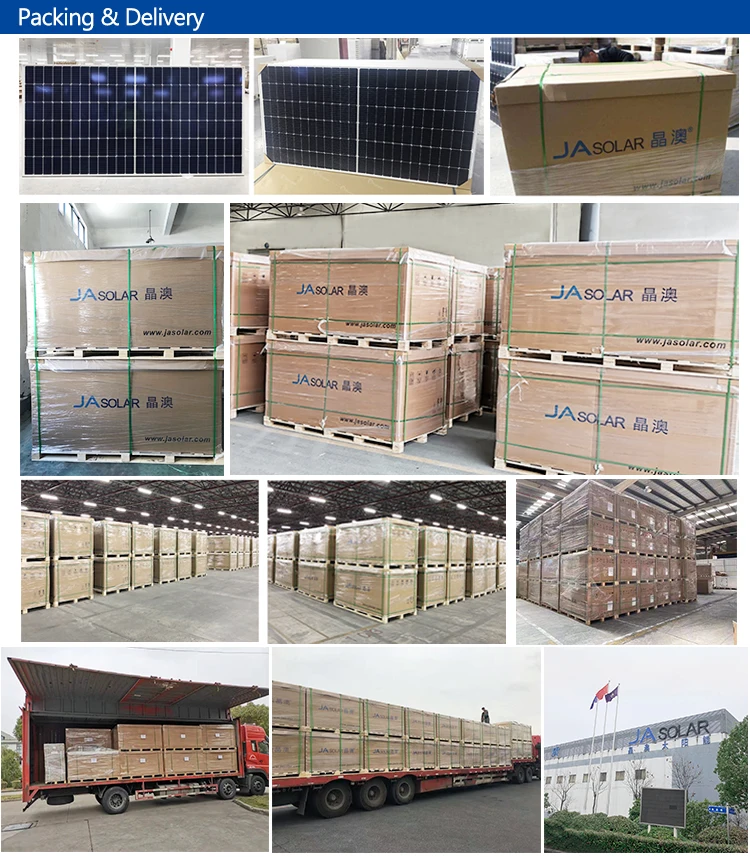

Packaging Configuration	27pcs/Pallet, 594pcs/40ft Container
ELECTRICAL PARAMETERS AT STC
Rated Maximum Power (Pmax) [W]	440	445	450	455	460	465
Open Circuit Voltage (Voc) [V]	49.40	49.56	49.70	49.85	50.01	50.15
Maximum Power Voltage (Vmp) [W]	40.90	41.21	41.52	41.82	42.13	42.43
Short Circuit Current (Isc) [A]	11.28	11.32	11.36	11.41	11.45	11.49
Maximum Power Current (Imp) [A]	10.76	10.80	10.84	10.88	10.92	10.96
Module Efficiency [%]	19.7	20.0	20.2	20.4	20.6	20.8
Power Tolerance	0~+5W
Temperature Coefficient of Isc [α_Isc]	+0.044%/°C
Temperature Coefficient of Voc [β_Voc]	-0.272%/°C
Temperature Coefficient of Pmax [γ_Pmp]	-0.350%/°C
STC	Irradiance 1000W/m², cell temperature 25°C, AM1.5G

Q1: What's the MOQ?

A: 1000 PCS





Q2: What about the lead time?

A:Mass production needs 2-3weeks for order quantity more than one container





Q3: what’s the warranty ?

A:5 years

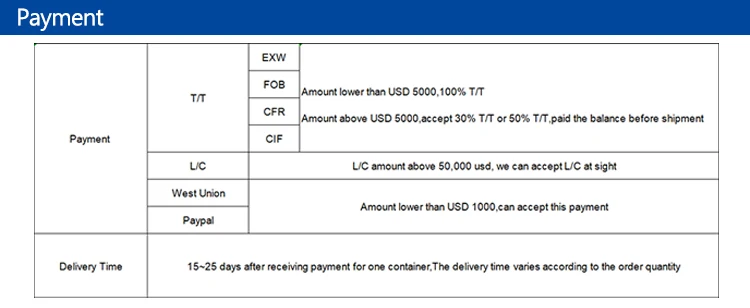

Q4: How can i pay the solar panels ?

We could accept payment by T/T, Paypal, West union, Alibaba Trade Assurance order etc.



Q5: How can I contact  you?

Please contact us by Trade manager, Email, Whatsapp or wechat, surely call me when you need
